IDEALPLUSING Programmable DC Power Supply 9VDC 50A 90A 500A with 5-Digit Display High Performance for Quality Inspection Systems
Product Description
IDEALPLUSING Programmable DC Power Supply 9VDC 50A 90A 500A with 5-Digit Display
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs and purchase quantity. We adhere to the principle of integrity. Thank you for your trust.
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs and purchase quantity. We adhere to the principle of integrity. Thank you for your trust.
Product Description
1

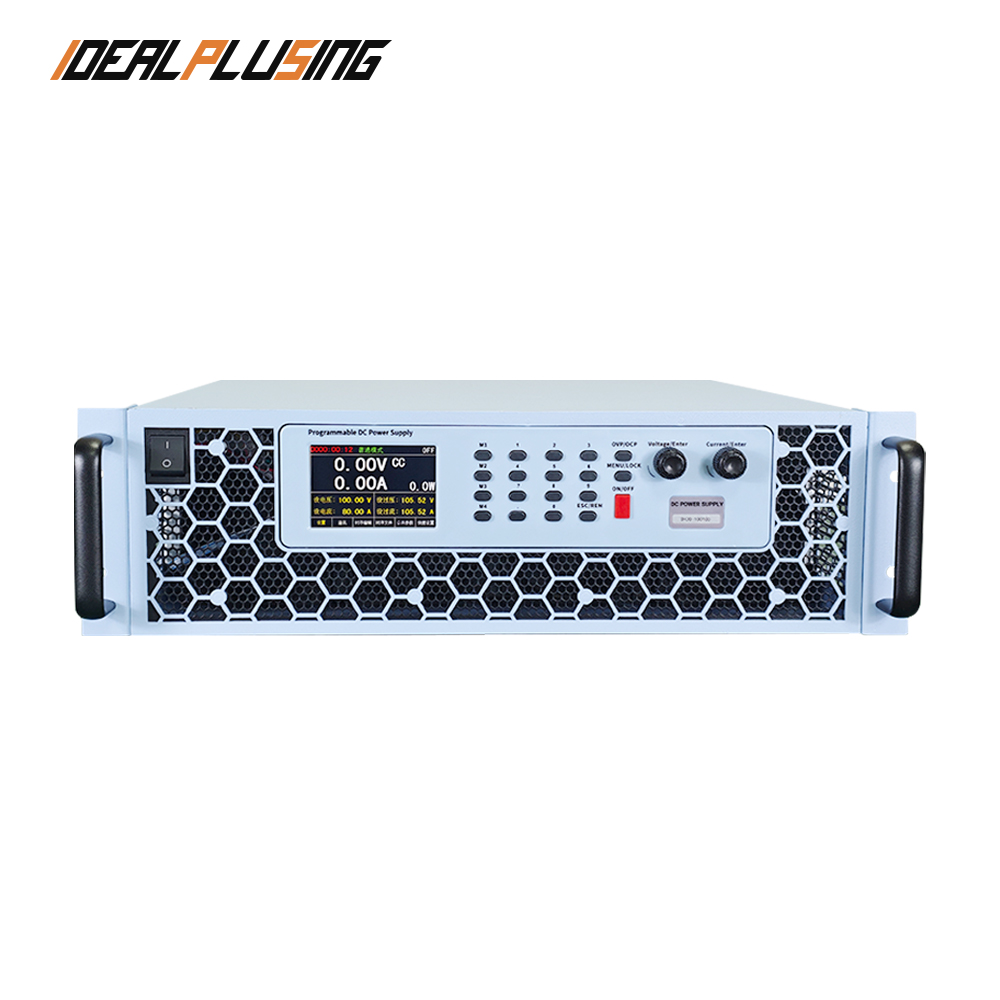

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4

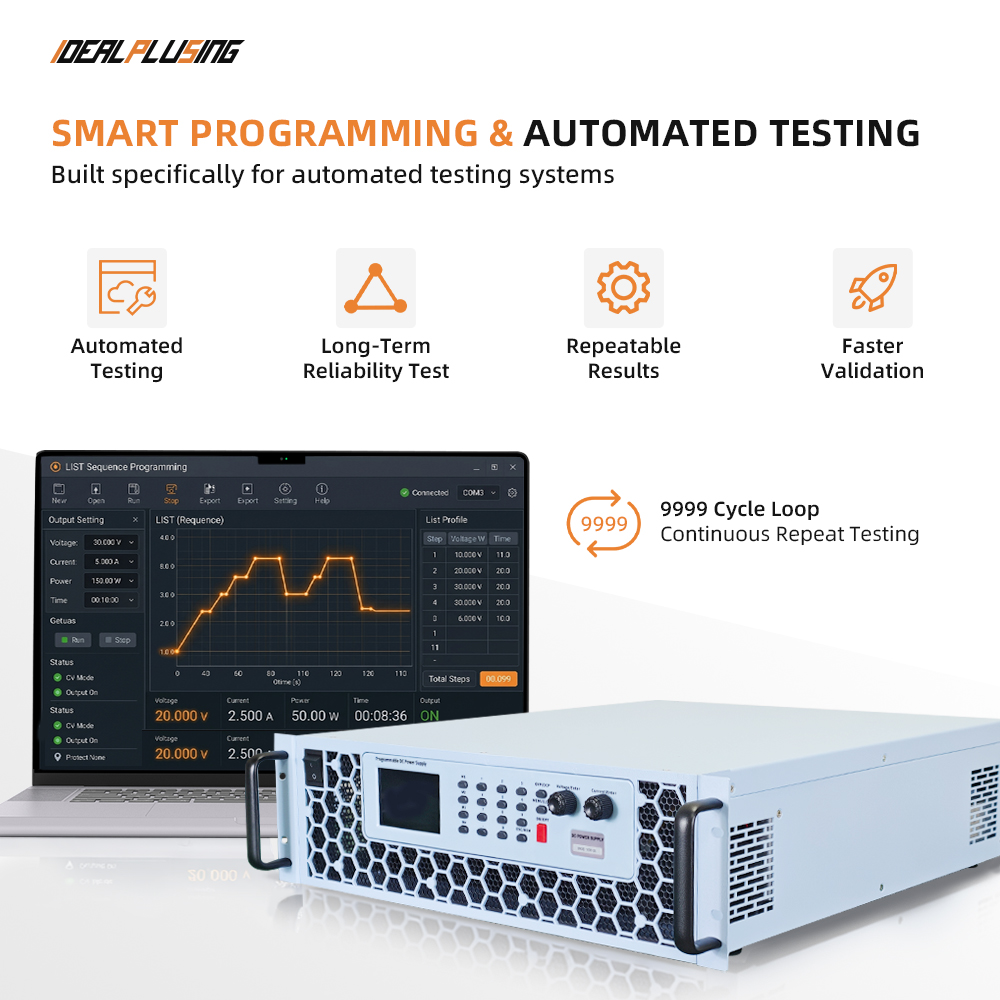

Programmable control over voltage, current, and time outputs.
5
Built-in memory supports up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7

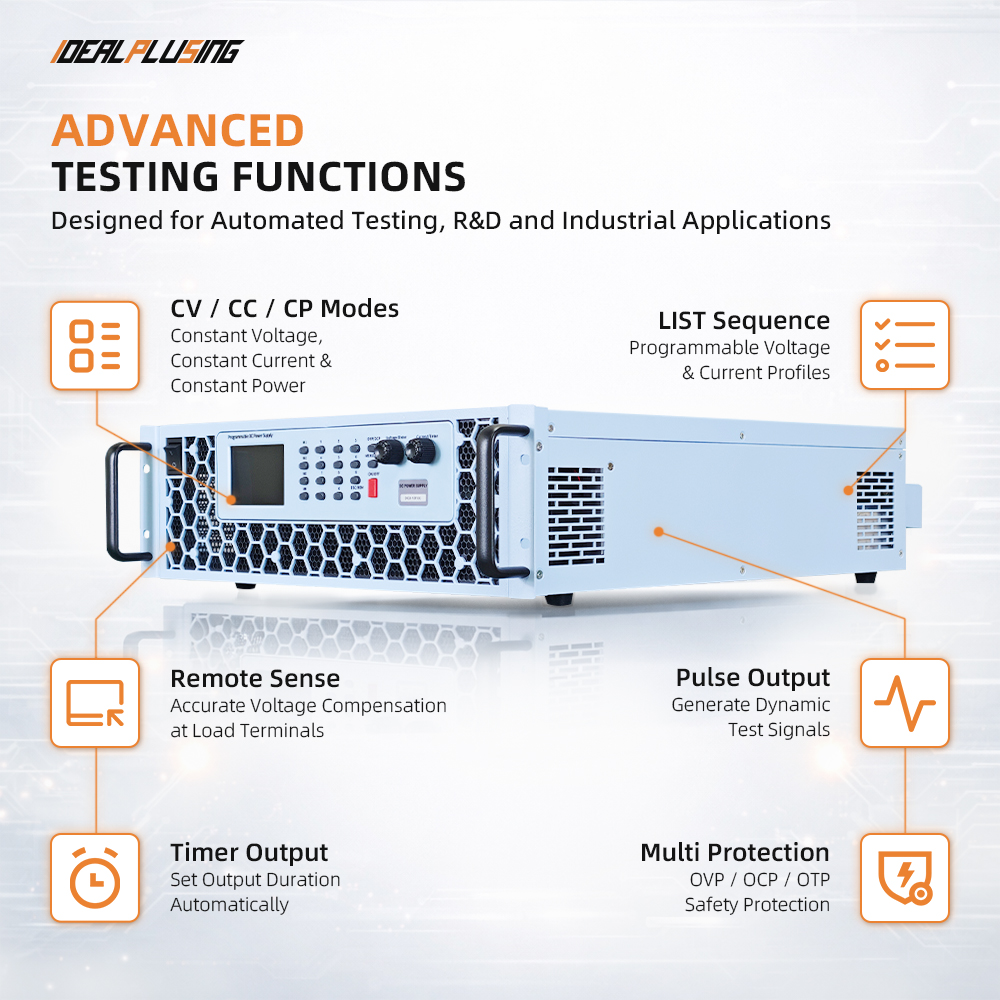

Equipped with dedicated load-side voltage sensing terminals for accurate measurement and precise control.
Technical Specifications
| Specifications | 2U/3U Chassis Series Details |
|---|---|
| Model | 3KW-8KW / 9KW-15KW Range |
| AC Input | Single Phase 220V±10% / Three Phase AC380V±10%; 50Hz/60Hz |
| Output Voltage | 0-9VDC Rated Voltage |
| Output Current | 0-500A Rated Current |
| Output Power | 0-4500W Rated Power |
| Source/Load Regulation | ≤0.1%+10mV / ≤0.1%+30mV |
| Display Mode | Color LCD 5-digit Digital Meter |
| Protection | OVP (Over-Voltage), OCP (Over-Current), OTP (Over-Temperature 85℃) |
| Communication | RS-485/RS-232 (Modbus and SCPI) |
| Cooling | Forced Air Cooling |
Hot Selling Models
IPS-DH10-6002
0~600VDC, 0~2A, 1200W
IPS-DH20-12003
0~1200VDC, 0~3A, 3600W
IPS-DH10-5001
0~500VDC, 0~1A, 500W
IPS-DH30-8500
0~8VDC, 0~500A, 4000W
IPS-DH10-10003
0~1000VDC, 0~3A, 3000W
IPS-DH20-8005
0~800VDC, 0~5A, 4000W
Detailed Product Views

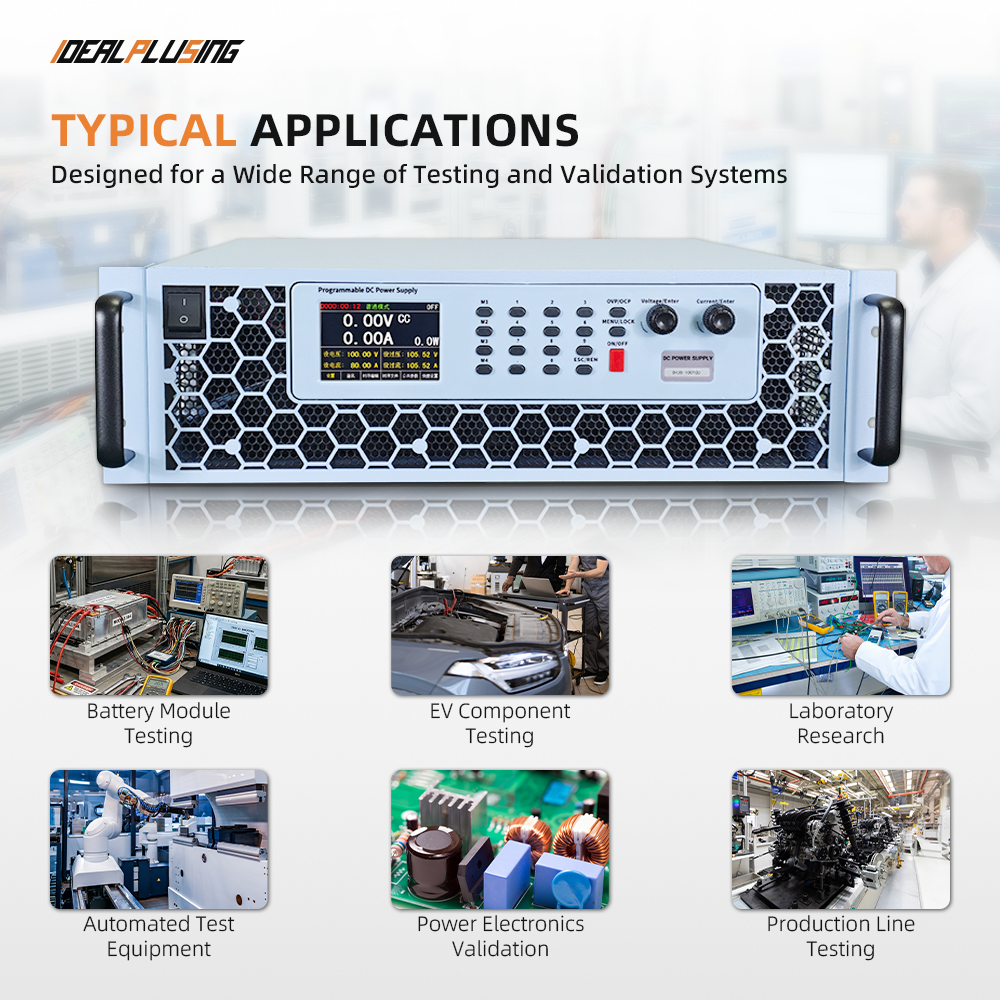

Applications: Used in capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing.
Application Scope
Full Model List (Partial)
| Model | Voltage | Current | Power |
|---|---|---|---|
| IPS-DH30-9500 | 9VDC | 500A | 4500W |
| IPS-DH20-30150 | 30VDC | 150A | 4500W |
| IPS-DH20-15300 | 15VDC | 300A | 4500W |
| IPS-DH20-60010 | 600VDC | 10A | 6000W |
| IPS-DH30-151000 | 15VDC | 1000A | 15000W |
About Our Solutions
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, inverters, and high-performance power solutions. Our goal is to provide personalized, efficient, and cost-effective solutions for all industries, not just selling products.
Frequently Asked Questions
What communication protocols are supported?
The power supply features RS-232 and RS-485 interfaces, supporting both Modbus-RTU and SCPI standard communication protocols for easy system integration.
Can this power supply be used for automated testing?
Yes, it is highly suitable for Quality Inspection Systems and automated testing. It features built-in memory for up to 50 programmable steps (LIST mode) for voltage, current, and time cycles.
How accurate is the display?
It features a prominent 5-digit LCD display with a regulation accuracy of ≤±0.1%FS, ensuring precise monitoring of high-performance output.
What safety protections are included?
The unit is equipped with comprehensive protection systems, including Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with an 85℃ threshold.
Is the unit suitable for rack mounting?
Yes, the power supply is designed with standard 2U or 3U full-width dimensions, making it perfect for both benchtop use and integration into standard industrial racks.
Does it support remote voltage sensing?
Yes, it is equipped with dedicated load-side voltage sensing terminals to compensate for voltage drops in lead wires, ensuring the exact required voltage reaches the load.
