IDEALPLUSING Pure Sine Wave Static Frequency Converter 50Hz/60Hz to 400Hz OEM/ODM for Aviation and Industrial Applications
Product Description
Pure Sine Wave Power Frequency Converter (50Hz/60Hz/400Hz)
🚀 PERFORMANCE CHARACTERISTICS
1Complete isolation of input and output technology, safe and reliable power supply.
2SPWM sine wave pulse width modulation technology for fast response and stable output.
3IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
4Double-loop control mode of instantaneous and effective value for high precision and waveform quality.
5High power IGBT module with integrated drive circuit, strong overload capacity, and low loss.
6Suitable for various loads: resistive, inductive, rectifier, and more.
7Multiple protections for overheating, overcurrent, and short circuit conditions.
8Parameter memory function with 10-groups shortcut key operation.
9Real-time online adjustment of power supply voltage and frequency.
🛠️ APPLICATIONS
Home appliances
Photovoltaic
Motors
Lamps
Power tools
Electronic transformers
Switching power supplies
Electronic components
Power adapters
Low-voltage distribution
UPS
Power
Information and communication
Other industries
📊 SPECIFICATIONS (IPS-FC61) - Single-Phase In/Out
| Model (IPS-FC61) Single-Phase Input / Single-Phase Output | ||||||||||
| Capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated Power (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit Mode | IGBT/SPWM | |||||||||
| AC Input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC Output | Single-phase 220V (0~150V or 0~300V adjustable) | |||||||||
| Frequency | 40~499.9HZ (Software setting) | |||||||||
| Resolution | Freq: 0.1Hz, Voltage: 0.1V, Current: 0.01A, Power: 1W | |||||||||
📊 SPECIFICATIONS (IPS-FC62) - Single-Phase In / Tri-Phase Out
| Model (IPS-FC62) Single-Phase Input / Tri-Phase Output | ||||||||||
| Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| Rated Power (KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 | ||
| AC Output | 3-phases 380V (0~150V or 0~300V adjustable per phase) | |||||||||
| Protection | Overvoltage, overcurrent, overload, overtemp, short-circuit, auto-alarm | |||||||||
📊 SPECIFICATIONS (IPS-FC63) - 3-Phase In / Single-Phase Out
| Model (IPS-FC63) 3-Phase Input / Single-Phase Output | |||||||||||||
| Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 100 | 120 | 400 | 500 | 600 |
| AC Input | Single phase 220V | Tri phase 380V | |||||||||||
| Max Current (150V) | 8.4A | 16.8A | 28A | 42A | 50A | 84A | 125A | 168A | 276A | 336A | 1112A | 1400A | 1667A |
📊 SPECIFICATIONS (IPS-FC68) - 3-Phase In / 3-Phase Out
| Model (IPS-FC68) 3-Phase Input / 3-Phase Output | ||||||||||||
| Capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 45 | 60 | 100 |
| AC Input | Single-phase 220V | Tri-phase 380V | ||||||||||
| Frequency Stability | ≤±0.1% | |||||||||||
| Waveform Distortion | ≤2% (linear load) | |||||||||||

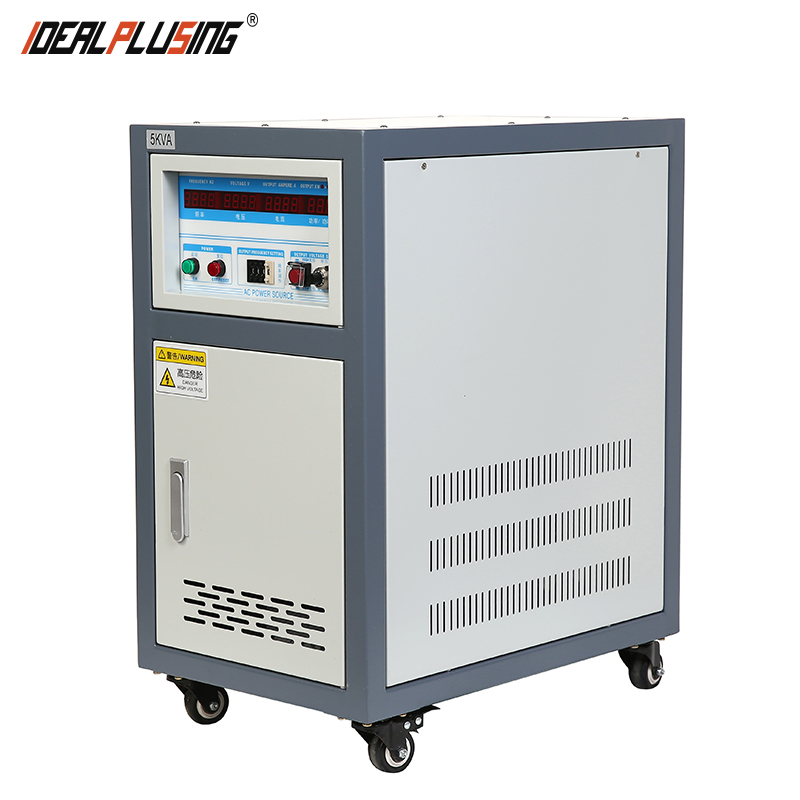

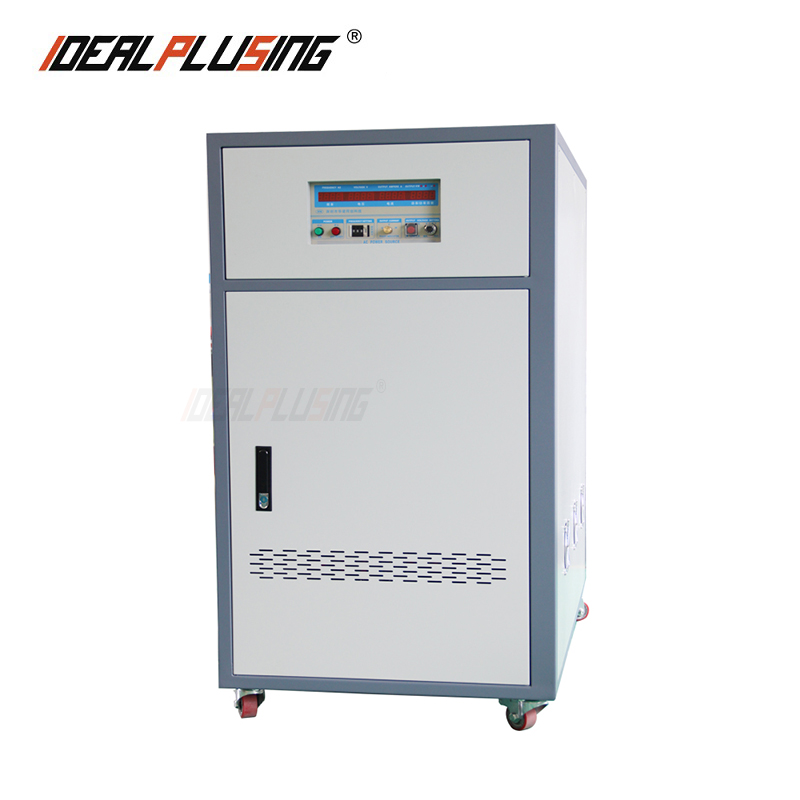

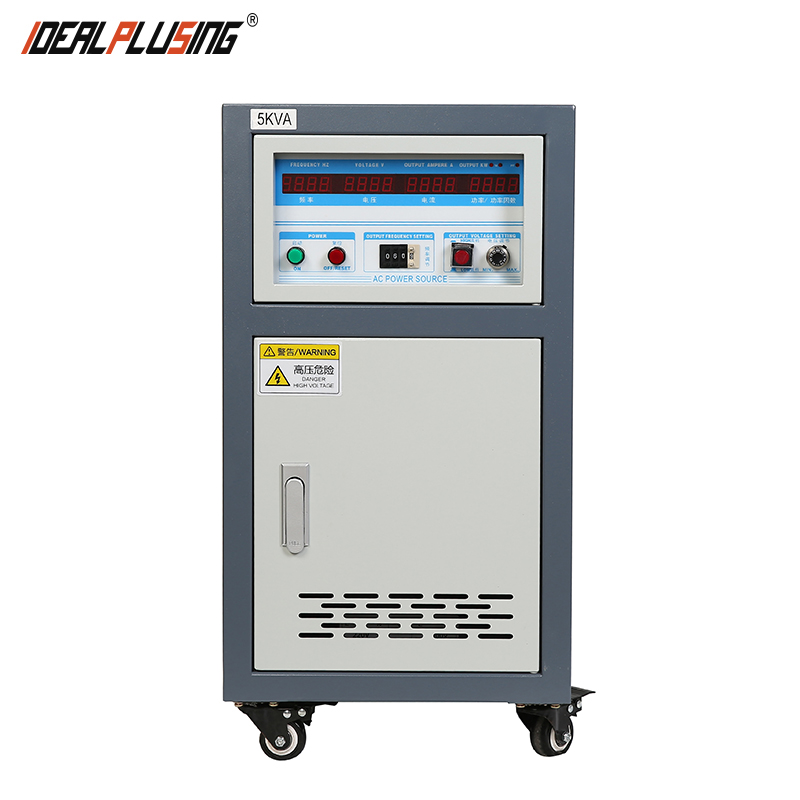

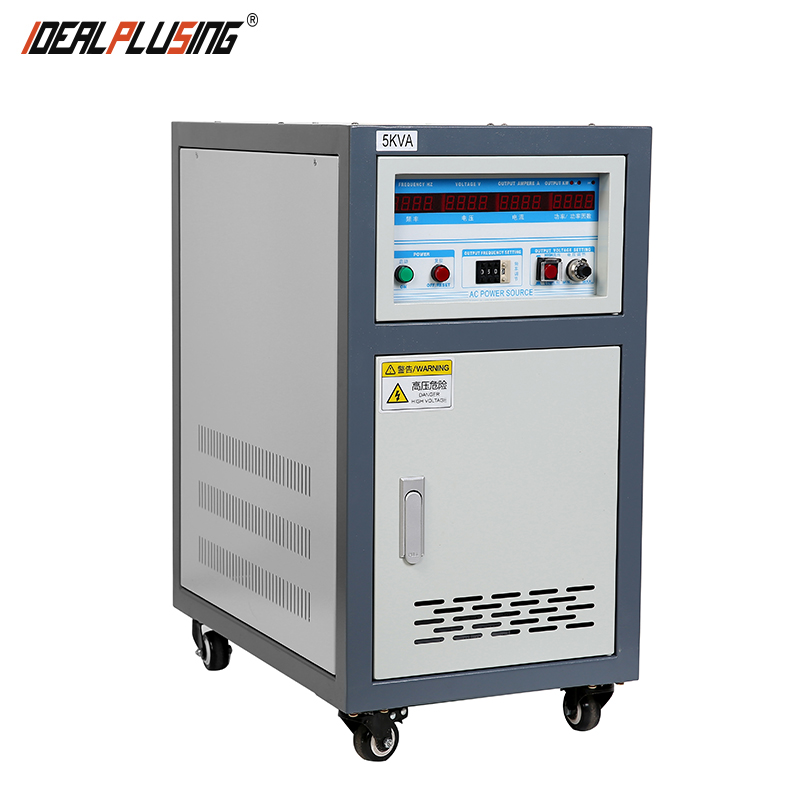

📷 PRODUCT SHOWCASE

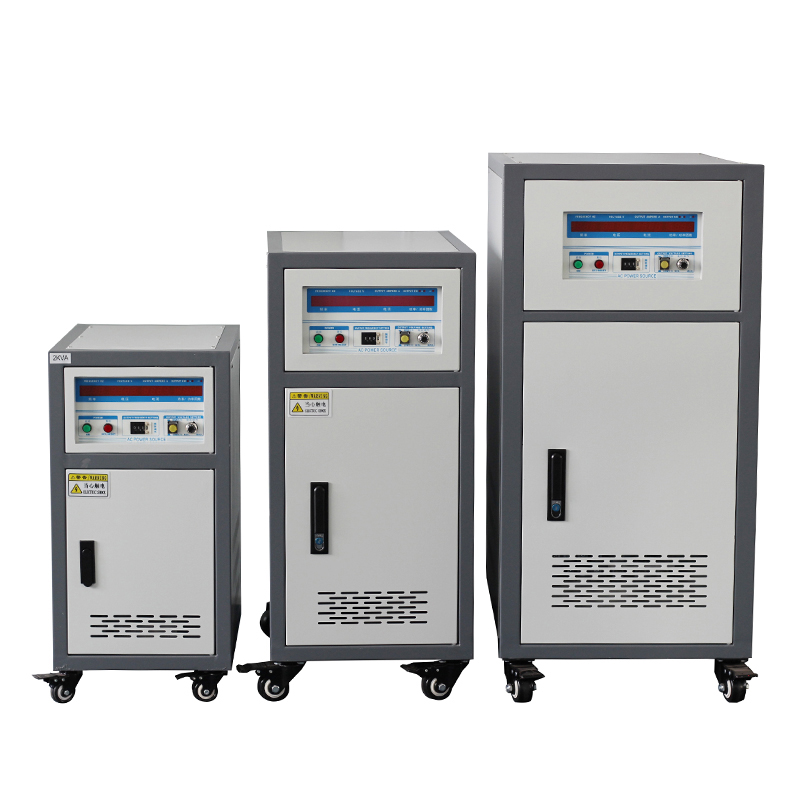

🔍 PRODUCT OVERVIEW & MODELS
Frequently Asked Questions (FAQ)
What is the output frequency range of this converter?
The output frequency can be set via software between 40Hz and 499.9Hz, making it ideal for 50Hz, 60Hz, and aviation-specific 400Hz applications.
What technology ensures the high quality of the output waveform?
The device utilizes SPWM (Sine Wave Pulse Width Modulation) technology and a double-loop control mode for instantaneous and effective values, ensuring a pure sine wave with low distortion (≤2%).
Is the input and output isolated?
Yes, the converter features complete isolation technology between input and output, providing a safe and highly reliable power supply for sensitive equipment.
Can I adjust the voltage and frequency while the device is online?
Yes, both power supply voltage and frequency can be adjusted online in real-time, allowing for flexible operation during testing or production.
What safety protections are built into the system?
The system includes comprehensive protection against overheating, overcurrent, overload, over-voltage, and short circuits, complete with automatic jump protection and an alarm device.
What types of loads is this frequency inverter compatible with?
It is suitable for a wide variety of loads, including resistive, inductive, rectifier, and complex electronic loads like motors, UPS systems, and electronic transformers.
