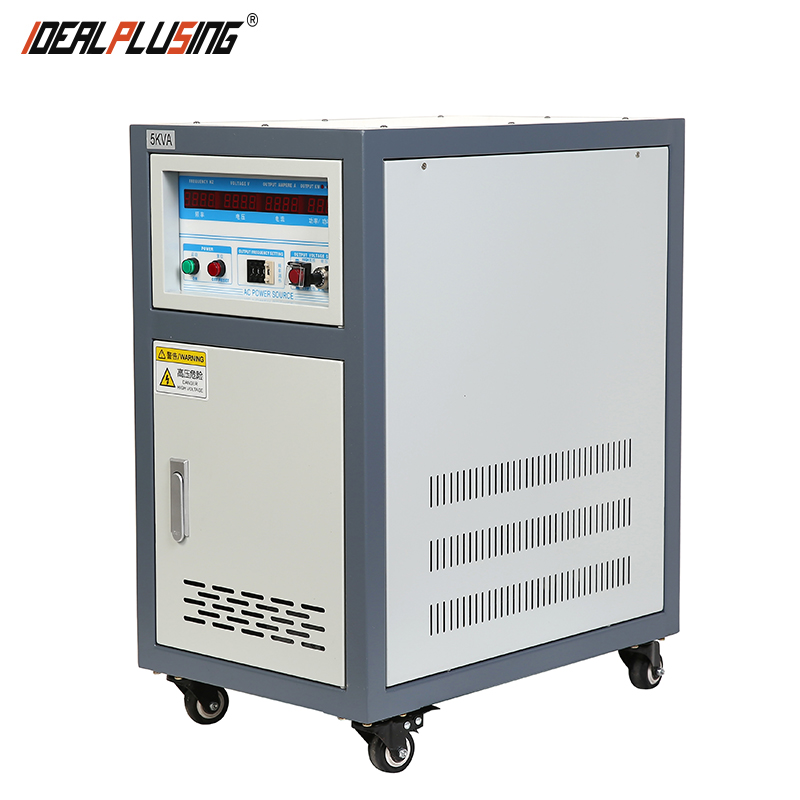

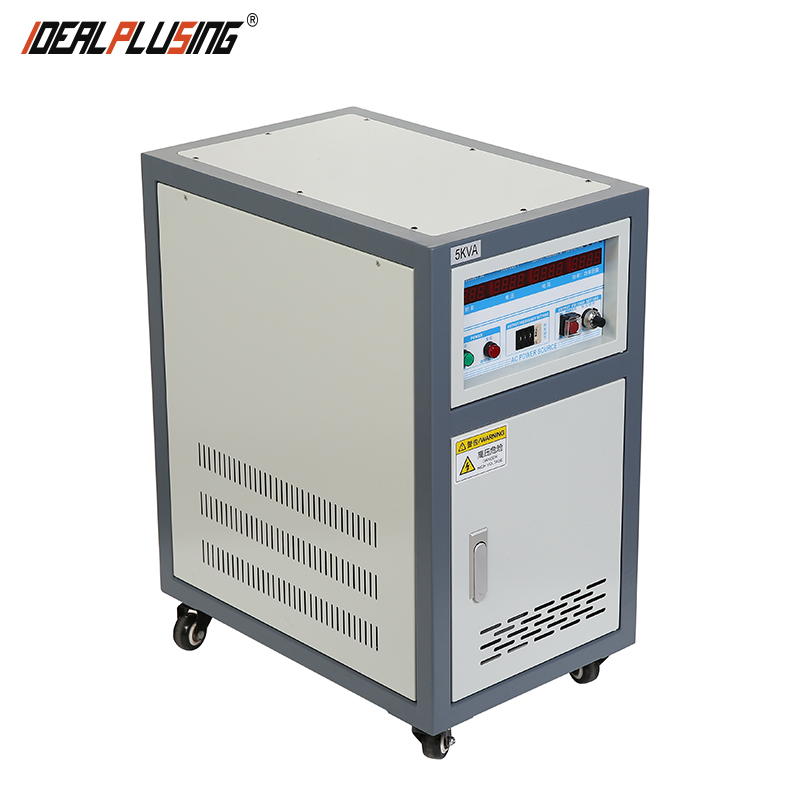

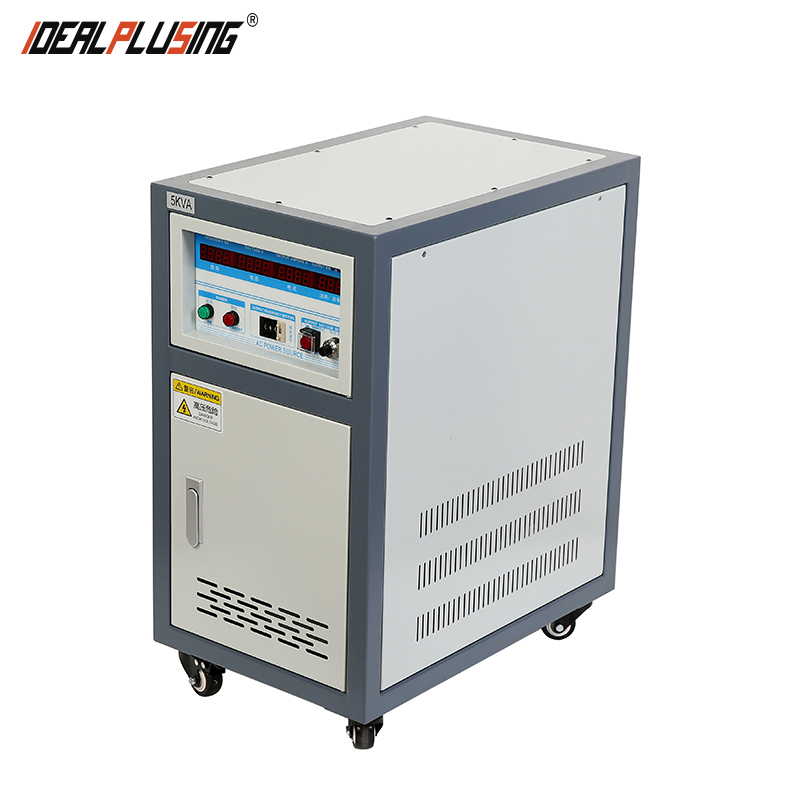

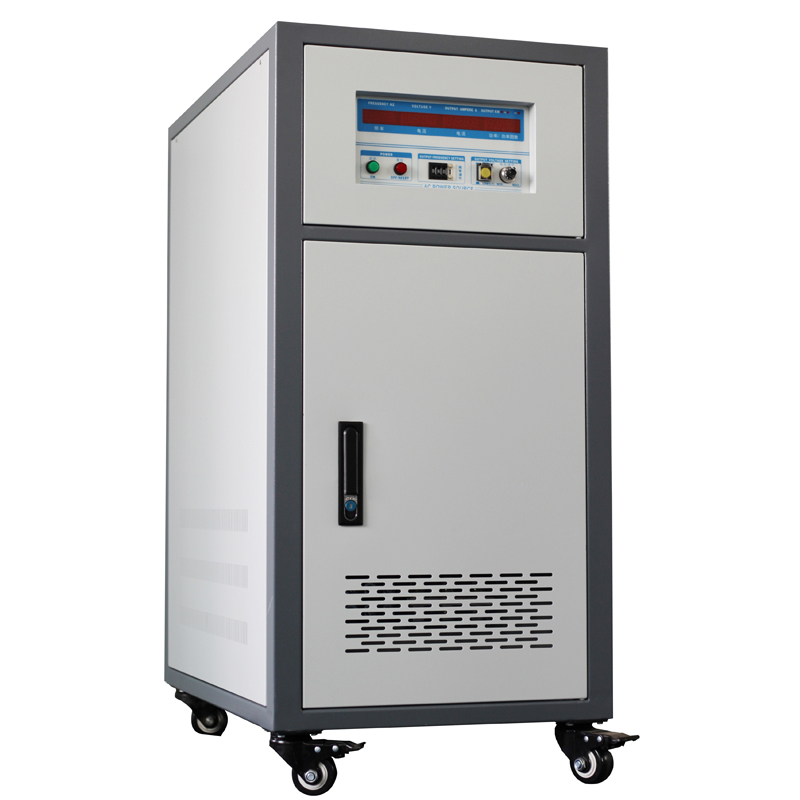

IDEALPLUSING New Product Static 10KVA Single Phase 240v 50Hz to 120v 60Hz Converter
Product Description
PERFORMANCE CHARACTERISTICS
✔Complete isolation of input and output technology, safe and reliable power supply
✔SPWM sine wave pulse width modulation technology for fast response and stable output
✔IGBT high-frequency static inverter, small size, lightweight, and low noise
✔Unique double-loop control mode for high precision and superior waveform quality
✔High power IGBT module with strong overload capacity and high efficiency
✔Suitable for resistive, inductive, rectifier, and other complex loads
✔Multiple protection for overheating, overcurrent, and short circuits
✔Function for setting parameter memory with 10-groups shortcut key operation
✔Online adjustable voltage and real-time frequency changes
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS Systems
Information & Communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power Industry
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Voltage Range | Low: 0~150V / High: 0~300V Adjustable | ||||||||
| Frequency | 40~499.9HZ Adjustable | |||||||||
| Max current | Low range | 4.2A | 8.4A | 17A | 25A | 42A | 50A | 84A | 125A | |
| High range | 2.1A | 4.2A | 8.4A | 12.5A | 21A | 25A | 42A | 63A | ||
| Protection | Overvoltage, over current, overload, over temperature, short-circuit, automatic jump and alarm | |||||||||
Frequently Asked Questions
What is the primary function of this static converter?
The converter is designed to convert power from one frequency and voltage (e.g., 240V 50Hz) to another (e.g., 120V 60Hz), allowing equipment from different regions to operate safely and efficiently.
Is the output voltage and frequency adjustable?
Yes, the device features software-controlled settings that allow the output frequency to be adjusted between 40Hz and 499.9Hz, and voltage can be set across low (0-150V) and high (0-300V) ranges.
What kind of loads can this 10KVA converter handle?
Thanks to its IGBT high-frequency technology and double-loop control, it is suitable for resistive, inductive (like motors), and rectifier loads across various industries.
Does the system provide isolation between input and output?
Yes, it utilizes complete isolation technology between input and output to ensure a safe and reliable power supply, protecting sensitive downstream electronic components.
What safety protections are built into the device?
The converter includes comprehensive protection for overvoltage, overcurrent, overload, over-temperature, and short-circuit conditions, complete with an automatic jump protection and alarm system.
Can I save frequently used settings?
Yes, the unit has a parameter memory function with 10 groups of shortcut keys, allowing you to quickly recall specific configurations for different testing or operational requirements.
