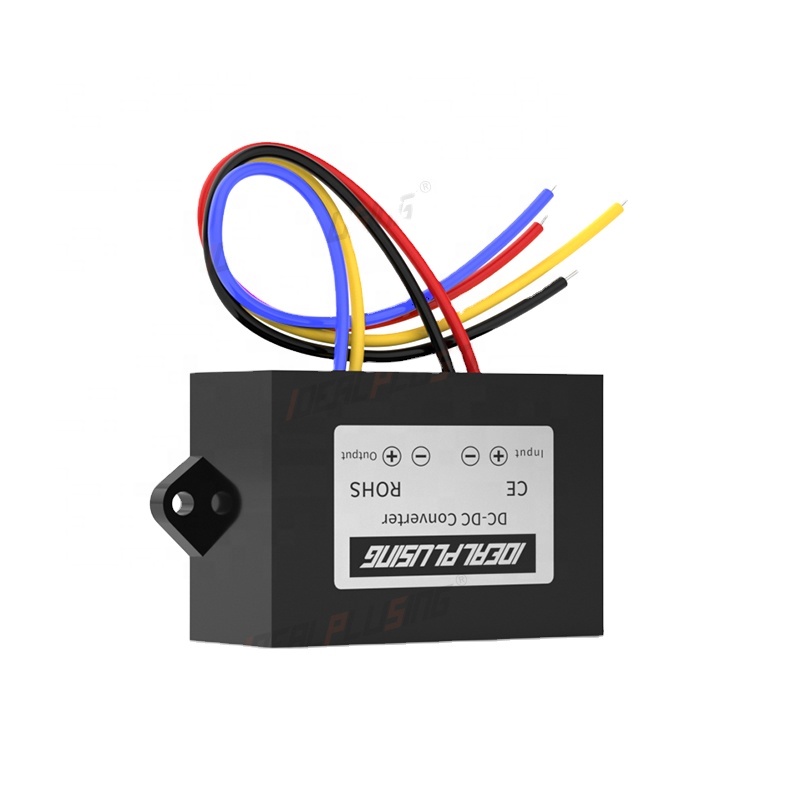

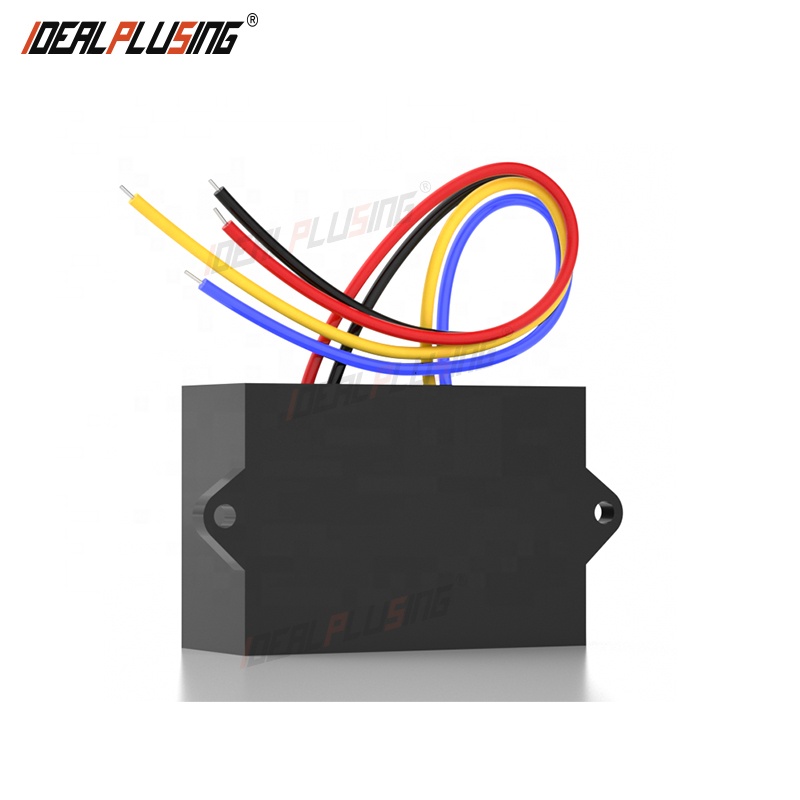

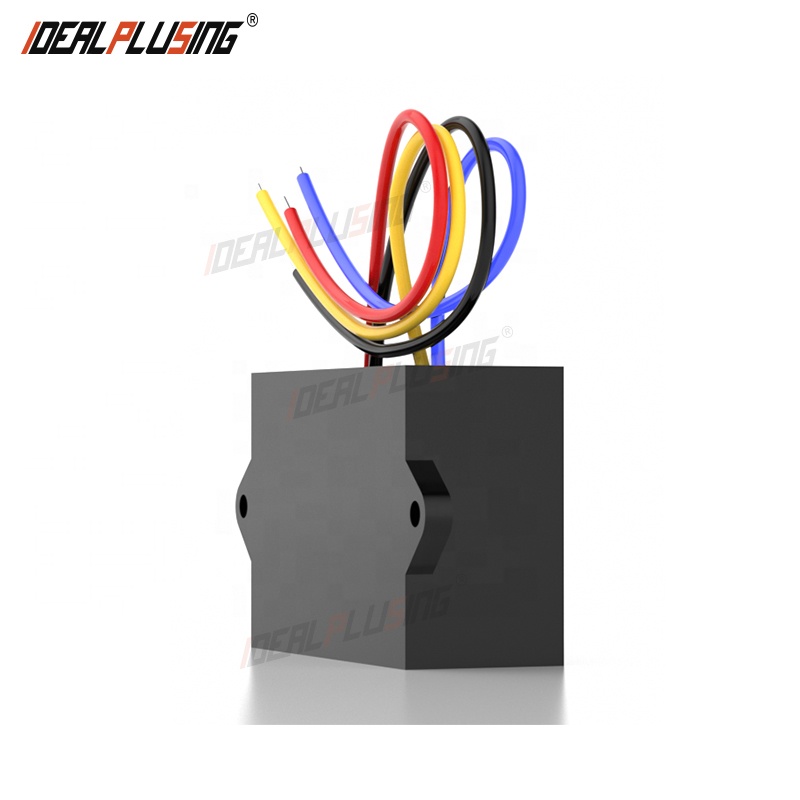

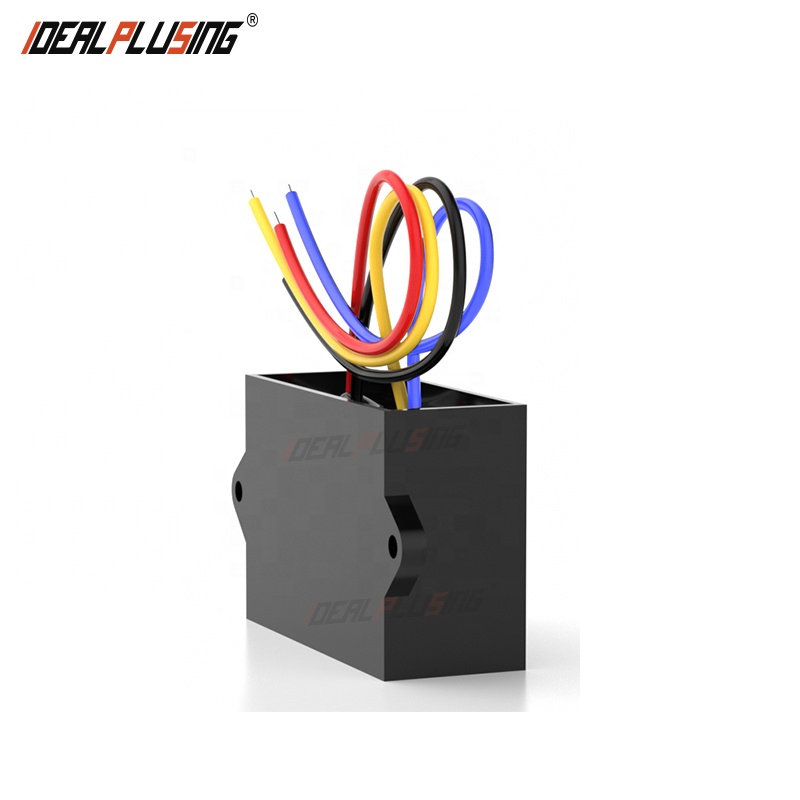

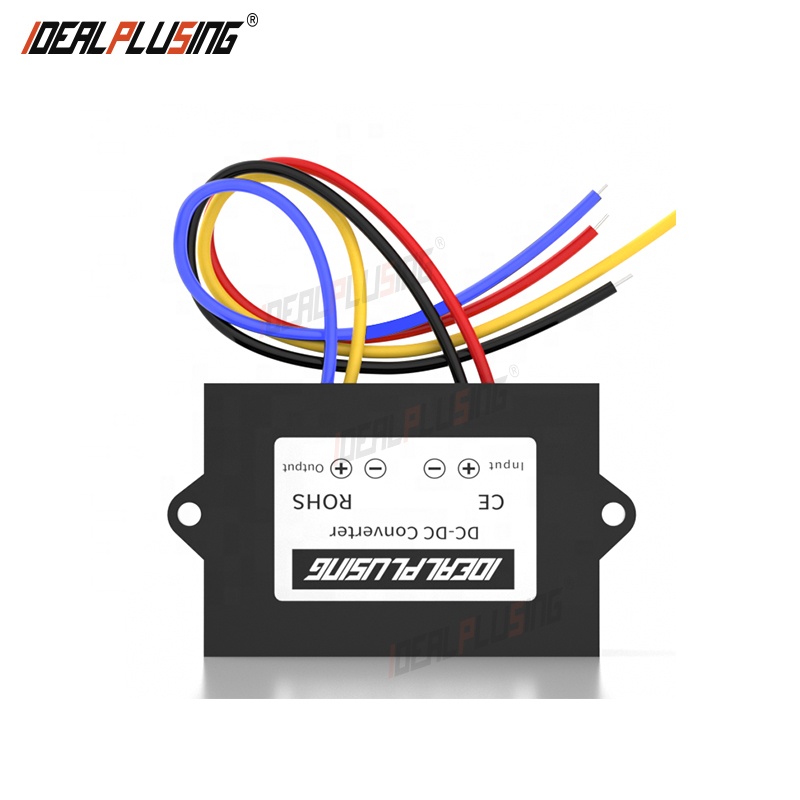

Isolated Dc to Dc Buck boost Converter Module 12v 24v 9-36v to 12v 5a 60w Step Down & up Power Source Regulated Output 12v
Product Description
Isolated DC to DC Buck Boost Converter Module 12V 24V 9-36V to 12V 5A 60W Step Down & Up Power Source Regulated Output 12V
🚀 Key Features
✅100% full power & stable current output.
✅100% Imported components for reliability.
✅Wide input voltage range (9-36VDC).
✅100% waterproof & anti-shock protection.
✅High efficiency up to 93%.
✅Certificates: CE/RoHS compliant.
✅Waterproof level: IP68 rated.
✅Cooling by free air convection.
✅Over-current & Over-voltage protection.
✅Short-circuit & Over-temperature protection.
✅Lifetime up to 100,000 hours.
✅Constant Voltage Design.
📊 Technical Specifications
| Basic Information | |
| Type | Isolated |
| Model | IPS-DTDYI12S125 |
| DC Voltage Input | |
| Input Voltage Rate | 12/24VDC |
| Input Voltage Range | 9~36VDC |
| DC Voltage & Current Output | |
| Output Voltage Rate | 12VDC |
| Output Current | 5 AMPS |
| Output Rate Power | 60 Watts |
| Physical & Environmental | |

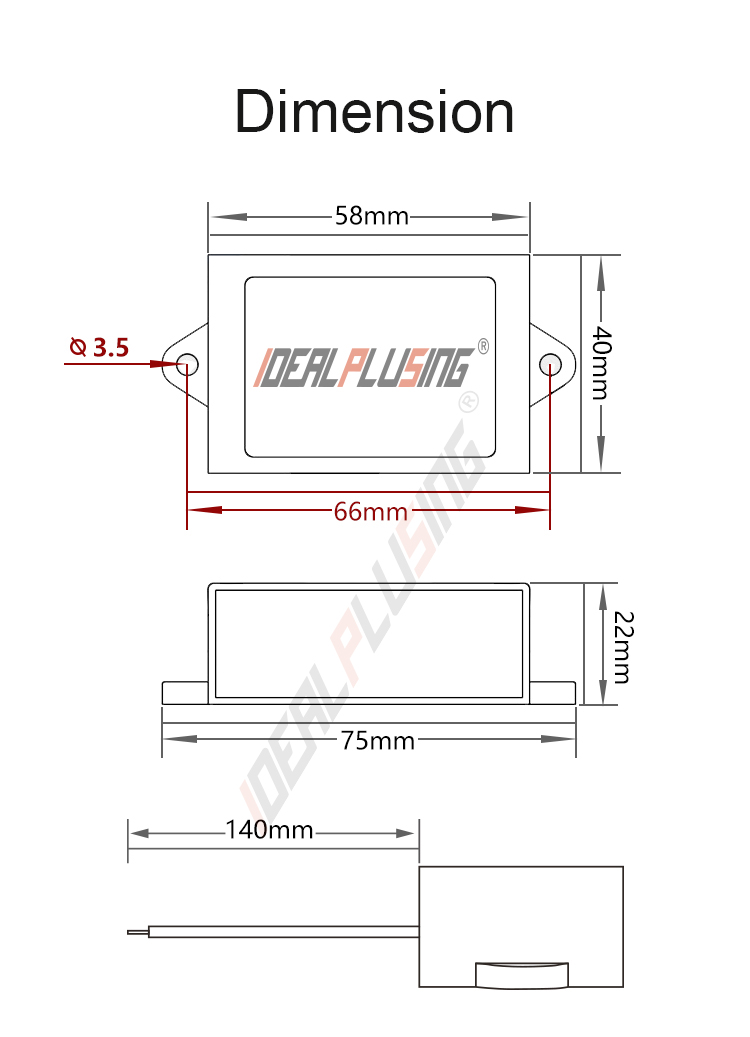

| Converter Size | L58*W40*H22 (MM) |
| Net Weight | 100G |
| Shell Material | Plastic |
| Working Temperature | -20~80℃ |
| Efficiency | 93% |
| Waterproof Level | IP68 |

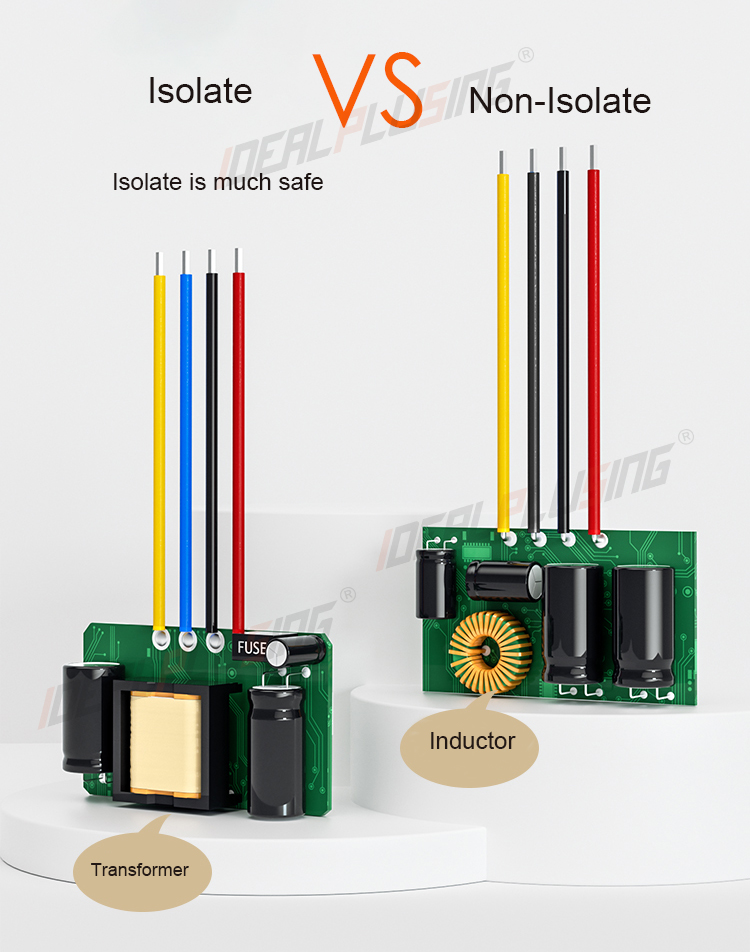

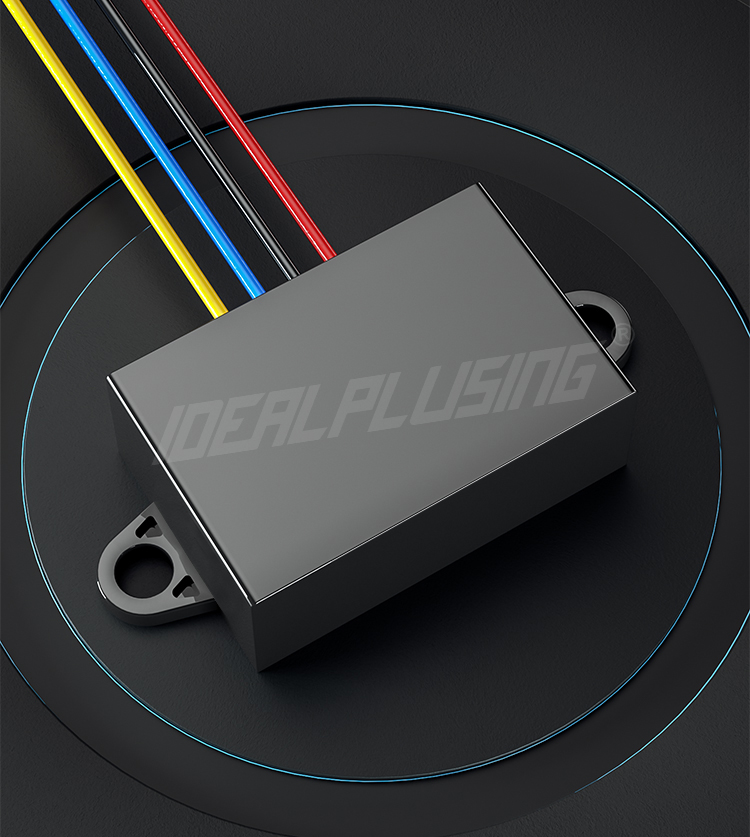

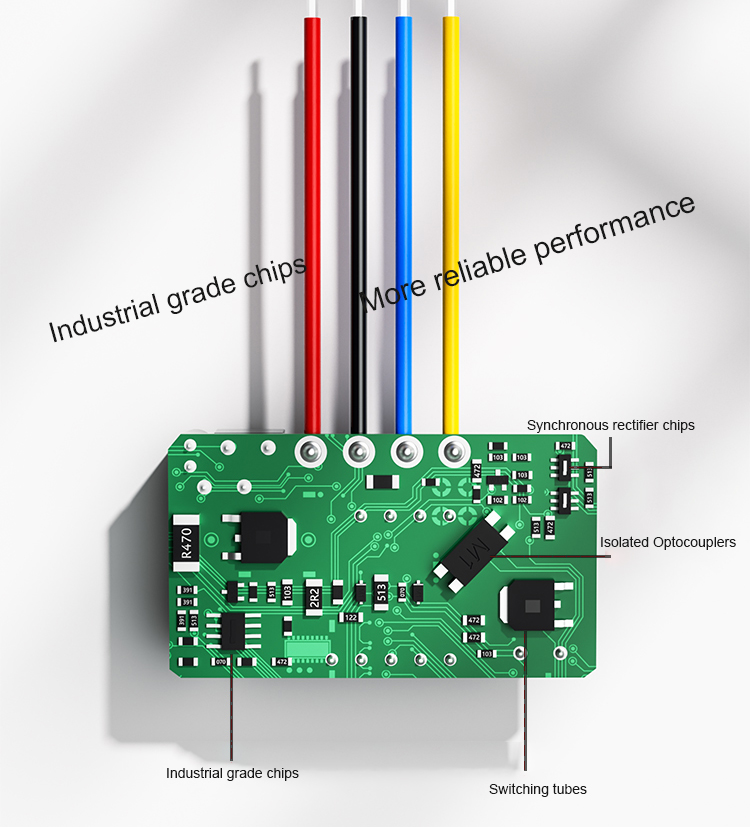

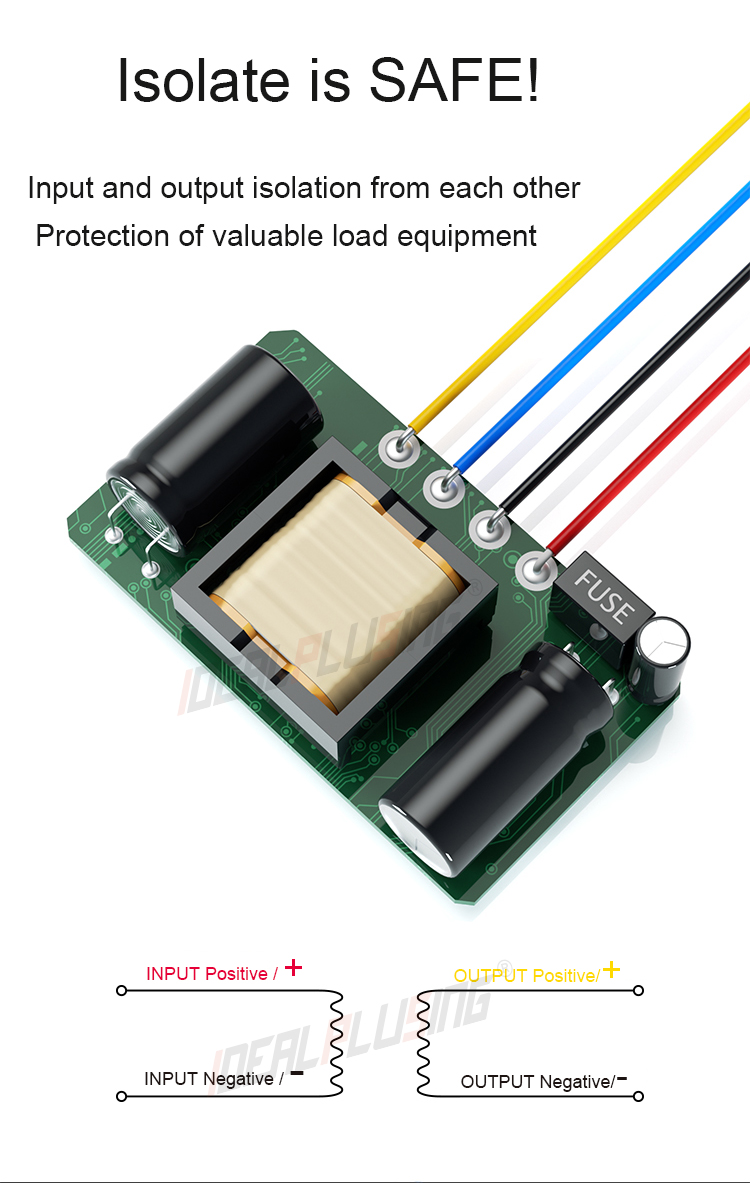

📸 Detailed Product Images

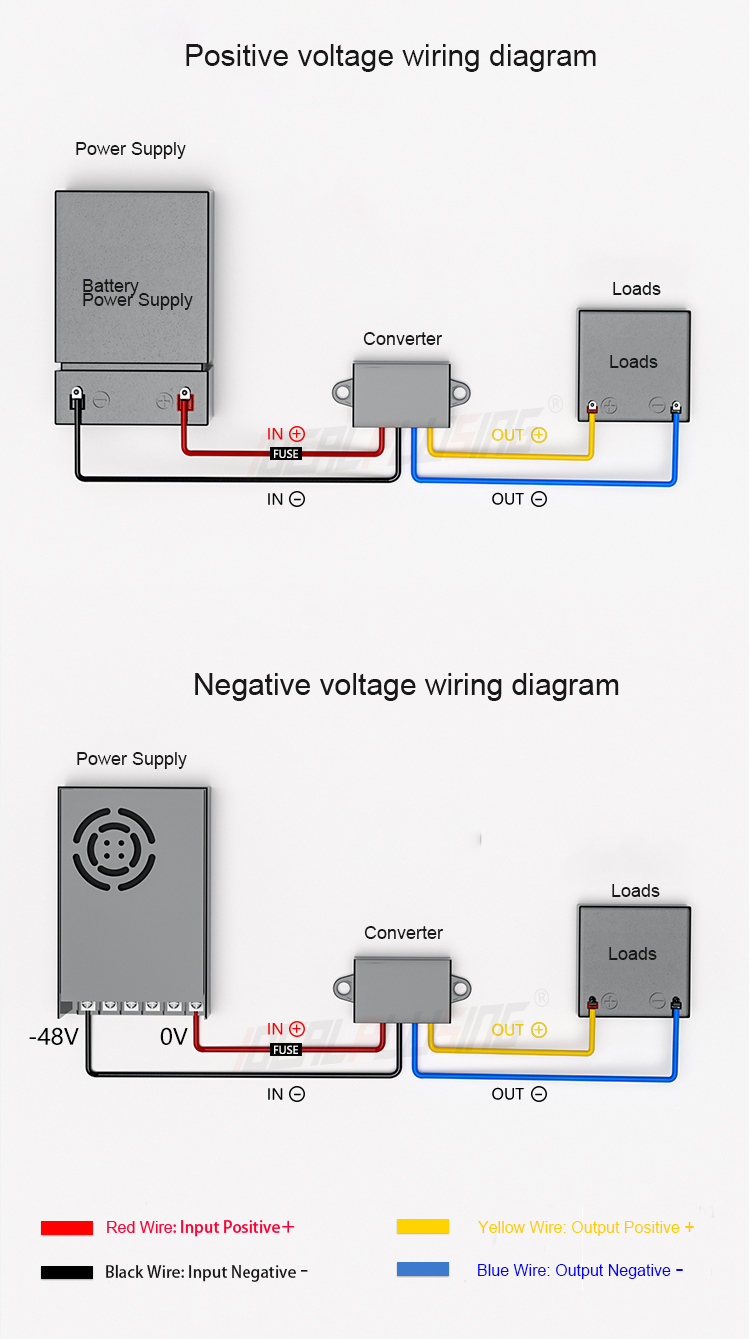

🛠️ Customization & Instructions
🏢 Factory Display
💡 Recommended Products
❓ Frequently Asked Questions
Q1. Can I have a sample order?
Yes, sample orders are acceptable to test and check the quality for the first cooperation.
Q2. What is the typical lead time?
Most models are in stock. The sample lead time after receiving payment is typically 1-3 working days.
Q3. Do you have a Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 5 pieces for sample checking is available.
Q4. How are the goods shipped and how long does it take to arrive?
We often ship via DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. What is the warranty policy for these converters?
We offer a 1-year warranty for all power supply modules. Our products are produced under a strict quality control system with a pass rate over 99.8%.
Q6. Is it possible to print a buyer's logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
