Load Tester Battery High Current 150VDC 240A 1800~3000W DC Electronic, Lead Acid Hydraulic Production Line Single-channel
Product Description
Load Tester Battery High Current DC Electronic Load
The series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries.
Furthermore, their programmable current slew rates, high-speed dynamic loading capabilities, and programmable sequence functions are designed to meet the majority of R&D requirements. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies.
Friendly Reminder: The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions.
🚀 Product Key Features
◈
High Range: Maximum Power 1200W; Maximum Current 240A; Maximum Voltage 1200V.
◈
Basic Modes: Supports CC, CV, CP, and CR basic operating modes.
◈
Dynamic Test: Dynamic Load Mode (DYNA) up to 50 kHz with peak/valley measurement.
◈

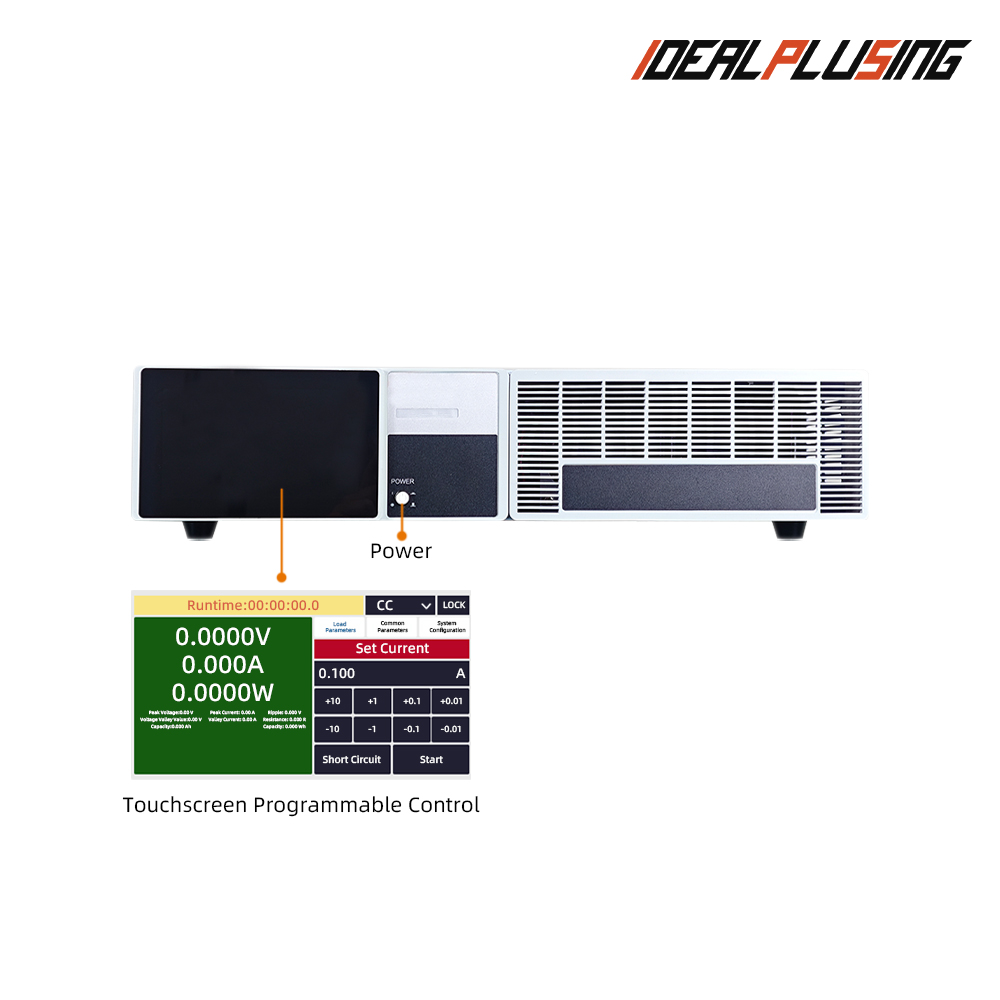

Smart Display: 5-inch large touchscreen graphic dot-matrix display.
◈
Advanced Testing: Supports LED simulation, OCP testing, and Ripple measurement.
◈
Protection: Over-Voltage, Over-Current, Over-Power, and Over-Temperature Protection.
📊 Single-Channel Product Specifications
| Model | Rated Power | Voltage Range | Current Range | Accuracy |
|---|---|---|---|---|
| IPS-DH-8311 | 150W | 0~150VDC | 0~30A | 0.05% + 0.05% FS |
| IPS-DH-8321 | 300W | 0~150VDC | 0~60A | 0.05% + 0.05% FS |
| IPS-DH-8331 | 600W | 0~150VDC | 0~120A | 0.05% + 0.05% FS |
| IPS-DH-8341 | 1200W | 0~150VDC | 0~240A | 0.05% + 0.05% FS |
🔥 Hot Selling DC Power Supply Models
IPS-ATDY2075
0~20VDC, 0~75A
1500W
IPS-ATDY3050
0~30VDC, 0~50A
1500W
IPS-ATDY4050
0~40VDC, 0~50A
2000W
IPS-ATDY5060
0~50VDC, 0~60A
3000W
IPS-ATDY12050
0~120VDC, 0~50A
6000W
IPS-ATDY80150
0~80VDC, 0~150A
12000W
🔍 Detail Product Images
📌 Application Scope
🏢 Professional Power Solutions
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields. Our goal is to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. Together, let's make it much better.
