Non-Isolated 9-36V to 15V 10A 150W DC to DC Converter Voltage Regulator for Industrial
Product Description
Non-Isolated 9-36V to 15V 10A 150W DC to DC Converter
🚀
Advanced Power Regulation:
The DC/DC converter is a high-efficiency voltage regulator designed to output a stable fixed voltage from varying input sources. These converters are categorized into Boost, Buck, and Boost-Buck types to meet diverse industrial demands.
⚙️
Dual Control Modes:
Utilizing PWM (Pulse Width Modulation) for high efficiency and low noise during heavy loads, and PFM (Pulse Frequency Modulation) for ultra-low power consumption during light loads or long-term standby operations.
Customized Power Solutions
We specialize in providing personalized, efficient, and reliable power supply modules for all industries. Our expertise covers AC to DC rectifiers, DC to AC inverters, and specialized LED power systems. We focus on delivering the right technical solution tailored to specific quotation requirements.
Capabilities include:
- Customized Input/Output voltage from 1V to 1000V DC.
- Current ranges from 1A to 1000A.
- Both Isolated and Non-Isolated design options available.
- Dedicated technical support response within one hour.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD9-36S1510 |
| Input Voltage | 9-36VDC |
| Output Voltage | 15VDC |
| Output Current | 10 Amps |
| Output Power | 150 Watts |
| Shell Material | Aluminum |
| Converter Size | 74*74*32MM |
| Net Weight | 300G |
| Waterproof Level | IP67 |
Model Selection Guide
Non-Isolated Boost/Buck Series
| Type | Model/Series | Voltage Conversion | Output Current Options |
|---|---|---|---|
| DC-DC Boost | IPS-DTD12S15** | 12V to 15V | 1/2/3/4/5/8/10/12/15A |
| IPS-DTD12S24** | 12V to 24V | 1A to 50A Range | |
| IPS-DTD12S48** | 12V to 48V | 1A to 20A Range | |
| IPS-DTD24S48** | 24V to 48V | 2/3/5/6/10/15/20/30/40A | |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1A to 100A Range |
| IPS-DTD48S12** | 48V to 12V | 1A to 60A Range | |
| IPS-DTD72S24** | 72V to 24V | 1A to 50A Range | |
| IPS-DTD96S12** | 96V to 12V | 1/2/5/8/10/12/15/20A |

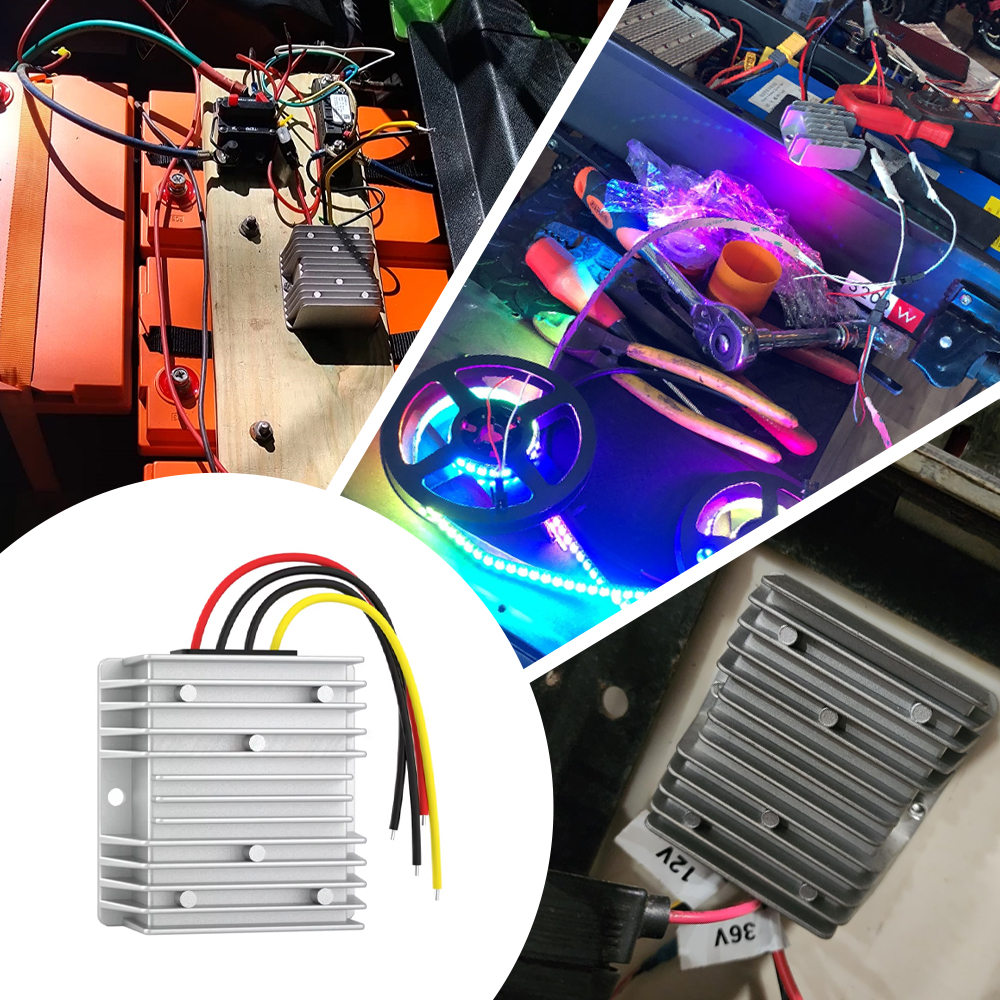

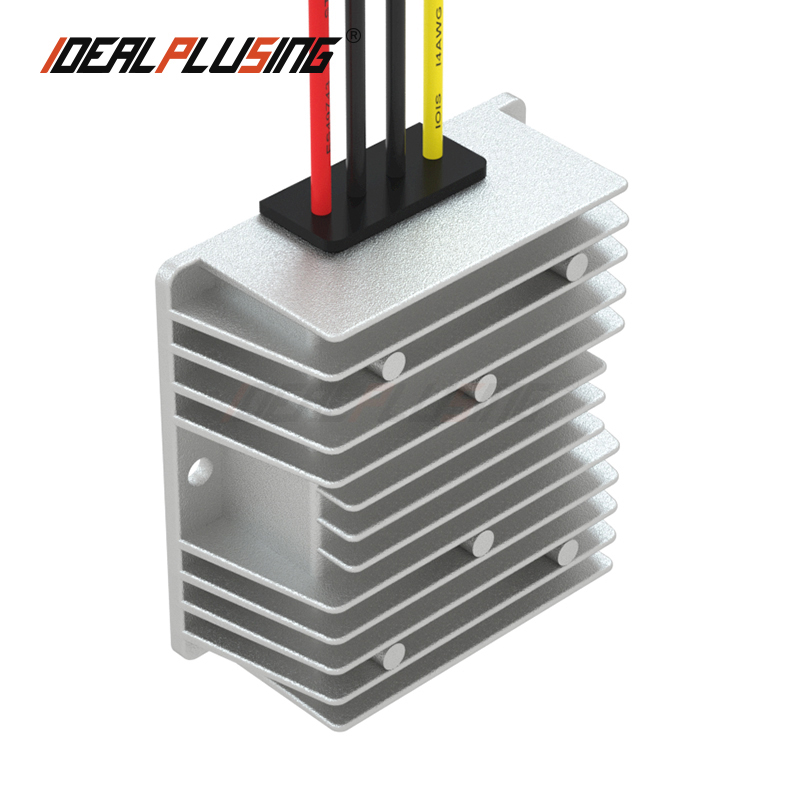

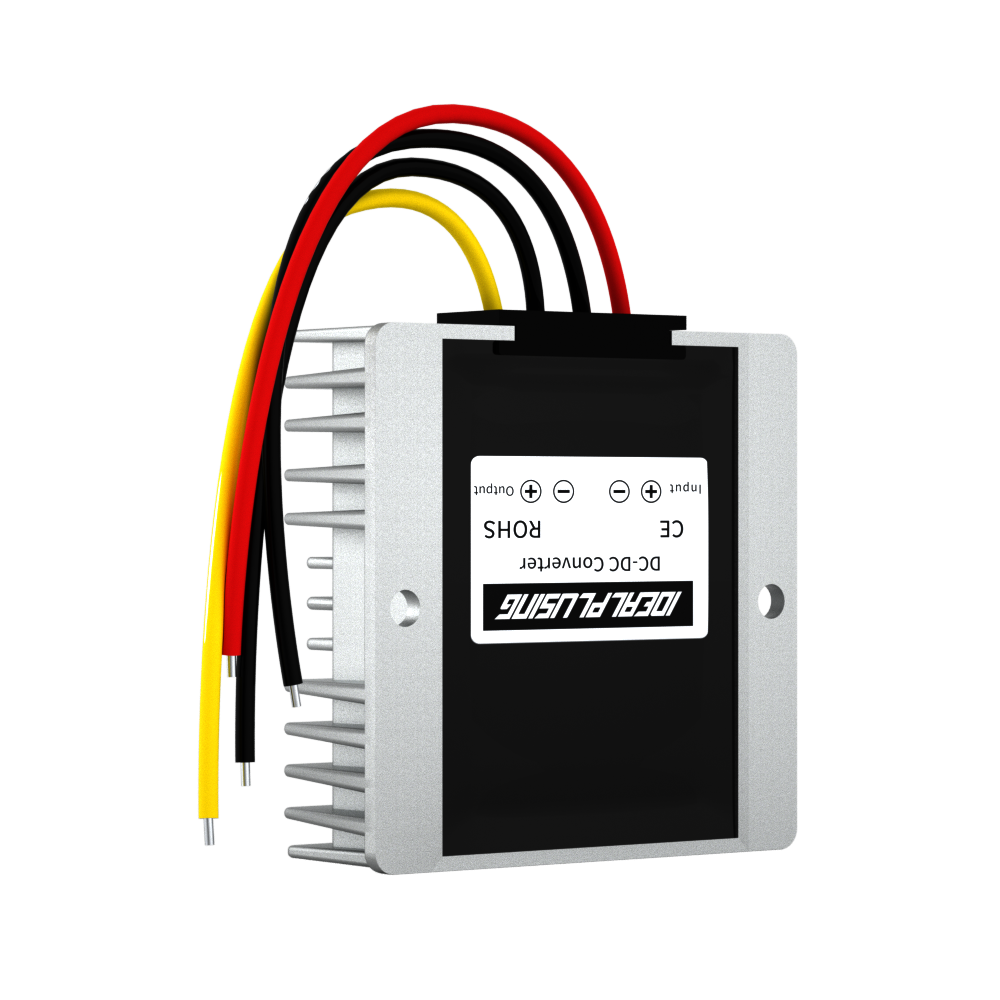

Product Showcase
Technical Application Guidelines
- Standard Protections: All buck-boost products include output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
- Boost Series Note: Step-up products typically do not have internal output short-circuit protection. It is recommended to add external fuses at the input.
- Inductive Loads: For motors, coils, and magnetic valves, use a power supply with 3-5 times the rated power of the load to handle start-up surges.
- Non-Isolated vs Isolated: Non-isolated buck converters carry a risk of high input voltage passing to the output if damaged. For precious loads, isolated models are strongly recommended.
- Isolation Integrity: For isolated products, the negative poles (ground) of input and output must be used separately to maintain isolation.

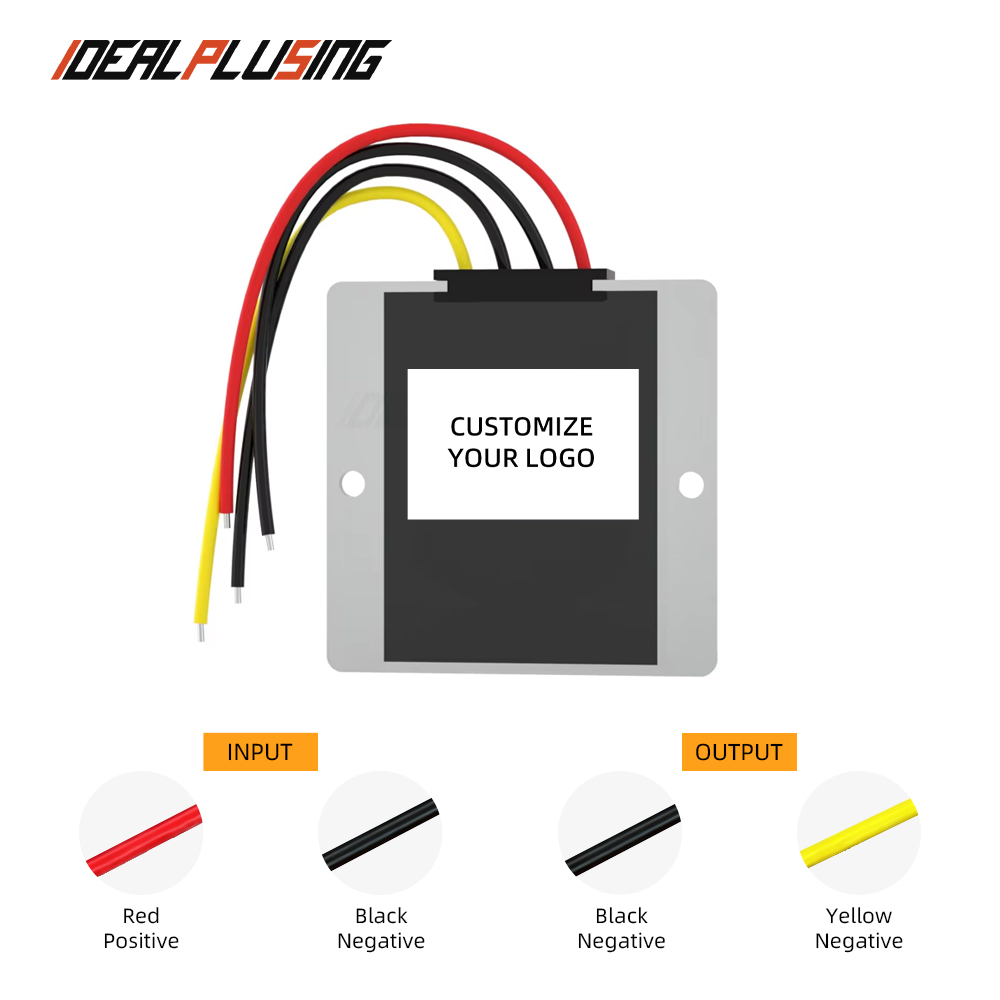

- Negative Voltage: Isolated power supplies can support negative voltage input. Connect the 0V line to the red wire and the negative voltage to the black wire.
- Environmental Durability: Aluminum casing models are high-temperature resistant and highly reliable for outdoor or industrial demanding environments.
Frequently Asked Questions
Q1: What are the standard protection features included?
A: Most products come with output overcurrent, short-circuit protection, input undervoltage protection, and chip overheating protection. Large power units also include casing over-temperature protection set at approximately 90°C.
Q2: Can these converters be used for motor applications?
A: Yes, but for inductive loads like motors or magnetic valves, we recommend choosing a converter with 3 to 5 times the rated power of the load to ensure stable operation.
Q3: What is the main safety difference between isolated and non-isolated models?
A: In non-isolated buck supplies, a failure could potentially pass high input voltage directly to the output. Isolated products prevent this, making them the safest choice for protecting precious electronic equipment.
Q4: Are these converters suitable for outdoor use?
A: Models featuring IP67 waterproof levels and hard gel encapsulation or specialized aluminum casings are designed for high reliability in outdoor and high-demand industrial environments.
Q5: Why is the delivery period longer for isolated power supply prototypes?
A: Isolated power supplies require remaking transformers and adjusting various circuit parameters rather than just adjusting a voltage regulator, necessitating a more thorough production process.
Q6: Do boost converters have output short-circuit protection?
A: Due to their circuit structure, many step-up (boost) series do not have internal output short-circuit protection. It is essential to add appropriate fuses at the input end for safety.
