ODM Programmable DC Power Supply 14V 125V 1000VDC 7A with RS485 Full Width Chassis High Precision for Quality Inspection Systems
Product Description
ODM Programmable DC Power Supply 14V 125V 1000VDC 7A
RS485 Full Width Chassis | High Precision for Quality Inspection Systems
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and appreciate your understanding.
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and appreciate your understanding.
Product Description
Feature 1

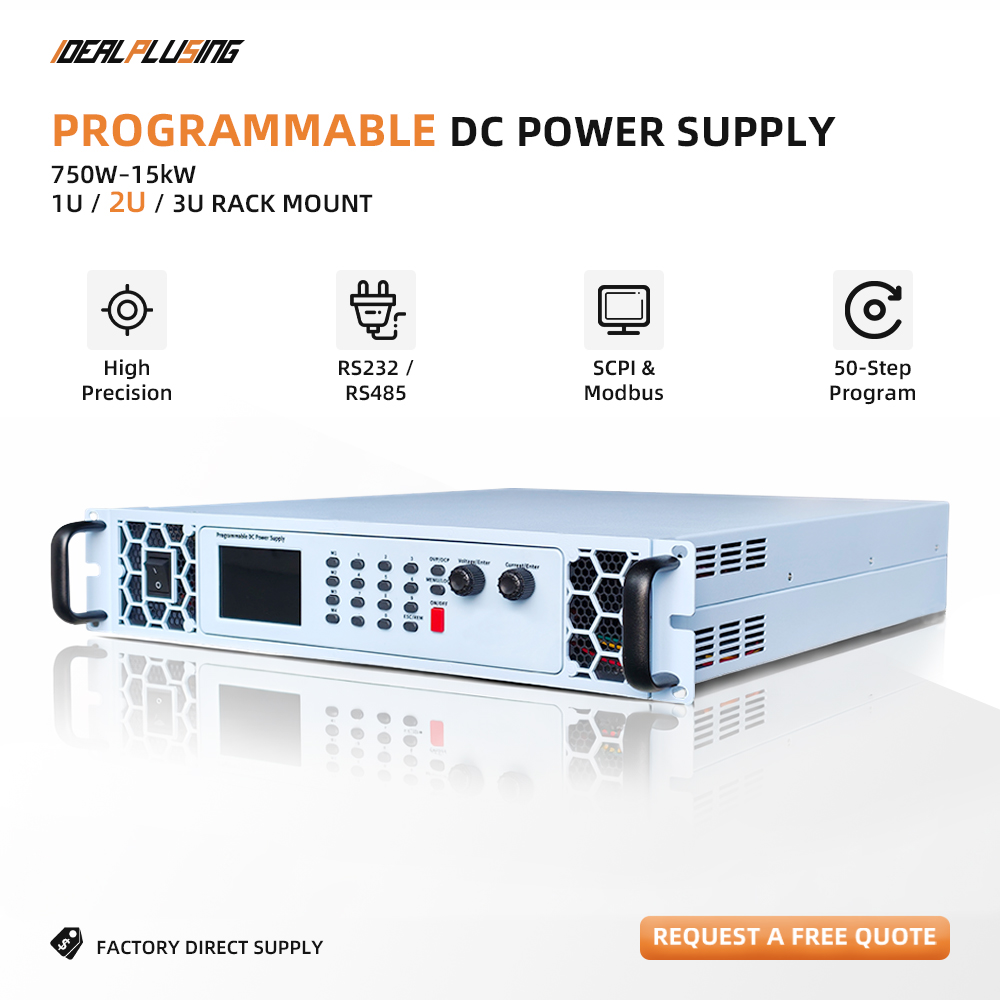

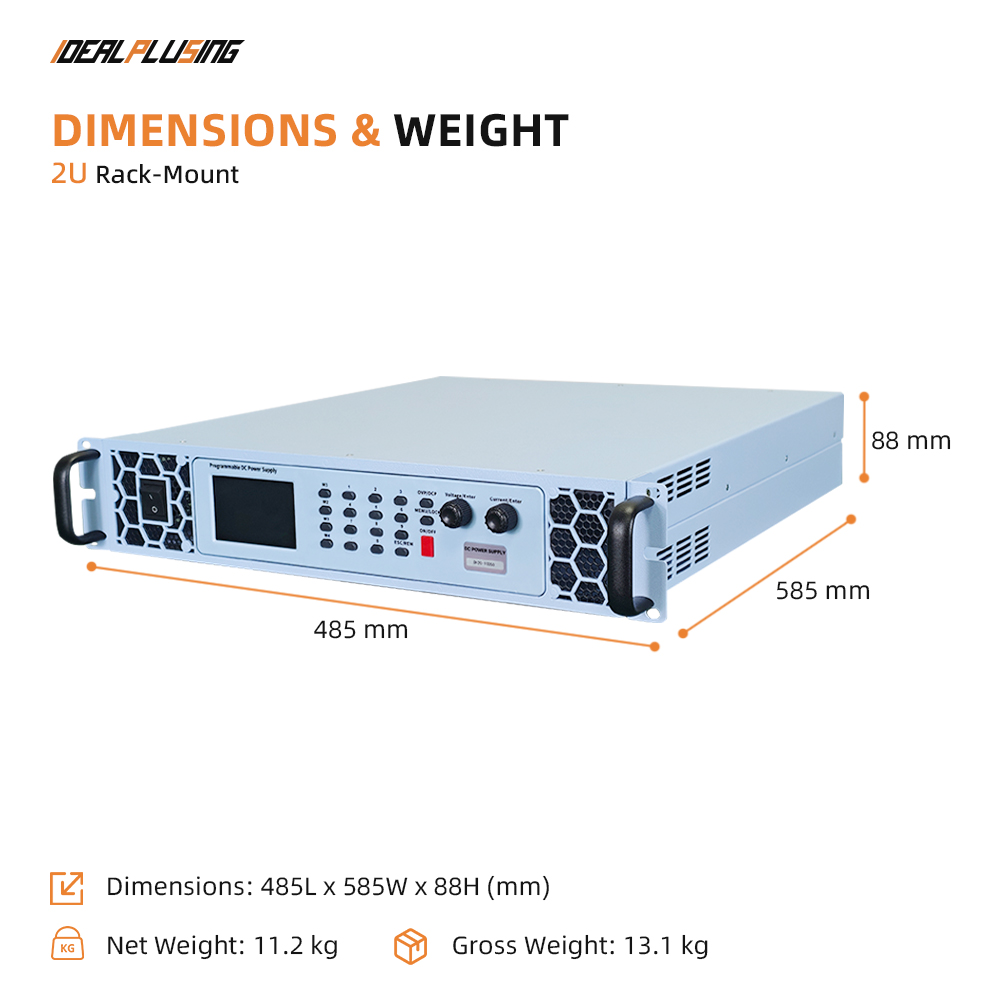

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
Feature 2

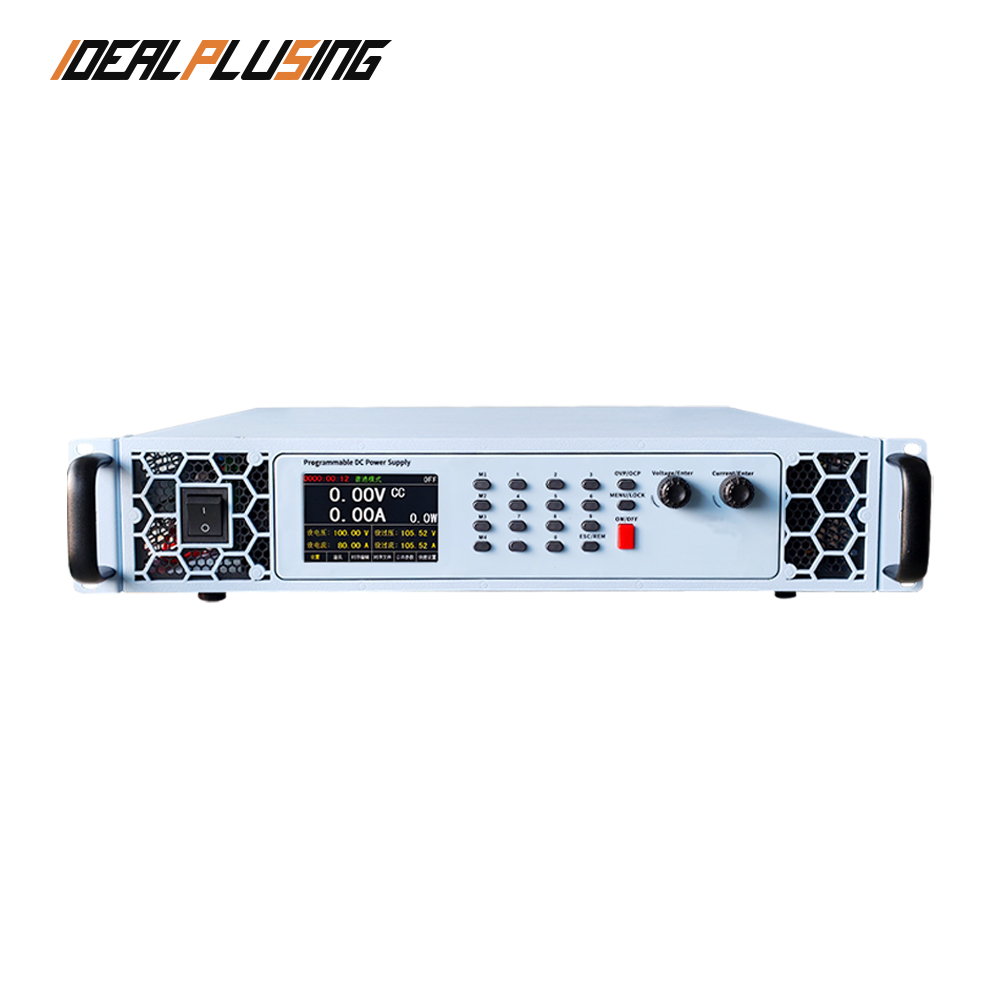

Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
Feature 3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
Feature 4

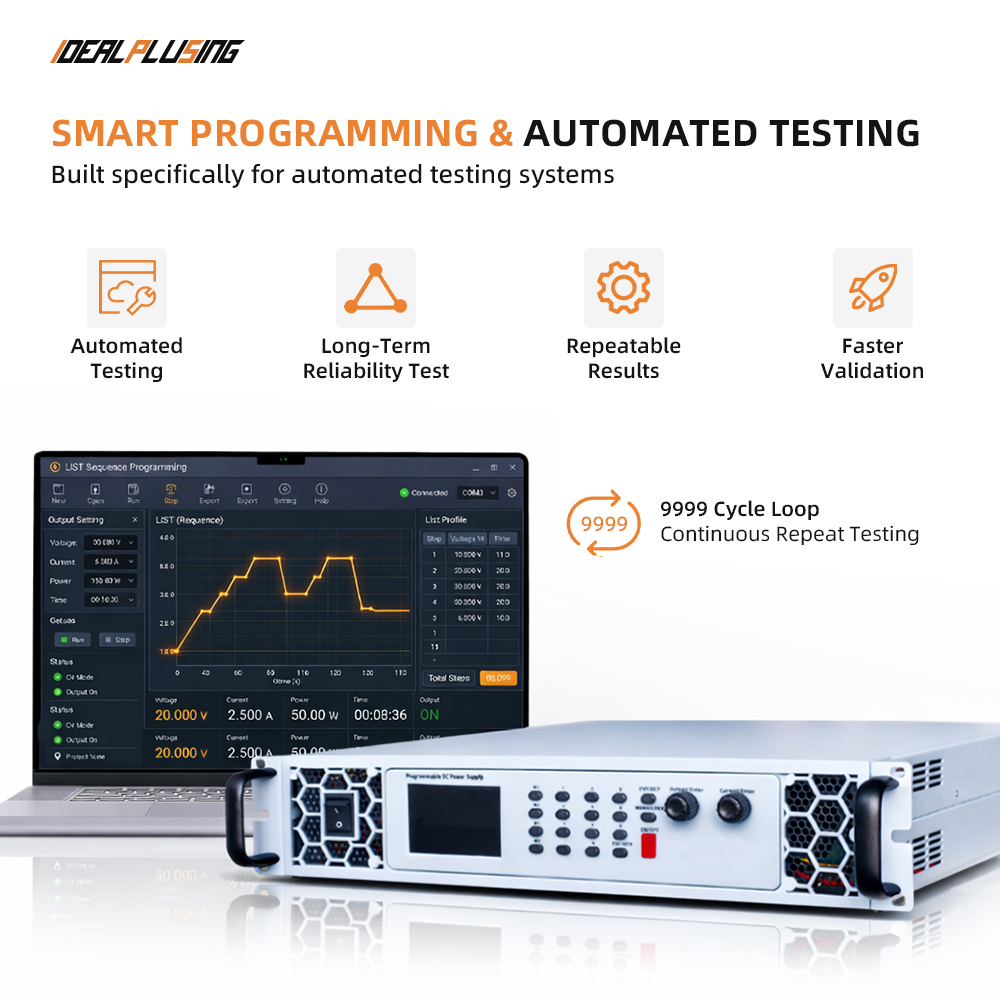

Programmable control over voltage, current, and time outputs with built-in memory for 50 steps.
Feature 5
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
Feature 6
Equipped with dedicated load-side voltage sensing terminals for accurate measurement and precise control.
Specifications
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220V±10% / Three Phase AC380V±10% (50Hz/60Hz) |
| Output Voltage | 0-1000VDC Rated Voltage |
| Output Current | 0-7A Rated Current |
| Output Power | 0-7000W Rated Power |
| Accuracy | Voltage/Current Regulation: ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Display Mode | Color LCD Display (5-digit) |
| Protection | OVP, OCP (configurable via menu), OTP (threshold 85℃) |
| Communication | RS-485/RS-232 (Modbus & SCPI) |

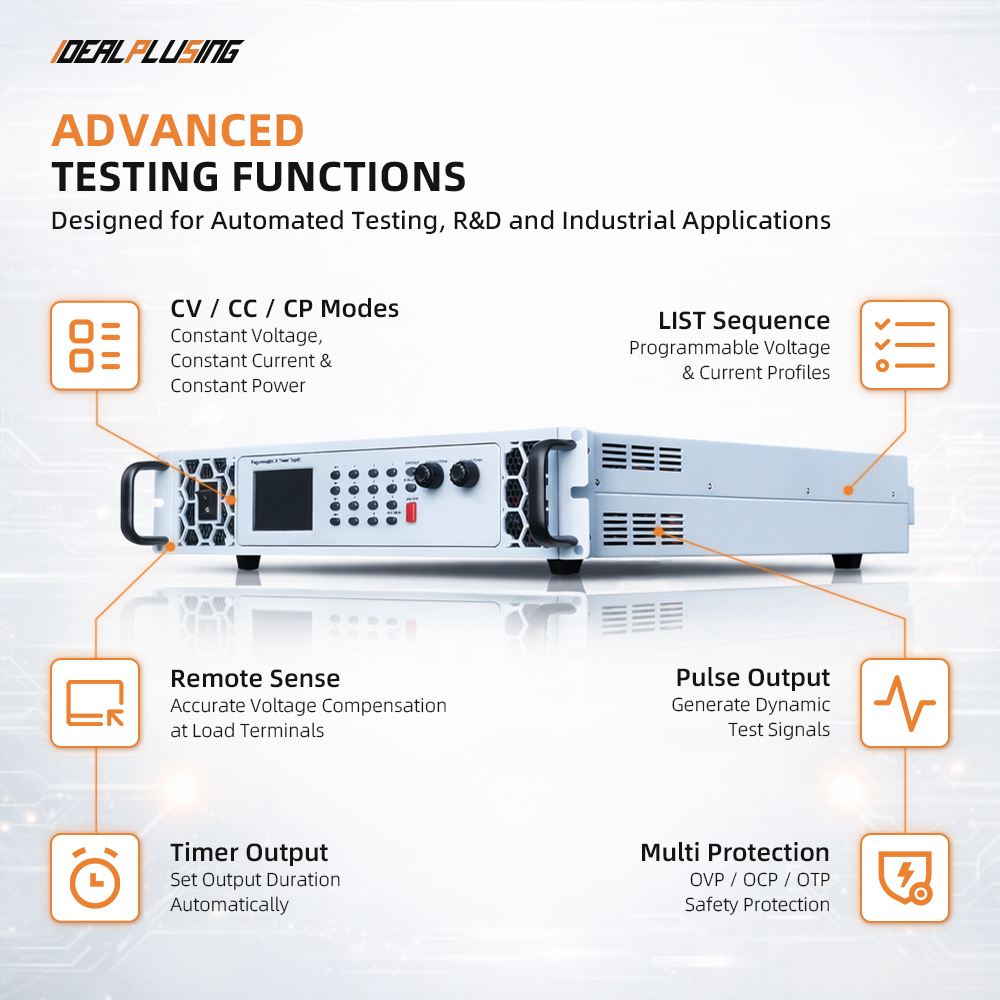

| Functions | CV/CC/CP Modes, Memory Mode, LIST Sequence, Pulse Width Output |
| Cooling | Forced Air Cooling |
Hot Selling Models
IPS-DH10-6002
DC OUT: 0~600V, 0~2A
Max Power: 1200W
IPS-DH20-12003
DC OUT: 0~1200V, 0~3A
Max Power: 3600W
IPS-DH10-5001
DC OUT: 0~500V, 0~1A
Max Power: 500W
IPS-DH30-8500
DC OUT: 0~8V, 0~500A
Max Power: 4000W
IPS-DH10-10003
DC OUT: 0~1000V, 0~3A
Max Power: 3000W
IPS-DH20-8005
DC OUT: 0~800V, 0~5A
Max Power: 4000W
Details Images
Application Scope
Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
Model list Reference (Partial)
| Model | Voltage(Volt) | Current(Amp) | Power(Watt) |
|---|---|---|---|
| IPS-DH20-10007 | 1000VDC | 7A | 7000W |
| IPS-DH20-60010 | 600VDC | 10A | 6000W |
| IPS-DH30-151000 | 15VDC | 1000A | 15000W |
| IPS-DH30-30050 | 300VDC | 50A | 15000W |
About Our Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. Our mission is to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We aim to give our customers the right power supply solution with optimized value.
FAQ - Frequently Asked Questions
1. What communication protocols does this power supply support?
It features RS-232 and RS-485 interfaces and supports both Modbus-RTU and SCPI communication protocols for seamless system integration.
2. Can I program specific output sequences?
Yes, the power supply supports programmable control over voltage, current, and time. The built-in memory allows for up to 50 programmable steps.
3. What kind of protections are built into the unit?
The device includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with configurable thresholds to ensure equipment safety.
4. How accurate is the voltage measurement at the load?
The unit is equipped with dedicated load-side voltage sensing terminals, which compensate for cable voltage drops and provide precise measurement of the actual voltage at the load.
5. Is this model suitable for industrial rack mounting?
Absolutely. The unit follows standard 2U or 3U full-width dimensions, making it ideal for both benchtop laboratory use and integration into standard industrial racks.
6. Can this power supply be used for battery testing?
Yes, it is widely used in battery discharge testing, as well as capacitive, inductive, and pulsed load testing applications.
