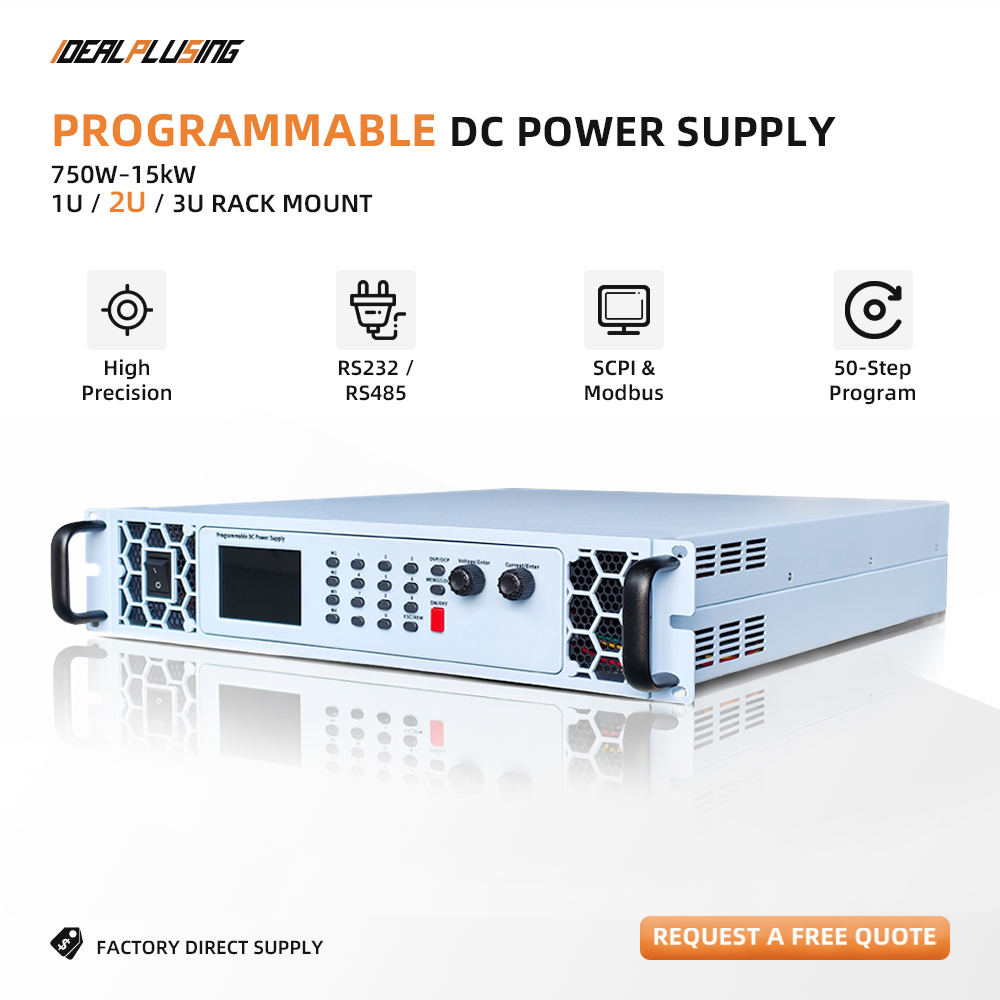

ODM/OEM Programmable DC Power Supply 50V 120V 375VDC 20A with RS485 Compact High Performance for Industrial Automation Equipment
Product Description
ODM/OEM Programmable DC Power Supply 50V 120V 375VDC 20A with RS485 Compact High Performance for Industrial Automation Equipment
Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Description
1

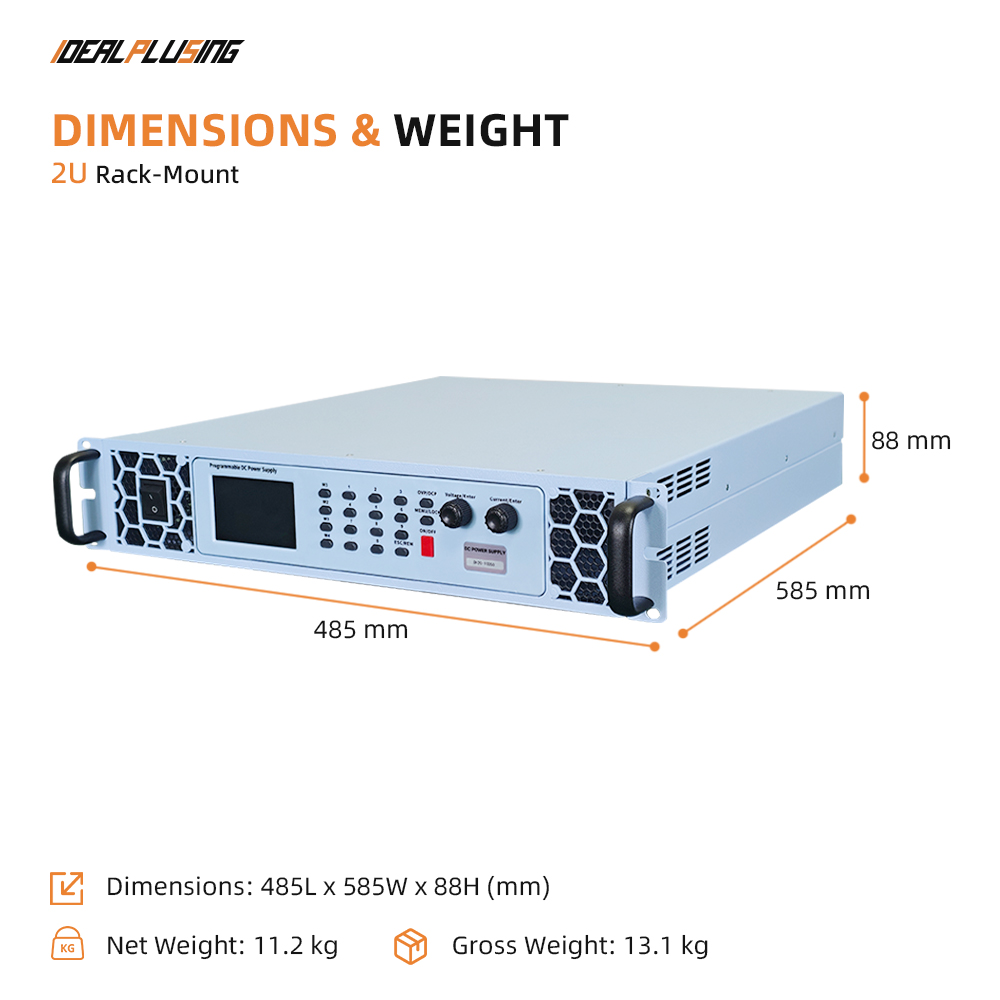

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4
Programmable control over voltage, current, and time outputs.
5
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7
Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load.
Specifications
| Parameter | Details |
|---|---|
| 2U/3U Chassis Series | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220V±10% / Three Phase AC380V±10% (50Hz/60Hz) |
| Output Voltage | 0-375VDC Rated Voltage |
| Output Current | 0-20A Rated Current |
| Output Power | 0-7500W Rated Power |
| Regulation Accuracy | ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Display Mode | Color LCD Display |
| Protection | OVP, OCP (configurable), OTP (85℃±5%) |
| Communication | RS-485/RS-232 (Modbus & SCPI) |

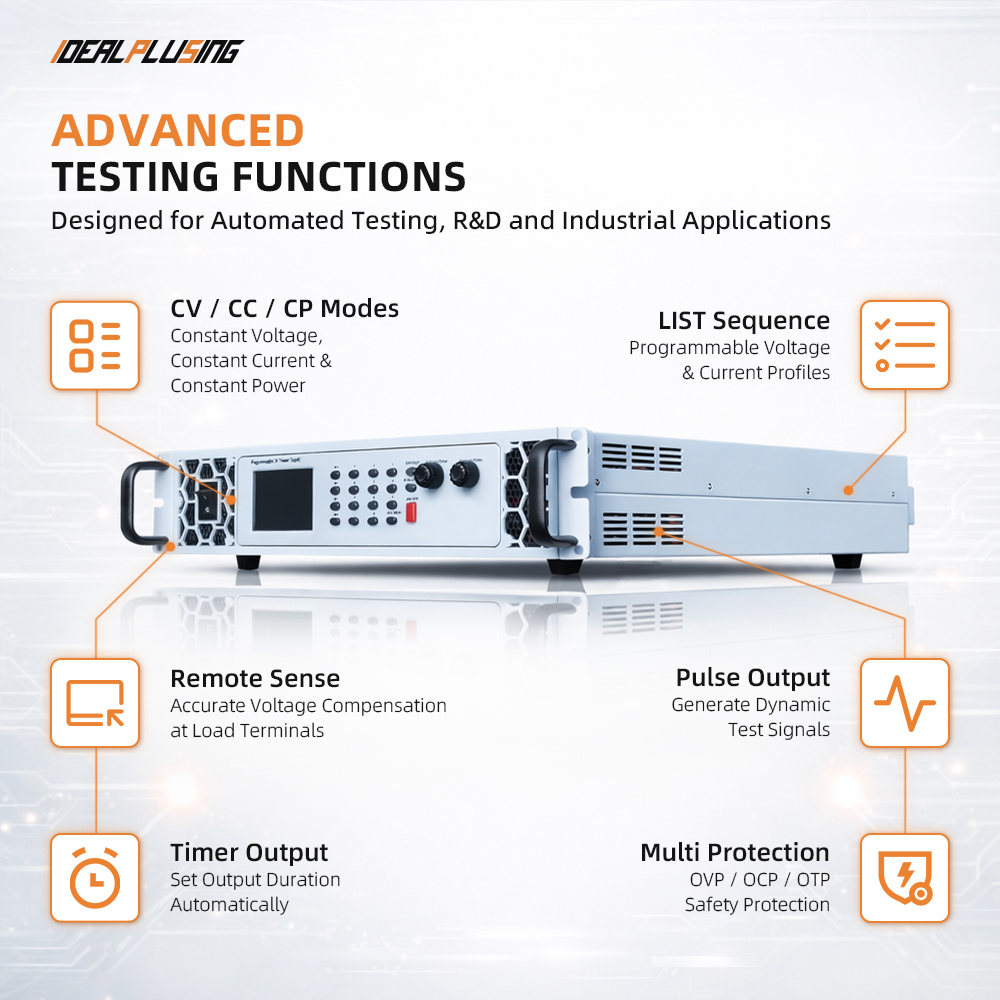

| Functions | CV/CC/CP Modes, Memory, LIST Sequence, Pulse Width Output |
Description: All values are typical values. Accuracy is measured with voltage detection at the load terminal.
Hot Selling Models
IPS-DH10-6002
DC OUT: 0~600VDC, 0~2A
Max power: 1200W
IPS-DH20-12003
DC OUT: 0~1200VDC, 0~3A
Max power: 3600W
IPS-DH10-5001
DC OUT: 0~500VDC, 0~1A
Max power: 500W

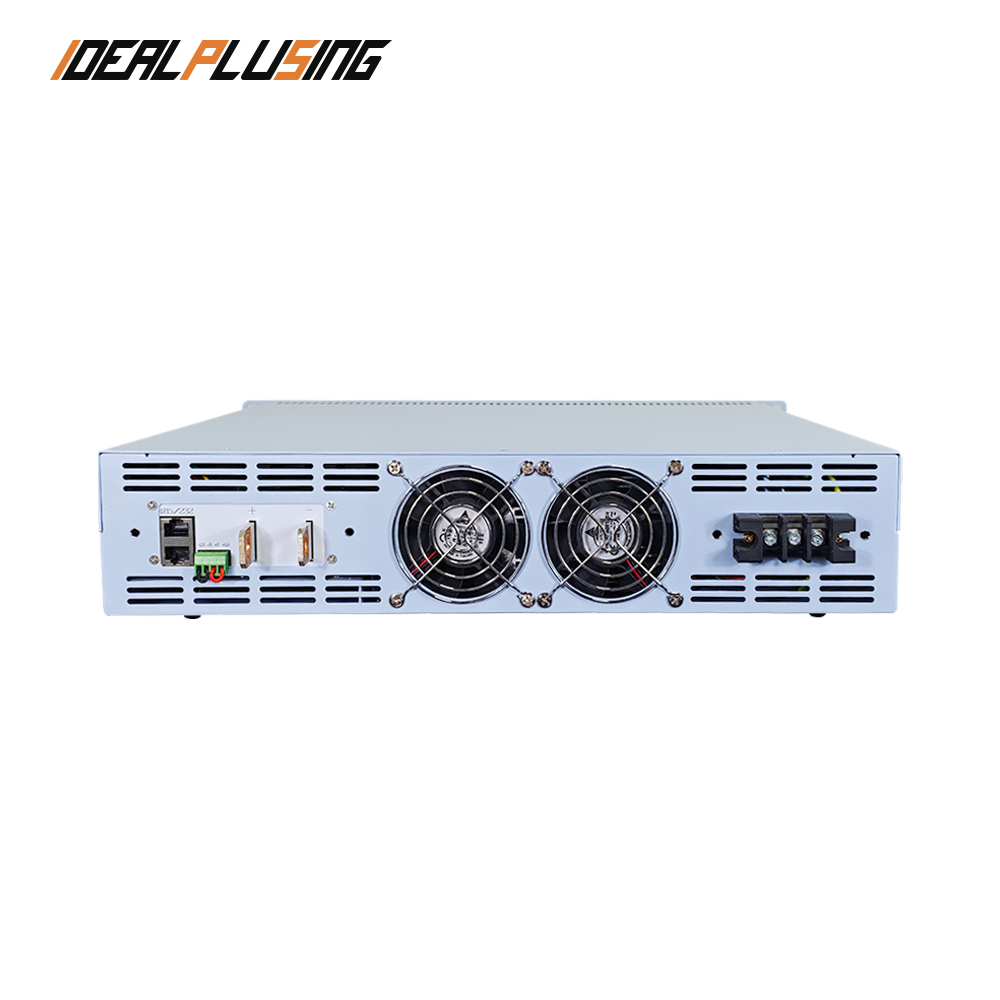

Product Detail View
Application Scope
Used in capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
Professional Power Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, rectifier systems, and other fields. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We aim to provide the right power supply solution and better quotation options with high-quality items.
Frequently Asked Questions
Q1: Can the output voltage and current be programmed?
Yes, this power supply supports programmable control over voltage, current, and time outputs with up to 50 steps via the built-in memory.
Q2: What communication protocols are supported for remote control?
The equipment features RS-232 and RS-485 interfaces, fully supporting Modbus-RTU and SCPI communication protocols for industrial automation.
Q3: How accurate is the voltage measurement at the load?
The power supply is equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement and compensation for voltage drops at the actual load terminal.
Q4: Does the device have built-in safety protection?
Yes, it includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with configurable thresholds to ensure equipment safety.
Q5: Is it suitable for rack-mount industrial systems?
Absolutely. It follows standard 2U/3U full-width dimensions, making it ideal for both benchtop laboratory use and integration into standard industrial racks.
Q6: What types of loads can this power supply handle?
It is designed for high performance across various applications, including capacitive, inductive, battery discharge, pulsed loads, and motor drive testing.
