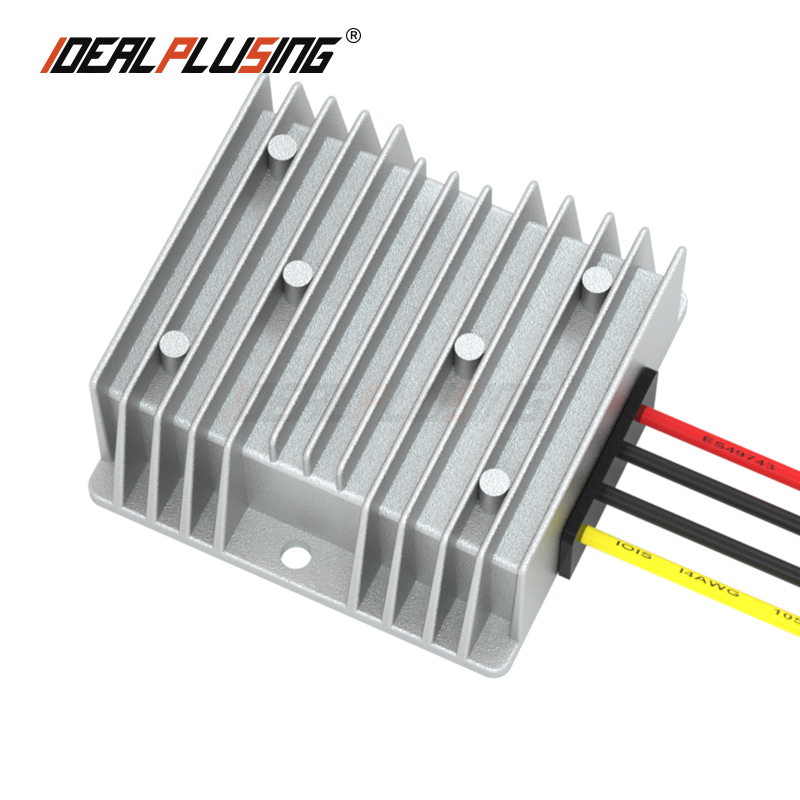

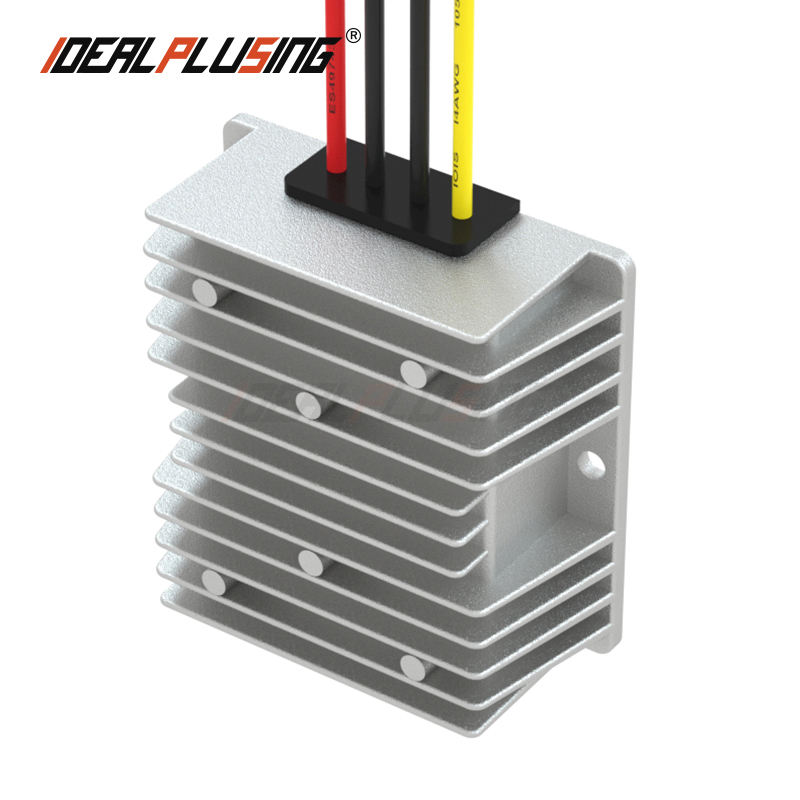

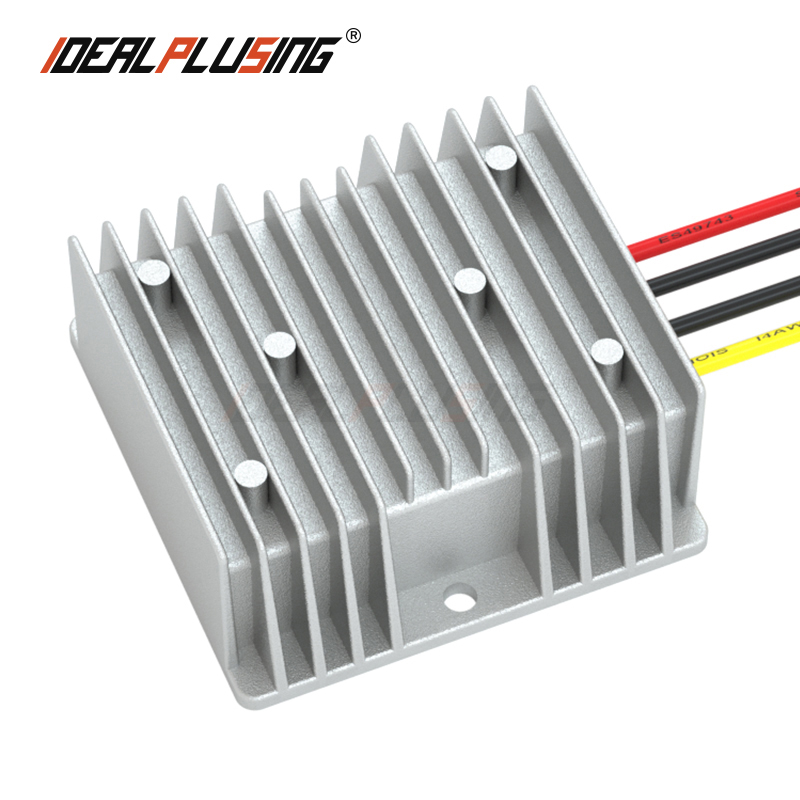

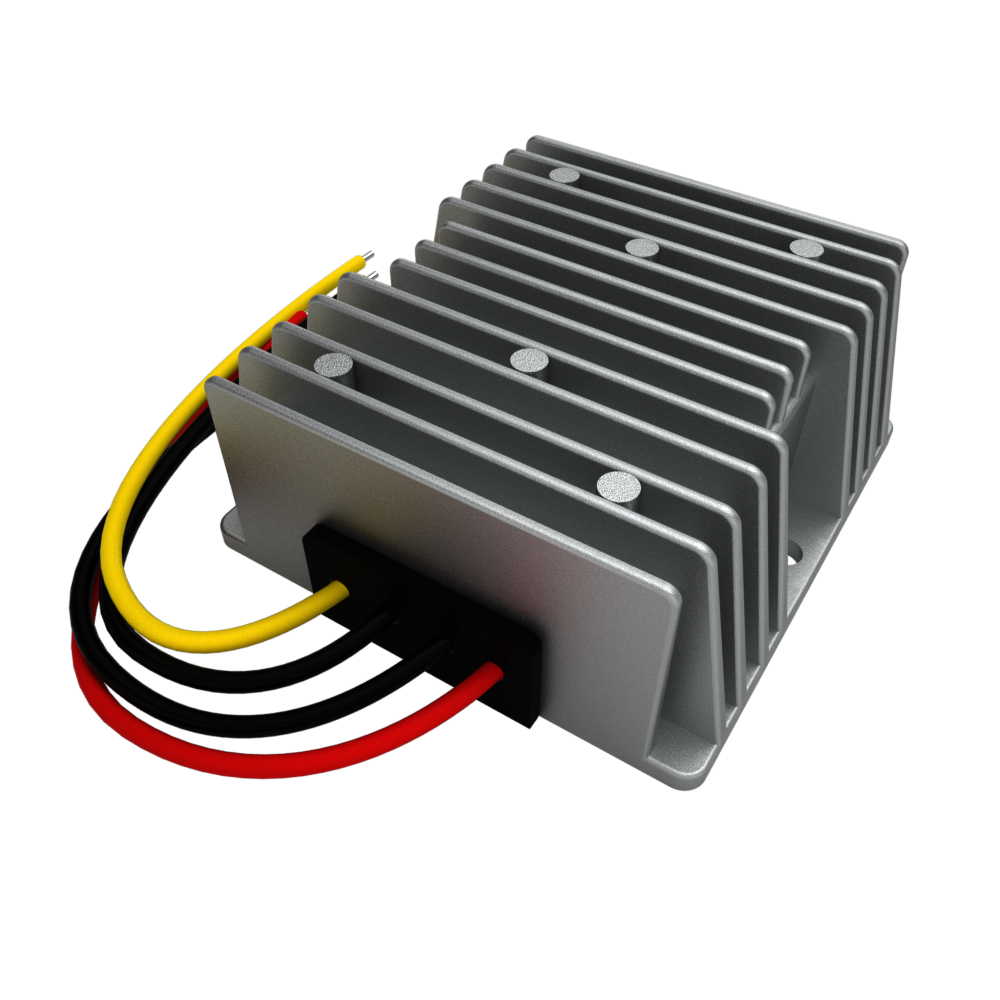

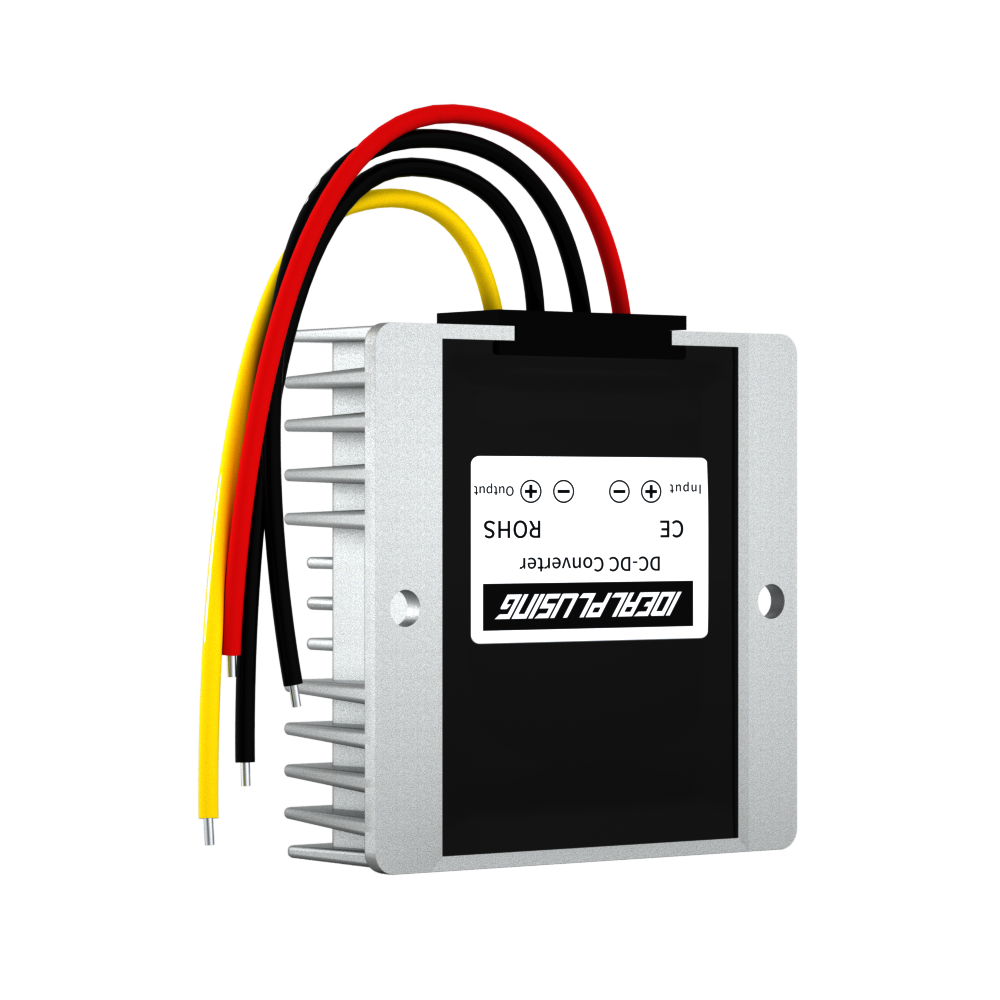

OEM Factory New Type 12 Volt DC DC Transformer 180W 6-20V/12V Step Down/Up Converter CE Rohs Certification Inverters Converters
Product Description
New Type 12 Volt DC DC Transformer 180W Step Down/Up Converter
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are essential components for managing power across various categories: Boost type, boost & buck type, and buck type.
Core Features & Control
- PWM Control: Provides high efficiency with excellent output voltage ripple and noise control.
- PFM Control: Offers low power consumption even during long-term use, especially effective under small loads.
- Automatic Conversion: Implements PFM for small loads and automatically converts to PWM when heavy loads occur.
- Wide Application: Widely used in mobile phones, digital cameras, portable media players, electric vehicles, RVs, marine, and communication industries.
Power Conversion Expertise
Our team has been providing specialized power conversion solutions since 2001. We have developed more than 5000+ power supply solutions with a range from 1 watt to 200 kilowatts and input voltages up to 2000 volts.
With R&D teams holding over 24 years of experience, our products are designed for high reliability with a design life of 15 to 20 years. We specialize in customizing DC-DC converters to meet specific requirements, ranging from 1V to 1000V DC and 1A to 1000A.
Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated / Isolated Options |
| Input Voltage | 6~20VDC or Customizable |
| Output Voltage | 12VDC or Customizable |
| Output Current | 15Amps or Customizable |
| Output Power | 180Watts or Customizable |
| Shell Material | Aluminum |
| Waterproof Level | IP67 |
Popular Models & Solutions
IPS-DTD30-60S1210
Non-Isolate Type
IPS-DTD20-100S122
Non-Isolate Type
IPS-DTD15-40S1210
Non-Isolate Type
Technical Application Notes
- Protection Systems: Products include overcurrent, short-circuit, undervoltage, and chip overheating protection.
- Inductive Loads: For motor applications or inductive loads (coils, magnetic valves), choose a power supply 3-5 times the rated load power.
- Isolated vs Non-Isolated: Isolated products are recommended for precious loads to prevent high input voltage from passing to the output.
- Negative Voltage: Isolated power supplies can support negative voltage input. Connect the 0V line to red and negative voltage to black.
- Customization: Isolated power supply prototypes require transformer adjustment and specific circuit parameter tuning.
Product Gallery
Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM control offers high efficiency and low noise for standard loads, while PFM control is optimized for low power consumption during long-term use and light load conditions.
Why should I choose an isolated DC-DC converter?
Isolated converters provide the highest safety by ensuring no direct electrical path between input and output. This prevents high input voltage spikes from damaging sensitive equipment at the output end.
Can these converters handle motor applications?
Yes, but for inductive loads like motors or solenoids, it is recommended to use a converter with a rated power 3 to 5 times higher than the load's rated power to handle startup surges.
Are the aluminum casings suitable for outdoor use?
Yes, our small aluminum casings are highly reliable, high-temperature resistant, and feature IP67 waterproof levels, making them ideal for outdoor and high-demand industrial applications.
Do the converters have short-circuit protection?
Standard buck-boost and step-down products include output short-circuit protection. However, step-up series may require external fuses at the input end to prevent damage during short circuits due to their specific circuit architecture.
Can these units be repaired if they fail?
Products with hard gel encapsulation are generally not repairable to ensure their waterproof and vibration-resistant integrity. We recommend consulting on usage conditions before purchase.
