OEM/ODM IDEALPLUSING Programmable DC Power Supply 12.5VDC 35A 125A 560A with RS232 Multiple Protection for Research Laboratories
Product Description
ā”

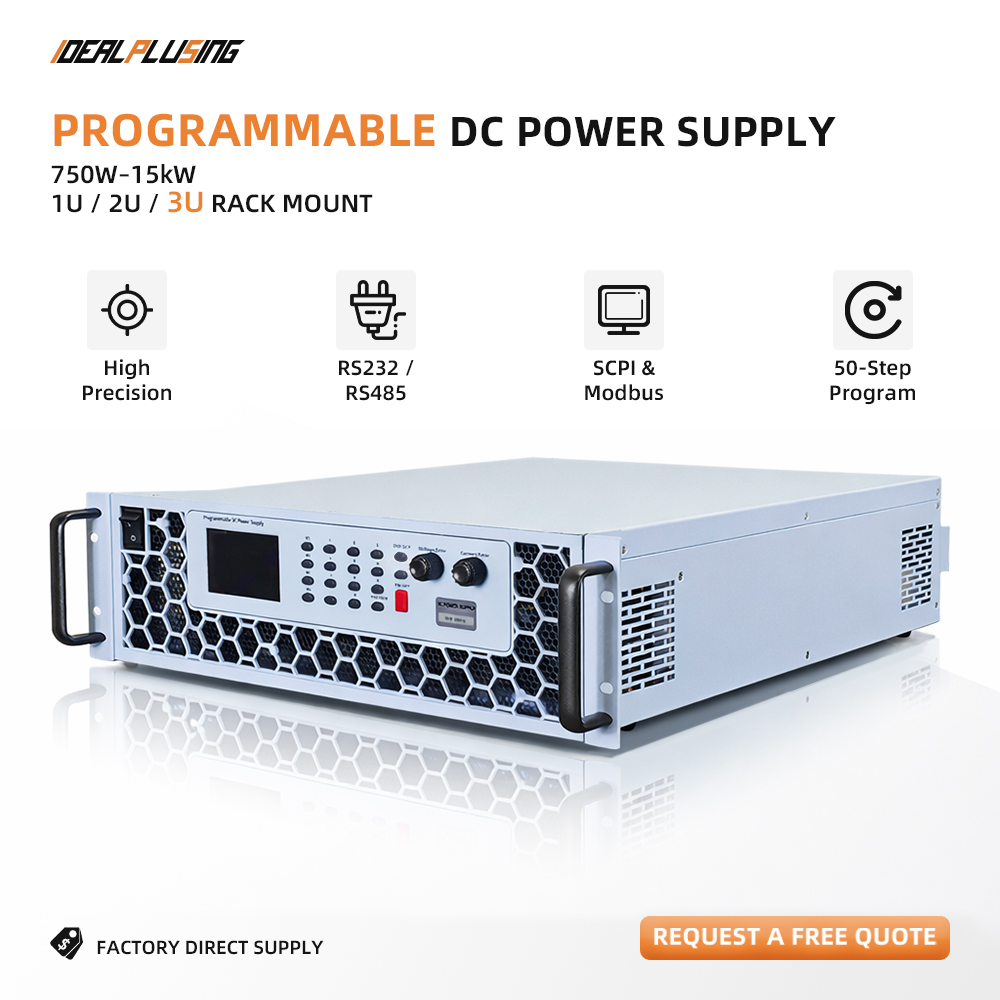

Programmable DC Power Supply 12.5VDC 35A 125A 560A with RS232 Multiple Protection
ā ļø Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Product Description
1

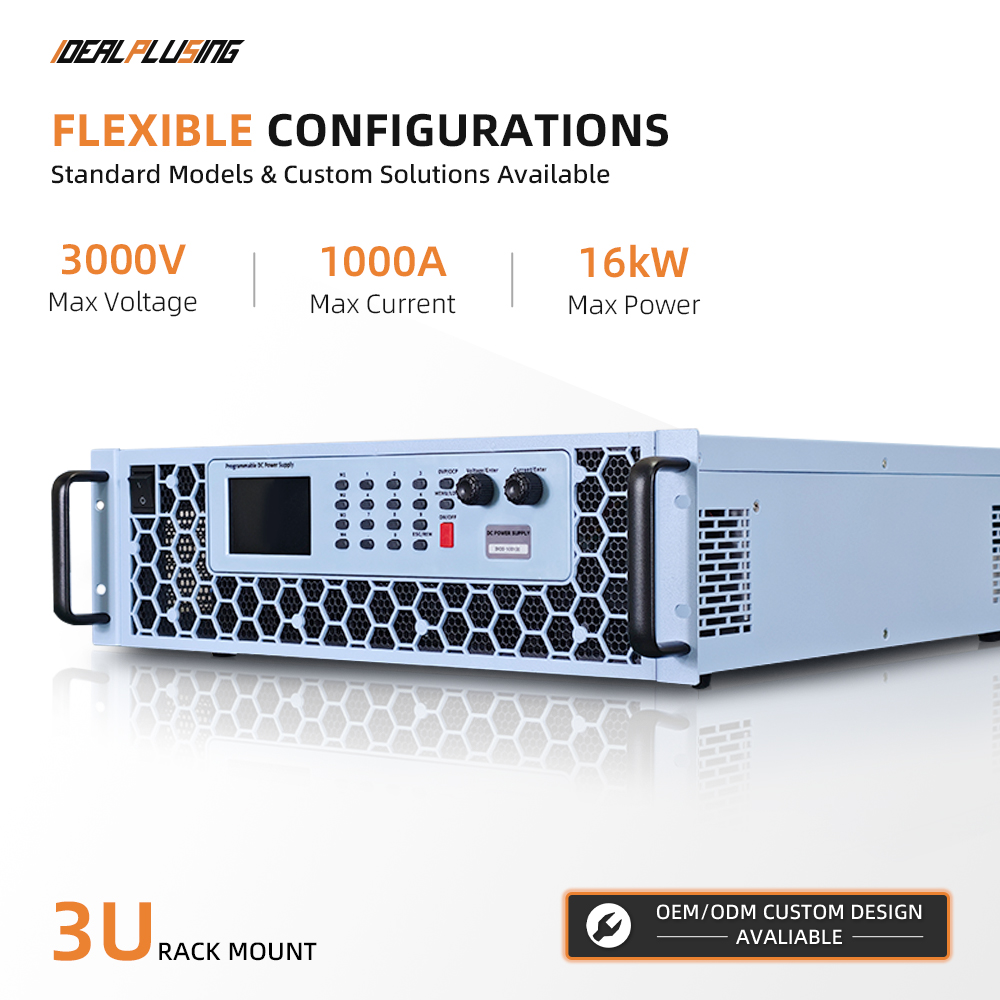

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4

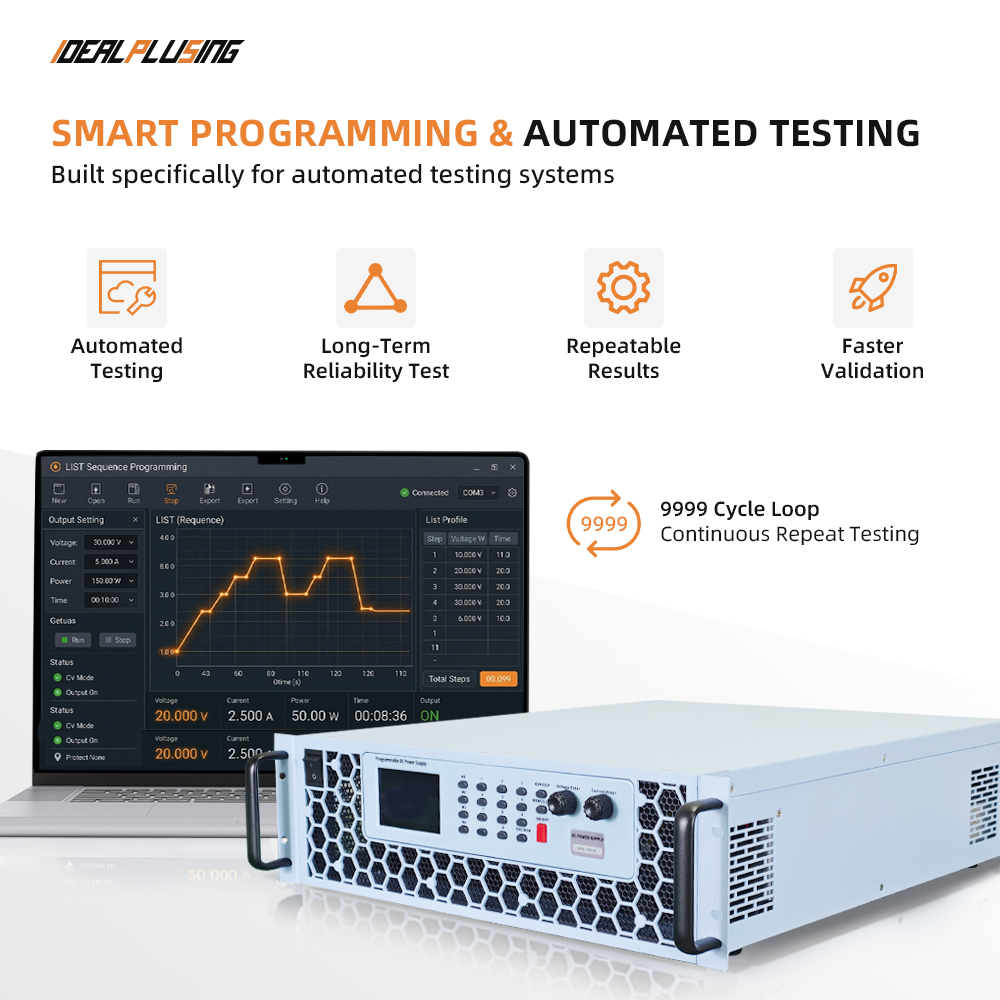

Programmable control over voltage, current, and time outputs.
5
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7
Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load and facilitating precise control.
š ļø Technical Specifications
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220VĀ±10%/Three Phase AC380VĀ±10%, 50Hz/60Hz |
| Output Voltage | 0-12.5VDC Rated Voltage |
| Output Current | 0-560A Rated Current |
| Output Power | 0-7000W Rated Power |
| Source Regulation | ā¤0.1%+10mV |
| Load Regulation | ā¤0.1%+30mV |
| Accuracy | Voltage/Current Regulation Accuracy: ā¤Ā±0.1%FS |
| Ripple (rms) | ā¤0.1%FS+10mV |
| Voltage Readback | 5-digit Digital Meter, Accuracy: Ā±0.1%FS+3 digits |
| Display Mode | Color LCD Display |
| Protection | OVP, OCP (Configurable via menu), OTP (Threshold 85āĀ±5%) |
| Communication | RS-485/RS-232 (Support Modbus and SCPI Protocols) |
| Functions | CV/CC/CP Modes, Memory Mode, LIST Sequence Cycle, Pulse Width Output |
| Environment | Operating: 0āļ½40ā; Humidity: 10%ļ½85% RH |
*All values are typical values. Accuracy is measured with voltage detection at the load terminal.
š„ Hot Selling Models
IPS-DH10-6002
0~600VDC, 0~2A | 1200W
IPS-DH20-12003
0~1200VDC, 0~3A | 3600W
IPS-DH10-5001
0~500VDC, 0~1A | 500W
IPS-DH30-8500
0~8VDC, 0~500A | 4000W
IPS-DH10-10003
0~1000VDC, 0~3A | 3000W
IPS-DH20-8005
0~800VDC, 0~5A | 4000W
š Detail Images
š Application Scope

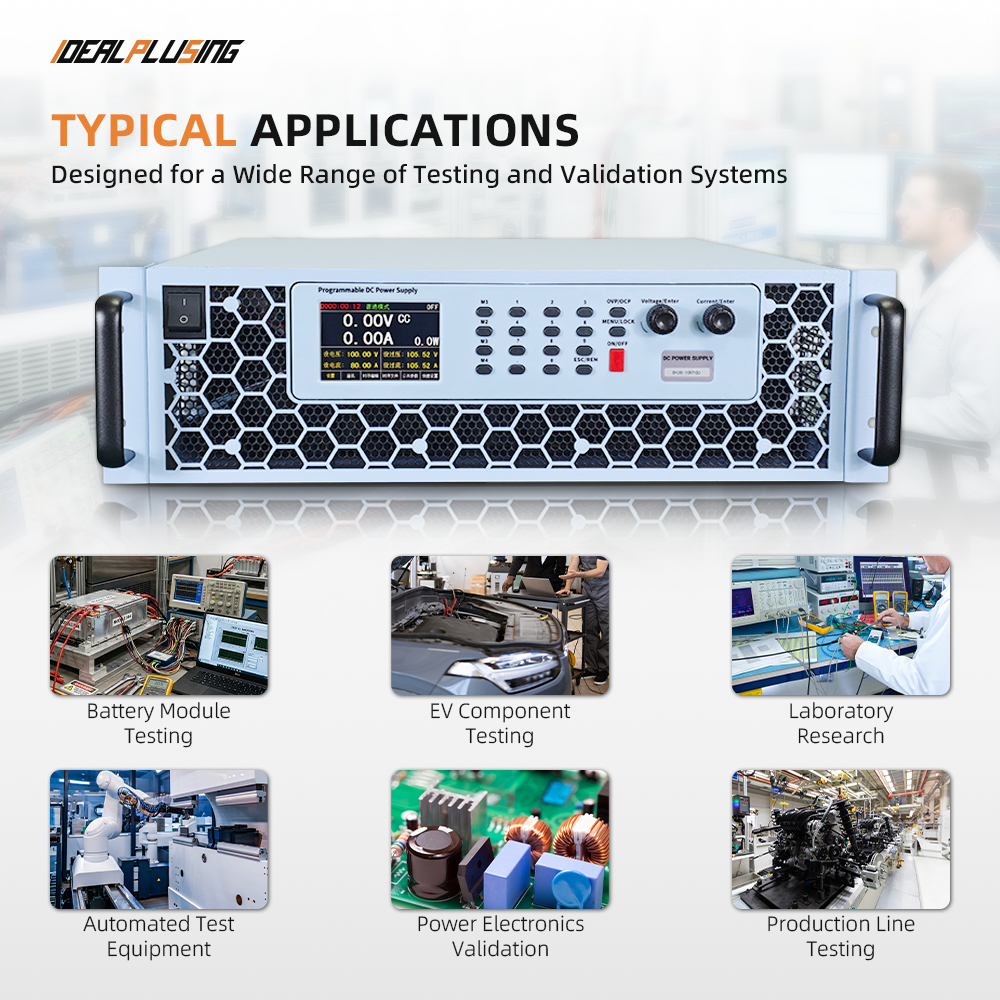

Used in capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
š 7000W Series Model List
| No | Model | Voltage | Current | Power | Resolution |
|---|---|---|---|---|---|
| 1 | IPS-DH20-28002.5 | 2800VDC | 2.5A | 7000W | 100mV/0.1mA |
| 13 | IPS-DH20-12556 | 125VDC | 56A | 7000W | 10mV/1mA |
| 16 | IPS-DH20-56125 | 56VDC | 125A | 7000W | 1mV/10mA |
| 24 | IPS-DH30-12.5560 | 12.5VDC | 560A | 7000W | 1mV/10mA |
š¦ Production & Quality
ā Frequently Asked Questions
1. Can these power supplies be integrated into an automated test system?
Yes. These units feature standard RS232 and RS485 interfaces and support both Modbus-RTU and SCPI protocols, making them ideal for integration into LabVIEW or other automated testing environments.
2. Do you support custom voltage and current configurations?
Absolutely. We offer OEM/ODM services to customize the output voltage, current, and power levels to meet your specific research or industrial requirements.
3. What kind of protections are built into the units?
The power supplies include Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) to ensure the safety of both the equipment and the connected load.
4. Is the display accurate enough for laboratory use?
Yes, the units feature a high-precision 5-digit LCD color display with readback accuracy of Ā±0.1%FS, providing reliable data for sensitive laboratory experiments.
5. Can I program the unit to output a specific voltage sequence?
Yes, the programmable series supports up to 50 memory steps where you can define specific voltage, current, and time durations for automated cycling or complex testing profiles.
6. How is the unit cooled during high-power operation?
All units use a forced air cooling system with internal fans and heat sinks. The built-in OTP sensors monitor the temperature to prevent overheating during continuous operation.
