Programmable DC Power Supply 12.5VDC 375A 600A with LCD Display Multiple Protection High Performance for Electronic R&D Testing
Product Description
Programmable DC Power Supply 12.5VDC 375A 600A with LCD Display Multiple Protection High Performance for Electronic R&D Testing
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
āļø Product Description
š

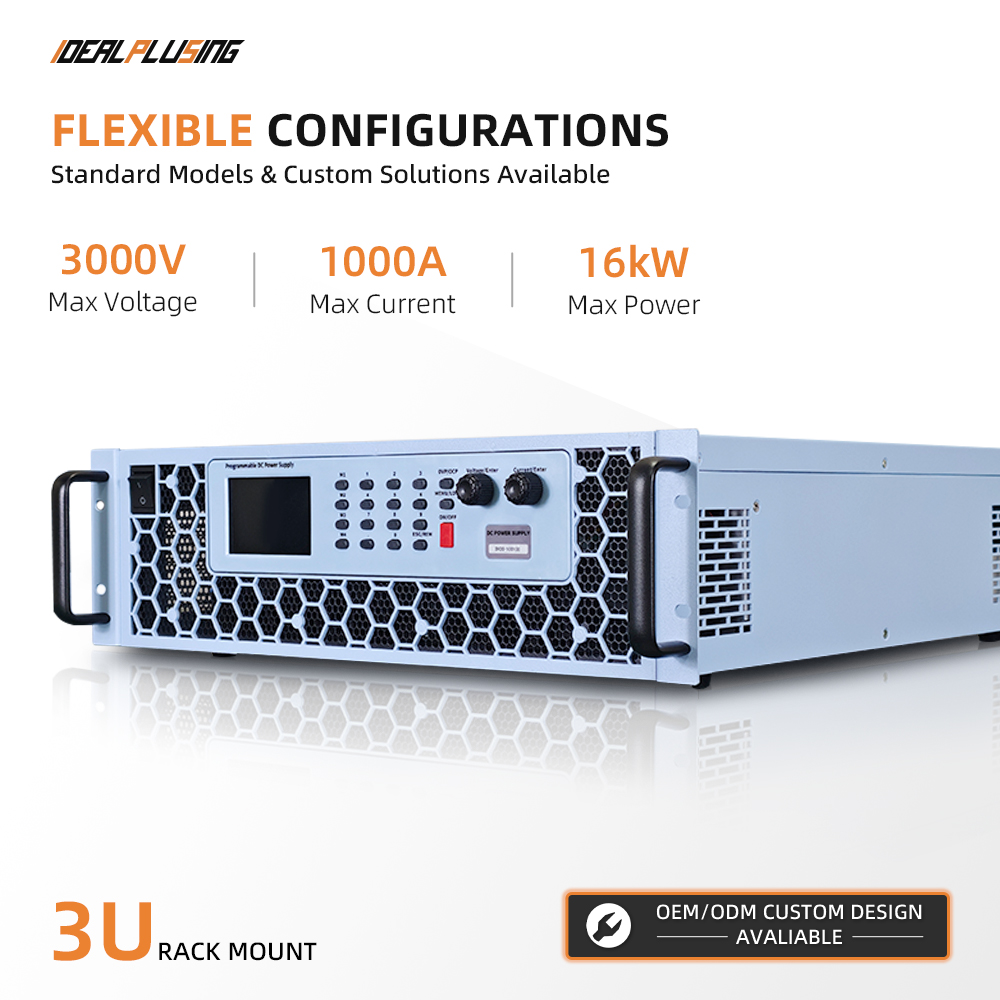

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
š„ļø
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
š
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
ā±ļø

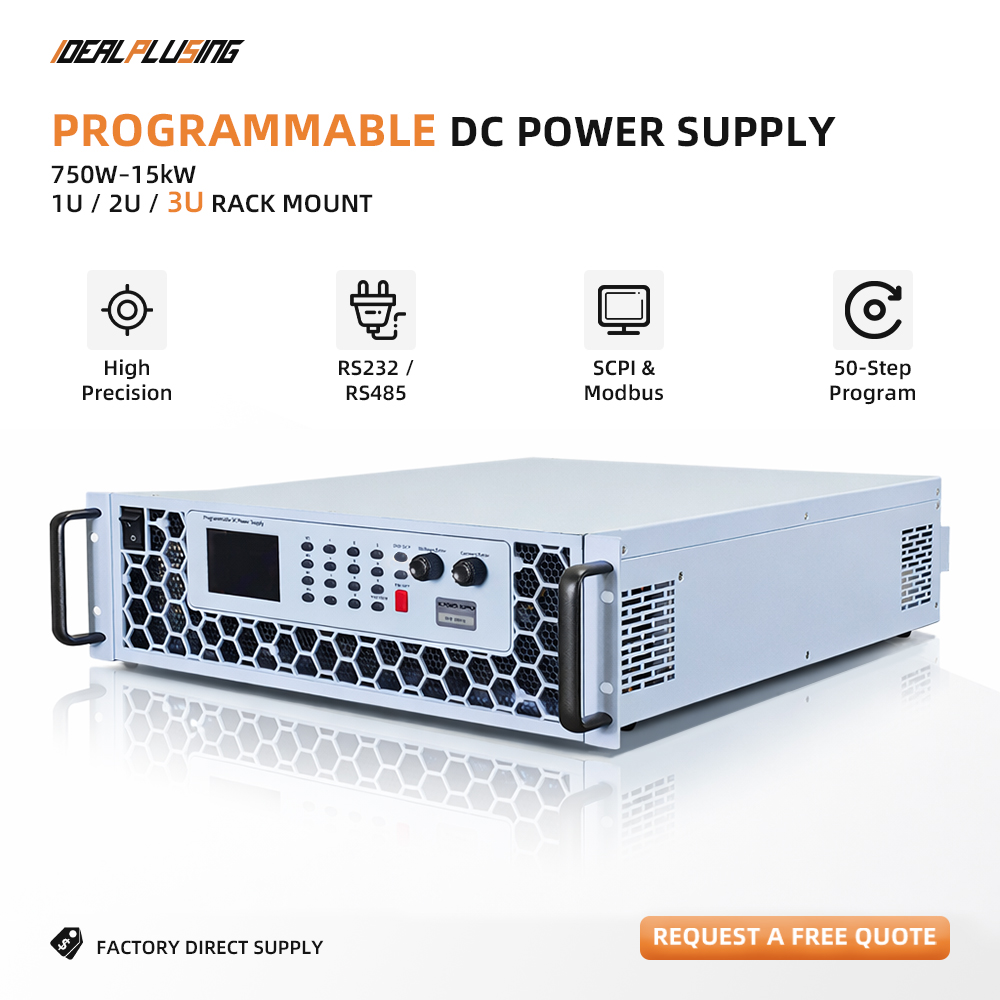

Programmable control over voltage, current, and time outputs.
š¾
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
š
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
šÆ
Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load.
š Specifications
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220VĀ±10% / Three Phase AC380VĀ±10%; 50Hz/60Hz |
| Output Voltage | 0-12.5VDC Rated Voltage |
| Output Current | 0-600A Rated Current |
| Output Power | 0-7500W Rated Power |
| Source Regulation | ā¤0.1%+10mV |
| Load Regulation | ā¤0.1%+30mV |
| Voltage Regulation Accuracy | ā¤Ā±0.1%FS |
| Current Regulation Accuracy | ā¤Ā±0.1%FS |
| Ripple (rms) | ā¤0.1%FS+10mV |
| Voltage Setting Accuracy | Ā±0.1%FS+10mV |
| Current Setting Accuracy | Ā±0.1%FS+10mA |
| Readback Accuracy | 5-digit Digital Meter, Accuracy: Ā±0.1%FS+3 digits |
| Display Mode | Color LCD Display |
| Protection | OVP (Over-Voltage), OCP (Over-Current), OTP (Over-Temperature 85āĀ±5%) |
| Communication | RS-485/RS-232 (Support Modbus and SCPI Protocols) |

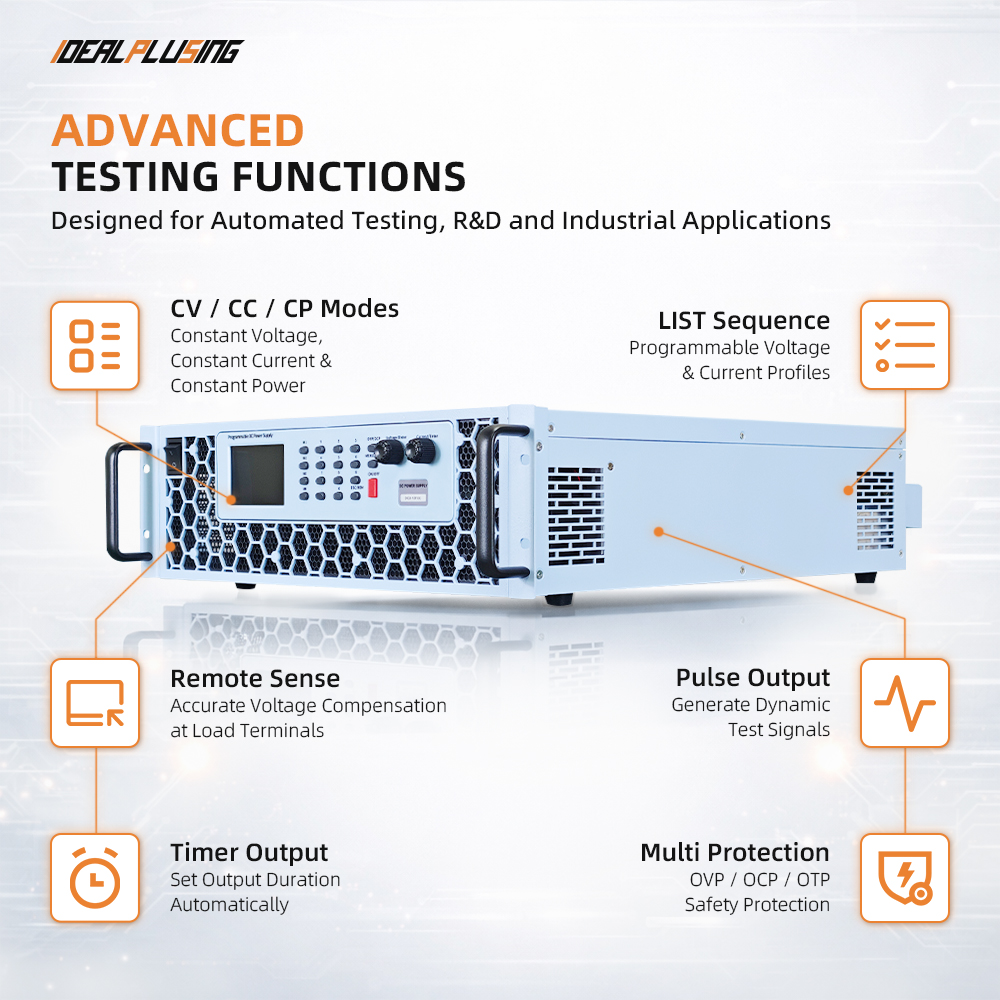

| Functions | CV/CC/CP Modes, Memory Mode, LIST Sequence Cycle, Keypad Lock |
| Cooling | Forced Air Cooling |
š„ Hot Selling Models
IPS-DH10-6002
DC OUT: 0~600V, 0~2A
Max: 1200W
IPS-DH20-12003
DC OUT: 0~1200V, 0~3A
Max: 3600W
IPS-DH10-5001
DC OUT: 0~500V, 0~1A
Max: 500W
š Detail Views

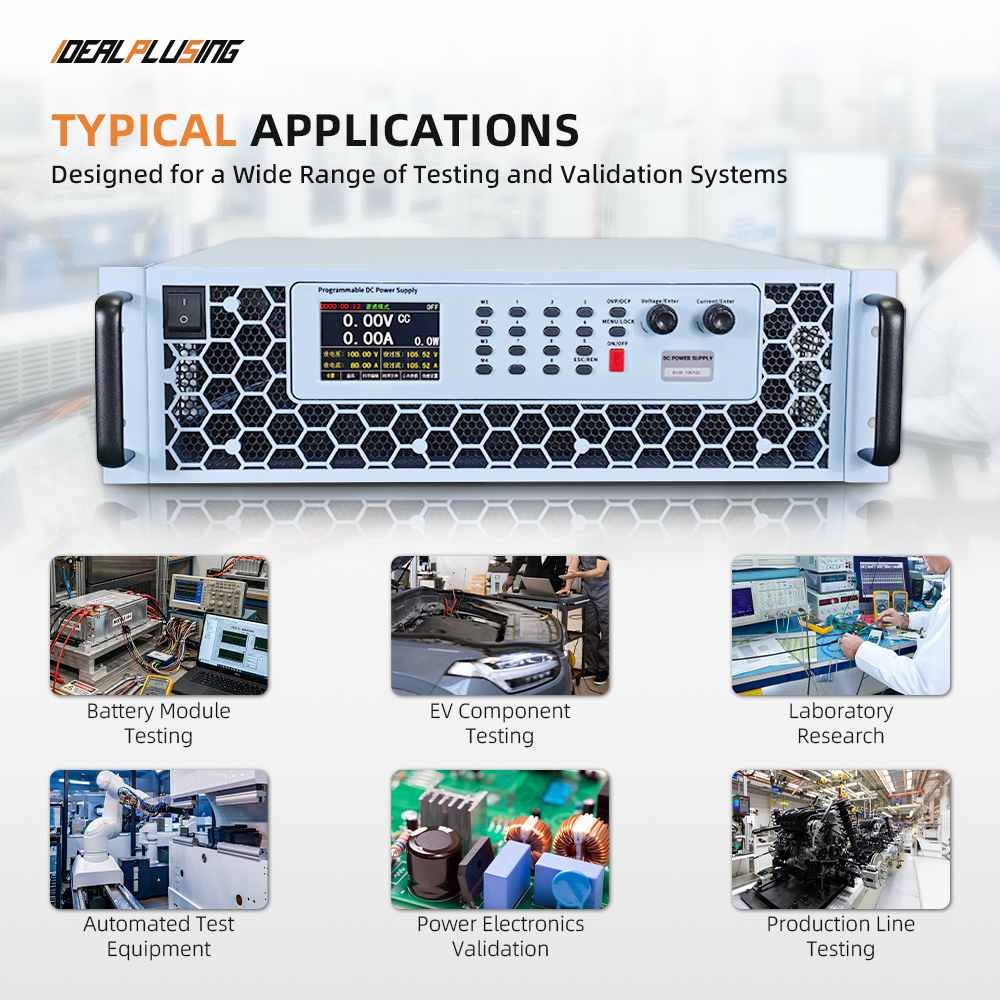

š Application Scope
- Capacitive load testing
- Inductive load testing
- Battery discharge testing
- Pulsed load testing
- Motor drive testing
- Laboratory R&D
š Series Selection List
| Model | Voltage | Current | Power | Resolution |
|---|---|---|---|---|
| IPS-DH30-12.5600 | 12.5VDC | 600A | 7500W | 1mV/10mA |
| IPS-DH20-15400 | 0-15V | 0-400A | 6000W | 1mV/10mA |
| IPS-DH30-30500 | 0-30V | 0-500A | 15000W | 1mV/10mA |
| IPS-DH20-60010 | 0-600V | 0-10A | 6000W | 10mV/1mA |
| IPS-DH20-10008 | 0-1000V | 0-8A | 8000W | 100mV/1mA |
| IPS-DH30-30005 | 0-3000V | 0-5A | 15000W | 100mV/0.1mA |
š”ļø Professional Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. We provide the right power supply solution and optimized quotations with high-quality items.
Frequently Asked Questions
What communication protocols are supported?
The power supply features RS-232 and RS-485 interfaces, supporting both Modbus-RTU and SCPI standard communication protocols for easy system integration.
Does the unit support programmable outputs?
Yes, it allows for programmable control over voltage, current, and time. The built-in memory can store up to 50 programmable steps for automated testing sequences.
What kind of protection does this power supply offer?
It includes multiple protection features: Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with a threshold of 85āĀ±5%.
Can this be used for battery discharge testing?
Absolutely. This series is specifically designed for applications including battery discharge testing, capacitive/inductive load testing, and motor drive testing.
Is the voltage measurement accurate at the load side?
Yes, the device is equipped with dedicated load-side voltage sensing terminals (Remote Sense), which compensate for voltage drops in the leads and ensure accurate measurement at the load.
Are customization options available for specific requirements?
Yes, customization is available for our 2U and 3U series to meet specific voltage, current, or power requirements for unique R&D or industrial testing needs.
