IDEALPLUSING Programmable DC Power Supply 36V 96V 288V 360VDC 20A with SCPI Protocol Precise Control for Automated Test Systems
Product Description
Programmable DC Power Supply 36V 96V 288V 360VDC 20A with SCPI Protocol Precise Control for Automated Test Systems
š” Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Description
1

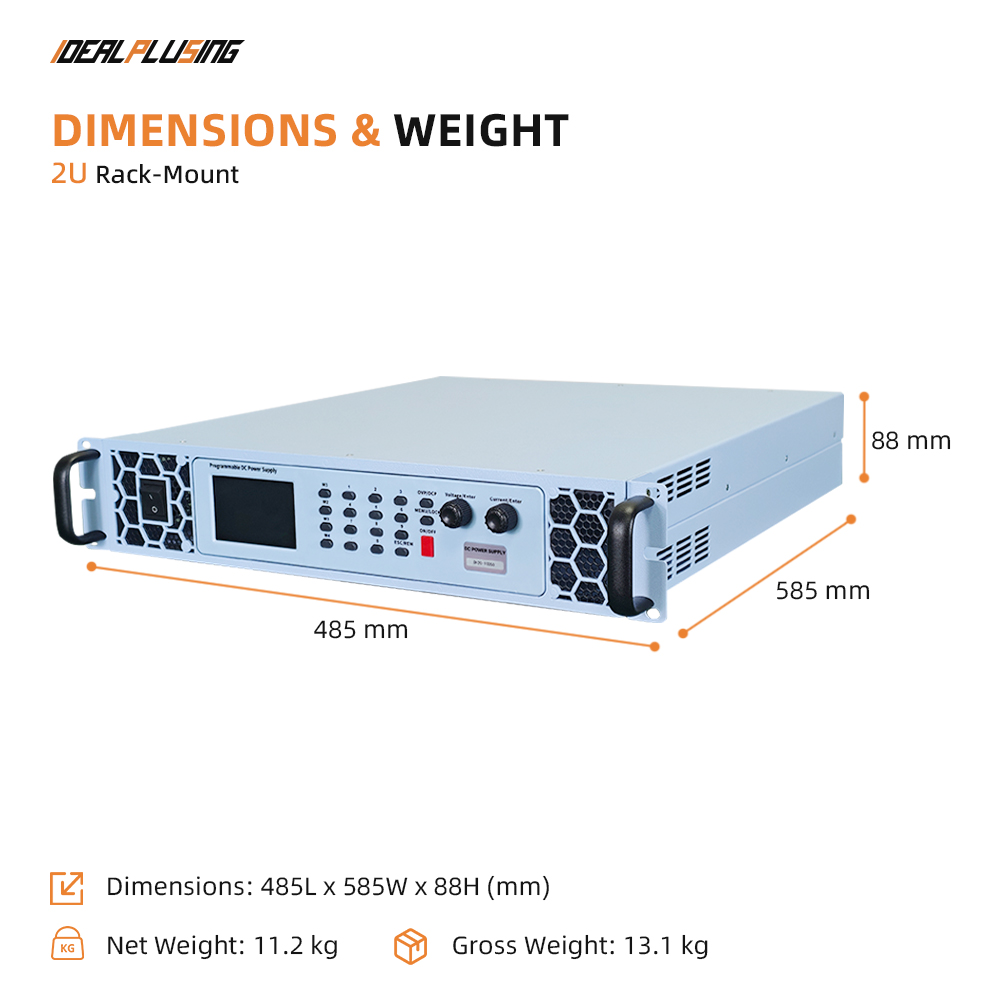

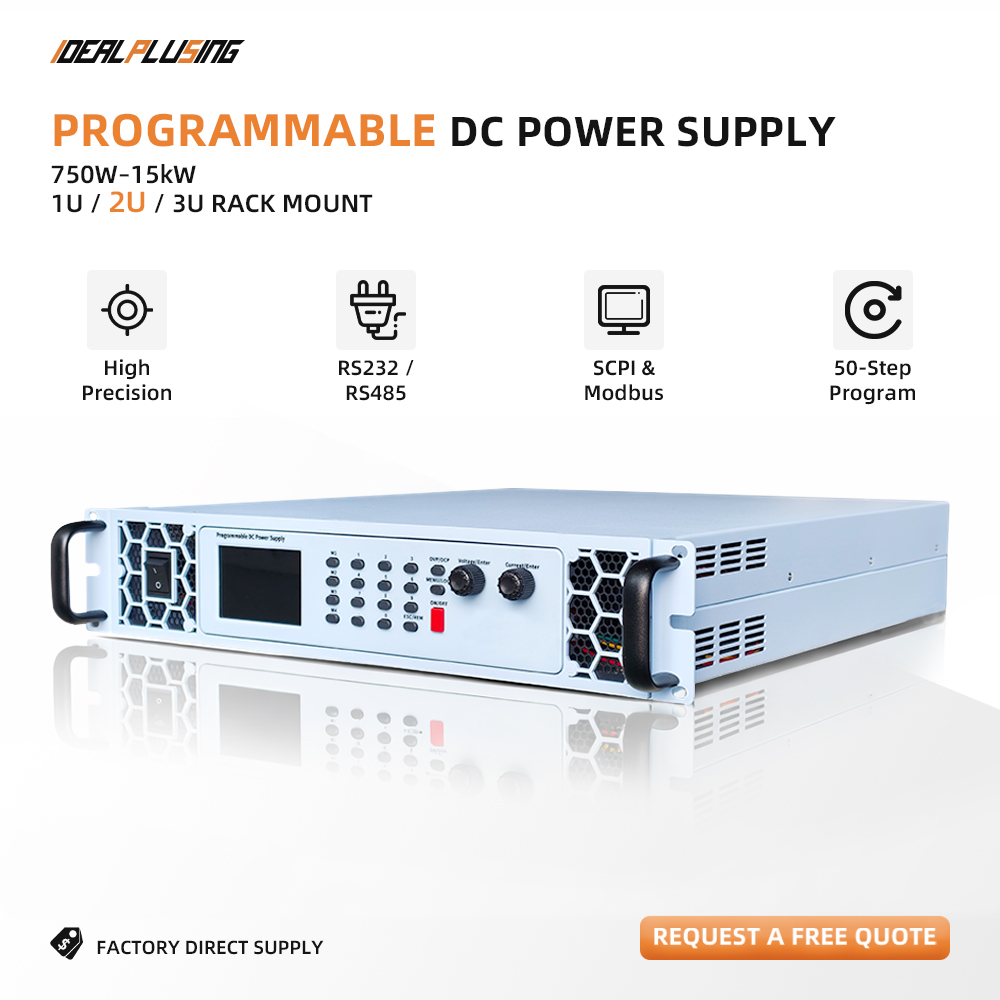

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2

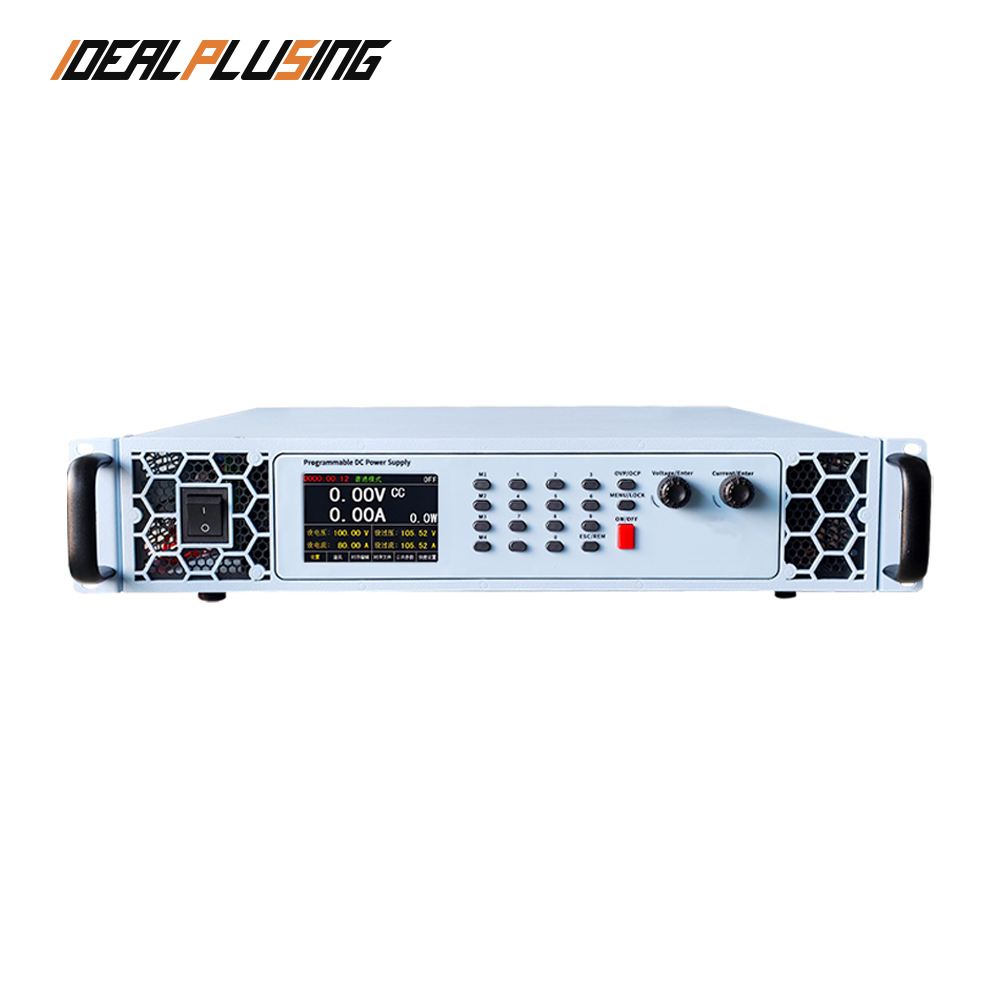

Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4

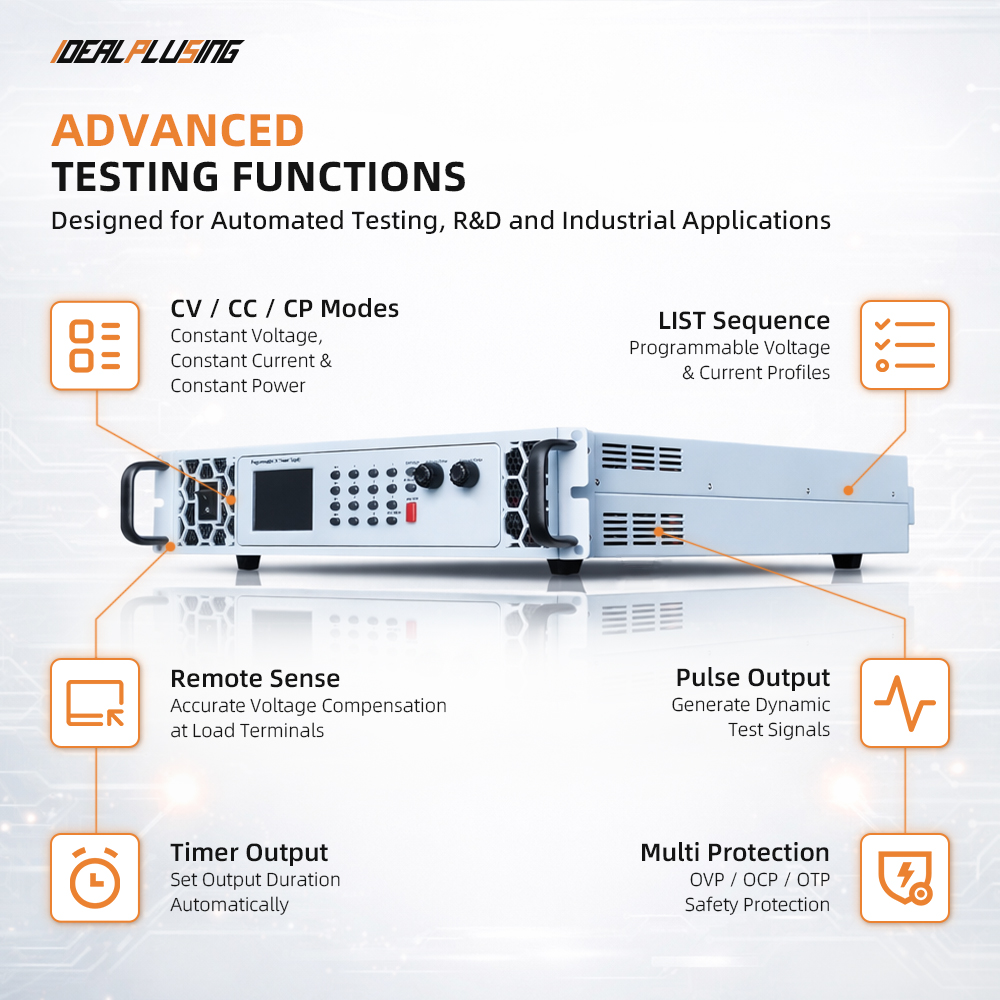

Programmable control over voltage, current, and time outputs.
5
Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7

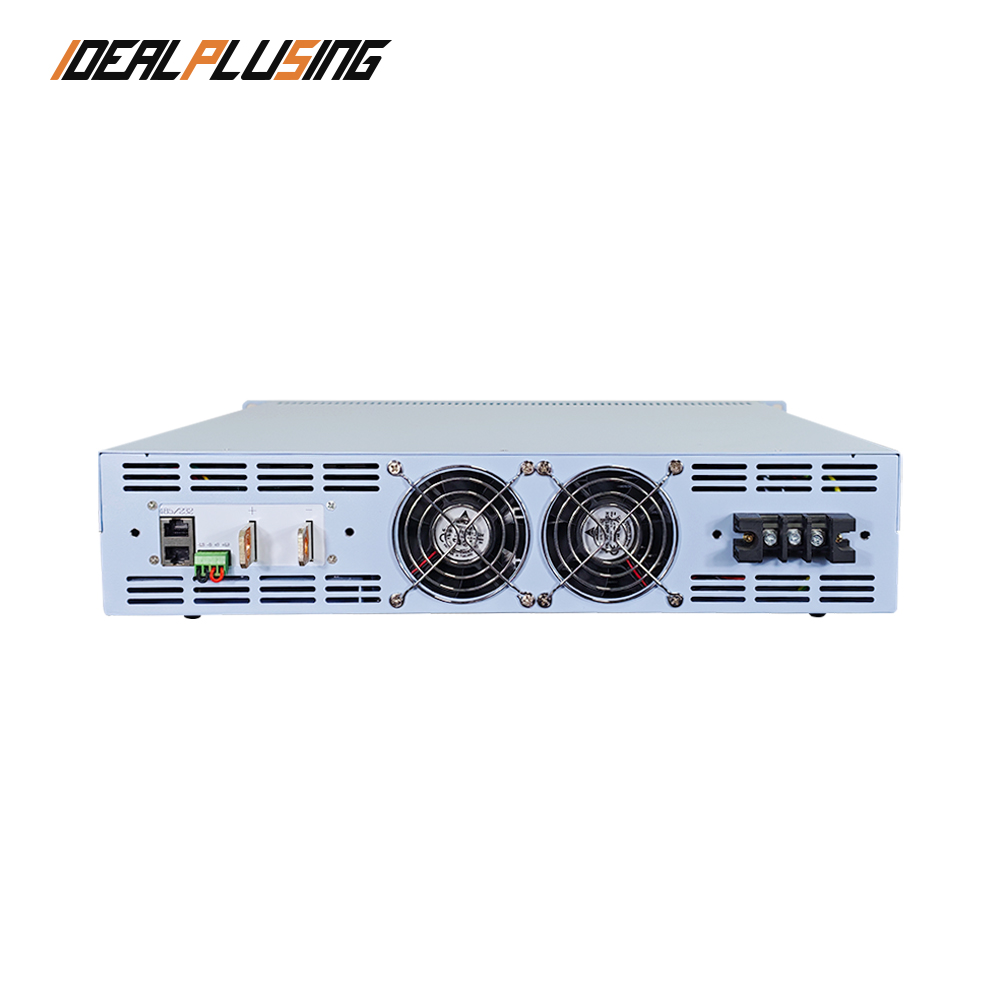

Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load and facilitating precise control.
Specification
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220VĀ±10%/Three Phase AC380VĀ±10%; Frequency 50Hz/60Hz |
| Output Voltage | 0-360VDC Rated Voltage |
| Output Current | 0-20A Rated Current |
| Output Power | 0-7200W Rated Power |
| Source Regulation | ≤0.1%+10mV |
| Load Regulation | ≤0.1%+30mV |
| Voltage Regulation Accuracy | ≤±0.1%FS |
| Current Regulation Accuracy | ≤±0.1%FS |
| Voltage Readback Accuracy | 5-digit Digital Meter, Accuracy: ±0.1%FS+3 digits |
| Display Mode | Color LCD Display |
| Protections | OVP (Over-Voltage), OCP (Over-Current), OTP (Over-Temperature 85āĀ±5%) |
| Communication Interface | RS-485/RS-232 (Support Modbus and SCPI Protocols) |
| Functions | CV/CC/CP Modes, Memory Mode, LIST Sequence Cycle, Pulse Width Output |
| Cooling Method | Forced Air Cooling |
* Description: All values are typical values, which may be exceeded under different loads or other conditions. Accuracy is measured with voltage detection at the load terminal.
Hot Selling Models
IPS-DH10-6002 DC Power Supply
0~600VDC, 0~2A, Max 1200W
IPS-DH20-12003 DC Power Supply
0~1200VDC, 0~3A, Max 3600W
IPS-DH10-5001 DC Power Supply
0~500VDC, 0~1A, Max 500W
IPS-DH30-8500 DC Power Supply
0~8VDC, 0~500A, Max 4000W
IPS-DH10-10003 DC Power Supply
0~1000VDC, 0~3A, Max 3000W
IPS-DH20-8005 DC Power Supply
0~800VDC, 0~5A, Max 4000W
Details Images
Application Scope
Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
Model List Selection
| No | Model | Voltage(V) | Current(A) | Power(W) | Resolution |
|---|---|---|---|---|---|
| 1 | IPS-DH20-28802.5 | 2880VDC | 2.5A | 7200W | 100mV/0.1mA |
| 2 | IPS-DH20-12006 | 1200VDC | 6A | 7200W | 100mV/0.1mA |
| 3 | IPS-DH20-60012 | 600VDC | 12A | 7200W | 10mV/1mA |
| 4 | IPS-DH20-36020 | 360VDC | 20A | 7200W | 10mV/1mA |
| 5 | IPS-DH20-10072 | 100VDC | 72A | 7200W | 10mV/10mA |
| 6 | IPS-DH30-12600 | 12VDC | 600A | 7200W | 1mV/10mA |
Frequently Asked Questions
ā What communication protocols does the power supply support?
The unit supports both Modbus-RTU and SCPI communication protocols via RS-232 and RS-485 interfaces, making it ideal for automated test systems.
ā Can this unit be mounted in a standard server rack?
Yes, the power supply is designed with standard 2U and 3U full-width dimensions, suitable for both rack mounting and benchtop use.
ā What safety protections are built into the system?
It includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with a threshold of 85āĀ±5%.
ā How precise is the voltage and current control?
The system features a 5-digit digital display with a regulation accuracy of ≤±0.1% Full Scale, ensuring highly precise control for sensitive applications.
ā Does it support complex output sequences?
Yes, the built-in memory supports up to 50 programmable steps for voltage, current, and time, allowing for automated LIST sequence cycles.
ā How does the remote sensing terminal work?
The dedicated load-side voltage sensing terminals compensate for voltage drops in the connection leads, ensuring the exact set voltage is delivered at the load.
