100kva/120kva 50hz to 60hz to 400hz Static Variac Frequency Power Supplier IGBT PWM 220v to 380v
Product Description
100kva/120kva 50hz to 60hz to 400hz Static Variac Frequency Power Supplier
IGBT PWM 220v to 380v
IGBT PWM 220v to 380v
PERFORMANCE CHARACTERISTICS
✔
Complete isolation of input and output technology, safe and reliable power supply.
✔
SPWM sine wave pulse width modulation technology for fast response and stable output.
✔
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
✔
Unique double-loop control mode (instantaneous & effective value) for high precision and waveform quality.
✔
Highly integrated module drive circuit with strong overload capacity and low loss.
✔
Suitable for resistive, inductive, rectifier, and various other load types.
✔
Multiple protection: overheating, overcurrent, and short circuit protection included.
✔
Parameter memory function with 10-group shortcut key operation.
✔
Online adjustment of voltage and frequency in real-time.
APPLICATIONS
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information and communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power Industry
TECHNICAL SPECIFICATIONS (IPS-FC61 & IPS-FC62)
| Model (IPS-FC61) Single-Phase | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| AC Input | Single-phase 220V / 50Hz or 60Hz | |||||||||
| AC Output | Voltage Range | Low: 0~150V | High: 0~300V Adjustable | ||||||||
| Frequency | 40~499.9Hz (Software Setting) | |||||||||
| Circuit Mode | IGBT / SPWM | |||||||||
| Model (IPS-FC62) Tri-Phase Output | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| AC Output Phase | 3-phases 380V | |||||||||
| Net Weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 | ||

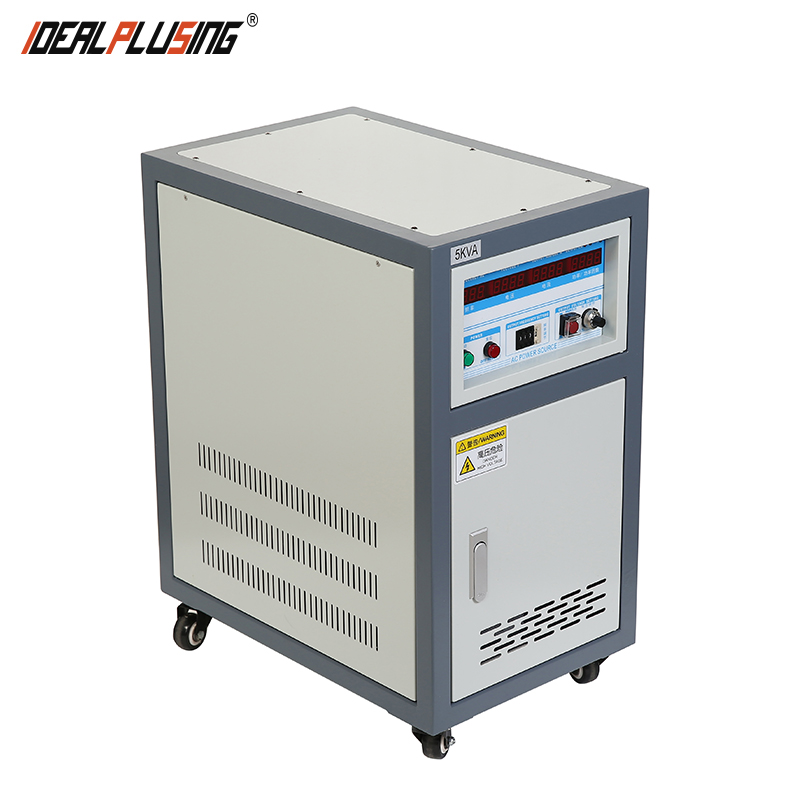

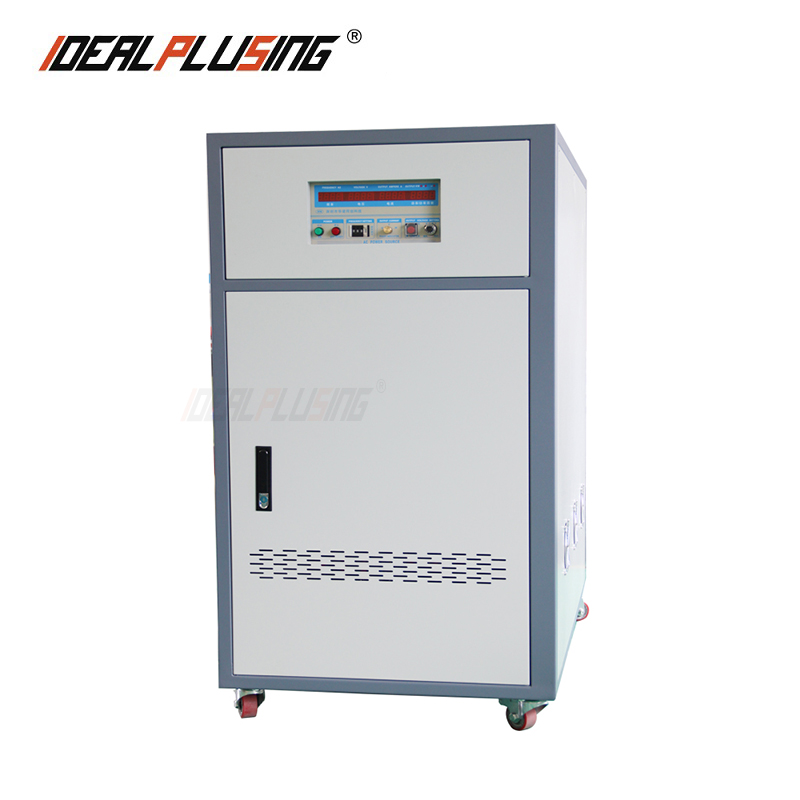

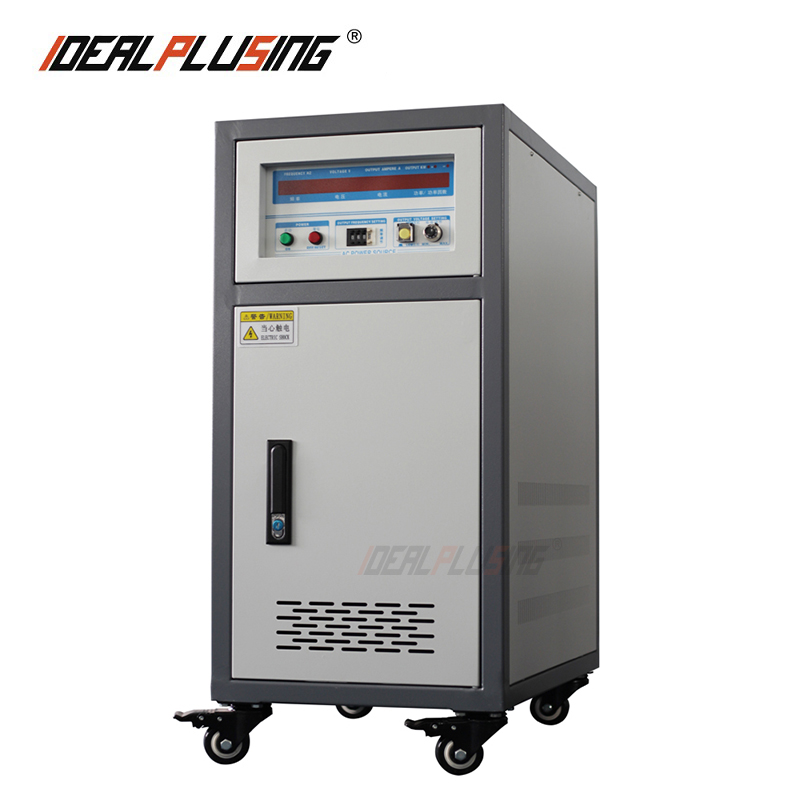

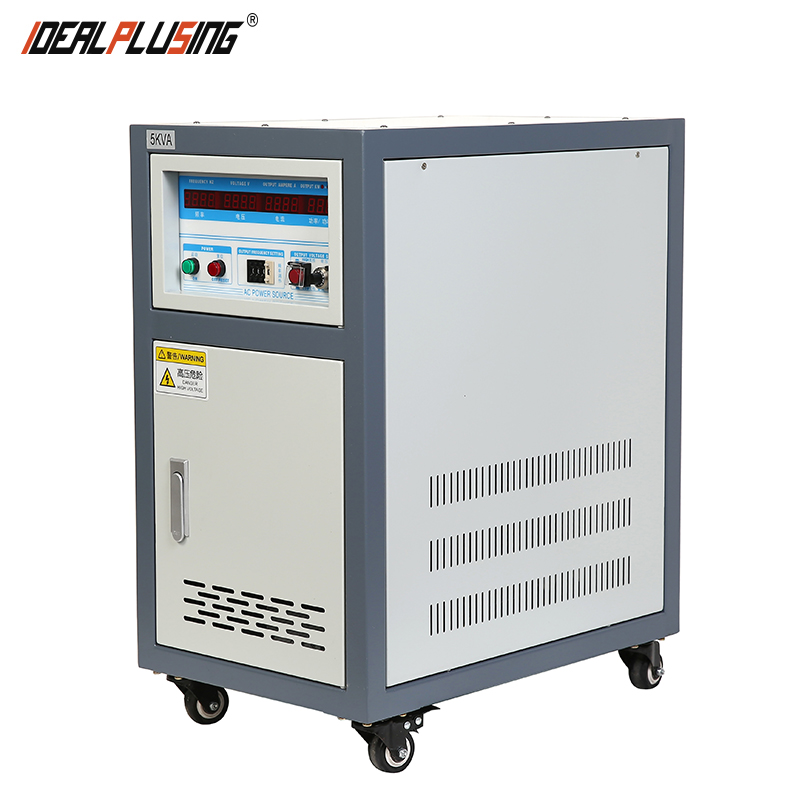

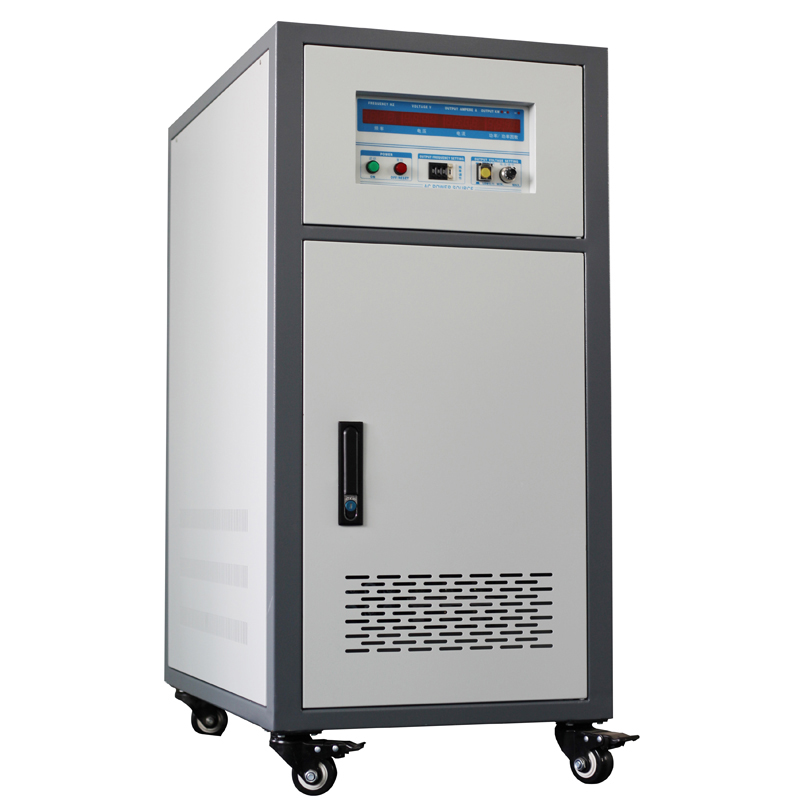

PRODUCT SHOWCASE
MODEL LIST & TECHNICAL DATA
FREQUENTLY ASKED QUESTIONS
What is the output frequency range of this power supplier?
The output frequency can be adjusted via software from 40Hz to 499.9Hz, making it ideal for simulating 50Hz, 60Hz, or aviation-grade 400Hz power environments.
Does the system provide isolation between input and output?
Yes, the device features complete isolation technology between input and output, ensuring a safe and reliable power supply for sensitive electronic testing.
What kind of loads are compatible with this frequency converter?
The system is designed to be highly versatile and can adapt to resistive, inductive, rectifier, and other complex loads commonly found in industrial and laboratory settings.
What protection features are built into the unit?
It includes multiple safety protections for abnormal conditions, such as overvoltage, overcurrent, overload, over-temperature, and short-circuit protection with automatic jump and alarm devices.
Can I adjust the voltage and frequency while the unit is online?
Yes, the power supply voltage and frequency can be adjusted online in real-time, allowing for seamless testing without powering down your equipment.
What technology is used for the inverter process?
The unit utilizes high-frequency IGBT static inverter technology along with SPWM (Sine Wave Pulse Width Modulation) for high efficiency, low noise, and stable waveform quality.
