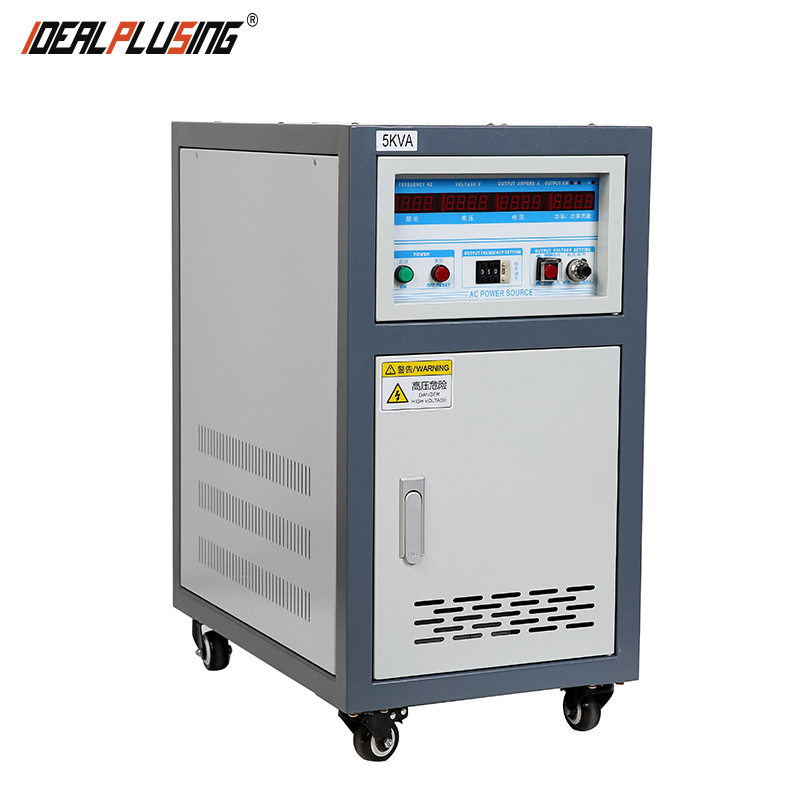

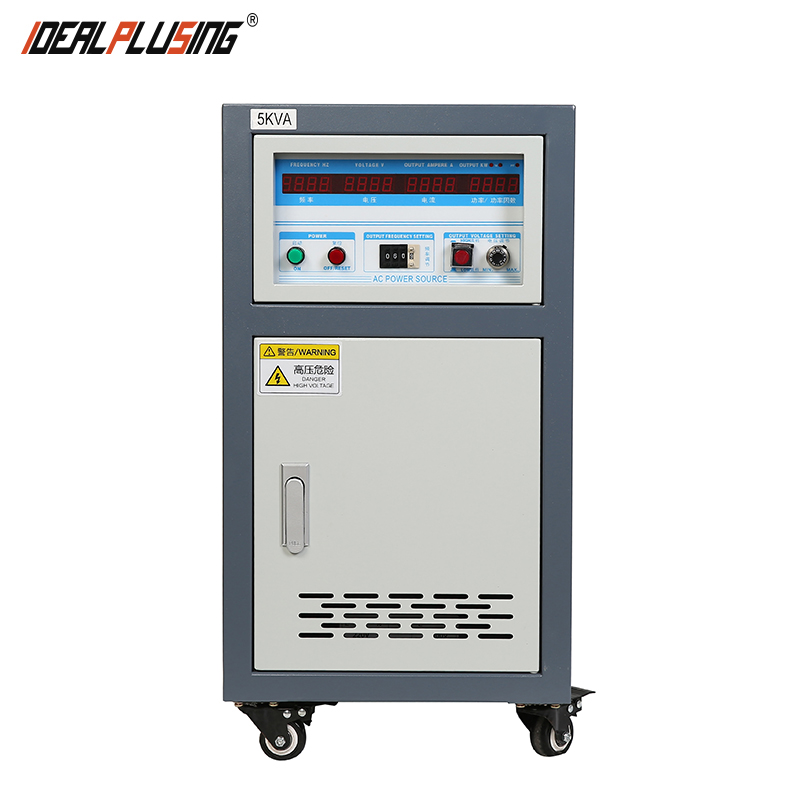

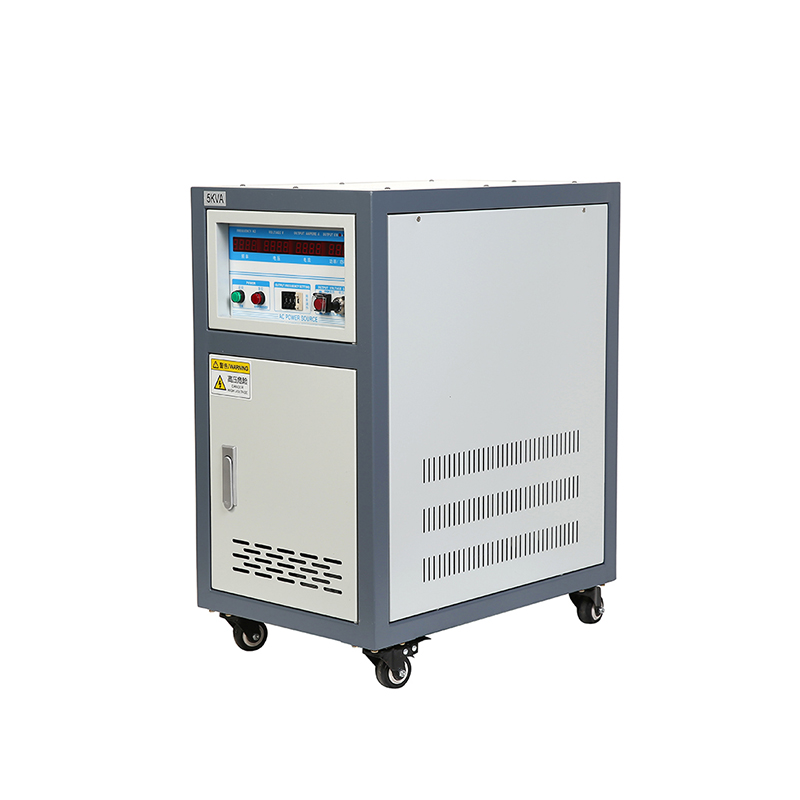

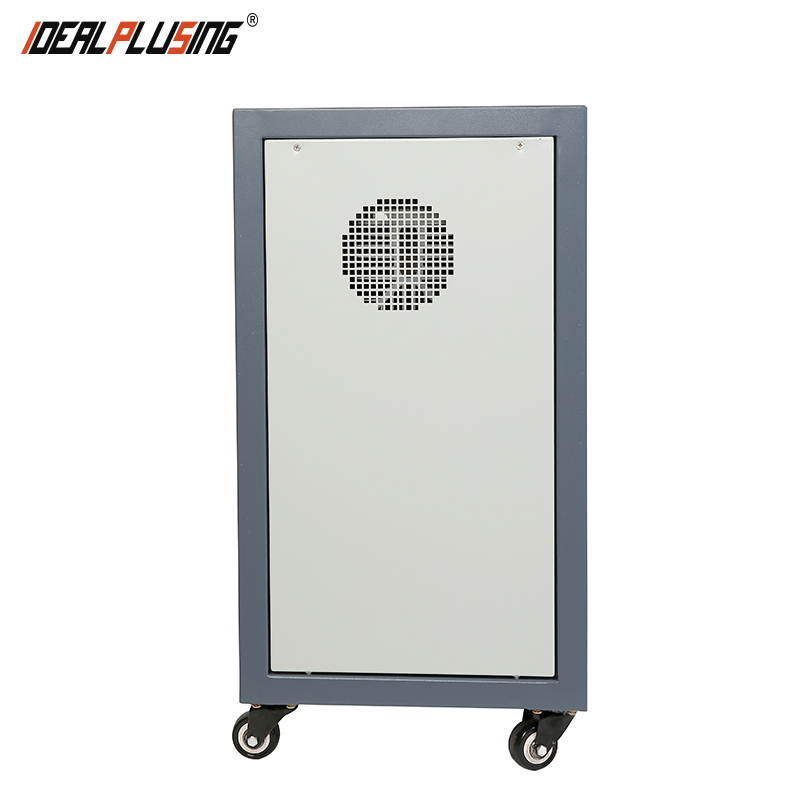

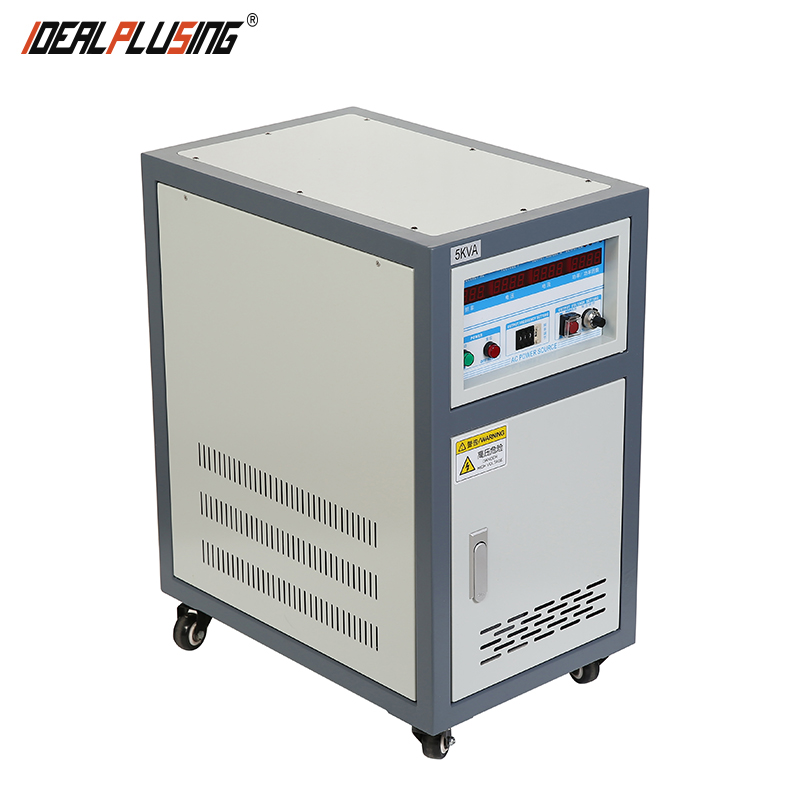

50Hz/60Hz to 400Hz Three-phase 800kVA Frequency Converter Ac Power Supply
Product Description
50Hz/60Hz to 400Hz Three-phase 800kVA Frequency Converter AC Power Supply
Product Description
PERFORMANCE CHARACTERISTICS
✔
Complete isolation of input and output technology, safe and reliable power supply.
✔
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output.
✔
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
✔
The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads.
✔
High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency.
✔
Suitable for resistive, inductive, rectifier, and other loads.
✔
It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit.
✔
It has the function of setting parameter memory, (10-groups) shortcut key operation.
✔
The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time.
APPLICATION INDUSTRIES
| 1. Home appliances | 8. Photovoltaic |
| 2. Motors | 9. Lamps |
| 3. Power tools | 10. Electronic transformers |
| 4. Switching power supplies | 11. Electronic components |
| 5. Power adapters | 12. Low-voltage distribution |
| 6. UPS | 13. Power |
| 7. Information and communication | 14. Other industries |
Specifications (IPS-FC61) Single-Phase Input
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Rated power output(KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| Circuit mode | IGBT/SPWM | |||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||
| Output Phase | Single-phase 220V | |||||||
| Voltage Range | Low: 0~150V / High: 0~300V Adjustable | |||||||
| Frequency | 40~499.9HZ | |||||||
| Protection | Overvoltage, over current, overload, over temperature, short-circuit, alarm | |||||||
Specifications (IPS-FC62) Single-Phase Input Tri-Phase Output
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 621150 | 62200 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| Rated power output(KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 |
| AC input | Tri-phase 220V/50Hz or 60Hz | |||||||
| AC output phase | 3-phases 380V | |||||||
Specifications (IPS-FC63) 3-Phase Input Single-Phase Output
| Model IPS-FC63 | 6310 | 6320 | 6330 | 6360 | 63100 | 63400 | 63600 |
|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 20 | 30 | 60 | 100 | 400 | 600 |
| Output Frequency | 40~499.9HZ Adjustable | ||||||
Specifications (IPS-FC68) 3-Phase Input 3-Phase Output
| Model IPS-FC68 | 6805 | 6810 | 6820 | 6830 | 6845 | 6860 | 68100 |
|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 5 | 10 | 20 | 30 | 45 | 60 | 100 |
| Circuit Mode | IGBT/PWM | ||||||
Product Show-ACAC
Product Overview
Model List
Frequently Asked Questions
1. What is the primary purpose of this 400Hz frequency converter?
It is designed to convert standard 50Hz or 60Hz power to a stable 400Hz output, commonly used in aviation, military, and specialized industrial testing environments.
2. Can the output voltage and frequency be adjusted during operation?
Yes, the power supply allows for real-time online adjustment of both voltage and frequency via highly integrated software control.
3. What safety protections are built into the system?
The converter includes comprehensive protection against overvoltage, overcurrent, overload, overheating, and short-circuits, featuring automatic jump protection and an alarm device.
4. Is the converter compatible with sensitive electronic loads?
Absolutely. Utilizing SPWM sine wave pulse width modulation and full isolation technology, it provides high-quality waveform output suitable for rectifiers and sensitive electronic components.
5. How does the IGBT technology benefit the user?
High-frequency IGBT modules allow the unit to be smaller, lighter, and quieter while maintaining high efficiency and a strong overload capacity.
6. Can the device save specific operation settings?
Yes, it features a parameter memory function with 10 groups of shortcut key operations for quick access to frequently used settings.
