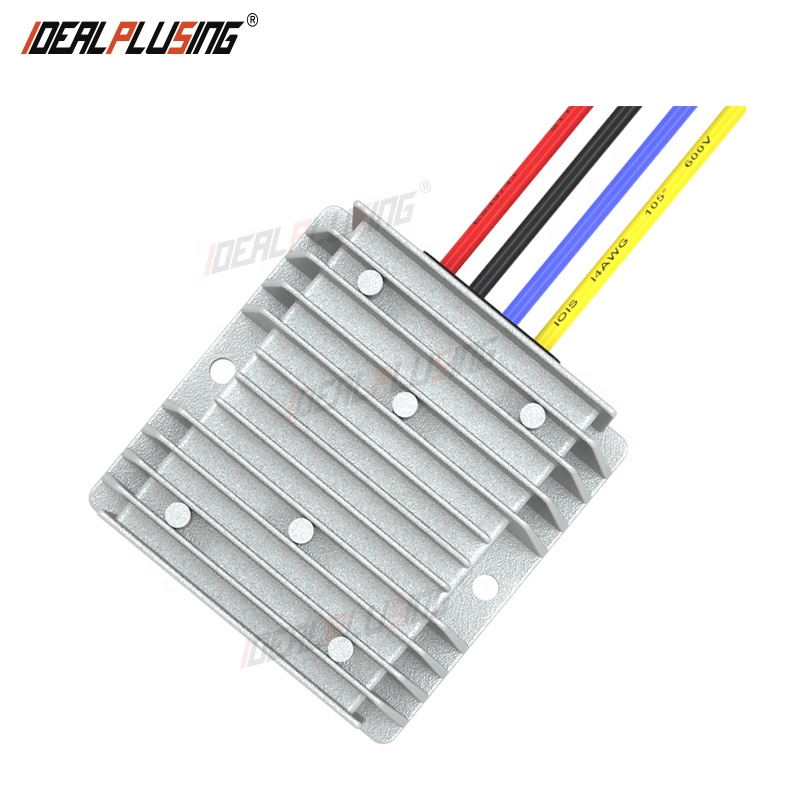

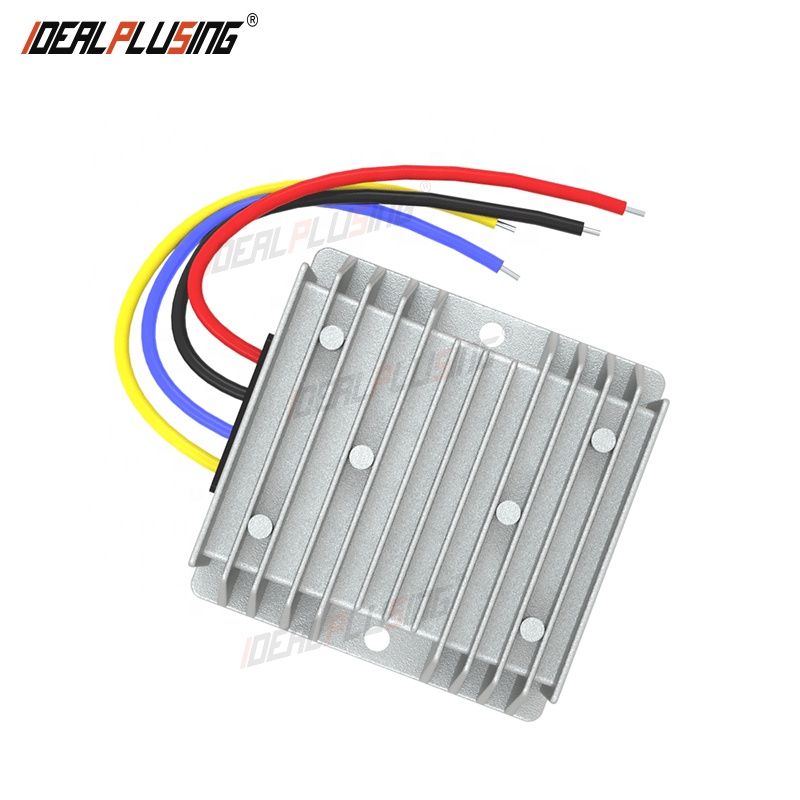

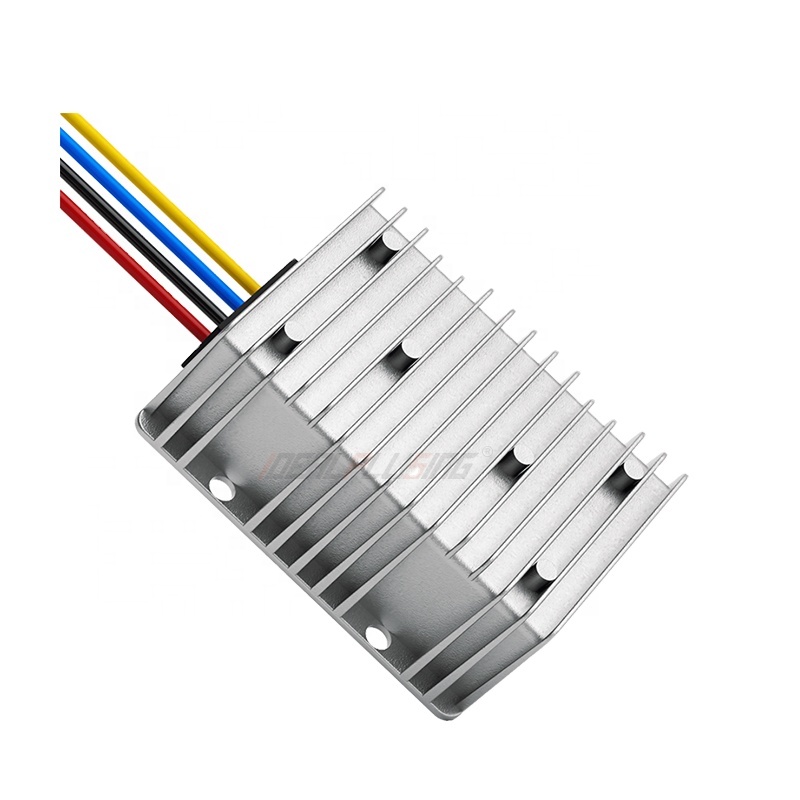

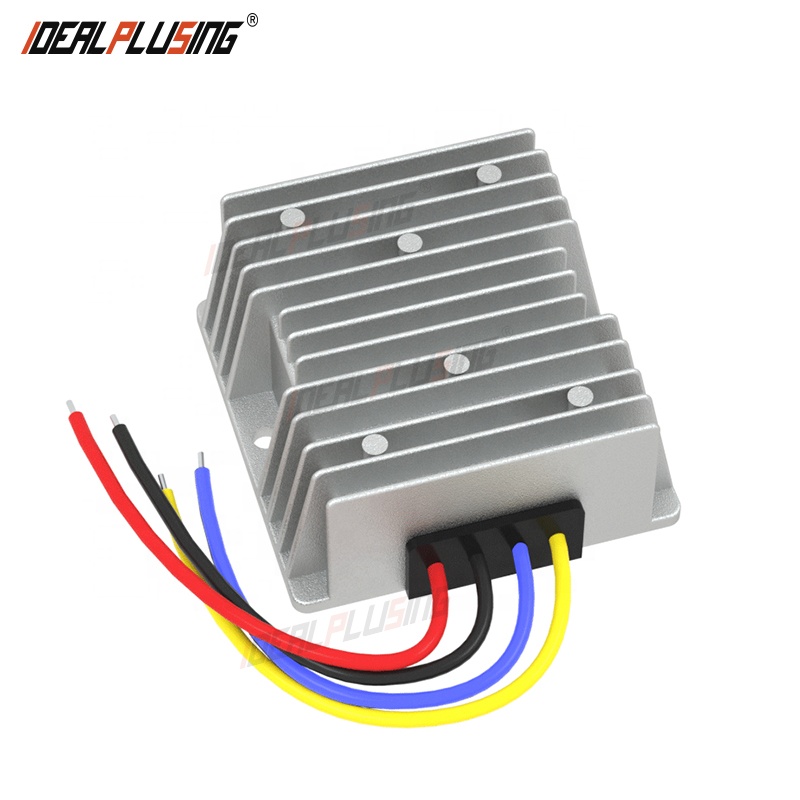

120w Voltage Regulators/stabilizers 84v 96v 120v to 12v 10a 75-150v Isolated Dc/dc Converter Buck boost Converter Module
Product Description
120W Voltage Regulators / Stabilizers
84V 96V 120V to 12V 10A Isolated DC/DC Converter Module
🚀 Key Features
✔ 100% full power & stable current output
✔ 100% Imported components
✔ Wide input voltage range (75~150VDC)
✔ 100% waterproof (IP67) & anti-shock protection
✔ Industry grade Isolated converter, efficiency up to 93%
✔ Certificates: CE/RoHS compliance

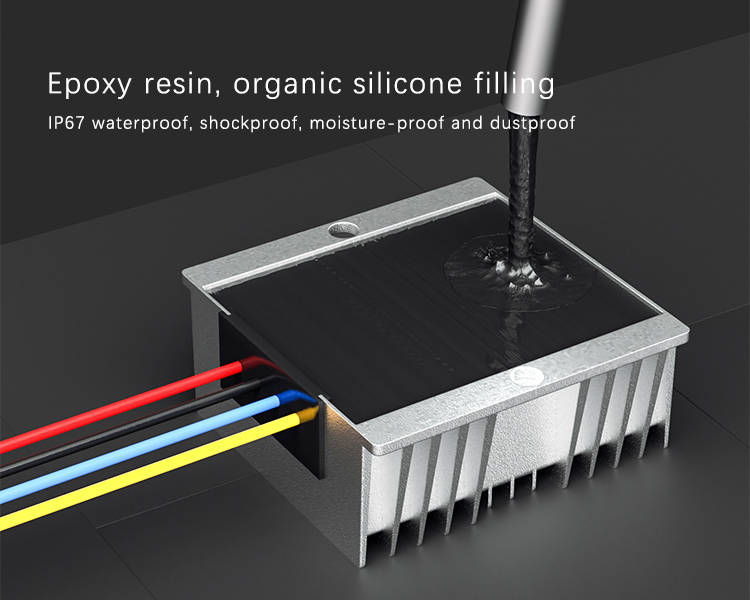

✔ Aluminum shell, epoxy potting, cooling by free air convection
✔ Over-current, Over-voltage, Over-temperature protections
✔ Short-circuit protection & Auto-recovery
✔ Ultra compact size & light weight
✔ Long lifetime up to 100,000 hours
✔ Constant Voltage Design
📊 Technical Specifications
| Isolated DC-DC Converter Details | |
| Type | Isolated Module |
| Model | IPS-DTDYI120S1210 |
| Nominal Input Voltage | 84V / 96V / 120V DC |
| Input Voltage Range | 75 ~ 150V DC |
| Output Voltage | 12V DC |
| Output Current | 10 Amps |
| Rated Power | 120 Watts |
| Efficiency | 93% |
| Size | 74 * 74 * 32 (MM) |
| Weight (NW) | 300g |
| Shell Material | Aluminum |
| Waterproof Level | IP67 |
| Working Temp | -20 ~ 80℃ |

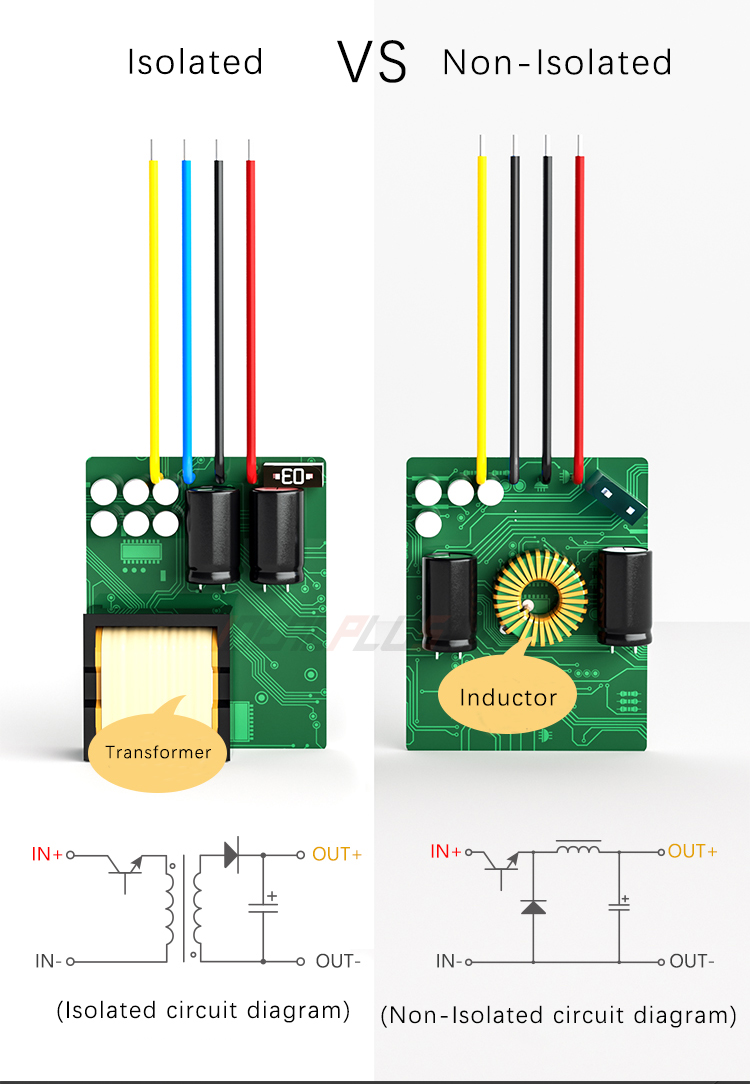

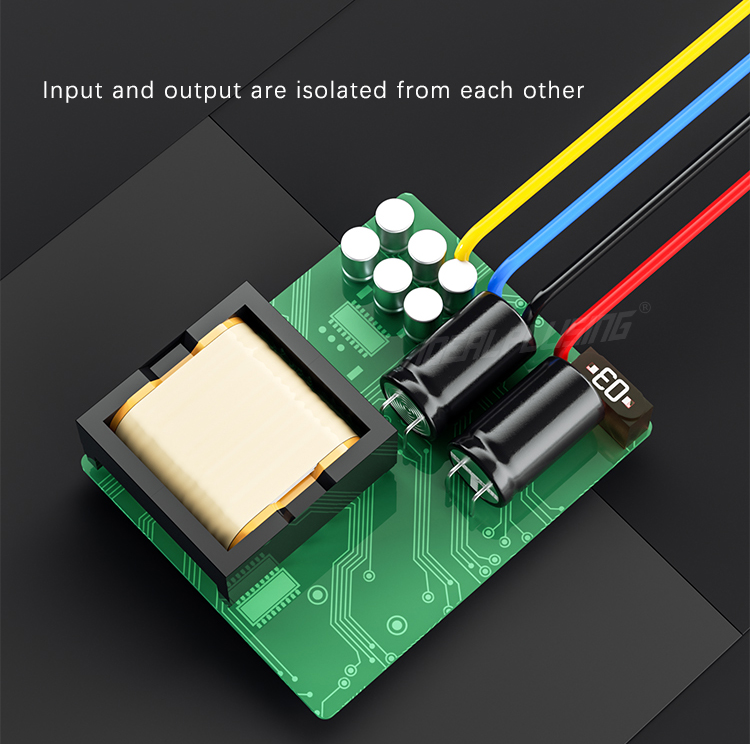

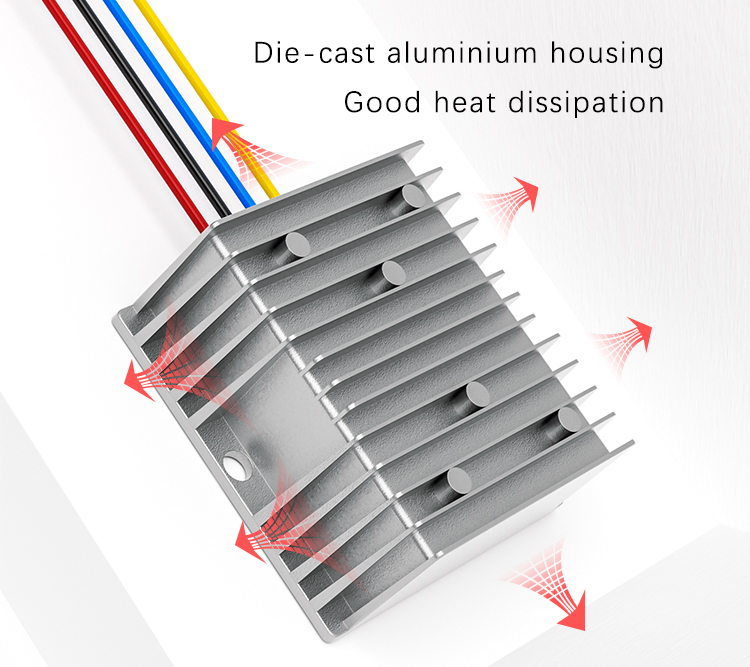

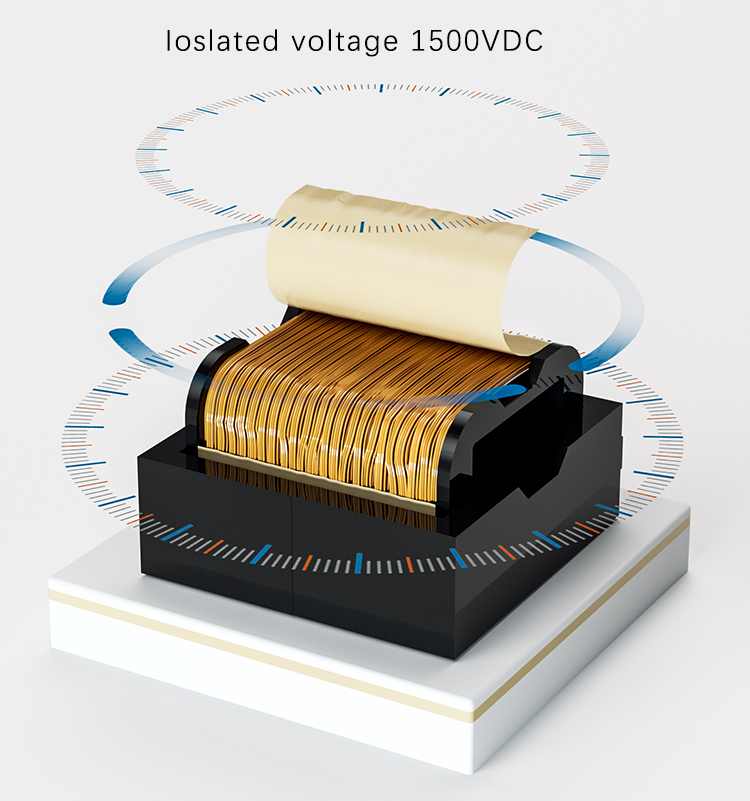

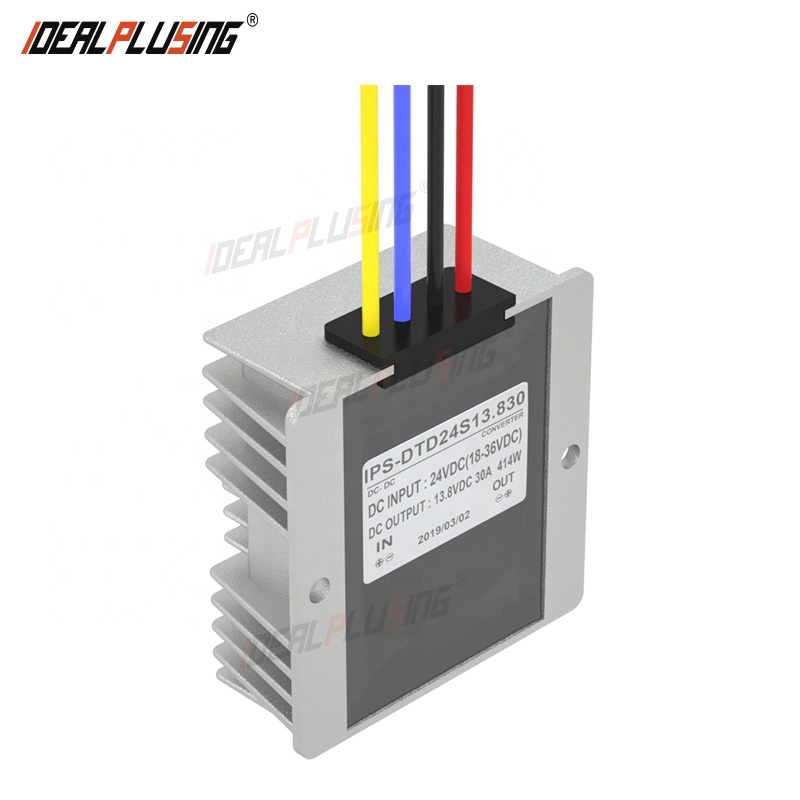

🖼️ Detailed Images

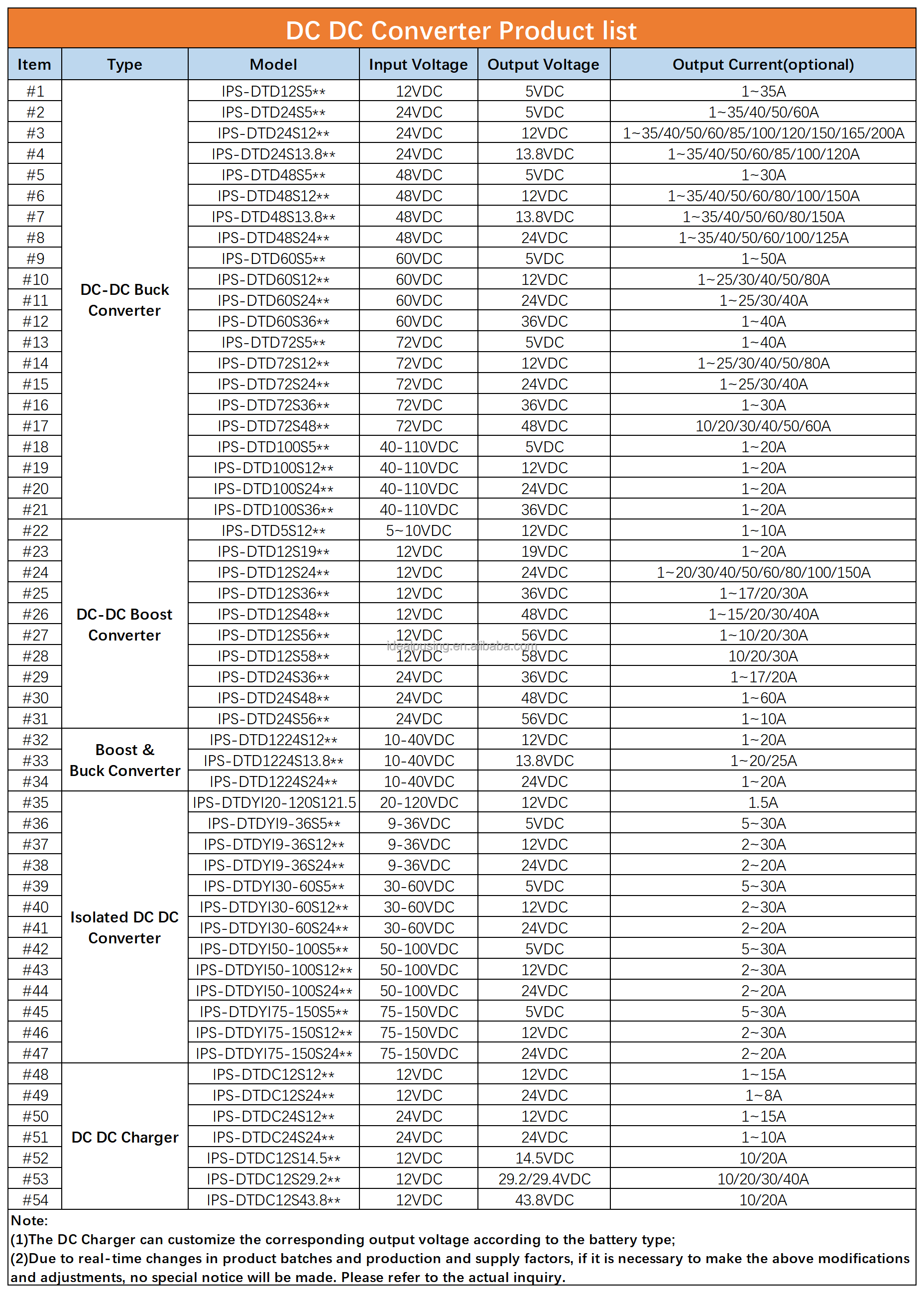

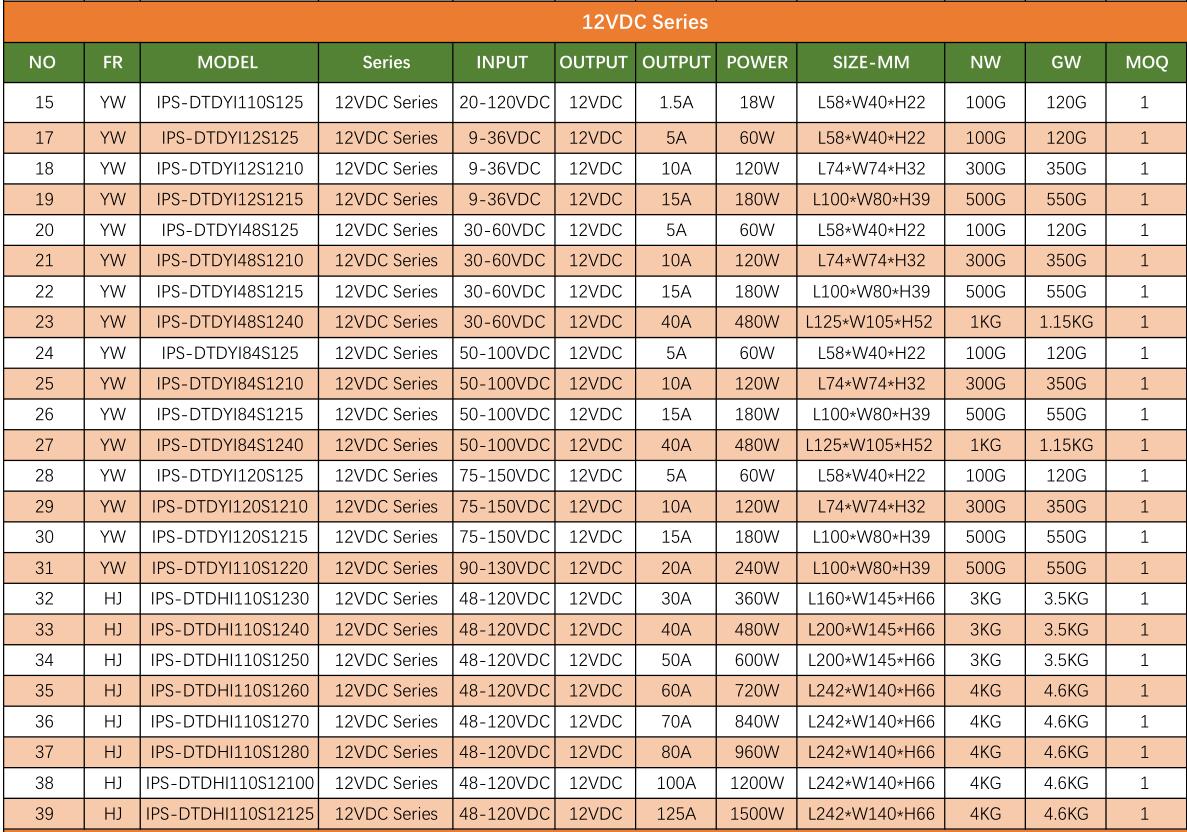

⚙️ Customization & Range

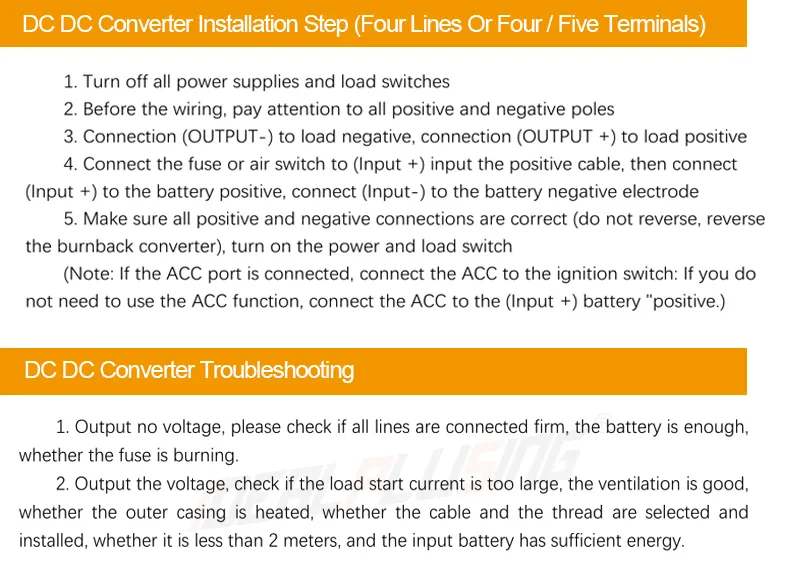

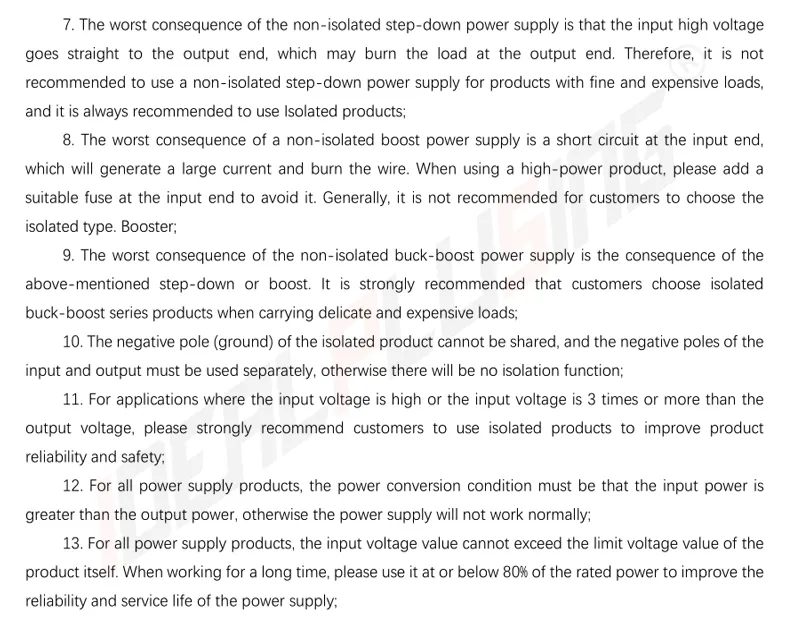

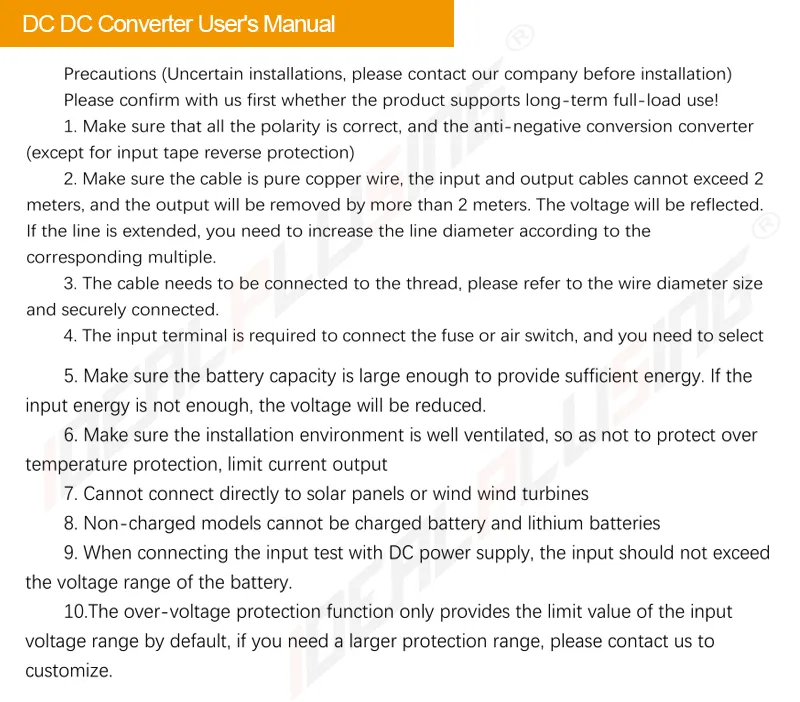

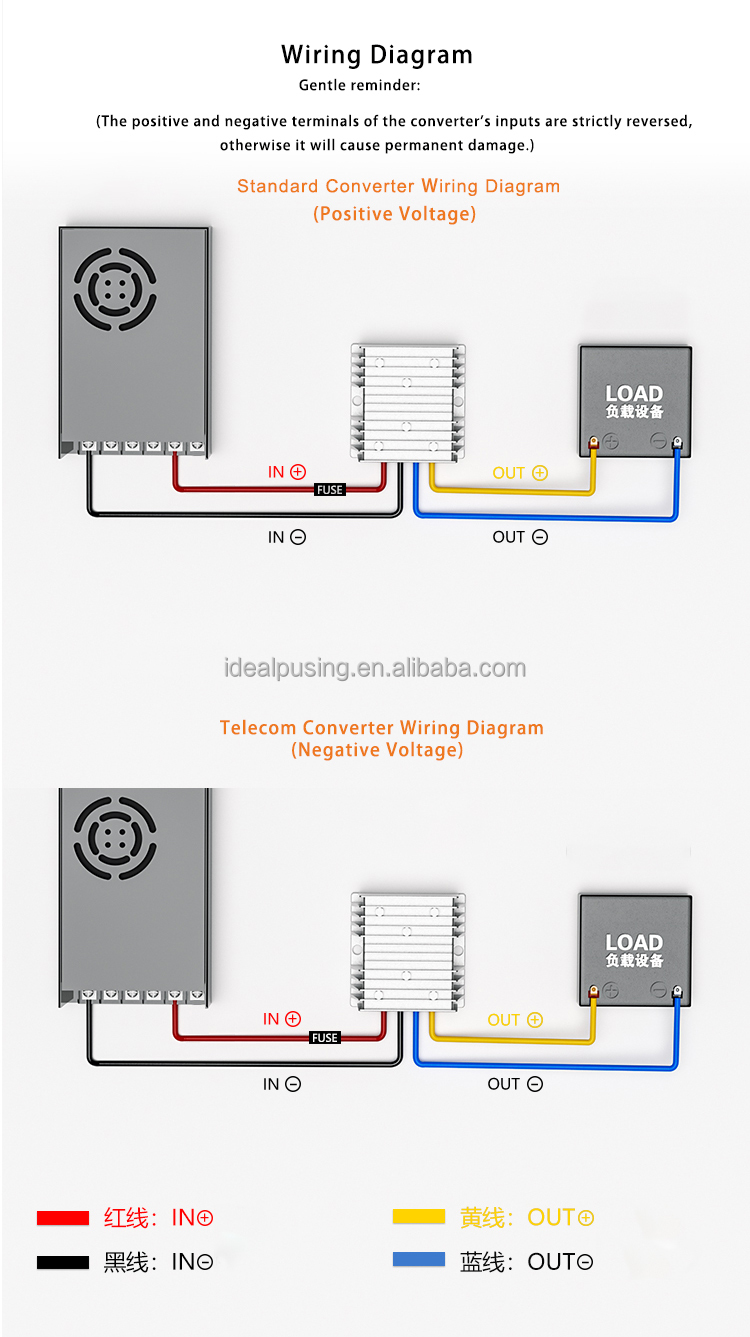

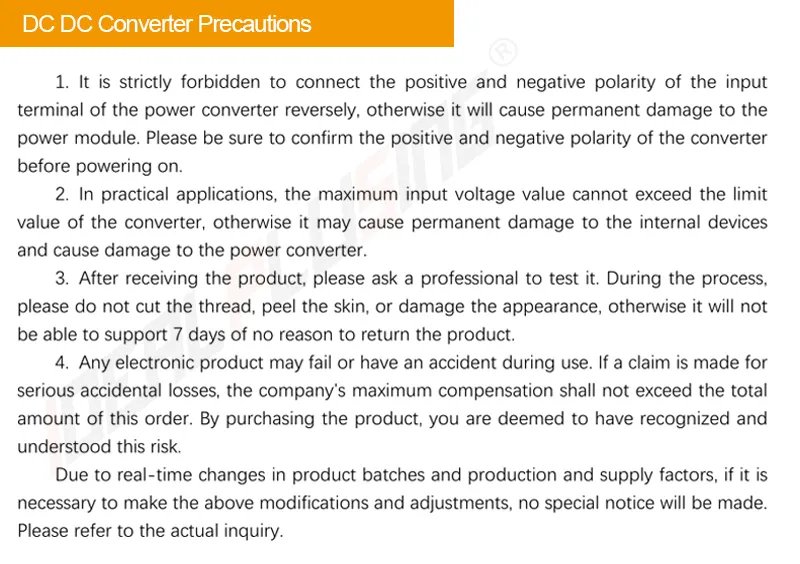

📝 Wiring Instructions

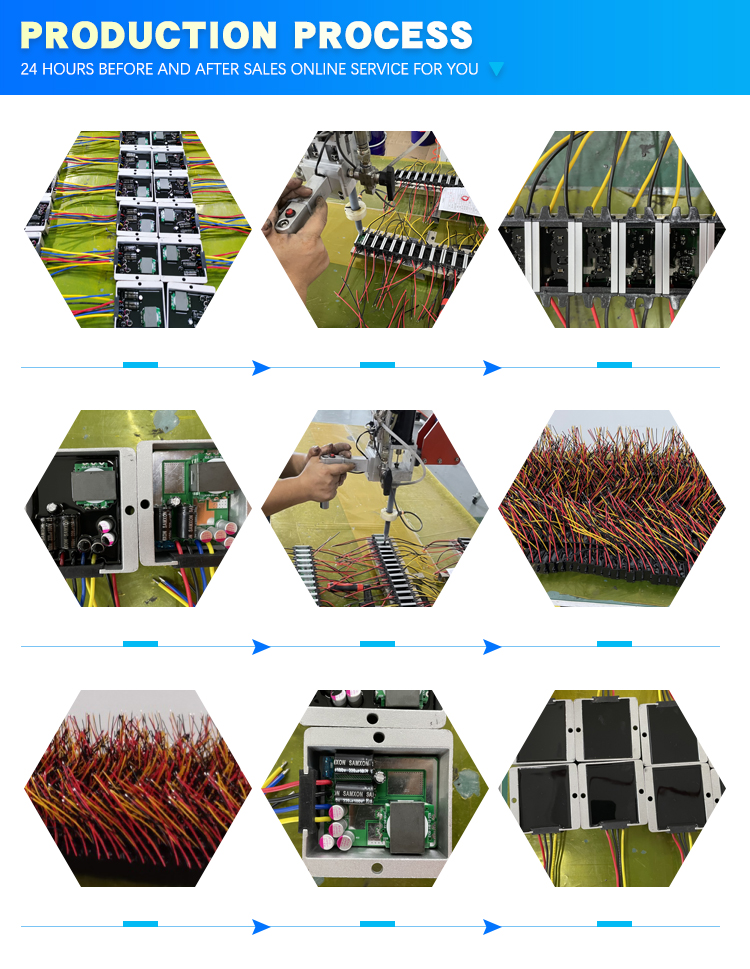

🏭 Factory Showcase

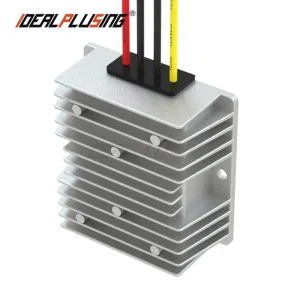

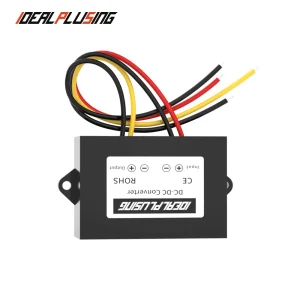

💡 Recommended Products
Frequently Asked Questions
Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
What about the lead time?
Most models are in stock; the sample lead time after receiving payment is typically 1-3 working days.

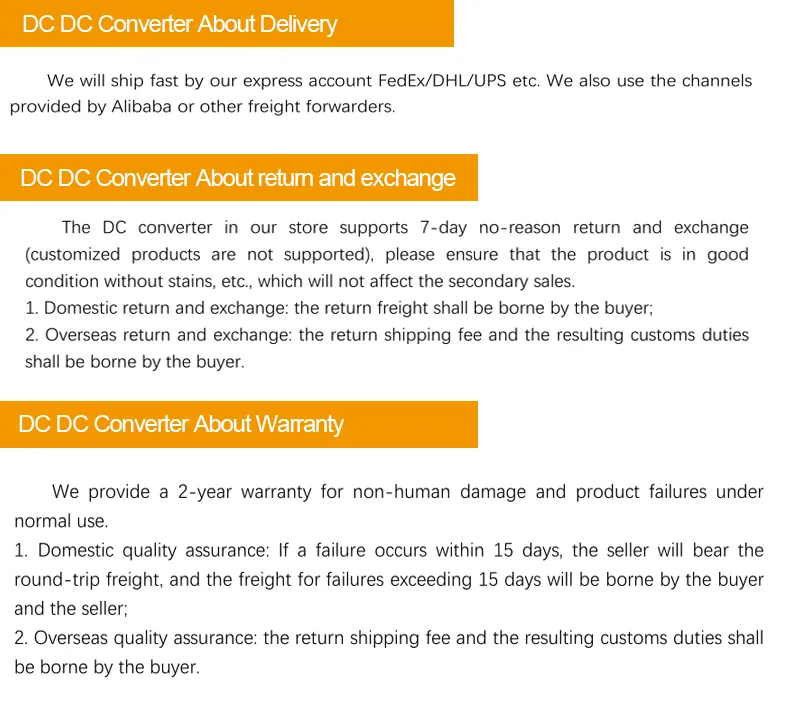

How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Is it acceptable to print my logo on the product?
Yes. Please inform us formally before our production and confirm the design based on our sample.
How to deal with technical flaws?
Our products are produced in a strict quality control system, maintaining a pass rate of over 99.8%.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supply modules.
