10kVAC 1000W Frequency Modulation High Voltage Lithium Ac Power Supply for Testing Arc Welding High Power Ac Power Supply
Product Description
Product Description
| Model NO. | IPS-ATAJ10kV-100mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Brand | IDEALPLUSING |
| Frequency Options | 10kHz, 20kHz, 30kHz, 40kHz, 50kHz | ||
| Transport Package | Carton/Wooden Box | Specification | W443*D503*H133(MM) |
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
Specializing in customizing high voltage AC power supplies to meet specific requirements. Offerings range up to 4000W for various industrial applications.
Thank you for considering our services.
Technical Specifications
| Brand | IDEALPLUSING |
| Model | IPS-ATAJ10kV-100mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 10kHz-30KHz (AF) |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Slope | >45° |
| Case Material | Aluminum |
| Power Supply Case Size | W443*D503*H133(MM) |
| Weight | 16.55 KG |
Product Introduction
!
The high voltage AC power supply is a rack-mounted unit, primarily utilized in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching, and related fields. It features simple operation, easy installation, and a complete protection circuit suitable for harsh environments.
Typical Applications
✓
DBD Dielectric Barrier Discharge
✓
Sliding Arc Experiments & Electrostatic Spinning
✓
Ozone Generator & Corona Equipment
✓
Cable Aging & Leakage Tests
Customization Service
We excel at customizing products according to different usage scenarios and actual loads. Professional engineers can develop plans tailored to specific technical requirements.

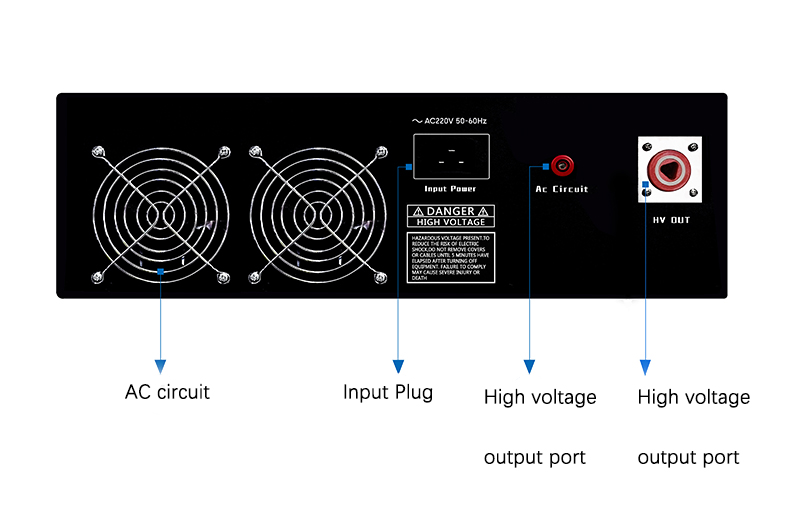

Details Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Input Voltage: AC 220V±10% 50/60Hz
2. Peak Voltage: 0-10kV
3. Peak Current: 0-400mA
4. Peak Power: 4000W
5. Frequency: 10kHz
Model: IPS-ATDJ10-100mA
1. Input Voltage: AC 220V±10% 50/60Hz
2. Peak Voltage: 0-10kV
3. Peak Current: 0-100mA
4. Peak Power: 1000W
5. Frequency: 20-40kHz
Model: IPS-ATDJ10-400mA (Series B)
1. Input Voltage: AC 220V±10% 50/60Hz
2. Peak Voltage: 0-10kV
3. Peak Current: 0-100mA
4. Peak Power: 1000W
5. Frequency: 20-40kHz
Model List Matrix
| Model | Peak Voltage | Peak Current | Frequency | Peak Power |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz-20kHz (AF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency; AF is Adjust Frequency
Company Overview
Focused on R&D, sales, and service of power supply solutions including DC-DC modules, AC-DC rectifiers, inverters, and LED power supplies. We provide personalized, efficient, and cost-effective solutions for all industries.
Customer Feedback
Frequently Asked Questions
Q1: What are the primary applications for this power supply?
A: It is widely used in DBD dielectric barrier discharge, ozone generation, sliding arc experiments, corona equipment, and cable aging tests.
Q2: Can the output frequency be adjusted?
A: Yes, we offer models with both Fixed Frequency (FF) and Adjustable Frequency (AF) ranging from 10kHz to 50kHz.
Q3: Is the output voltage stable?
A: Yes, the stability is ±0.5% per hour after one hour of startup, with a standard voltage regulation value of 3-5%.
Q4: What materials are used for the case?
A: The power supply units are constructed with high-quality, durable Aluminum for optimal heat dissipation and protection.
Q5: Do you support customized power requirements?
A: Absolutely. We specialize in customizing AC power supplies up to 4000W based on specific usage scenarios and load requirements.
Q6: What is the waveform type?
A: The power supply provides a pure Sine Wave output for high efficiency and reliability in sensitive experiments.
