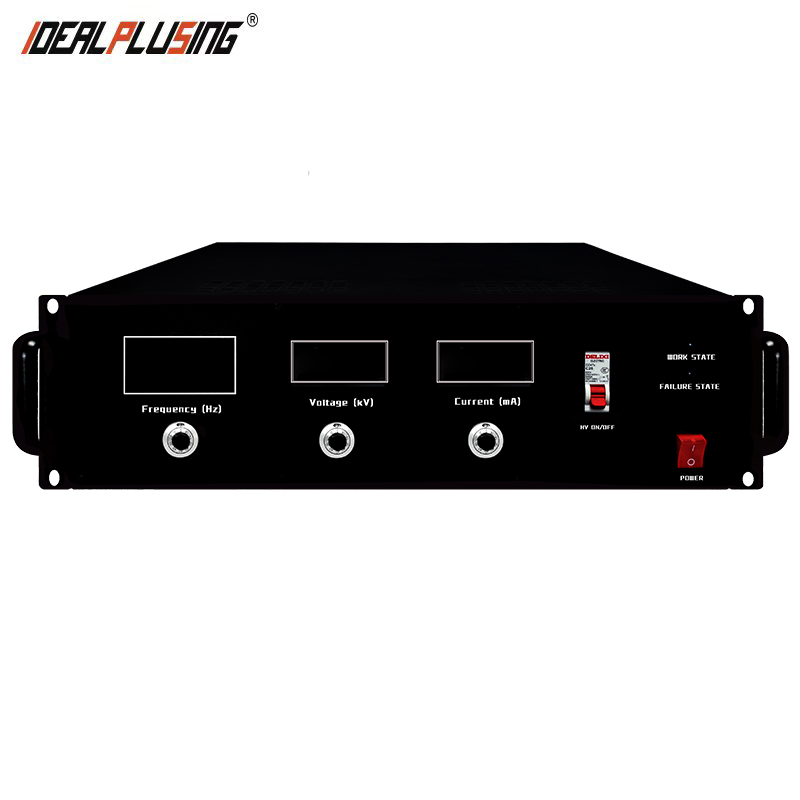

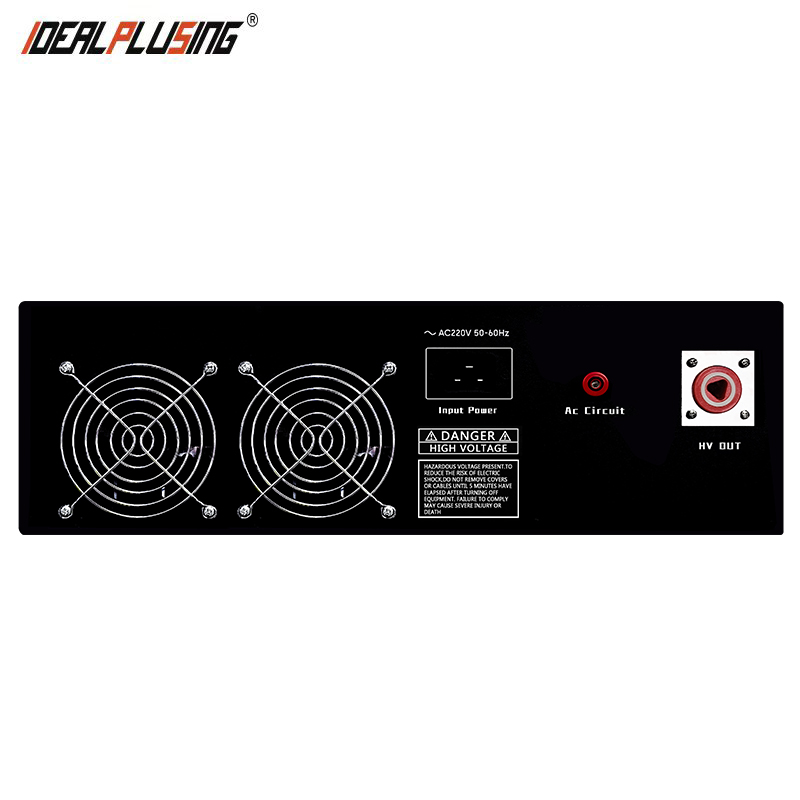

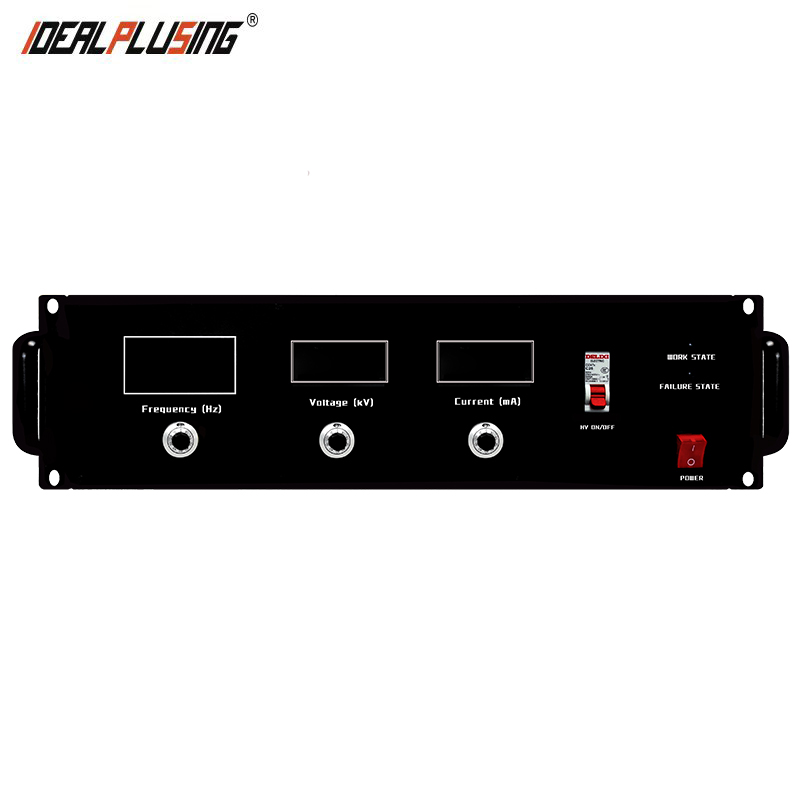

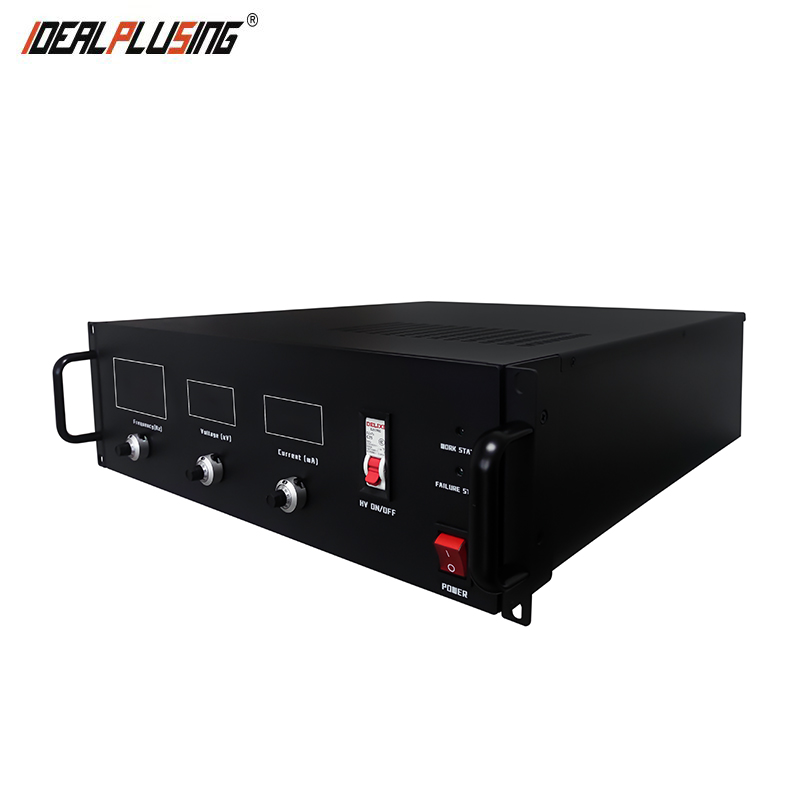

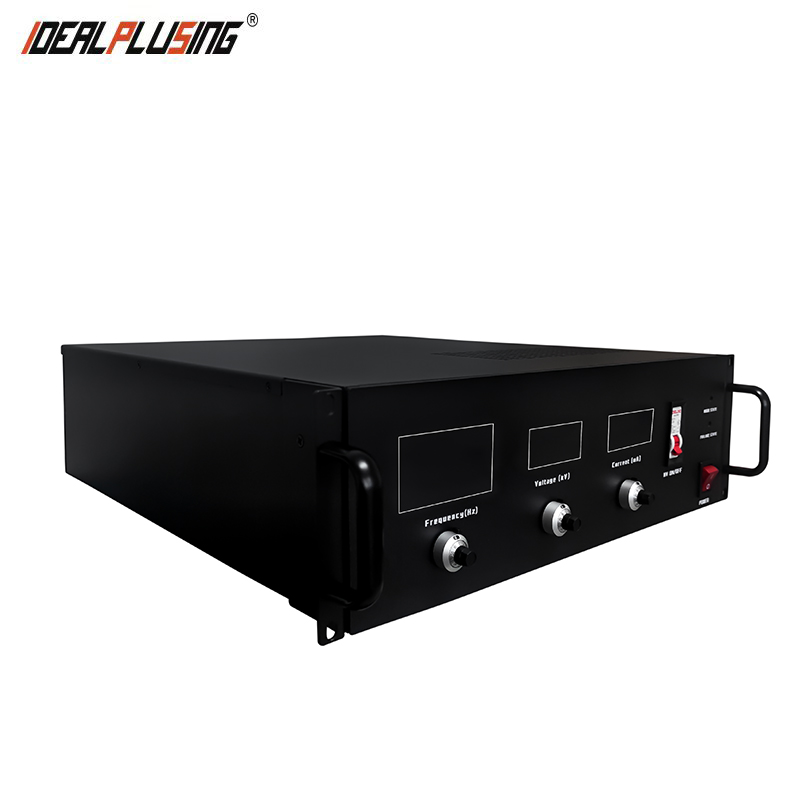

20kHz-50kHz 1000W High Current Source Ac Power Consumption Plasma Generation High Voltage Ac Power Supply
Product Description
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
This series specializes in customizing high voltage AC power supplies to meet specific requirements. With customized AC power supply options, offerings range up to 4000W. Our dedicated team endeavors to respond to inquiries efficiently to explore capabilities further.
Product Overview
| Model NO. | IPS-ATAJ10kV-100mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Frequency Range | 10kHz - 50kHz |
| Transport Package | Carton/Wooden Box | Specification | W443*D503*H133(MM) |
Technical Specifications
| Input & Output Parameters | |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 20kHz-50KHz (AF) |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Performance & Environment | |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |
| Weight | 16.55 KG |
⚡
Product Introduction
The high voltage AC power supply is a rack-mounted system designed for DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, and corona equipment matching. It is simple to operate, easy to install, and features a complete protection circuit suitable for harsh working environments.
🎯
Typical Applications
- DBD dielectric barrier discharge
- Sliding arc experiment
- Electrostatic spinning
- Ozone generator matching
- Cable aging & leakage test
🛠️
Customization Service
We excel at customizing products according to different usage scenarios and actual usage loads. Professional engineers provide tailored plans to ensure the power supply solution fits the specific item requirements.
Product Details
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Input Voltage: AC 220V±10%
2. Peak Voltage: 0-10kV
3. Peak Current: 0-400mA
4. Peak Power: 4000W
5. Frequency: 10kHz
Model: IPS-ATDJ10-100mA
1. Input Voltage: AC 220V±10%
2. Peak Voltage: 0-10kV
3. Peak Current: 0-100mA
4. Peak Power: 1000W
5. Frequency: 20-40kHz
Complete Model List
| Model | Output Peak Voltage | Output Peak Current | Output Frequency | Peak Power (W) |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 40kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency, AF is Adjust Frequency
Production & Testing
Performance Verification
Frequently Asked Questions
What is the output frequency range of this power supply?
The output frequency typically ranges from 10kHz to 50kHz, with options for Fixed Frequency (FF) or Adjust Frequency (AF) depending on the model.
What are the primary applications for the 10kV high voltage AC supply?
It is primarily used for DBD dielectric barrier discharge, sliding arc experiments, ozone generation, electrostatic spinning, and cable aging tests.
Can the output parameters be customized?
Yes, we specialize in customizing voltage, current, and power (up to 4000W) to meet specific load and usage scenario requirements.
What kind of protection does this power supply offer?
The system includes a complete protection circuit designed for stability and reliability even in harsh industrial or laboratory environments.
What waveform does the power supply produce?
This high voltage AC power supply outputs a stable Sine Wave for consistent experimental and industrial results.
Is it suitable for continuous operation?
Yes, with a high voltage stability of ±0.5% per hour and an aluminum case for heat dissipation, it is designed for professional continuous use.
