10kVAC 100mA 10kHz High Voltage Lithium Adjustable Electrospinning High Voltage Ac Power Supply
Product Description
| Model NO. | IPS-ATAJ10kV-100mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Frequency Range | 10kHz - 50kHz | Transport Package | Carton/Wooden Box |
| Case Specification | W443*D503*H133(MM) | Origin | China |
High Voltage AC Power Supply (10kHz-50kHz / 4000W / 0-400mA)
Specializing in customizing high-voltage AC power supplies to meet specific technical requirements. Offerings range up to 4000W with customized configurations available for various industrial and experimental needs.
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 10kHz |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Slope | >45° |
| Case Material | Aluminum |
| Dimensions | W443*D503*H133(MM) |
| Weight | 16.55 KG |

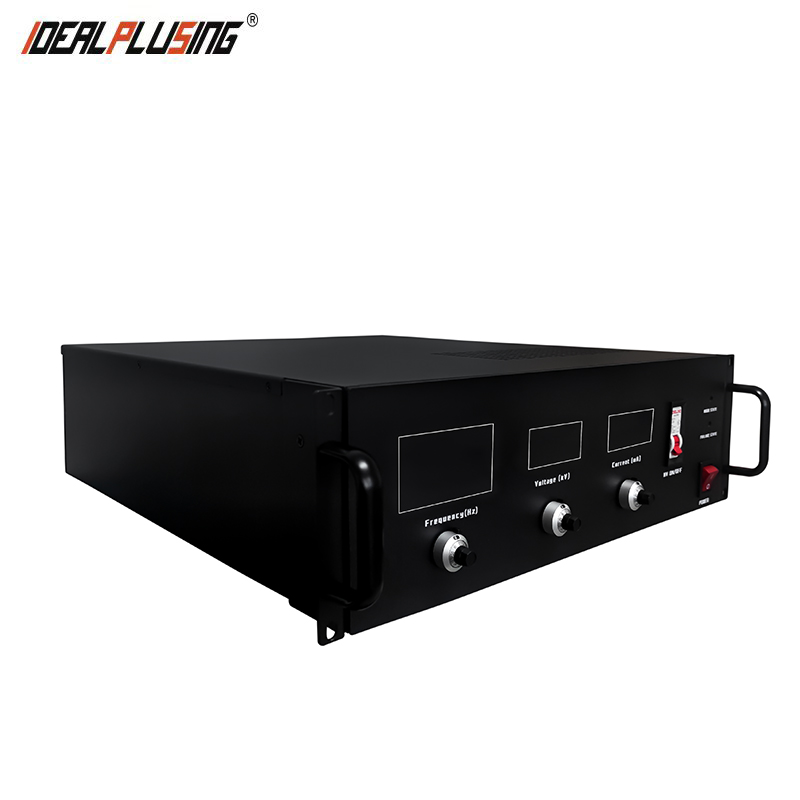

The high voltage AC power supply is a rack-mounted system primarily utilized in DBD (Dielectric Barrier Discharge) experiments, sliding arc experiments, ozone generator matching, corona equipment matching, and other related fields. The system features simple operation, easy installation, and complete protection circuitry, making it suitable for harsh working environments.
- DBD dielectric barrier discharge
- Sliding arc experiments
- Electrostatic spinning
- Ozone generator systems
- Cable aging and leakage tests
Model: IPS-ATDJ10-400mA
1. Input: AC 220V±10%
2. Peak Voltage: 0-10kV
3. Peak Current: 0-400mA
4. Peak Power: 4000W
5. Frequency: 10kHz
1. Input: AC 220V±10%
2. Peak Voltage: 0-10kV
3. Peak Current: 0-400mA
4. Peak Power: 4000W
5. Frequency: 10kHz
Model: IPS-ATDJ10-100mA
1. Peak Voltage: 0-10kV
2. Peak Current: 0-100mA
3. Peak Power: 1000W
4. Frequency: 20-40kHz
5. Waveform: Sine Wave
1. Peak Voltage: 0-10kV
2. Peak Current: 0-100mA
3. Peak Power: 1000W
4. Frequency: 20-40kHz
5. Waveform: Sine Wave
| Model | Output Peak Voltage | Output Peak Current | Output Frequency | Output Peak Power |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency; AF is Adjust Frequency
What are the primary applications for this high voltage AC power supply?
It is widely used for DBD dielectric barrier discharge, ozone generation, sliding arc experiments, electrostatic spinning, and cable aging tests.
Can the output frequency be adjusted?
Yes, we offer both Fixed Frequency (FF) and Adjust Frequency (AF) models, ranging from 10kHz up to 50kHz depending on the specific model.
What is the maximum power capacity available?
Our standard high-capacity units reach up to 4000W, but we specialize in customizing power solutions based on your specific load requirements.
How stable is the high voltage output?
The power supply maintains a high voltage stability of ±0.5% per hour after an initial 1-hour startup period.
Is the unit suitable for industrial environments?
Yes, it features a robust aluminum case and complete protection circuits, designed to operate in temperatures ranging from -25°C to +55°C.
What waveforms does the power supply generate?
The power supply provides a clean Sine Wave output, which is ideal for sensitive experimental and industrial matching equipment.
