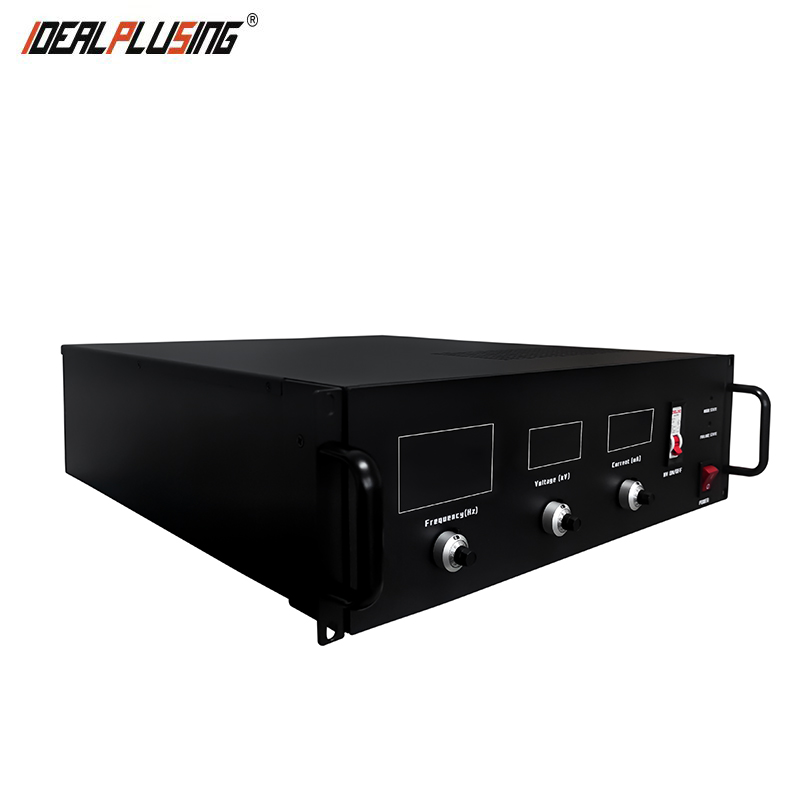

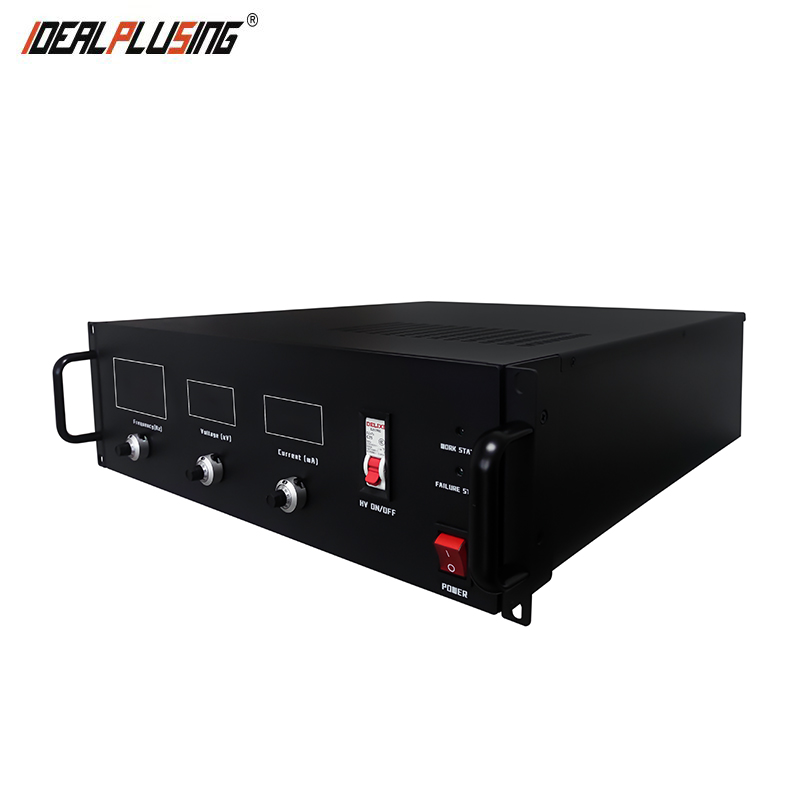

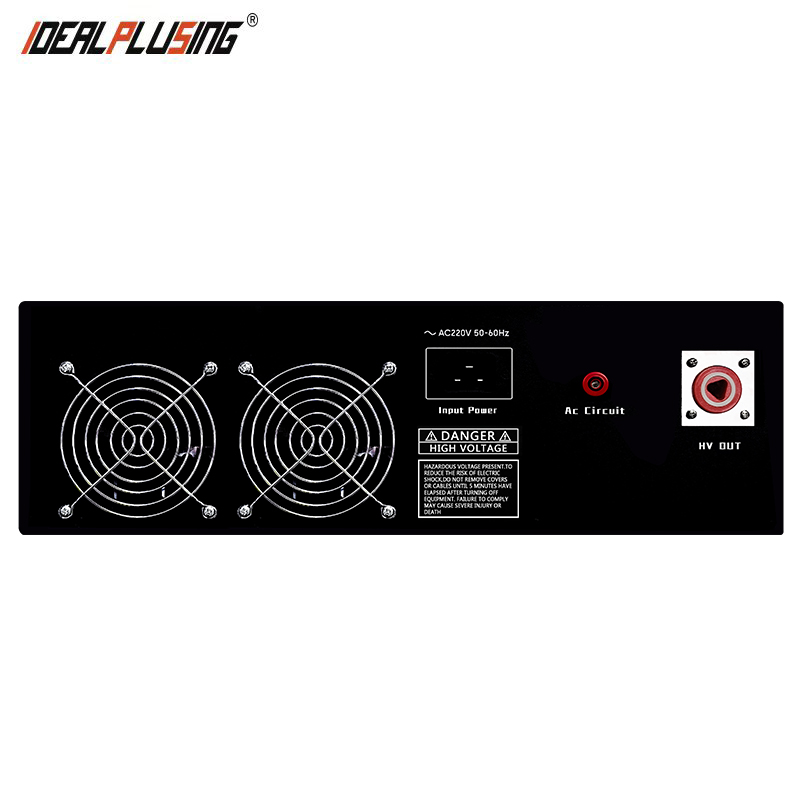

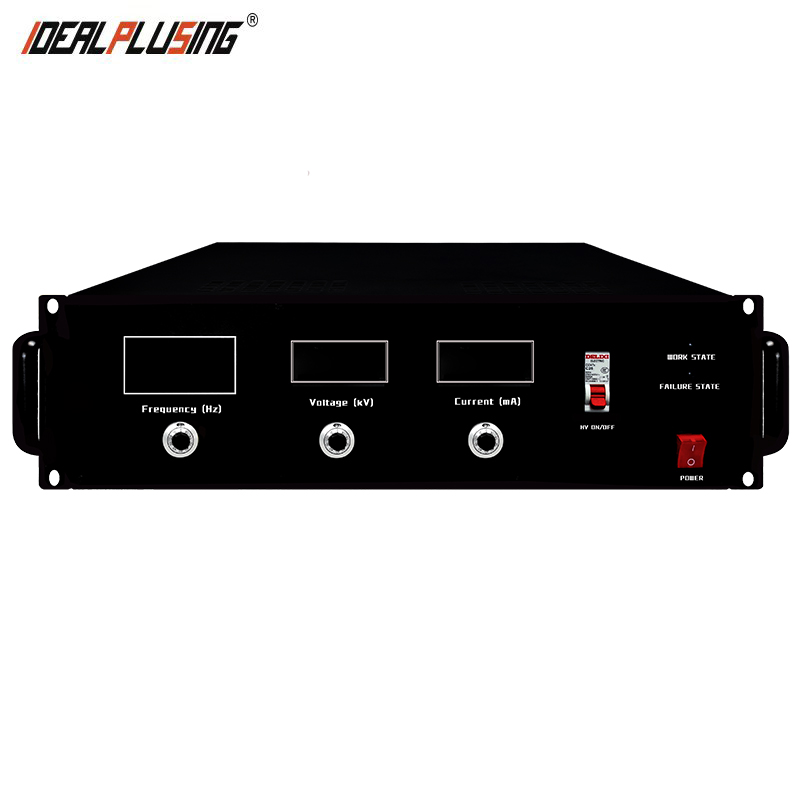

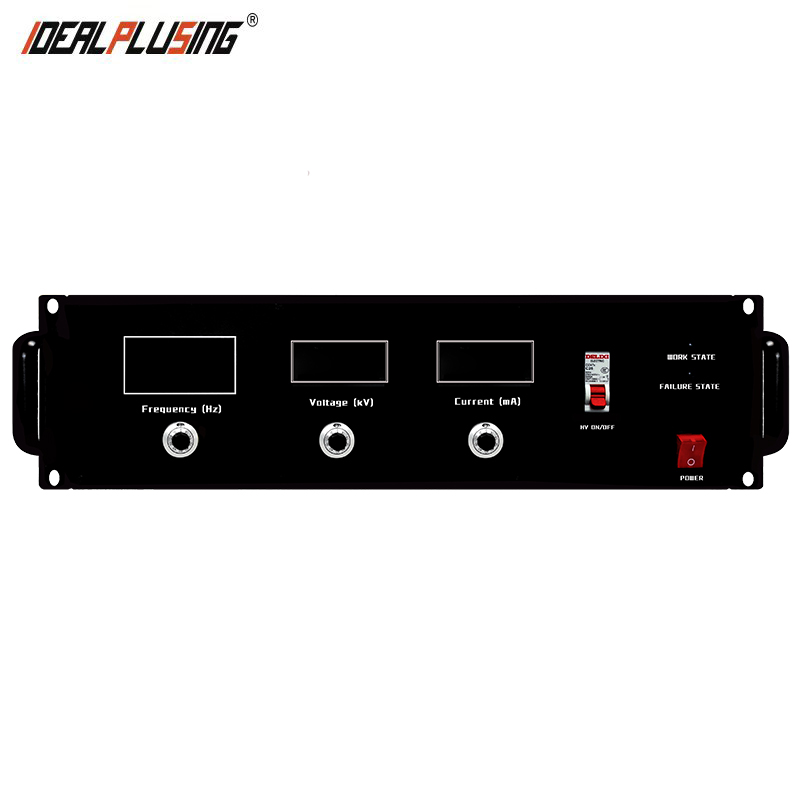

25kHz-35kHz 100mA Aluminum High Voltage Electrical Power Supply Converts Ac to Ac Arc Welding High Voltage Ac Power Supply
Product Description
⚡ Product Description
| Model NO. | IPS-ATAJ10kV-100mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Frequency Range | 10kHz - 50kHz |
| Transport Package | Carton/Wooden Box | Origin | China |
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
Our team specializes in customizing high-voltage AC power supplies to meet your specific requirements. We offer a wide range of customized AC power solutions with offerings up to 4000W.
This rack-mounted high voltage power supply is primarily engineered for precision experiments and industrial matching applications. It features a complete protection circuit and is built to withstand harsh working environments.
📋 Technical Specifications
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 25kHz-35KHz (AF) |
| Waveform | Sine Wave |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |
| Case Size | W443*D503*H133(MM) |
| Weight | 16.55 KG |
🚀 Typical Applications
The power supply is simple to operate and easy to install, making it ideal for:
- DBD dielectric barrier discharge & Sliding arc experiments
- Ozone generator matching & Corona equipment matching
- Electrostatic spinning
- Cable aging and leakage tests
📸 Details & Images
🔥 Hot Selling Models
Model: IPS-ATDJ10-400mA
Peak Voltage: 0-10kV | Peak Current: 0-400mA | Power: 4000W | Frequency: 10kHz
Model: IPS-ATDJ10-100mA
Peak Voltage: 0-10kV | Peak Current: 0-100mA | Power: 1000W | Frequency: 20-40kHz
📑 Model Selection List
| Model | Output Peak Voltage | Output Peak Current | Output Frequency | Output Peak Power |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 25kHz-35KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
*Note: FF is Fixed Frequency; AF is Adjust Frequency
⭐ Performance Validation
❓ Frequently Asked Questions
What are the primary uses for this high voltage AC power supply?
It is widely used in DBD dielectric barrier discharge experiments, ozone generation, sliding arc experiments, corona treatment, and cable testing.
Is the output frequency adjustable?
Yes, we provide models with both Fixed Frequency (FF) and Adjustable Frequency (AF) ranging from 10kHz to 50kHz depending on the specific model selected.
What safety protections are included?
The power supply includes a complete protection circuit designed for harsh industrial environments, ensuring stability and long-term reliability.
Can I request a custom voltage or power rating?
Absolutely. We specialize in customizing products according to different usage scenarios and load requirements. Power ratings can go up to 4000W.
What is the stability of the high voltage output?
The voltage stability is within ±0.5% per hour after the initial one-hour startup period.
What materials are used for the outer casing?
The unit is housed in a high-quality aluminum case, providing excellent heat dissipation and durability.
