10kVAC 100mA Frequency Modulation High Voltage Current Adjustable Arc Welding High Power Ac Power Supply
Product Description
Professional Grade
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
We specialize in customizing high voltage AC power supplies to meet your specific requirements. With customized AC power solutions, our offerings range up to 4000W. Our dedicated team endeavors to respond to inquiries within one hour. Thank you for considering our services.
| Basic Parameters | |||
| Model NO. | IPS-ATAJ10kV-100mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Case Material | Aluminum |
| Frequency Options | 10kHz / 20kHz | Frequency Options | 30kHz / 40kHz / 50kHz |
| Specification | W443*D503*H133(MM) | Transport Package | Carton/Wooden Box |
Specification
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 35kHz-45KHz (AF) |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Slope | >45° |
| Use Environment | No Conductive, No Corrosive Metal Liquid, No Condensation |
| Weight | 16.55 KG |
Product Introduction
The high voltage AC power supply is a rack-mounted high voltage power supply, which is mainly used in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching and other related fields. The power supply is simple to operate, easy to install, has a complete protection circuit, and is suitable for harsh working environments.
Typical Applications
- DBD dielectric barrier discharge
- Sliding arc experiment
- Electrostatic spinning
- Ozone generator matching
- Cable aging and leakage tests

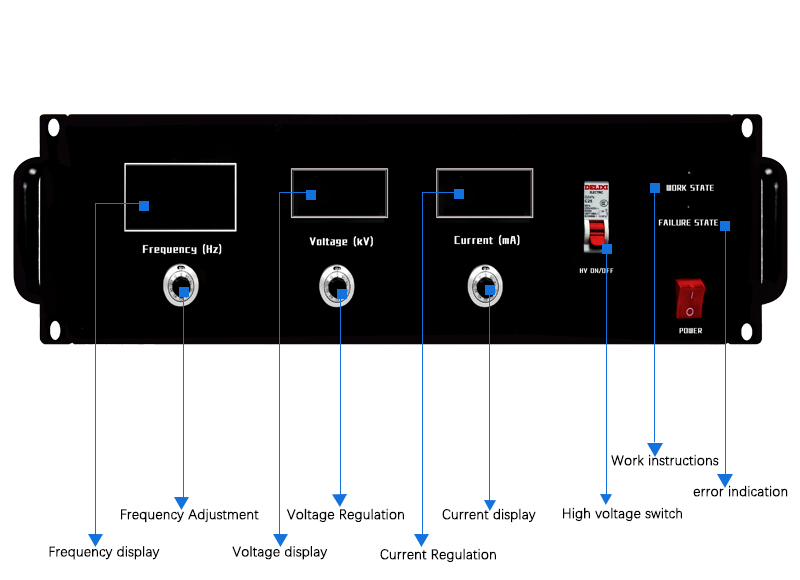

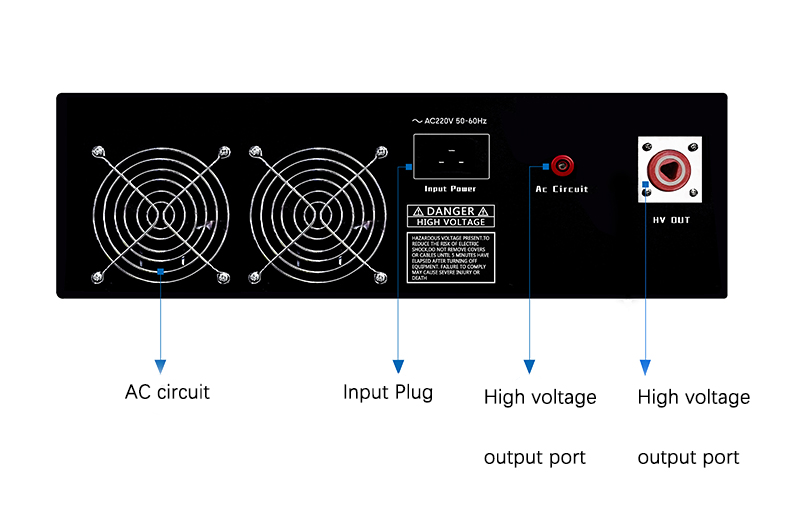

Details Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
- Peak Voltage: 0-10kV
- Peak Current: 0-400mA
- Peak Power: 4000W
- Frequency: 10kHz
Model: IPS-ATDJ10-100mA
- Peak Voltage: 0-10kV
- Peak Current: 0-100mA
- Peak Power: 1000W
- Frequency: 20-40kHz
Model List
| Model | Peak Voltage | Peak Current | Frequency | Peak Power |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 40kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 50kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 35kHz-45KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 30kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency, AF is Adjust Frequency
Professional Expertise
We focus on the research and development of AC power supplies, DC power supplies, and rectifier systems. Our goal is to provide personalized, efficient, and reliable power solutions for all industries. We don't just provide products; we offer optimized power solutions tailored to your specific application items.
User Experience
Frequently Asked Questions
What is the primary use of this AC power supply?
It is primarily used for DBD dielectric barrier discharge experiments, ozone generation, and corona equipment matching.
Can the output frequency be adjusted?
Yes, we offer both Fixed Frequency (FF) and Adjust Frequency (AF) models ranging from 10kHz to 50kHz.
Is the power supply suitable for industrial environments?
Absolutely. It features an aluminum case and complete protection circuits designed for harsh working conditions.
What is the maximum power output available?
Standard models offer up to 4000W, but we specialize in customizing units to meet higher specifications.
What are the environmental requirements for operation?
It should be used in environments with no conductive or corrosive liquids and no condensation, within -25°C to +55°C.
Does it provide stable high voltage output?
Yes, it offers a stability of ±0.5% per hour after one hour of startup, ensuring consistent experimental results.
