1000W High Current Igbt Manufacturer in China Electrical Insulation Testing High Power Ac Power Supply
Product Description
Product Overview
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
We specialize in customizing high voltage AC power supplies to meet your specific requirements. Our customized offerings range up to 4000W, ensuring personalized, efficient, and reliable power solutions for all industries.
Technical Specifications
| Parameter Details | |
|---|---|
| Brand | IDEALPLUSING |
| Model | IPS-ATAJ10kV-100mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 15kHz-25KHz (AF) |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Voltage Regulation | Standard Value 3-5% |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |
| Dimensions | W443*D503*H133(MM) |
| Weight | 16.55 KG |
Product Features & Applications
The high voltage AC power supply is a rack-mounted system primarily utilized in specialized scientific and industrial fields. It features a complete protection circuit and is designed for easy installation and operation in harsh environments.
Key Applications:
- DBD Dielectric Barrier Discharge
- Sliding Arc Experiments
- Ozone Generator Matching
- Corona Equipment Matching
- Electrostatic Spinning
- Cable Aging & Leakage Tests
Service Excellence:
We specialize in customizing products based on different usage scenarios and actual loads. Our engineers provide professional plans tailored to your specific requirements.

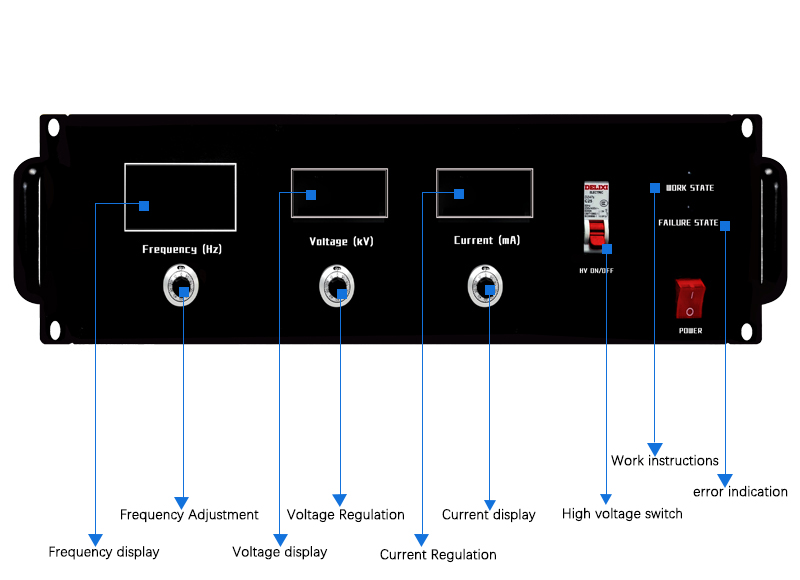

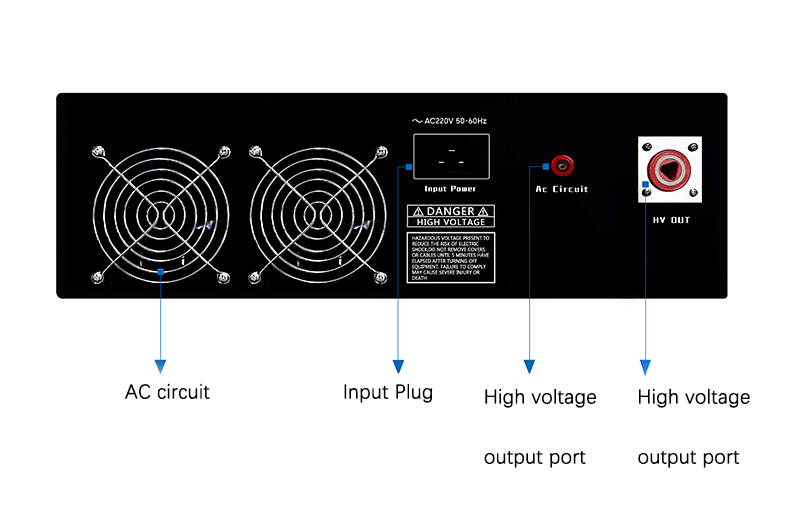

Detailed Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
- Peak Voltage: 0-10kV
- Peak Current: 0-400mA
- Peak Power: 4000W
- Frequency: 10kHz
- Waveform: Sine Wave
Model: IPS-ATDJ10-100mA
- Peak Voltage: 0-10kV
- Peak Current: 0-100mA
- Peak Power: 1000W
- Frequency: 20-40kHz
- Waveform: Sine Wave
Model Selection List
| Model | Output Voltage | Current | Frequency | Power |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25kHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF = Fixed Frequency; AF = Adjustable Frequency
Company Capability
At IDEALPLUSING, we focus on research, development, and service of various power modules including AC/DC rectifiers, inverters, and high-voltage power supplies. Our goal is to provide personalized, efficient, and cost-effective power supply solutions across all industries.
Frequently Asked Questions
What are the primary uses for this high voltage AC power supply?
It is mainly used for DBD dielectric barrier discharge experiments, ozone generation, sliding arc experiments, corona equipment matching, and cable testing.
Can the output frequency be adjusted?
Yes, we offer both Fixed Frequency (FF) models and Adjustable Frequency (AF) models, with ranges such as 15kHz-25kHz or 20kHz-50kHz depending on the specific model selected.
What materials are used for the power supply housing?
The case is made of high-quality aluminum, which provides excellent durability and heat dissipation for stable operation.
Is the power supply protected against harsh working environments?
Yes, it includes a complete protection circuit and is designed to operate reliably in environments ranging from -25°C to +55°C without conductive or corrosive metal liquids.
Do you offer customization for different voltage or power requirements?
Absolutely. We specialize in customizing power supplies according to different usage scenarios and load requirements, with power offerings up to 4000W.
What is the waveform output of this series?
This series provides a stable Sine Wave output, ensuring compatibility and efficiency for sensitive experimental and industrial equipment.
