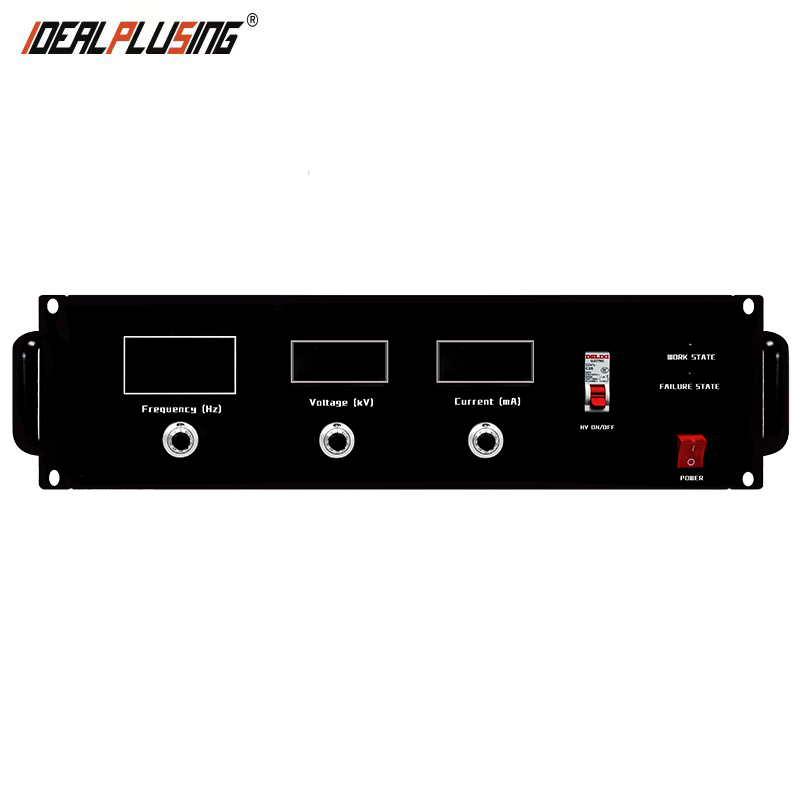

50kHz 1000W Aluminum High Voltage Current Circuit System Electrospinning High Voltage Ac Power Supply
Product Description
High Voltage AC Power Supply 10kHz-50kHz
IDEALPLUSING specializes in high-performance high voltage AC power supplies, offering customized solutions up to 4000W and 0-400mA. Engineered for precision and durability, these units are designed to meet specific technical requirements for advanced industrial and laboratory applications.
Our dedicated team provides professional technical support and efficient power supply solutions tailored to your load requirements.
Technical Specifications
| Parameter | Details (Model: IPS-ATAJ10kV-100mA) |
|---|---|
| Brand | IDEALPLUSING |
| Input Voltage | AC 220V±10% 50/60Hz |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 50kHz (FF) |
| Waveform | Sine Wave |
| High Voltage Stability | ±0.5% Per Hour (After 1 Hour Startup) |
| Temperature Coefficient | 100 ppm/°C |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |

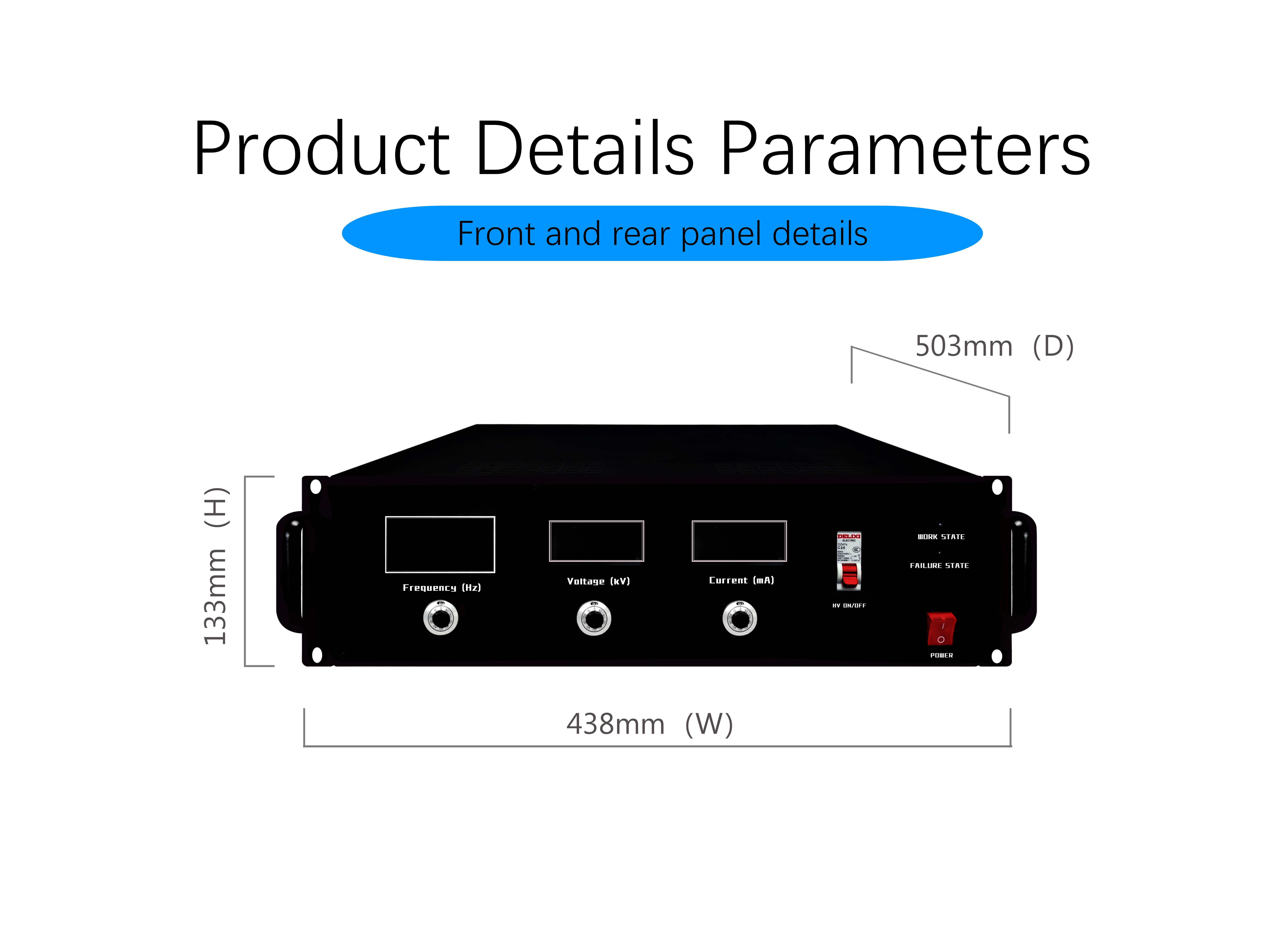

| Dimensions | W443 * D503 * H133 (MM) |
| Weight | 16.55 KG |
Product Introduction

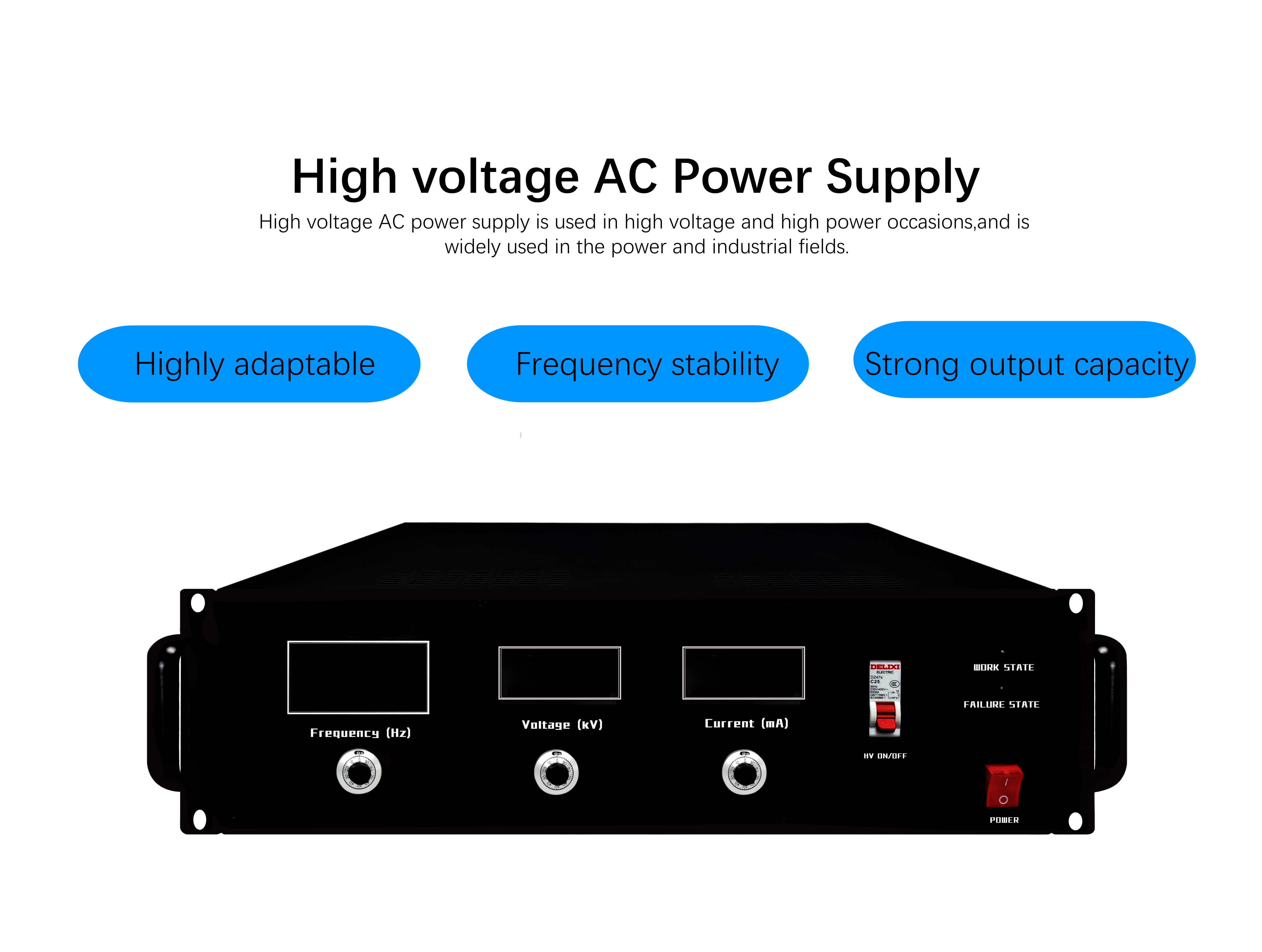

The high voltage AC power supply is a rack-mounted system engineered for demanding experimental and industrial environments. It features a complete protection circuit and simple installation, making it ideal for harsh working conditions.

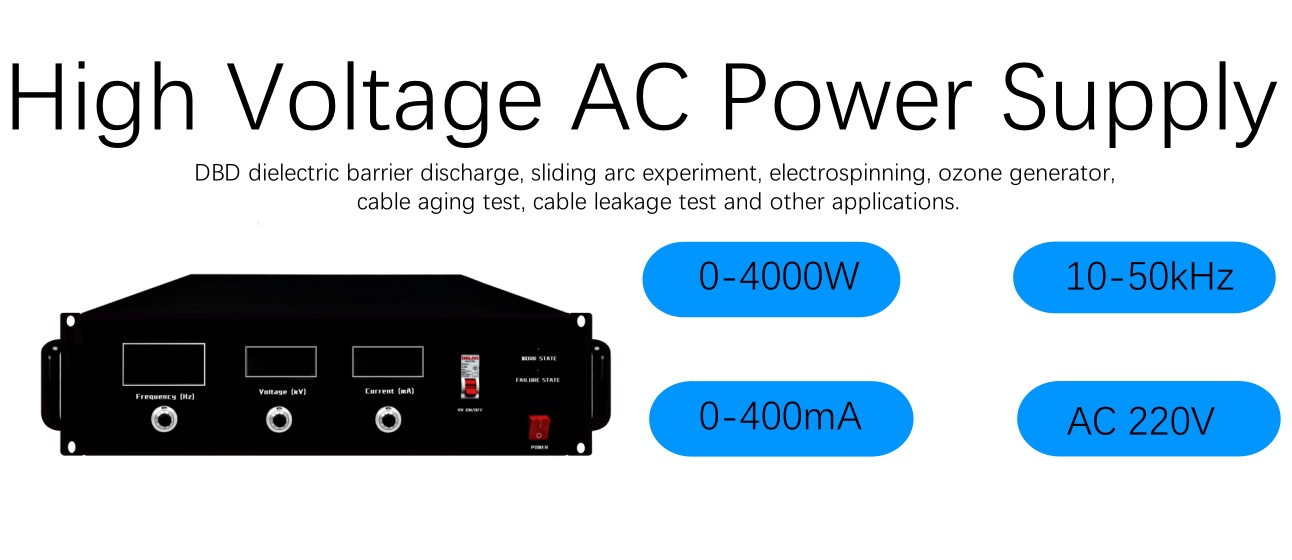

⚡ DBD dielectric barrier discharge
⚡ Ozone generator matching
⚡ Sliding arc experiments
⚡ Corona equipment matching
⚡ Electrostatic spinning
⚡ Cable aging & leakage tests

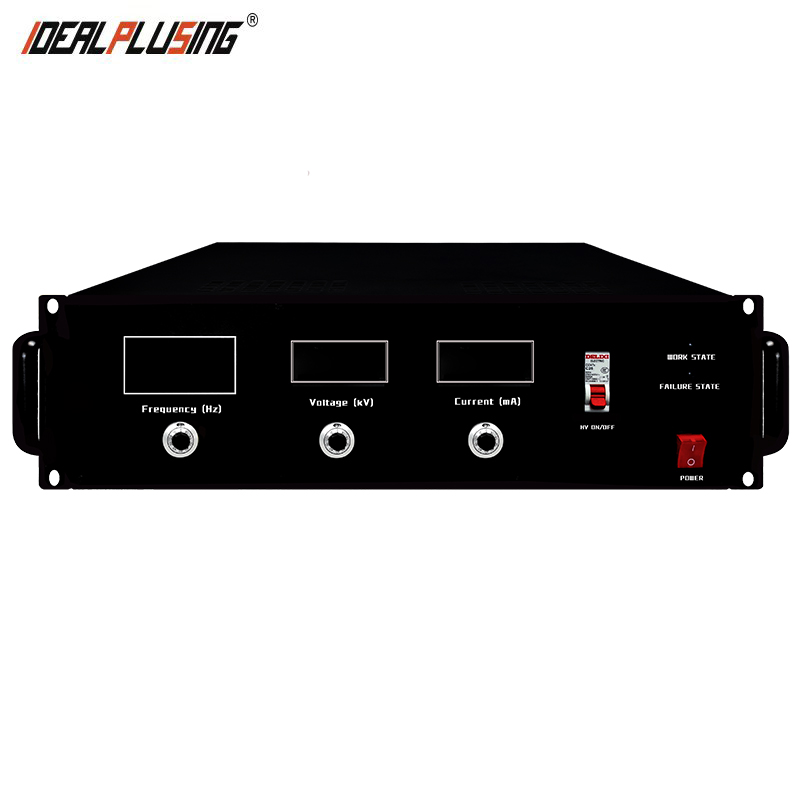

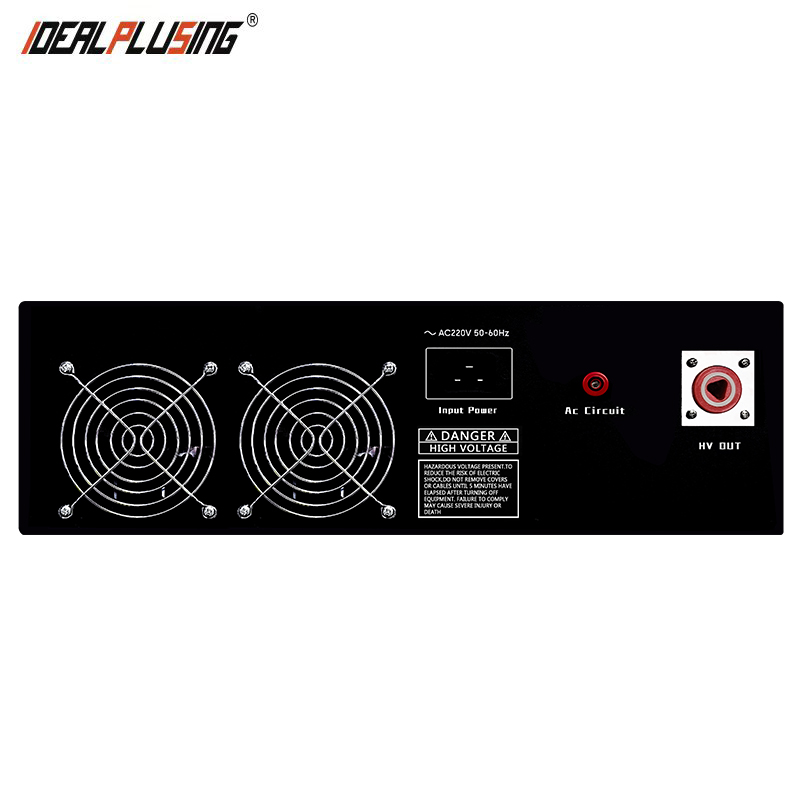

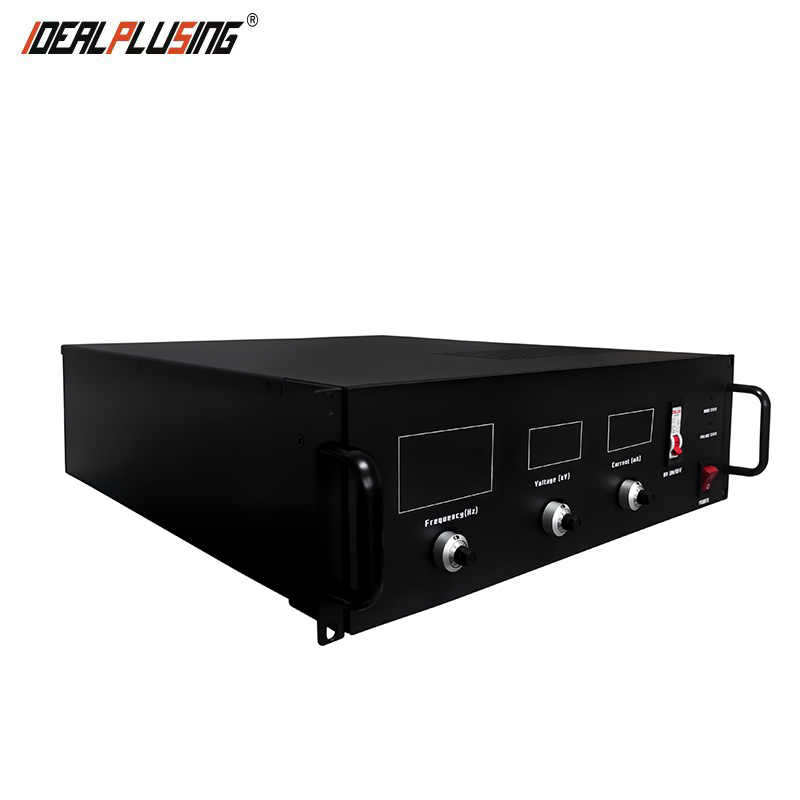

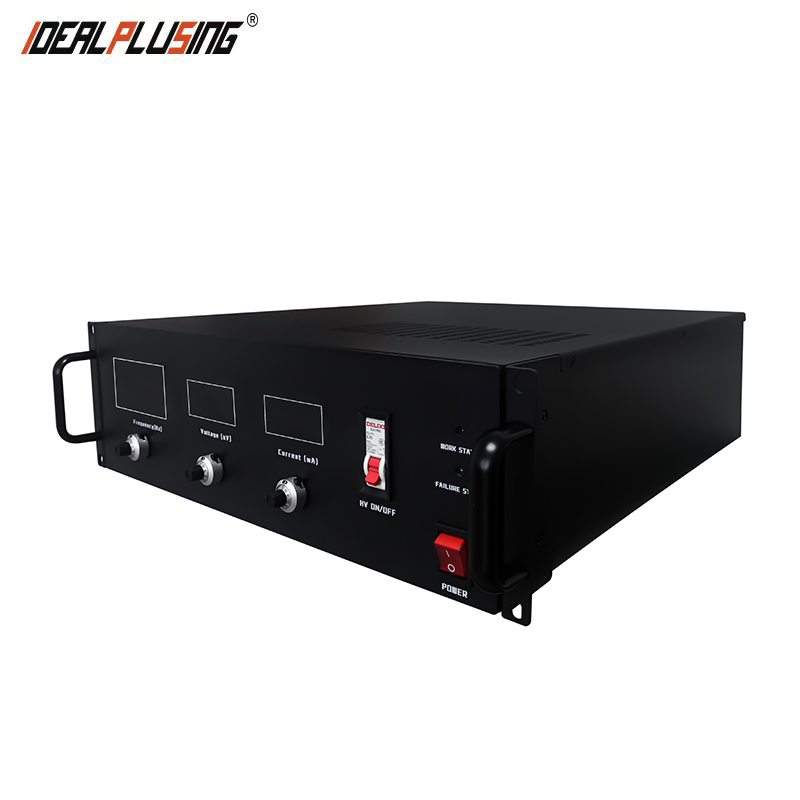

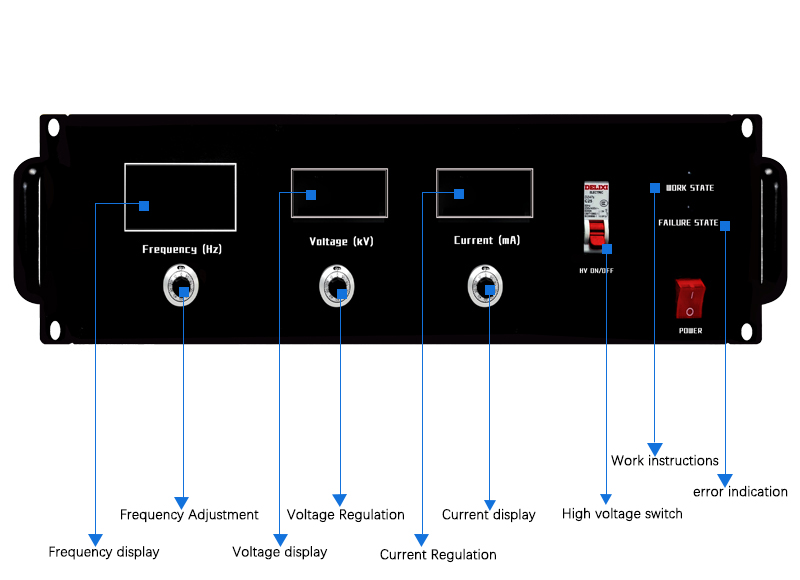

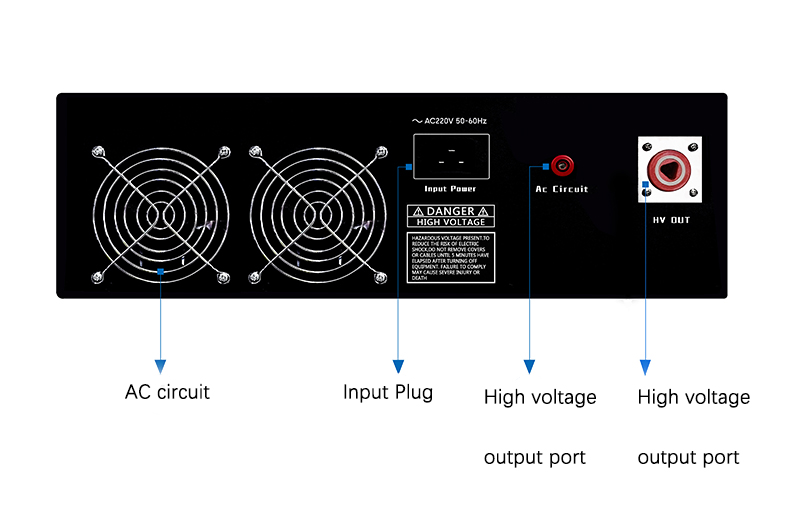

Detail Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Peak Voltage: 0-10kV
2. Peak Current: 0-400mA
3. Peak Power: 4000W
4. Frequency: 10kHz
5. Waveform: Sine Wave
Model: IPS-ATDJ10-100mA
1. Peak Voltage: 0-10kV
2. Peak Current: 0-100mA
3. Peak Power: 1000W
4. Frequency: 20-40kHz
5. Waveform: Sine Wave
Full Model List
| Model | Peak Voltage | Peak Current | Frequency | Power (W) |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency; AF is Adjustable Frequency.

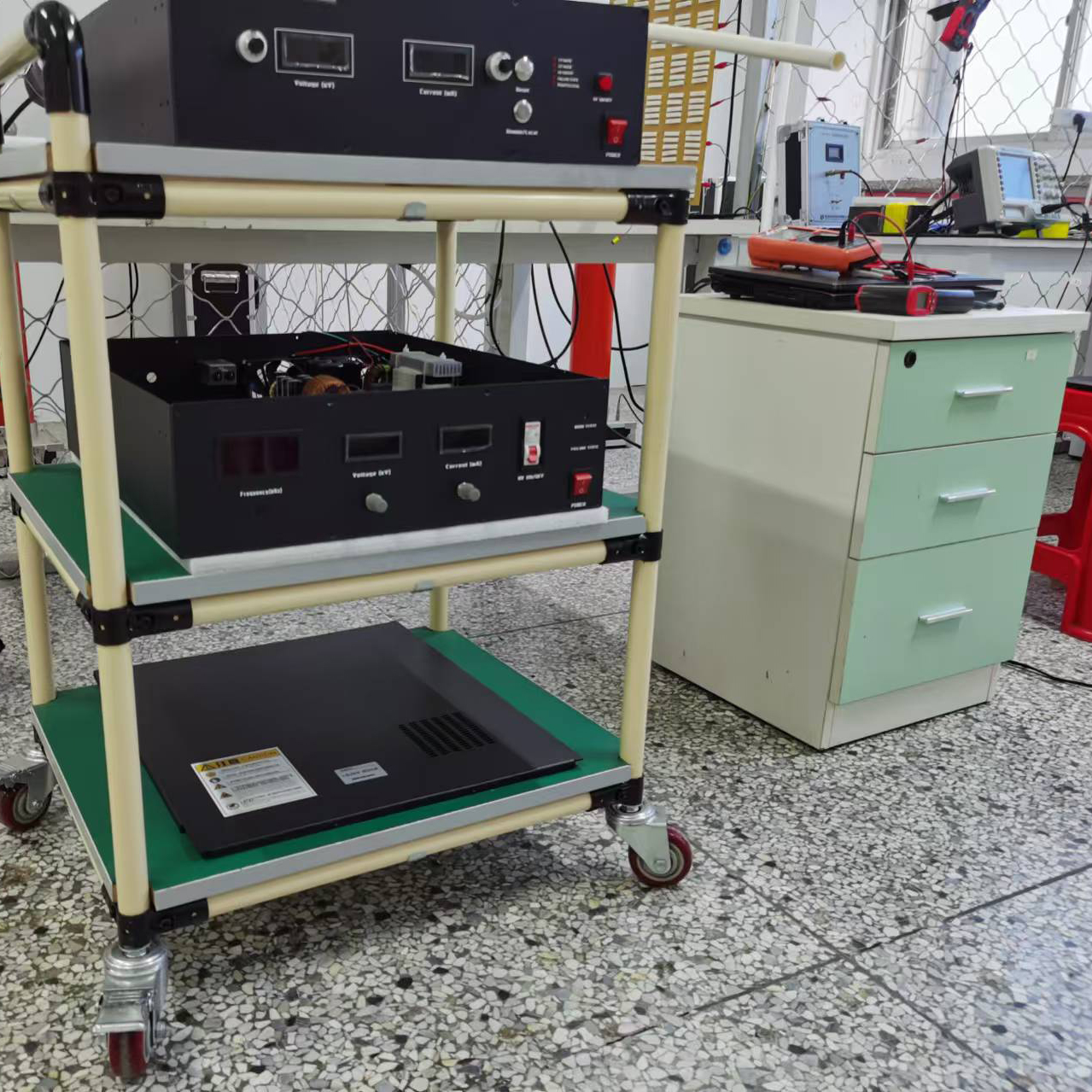

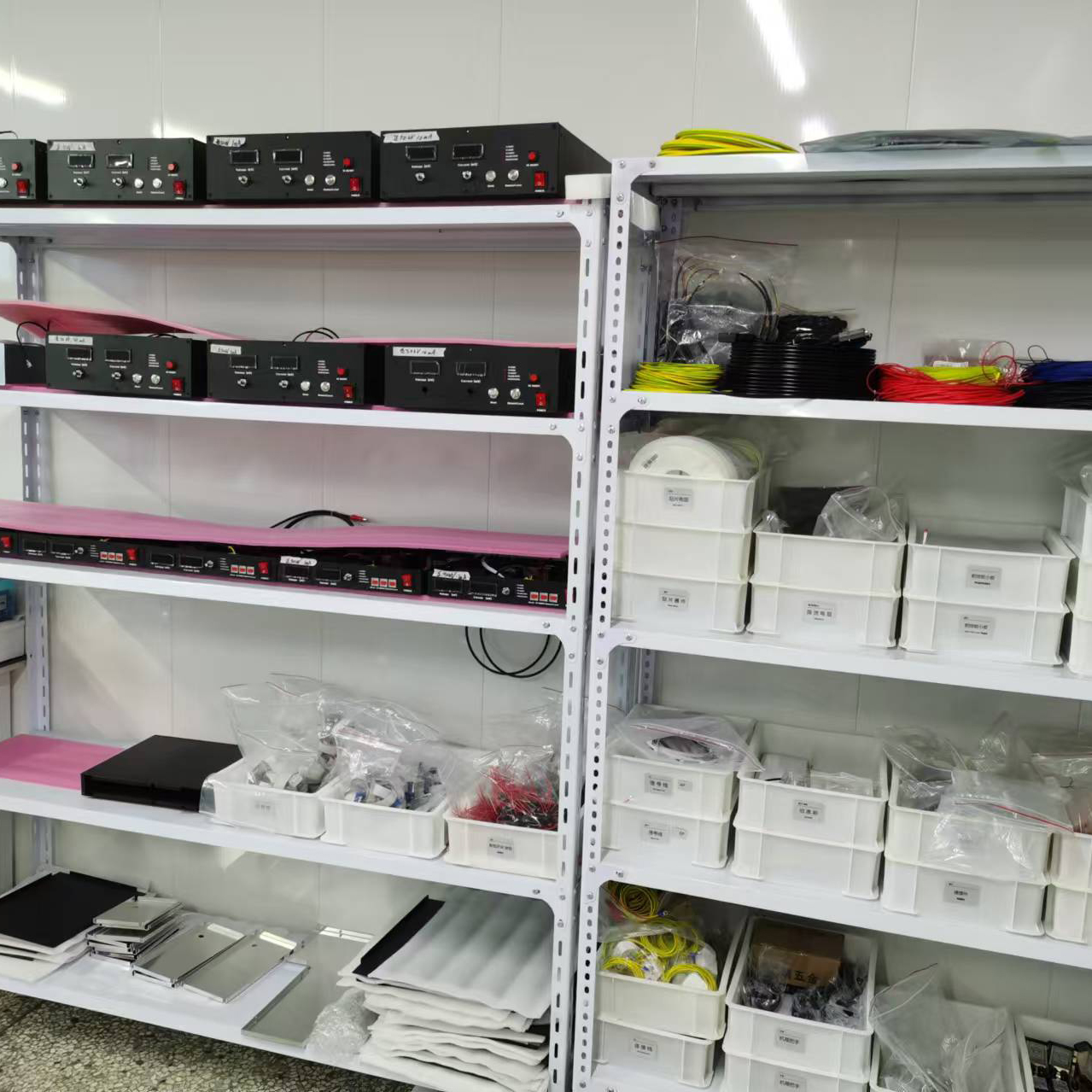

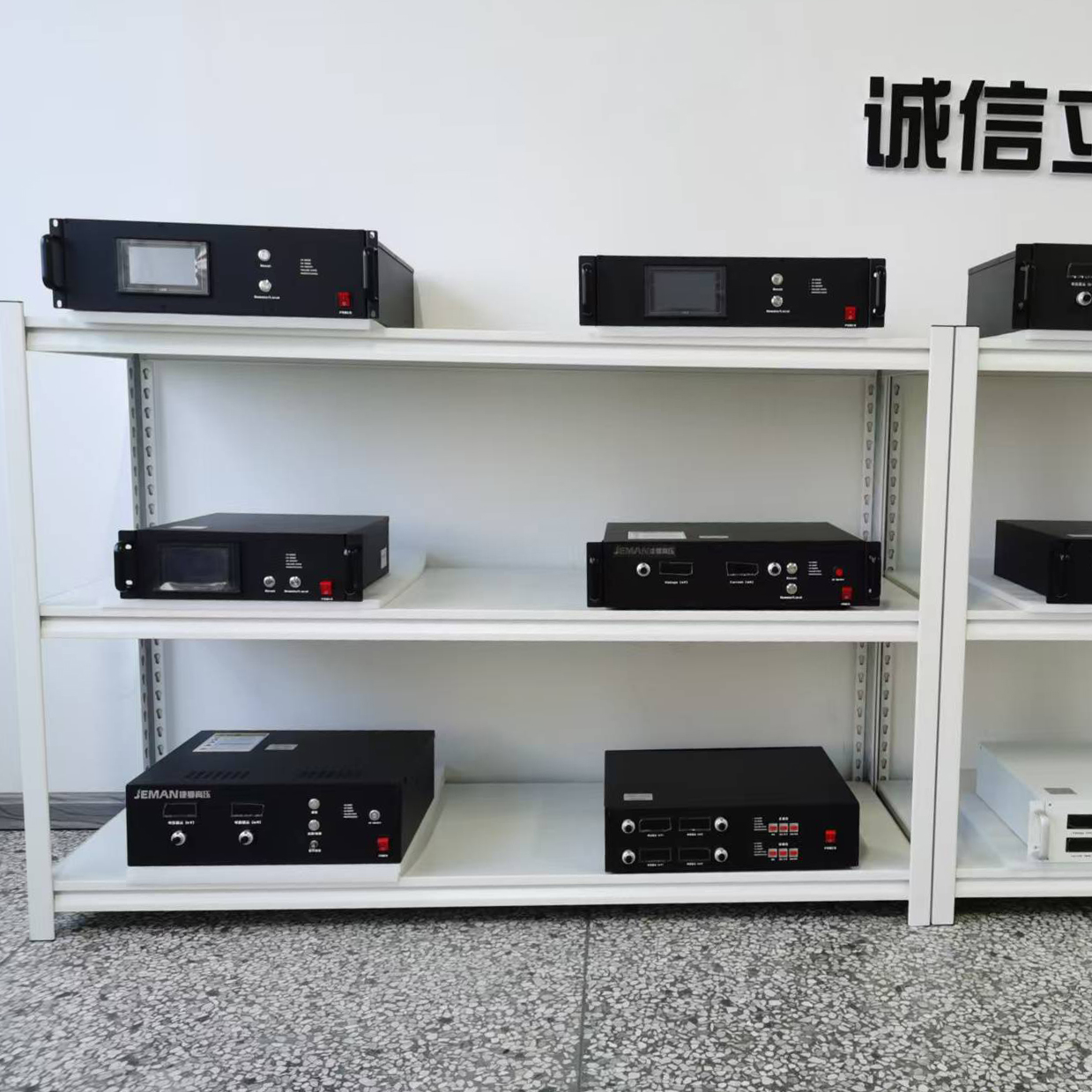

Strength & Service
IDEALPLUSING focuses on research, development, and sales of DC-DC modules, AC-DC rectifiers, inverters, and high voltage power supplies. We provide personalized, efficient, and cost-effective solutions for all industries.

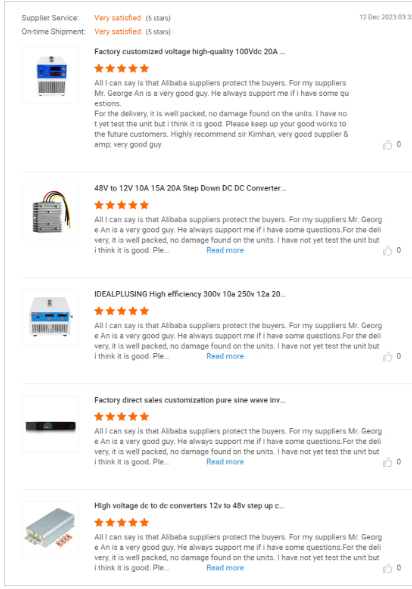

Customer Feedback
Frequently Asked Questions
Q1: What are the primary applications for this high voltage AC power supply?
A: It is widely used in DBD (Dielectric Barrier Discharge), ozone generation, sliding arc experiments, corona treatment, and cable testing.
Q2: Can the frequency be adjusted during operation?
A: Yes, we offer both Fixed Frequency (FF) and Adjustable Frequency (AF) models ranging from 10kHz up to 50kHz to suit your experimental needs.
Q3: Is it possible to customize the output voltage and power?
A: Absolutely. We specialize in customizing products according to different usage scenarios and load requirements, with power offerings up to 4000W.
Q4: What kind of protection features are included?
A: The unit includes a complete protection circuit designed for high stability and reliability, even in harsh working environments.
Q5: What is the lead time for customized orders?
A: Lead times vary based on specifications. Please contact our engineering team with your specific requirements for an accurate timeline and quotation.
Q6: What is the case material and durability?
A: The housing is made of high-grade Aluminum, providing excellent heat dissipation and structural integrity for rack-mounted setups.
