20kHz 1000w High Voltage Electrical Consumption Electrical Insulation Testing High Power Ac Power Supply
Product Description
★
Product Overview
High Voltage AC Power Supply (10kHz-50kHz / 4000W / 0-400mA)
We specialize in customizing high voltage AC power supplies to meet your specific requirements. Our customized offerings range up to 4000W, providing efficient, reliable, and cost-effective power solutions for various industries.
| Model NO. | IPS-ATAJ10kV-100mA | Voltage Regulating Mode | Customize |
|---|---|---|---|
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Frequency Options | 10kHz, 20kHz, 30kHz, 40kHz, 50kHz |
| Specification | W443*D503*H133(MM) | Transport Package | Carton/Wooden Box |
⚙
Technical Specification
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
|---|---|
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-100mA |
| Output Peak Power | 1000W |
| Output Frequency | 20kHz (FF) |
| Waveform | Sine Wave |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Case Material | Aluminum |
| Weight | 16.55 KG |
✔
Introduction & Applications

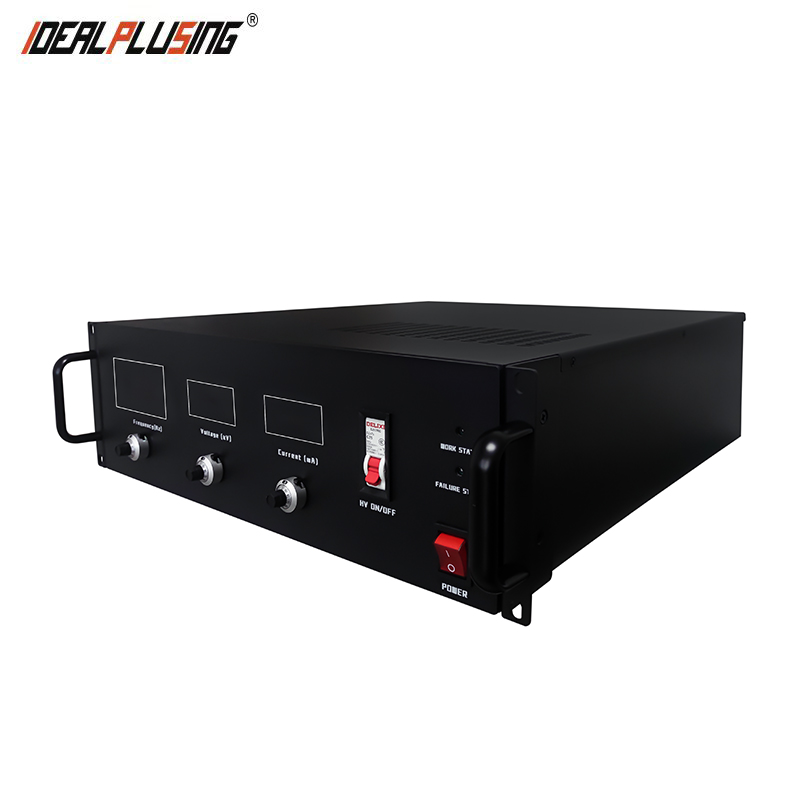

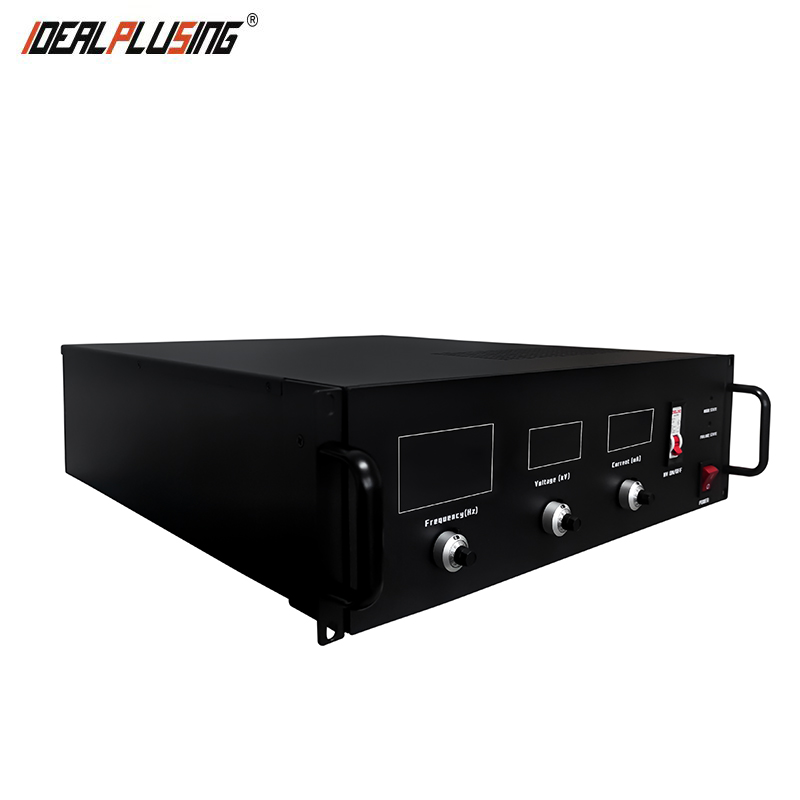

The high voltage AC power supply is a rack-mounted system, engineered for stability and ease of use. It features a complete protection circuit, making it suitable for even the harshest working environments.
Core Applications:
- DBD Dielectric Barrier Discharge
- Sliding Arc Experiments
- Electrostatic Spinning
- Ozone Generator Matching
- Corona Equipment Matching
- Cable Aging & Leakage Testing
Custom Service:
We excel at tailoring products based on different usage scenarios and actual loads. Our professional engineers can develop a dedicated plan to match your specific application requirements.
📷
Product Details
🔥
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Input Voltage: AC 220V±10%
2. Peak Voltage: 0-10kV
3. Peak Current: 0-400mA
4. Peak Power: 4000W
5. Frequency: 10kHz
Model: IPS-ATDJ10-100mA
1. Input Voltage: AC 220V±10%
2. Peak Voltage: 0-10kV
3. Peak Current: 0-100mA
4. Peak Power: 1000W
5. Frequency: 20-40kHz
📋
Model List Comparison
| Model | Peak Voltage | Peak Current | Frequency | Power (W) |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz-30KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
Note: FF is Fixed Frequency; AF is Adjust Frequency
🏢
R&D and Service
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and high-voltage power supplies. We aim to provide personalized, efficient, and reliable power solutions for all industries.
💬
Customer Feedback
?
Frequently Asked Questions
What are the primary uses for this high voltage AC power supply?
It is mainly used for DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment, and cable testing.
Can the output frequency be adjusted?
Yes, we offer both Fixed Frequency (FF) models and Adjustable Frequency (AF) models ranging from 10kHz up to 50kHz.
Is the power supply suitable for industrial environments?
Absolutely. The unit is built with an aluminum case and includes complete protection circuits, designed to operate in temperatures from -25°C to +55°C.
What is the maximum power output available?
Our standard high-capacity models reach up to 4000W peak power, but we can provide various customizations based on your load requirements.
Does the device support different input voltages?
The standard input is AC 220V±10% 50/60Hz, but as we specialize in customization, other requirements can be discussed with our engineering team.
What safety features are included?
The power supply includes a complete protection circuit to handle voltage instability and ensure safe operation during high-voltage experiments.
