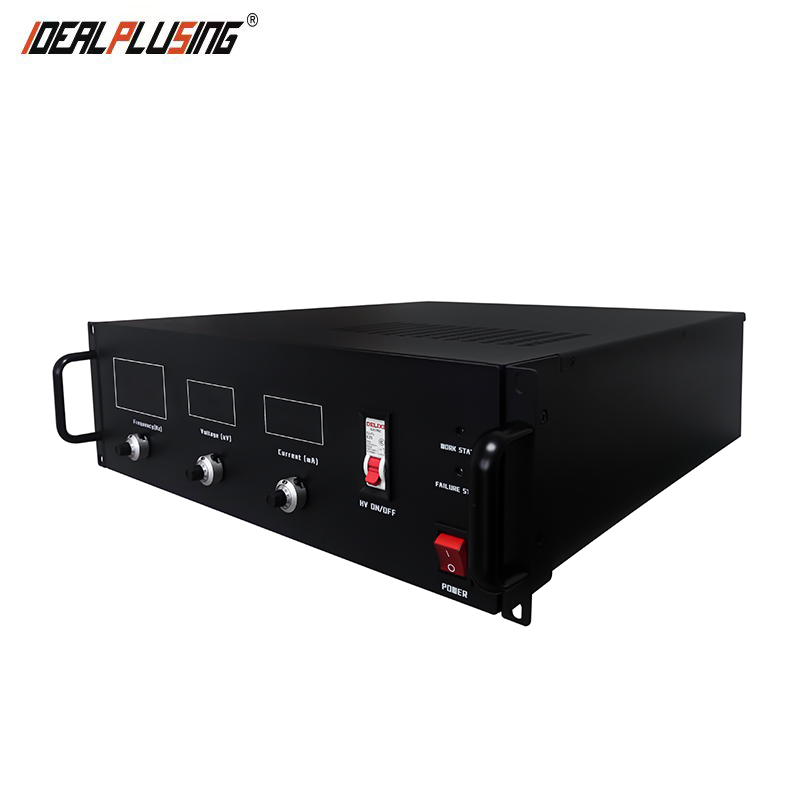

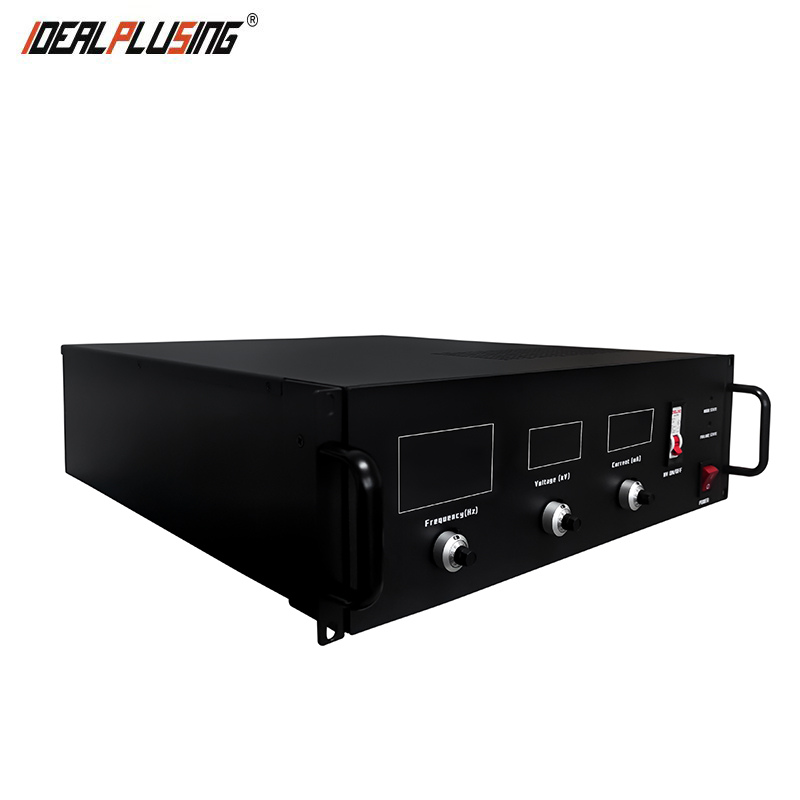

20kHz-50kHz 400mA 10kVAC Adjust Frequency Regulator Ac Power Supply Controller Cable Leakage test High Voltage Ac Power Supply
Product Description
High Voltage AC Power Supply
10kHz-50kHz | 4000W | 0-400mA
Specialize in customizing high voltage AC power supplies to meet your specific requirements. With customized options for any kind of AC power supply, our offerings range up to 4000W. These rack-mounted solutions are designed for precision and durability in demanding industrial and laboratory environments.
| Model | IPS-ATAJ10-400mA |
|---|---|
| Input Voltage | AC 220VĀ±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 20kHz-50kHz (AF) |
| Waveform | Sine Wave |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | Ā±0.5% Per Hour After 1 Hour Startup |
| Case Material | Aluminum |

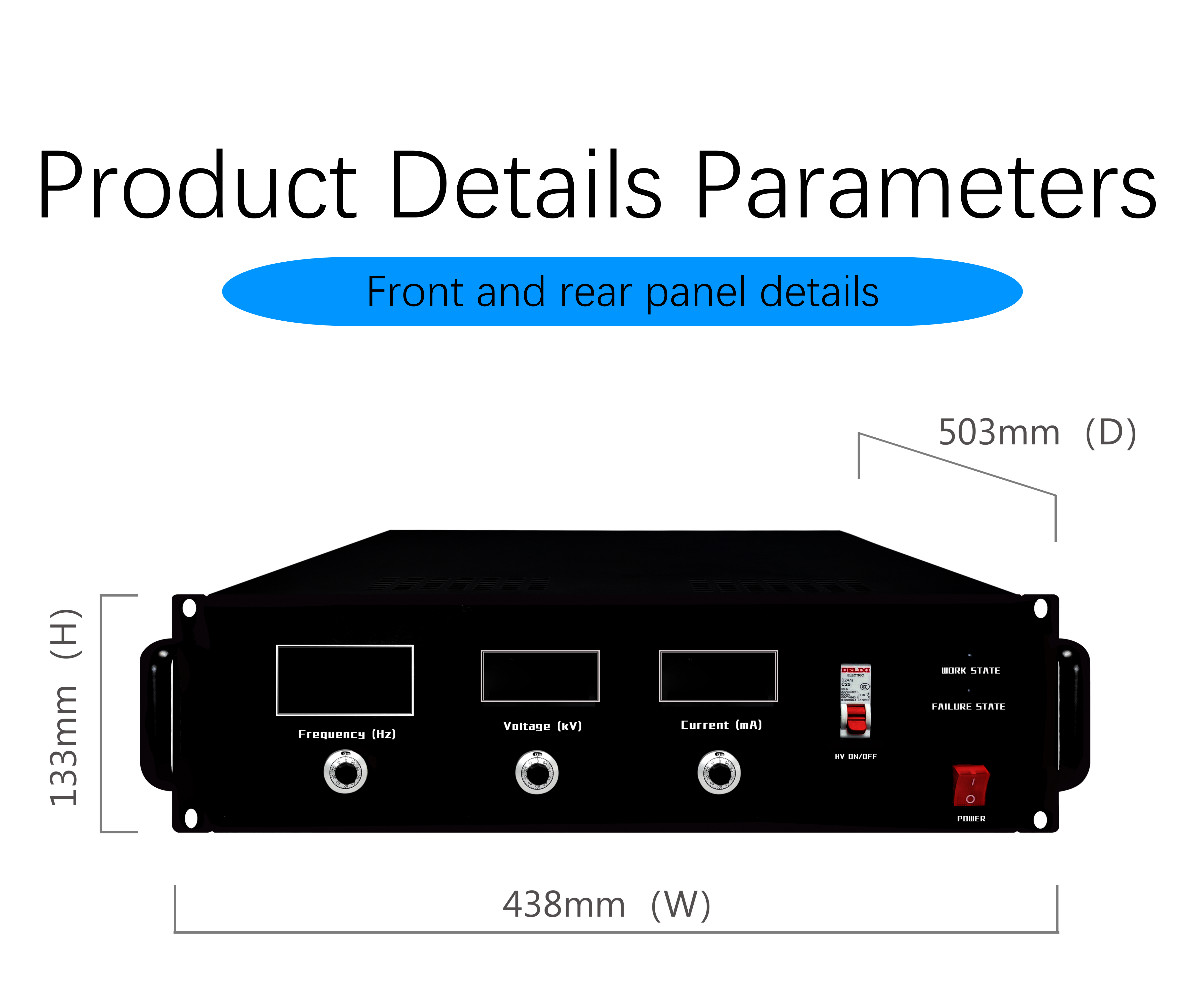

| Dimensions | W443*D503*H133 (MM) |
| Weight | 16.55 KG |
š”
Product Introduction

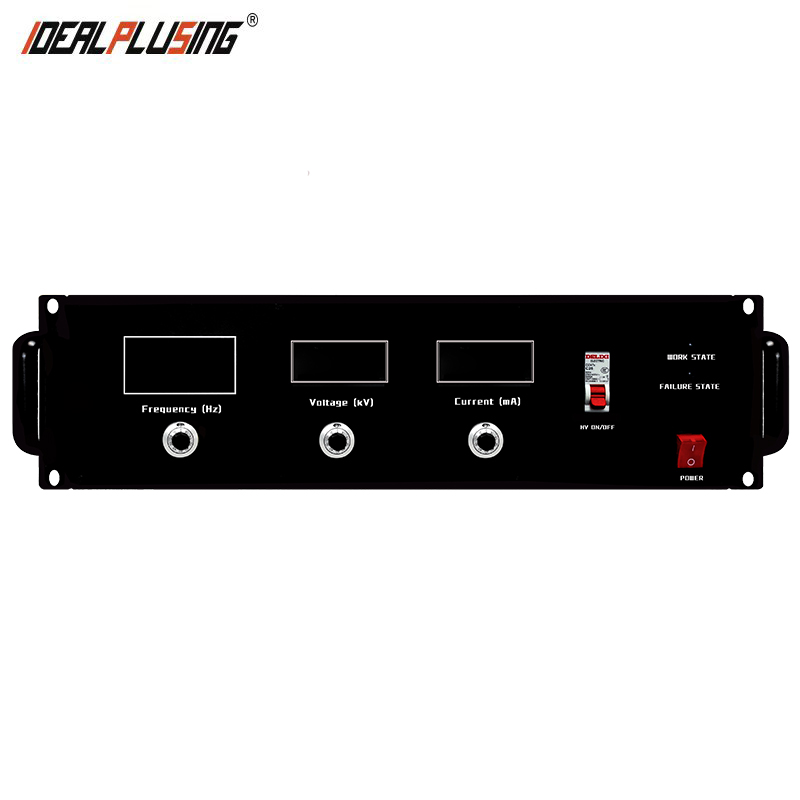

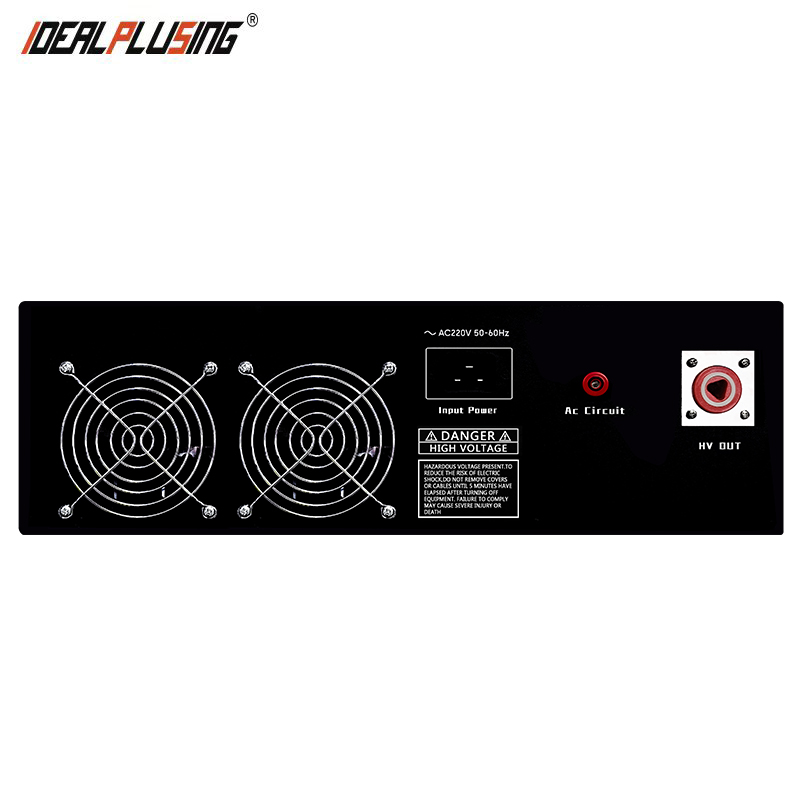

The high voltage AC power supply is a rack-mounted system primarily used in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, and corona equipment matching. It features simple operation, easy installation, and a complete protection circuit suitable for harsh working environments.
š
Typical Applications
- DBD Dielectric Barrier Discharge
- Sliding Arc Experiments
- Electrostatic Spinning
- Ozone Generator Powering
- Cable Aging & Leakage Tests
High Power
Model: IPS-ATDJ10-400mA
Peak Power: 4000W
Peak Current: 0-400mA
Frequency: 10kHz
Material: Aluminum Case
Precision Series
Model: IPS-ATDJ10-100mA
Peak Power: 1000W
Peak Current: 0-100mA
Frequency: 20-40kHz
Waveform: Sine Wave
| Model | Voltage (Peak) | Current (Peak) | Frequency | Power (W) |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz-50KHz (AF) | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 15kHz-30kHz (AF) | 4000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W |
* FF: Fixed Frequency | AF: Adjustable Frequency
We focus on the research and development of personalized, efficient, reliable, and cost-effective power supply solutions. Our expertise covers DC to DC modules, AC to DC rectifiers, inverters, and specialized high voltage systems for all industries.
Frequently Asked Questions
What are the primary uses for this high voltage AC power supply?
It is ideal for DBD dielectric barrier discharge, ozone generation, sliding arc experiments, corona treatment, and electrostatic spinning applications.
Can I customize the output voltage and frequency?
Yes, we specialize in customizing specifications to meet your specific requirements, including peak voltage up to 10kV and frequencies between 10kHz and 50kHz.
What kind of protection does the unit include?
The unit includes a complete protection circuit designed for stability and safety, even in harsh working environments.
What is the difference between FF and AF models?
FF stands for Fixed Frequency, while AF stands for Adjustable Frequency, allowing you to tune the output to your specific experimental needs.
What is the cooling and case material?
The unit is housed in a high-grade aluminum case, which provides excellent durability and heat dissipation characteristics.
Does the unit support continuous operation?
Yes, it is designed for stability with a temperature coefficient of 100 ppm per degree Celsius and high voltage stability of Ā±0.5% per hour.
