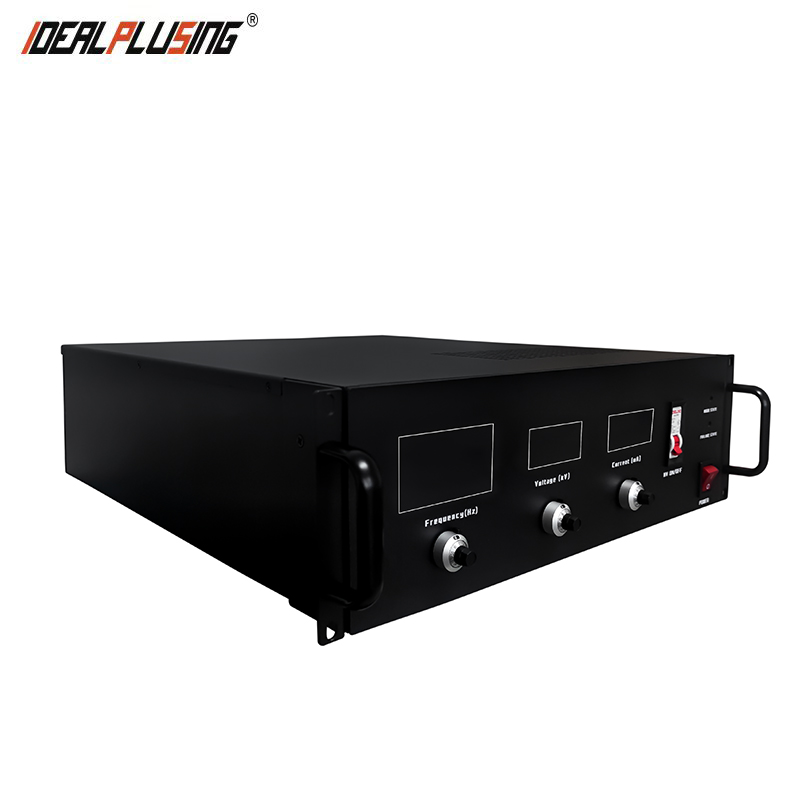

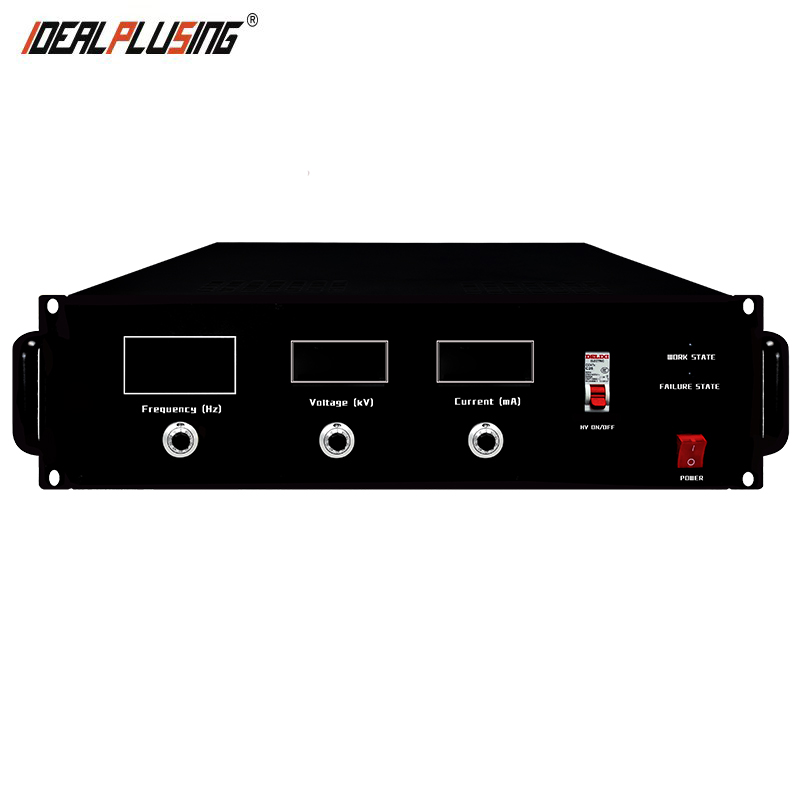

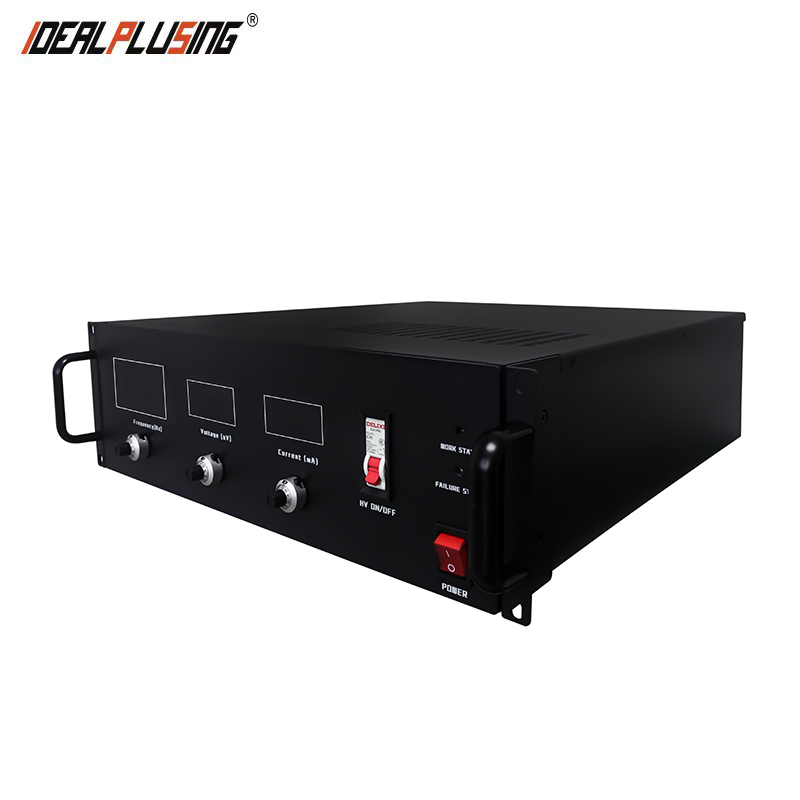

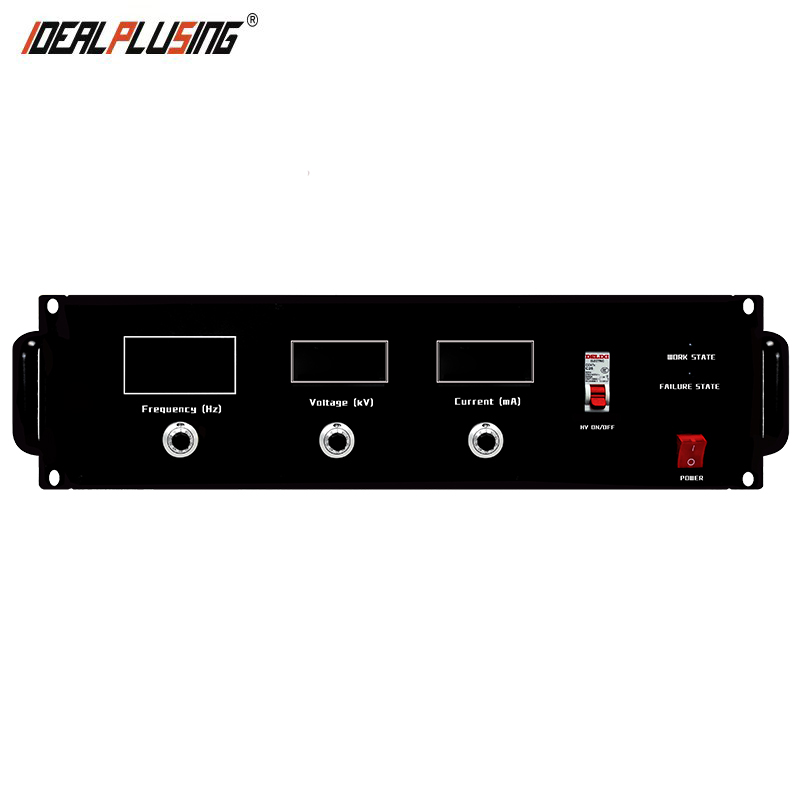

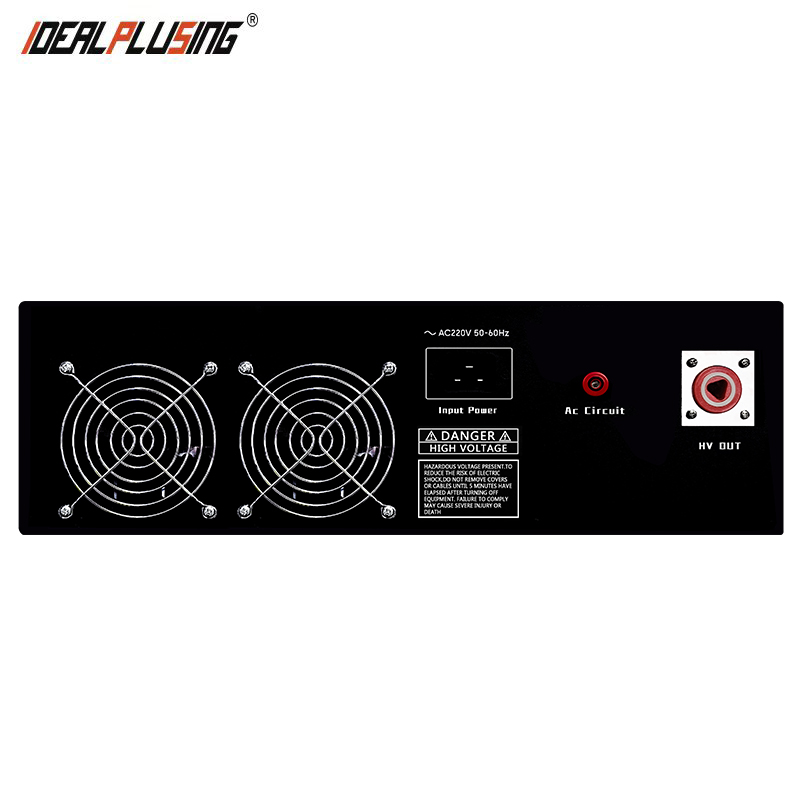

10kVAC High Voltage Current Regulator Fixed Frequency Ac Power Supply System Plasma Generation High Power Ac Power Supply
Product Description
Product Description
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Control Mode | Customize |
| Frequency 1 | 10kHz | Frequency 2 | 20kHz |
| Frequency 3 | 30kHz | Frequency 4 | 40kHz |
| Frequency 5 | 50kHz | Transport Package | Carton/Wooden Box |
| Specification | W443*D503*H133(MM) | Housing Material | Aluminum |
| Origin | China |
High Voltage AC Power Supply (10kHz-50kHz, 4000W, 0-400mA)
We specialize in customizing high voltage AC power supplies to meet your specific requirements. With our customization capabilities, our offerings range up to 4000W.
Specifications
| Parameter | Specification Details |
|---|---|
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 30kHz (FF) |
| Waveform | Sine Wave |
| Center Frequency | ±5% |
| Voltage Regulation | Standard Value 3-5% |
| High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
| Temperature Coefficient | 100 ppm Per Degree Celsius |
| Ambient Temperature | -25~+55ºC |
| Slope | >45° |
| Use Environment | No Conductive, No Corrosive Metal Liquid, No Condensation |
| Case Material | Aluminum |
| Power Supply Case Size | W443*D503*H133(MM) |
| Weight | 16.55 KG |
Product Introduction
The high voltage AC power supply is a rack-mounted high voltage power supply, which is mainly used in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching, and other related fields. The power supply is simple to operate, easy to install, has a complete protection circuit, and is suitable for harsh working environments.
Typical Applications
- ✔ DBD dielectric barrier discharge & sliding arc experiments
- ✔ Electrostatic spinning
- ✔ Ozone generator matching
- ✔ Cable aging and leakage tests
Customization Service
We excel at customizing products according to different usage scenarios and actual loads. If the models listed here do not fit your exact criteria, our professional engineers are ready to design a tailored solution for you.
Detail Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
- Input Voltage: AC 220V±10% 50/60Hz
- Peak Voltage: 0-10kV
- Peak Current: 0-400mA
- Peak Power: 4000W
- Frequency: 10kHz
- Waveform: Sine Wave
- Case Material: Aluminum
- Case Size: W443*D503*H133 (MM)
- Weight: 16.55 KG
Model: IPS-ATDJ10-100mA
- Input Voltage: AC 220V±10% 50/60Hz
- Peak Voltage: 0-10kV
- Peak Current: 0-100mA
- Peak Power: 1000W
- Frequency: 20-40kHz
- Waveform: Sine Wave
- Case Material: Aluminum
- Case Size: W443*D503*H133 (MM)
- Weight: 16.55 KG
Model: IPS-ATDJ10-400mA
- Input Voltage: AC 220V±10% 50/60Hz
- Peak Voltage: 0-10kV
- Peak Current: 0-100mA
- Peak Power: 1000W
- Frequency: 20-40kHz
- Waveform: Sine Wave
- Case Material: Aluminum
- Case Size: W443*D503*H133 (MM)
- Weight: 16.55 KG
Model List
| Model | Output Peak Voltage | Output Peak Current | Output Frequency | Output Peak Power (W) | Case Material |
|---|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 30kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 40kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 50kHz (FF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 15kHz-25KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz-30KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 25kHz-35KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 35kHz-45KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 20kHz-50KHz (AF) | 1000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 30kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 40kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 50kHz (FF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz-20kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 15kHz-25kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 15kHz-30kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-40kHz (AF) | 4000W | Aluminum |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 20kHz-50kHz (AF) | 4000W | Aluminum |
* Note: FF stands for Fixed Frequency, AF stands for Adjust Frequency.
Customer Feedback
Frequently Asked Questions (FAQ)
What are the primary applications of this high voltage AC power supply?
This power supply is mainly engineered for DBD (dielectric barrier discharge) experiments, sliding arc experiments, electrostatic spinning, ozone generator matching, cable aging tests, and cable leakage tests.
What is the difference between Fixed Frequency (FF) and Adjust Frequency (AF)?
Fixed Frequency (FF) models run at a set frequency (e.g., 30kHz) optimized for specific loads, whereas Adjust Frequency (AF) models offer adjustable frequency bands (e.g., 20kHz-50kHz) to accommodate varying experimental setups.
Can I request a customized voltage or power range?
Yes, we specialize in customizing power supply configurations. We can customize the voltage regulation mode, input systems, and power output ranges up to 4000W based on your exact usage scenarios.
What safety and protection mechanisms are included in the unit?
The system features a fully integrated protection circuit designed to safeguard against typical over-limit faults, ensuring stable operation even in harsh industrial and research environments.
What environmental conditions are required for standard operation?
The unit is designed for environments between -25°C and +55°C. The operating space must be free of conductive materials, corrosive metal liquids, and condensation to maintain optimal system health.
What are the chassis dimensions and structural material?
The power supply uses a robust aluminum case with dimensions of W443*D503*H133(MM), making it suitable for standard rack mounting installations.
