10kVAC High Voltage Current Circuit Power Supply Ac Adapter High Plasma Generation High Power Ac Power Supply
Product Description
Product Description
| Model NO. | IPS-ATDJ10-400mA | Voltage Regulating Mode | Customize |
| Power Supplying System | Customize | Energy Transmission | One-way Transmission |
| Modulation System | Customize | Frequency | 10kHz - 50kHz |
| Transport Package | Carton/Wooden Box | Specification | W443*D503*H133(MM) |
High Voltage AC Power Supply 10kHz-50kHz 4000W 0-400mA
Specializing in customizing high voltage AC power supplies to meet your specific requirements. With customized solutions for any kind of AC power supply, offerings range up to 4000W.
Technical Specification
| Model | IPS-ATAJ10-400mA |
| Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
| Output Peak Voltage | 0-10kVAC |
| Output Peak Current | 0-400mA |
| Output Peak Power | 4000W |
| Output Frequency | 10kHz |
| Waveform | Sine Wave |
| Voltage Regulation | Standard Value 3-5% |
| Case Material | Aluminum |
| Weight | 16.55 KG |
Product Introduction

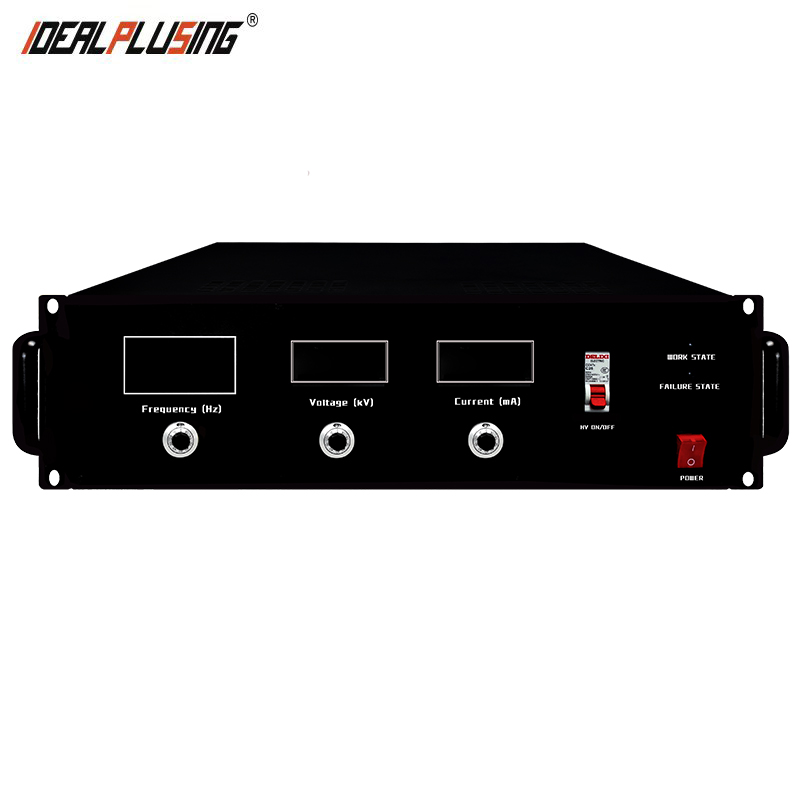

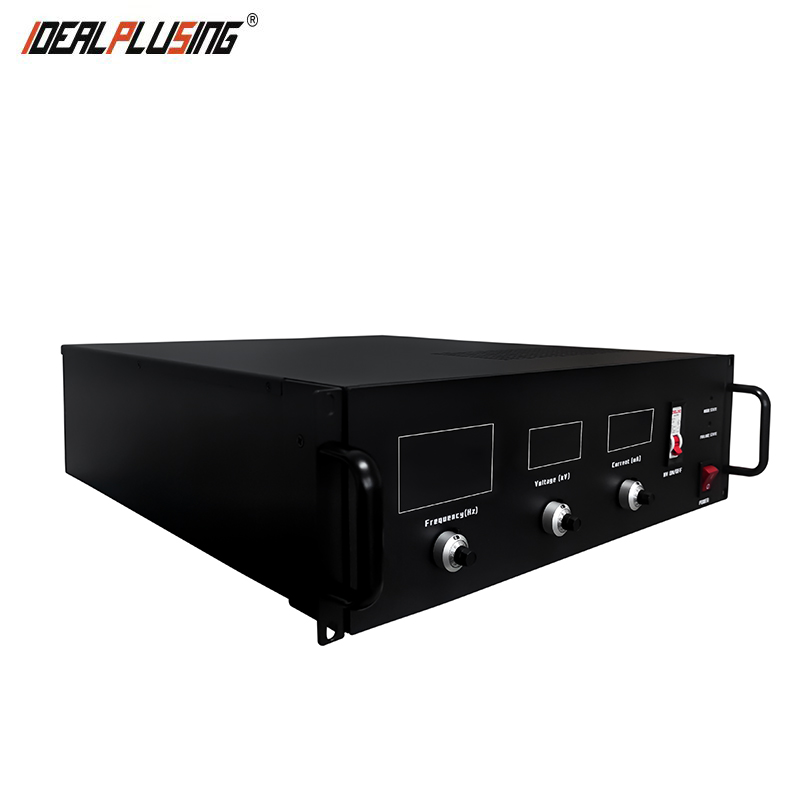

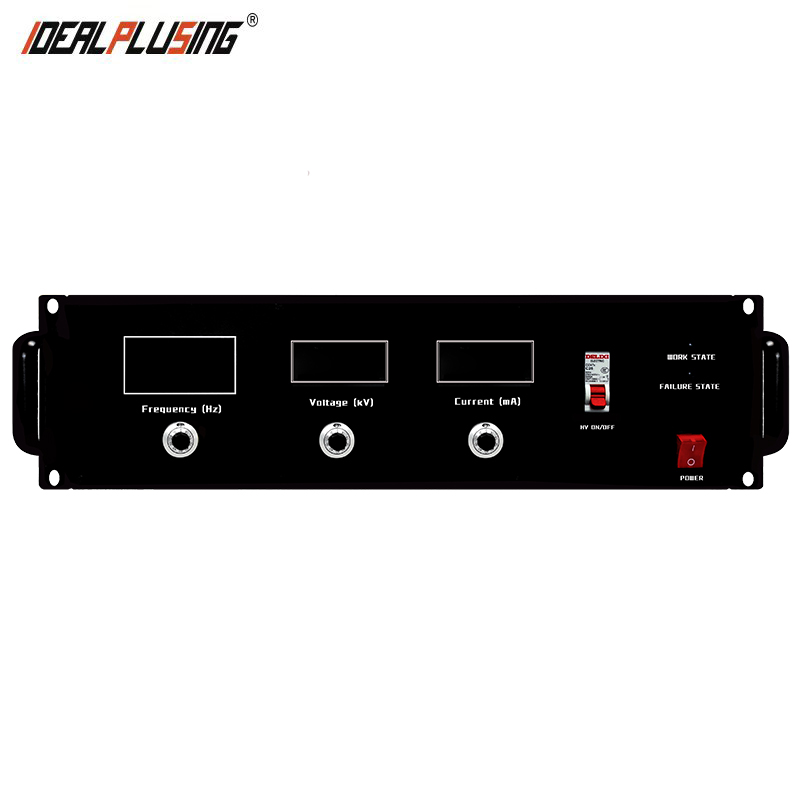

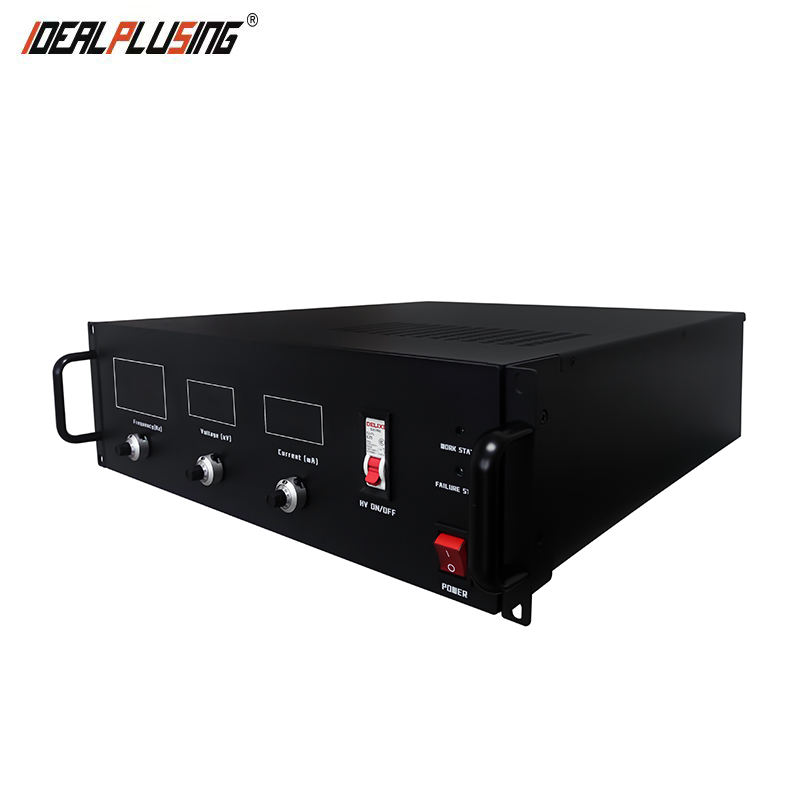

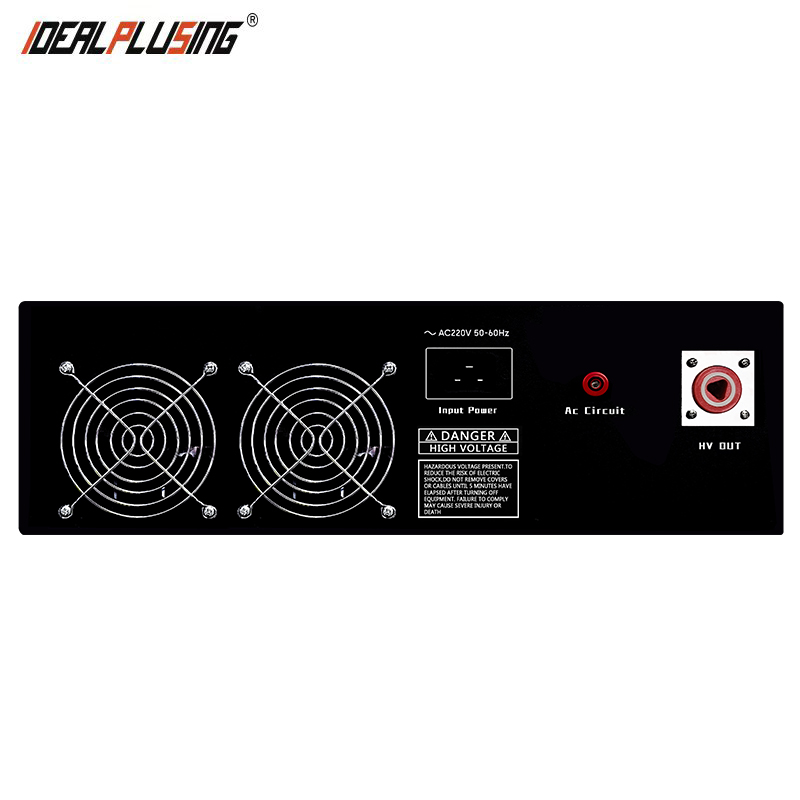

The high voltage AC power supply is a rack-mounted system, primarily utilized in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching, and other related fields. The power supply is designed for simple operation, easy installation, and includes a complete protection circuit suitable for harsh working environments.
Typical Applications
- ⚡ DBD dielectric barrier discharge
- ⚡ Sliding arc experiments
- ⚡ Electrostatic spinning
- ⚡ Ozone generators
- ⚡ Cable aging and leakage tests
Details Images
Hot Selling Models
Model: IPS-ATDJ10-400mA
1. Input: AC 220V | 2. Peak Voltage: 0-10kV | 3. Peak Current: 0-400mA | 4. Peak Power: 4000W | 5. Frequency: 10kHz | 6. Sine Wave | 7. Aluminum Case
Model: IPS-ATDJ10-100mA
1. Input: AC 220V | 2. Peak Voltage: 0-10kV | 3. Peak Current: 0-100mA | 4. Peak Power: 1000W | 5. Frequency: 20-40kHz | 6. Sine Wave
Full Model List
| Model | Peak Voltage | Peak Current | Frequency | Power (W) |
|---|---|---|---|---|
| IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 10kHz-50kHz | 1000W |
| IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 10kHz-50kHz | 4000W |
Note: FF is Fixed Frequency, AF is Adjust Frequency
Customization & Service
Expertise in R&D and sales of DC-DC power modules, AC-DC rectifiers, inverters, and high-voltage power supplies. We provide personalized, efficient, reliable, and cost-effective solutions tailored to various industrial scenarios and actual usage loads.
Customer Feedback
FAQ
1. What are the main applications of this high voltage AC power supply?
It is widely used in DBD dielectric barrier discharge, ozone generation, sliding arc experiments, electrostatic spinning, and cable testing.
2. Can the frequency and voltage be customized?
Yes, we specialize in customizing power supplies to meet specific requirements, with frequencies ranging from 10kHz to 50kHz and power up to 4000W.
3. What kind of output waveform does it provide?
The power supply provides a stable Sine Wave output, which is essential for precision discharge experiments.
4. Does it include safety protection features?
Yes, it features a complete protection circuit designed to withstand harsh industrial and experimental working environments.
5. What is the case material and build quality?
The unit is built with high-quality aluminum, providing durability and excellent heat dissipation for long-term stability.
6. Is it suitable for continuous operation?
Yes, it maintains high voltage stability within ±0.5% per hour after initial startup, making it suitable for aging tests and continuous research.
