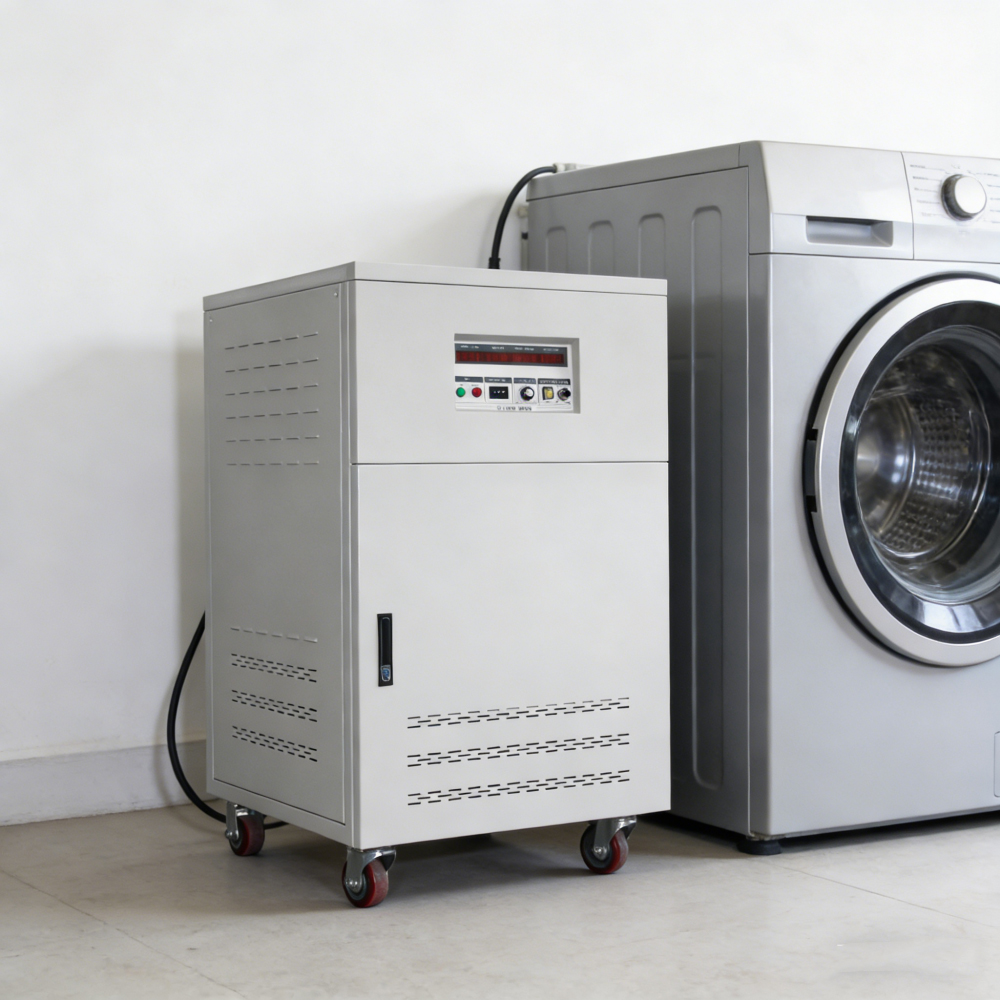

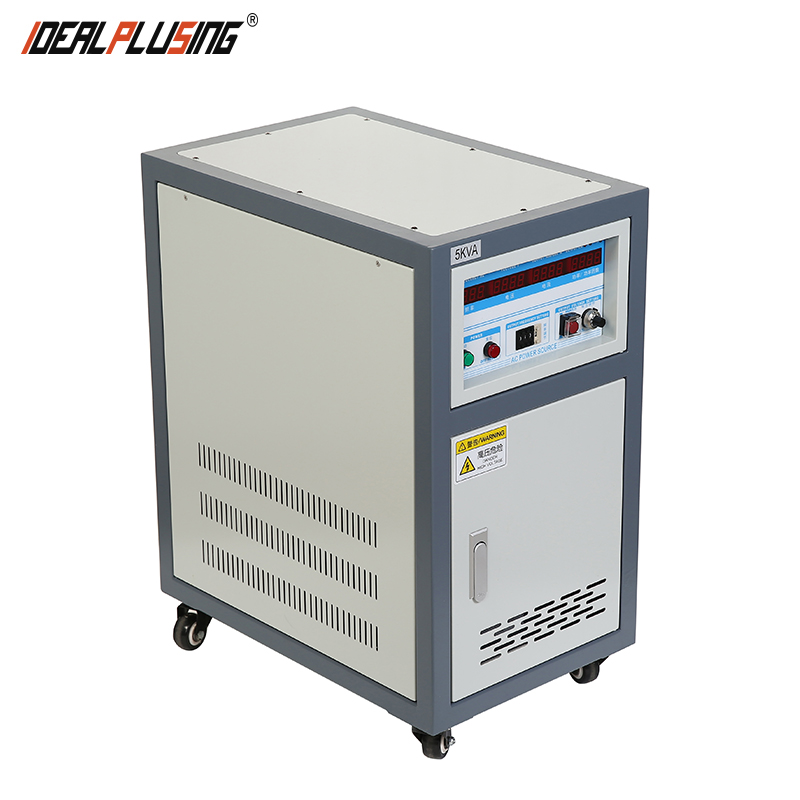

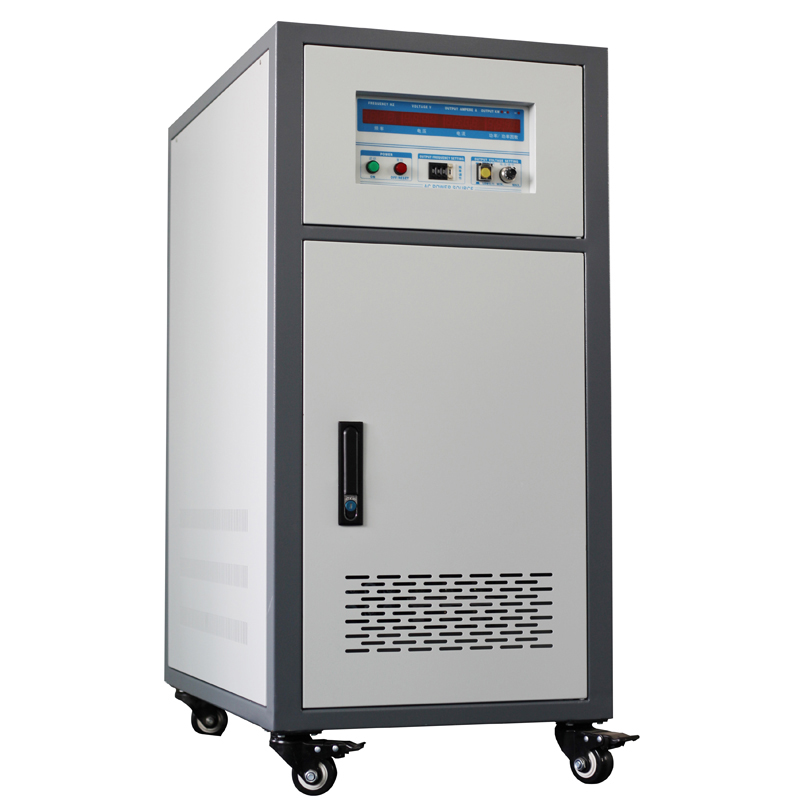

Single-phase 220V 5KVA 10KVA 400hz AC Variable Power Supply Laboratory 50/60 Hz Frequency Converter
Product Description
Single-phase 220V 5KVA 10KVA 400hz AC Variable Power Supply Laboratory 50/60 Hz Frequency Converter
⚠️ Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
🚀 Product Features
01Complete isolation of input and output technology, safe and reliable power supply
02SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
03IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
04The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality
05High power IGBT module and highly integrated module drive circuit, strong overload capacity
06Suitable for resistive, inductive, rectifier, and other loads
07Multiple protection functions for overheating, overcurrent, and short circuit
08Function of setting parameter memory (10-groups shortcut key operation)
09Power supply voltage and frequency can be adjusted online in real-time
📍 Application Scope
🏠 Home appliances & Motors
🛠 Power tools & Switching power supplies
🔌 Power adapters & UPS
🛰 Information and communication
☀️ Photovoltaic & Lamps
🔬 Electronic transformers & components
📊 Technical Specifications (FC61 Series)
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power output(KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Net weight (kg) | 26KG | 32KG | 37KG | 48KG |
| Model | IPS-FC6105 | IPS-FC6106 | IPS-FC6110 | IPS-FC6115 |
|---|---|---|---|---|
| Output capacity (KVA) | 5KVA | 6KVA | 10KVA | 15KVA |
| Rated power output(KW) | 4KW | 4.8KW | 8KW | 12KW |
| Max Current (High-grade) | 21A | 25A | 42A | 63A |
| Net weight (kg) | 63KG | 80KG | 145KG | 175KG |
🔥 Hot Selling Models
IPS-FC6102 (2KVA 1.6KW)
IPS-FC6250 (50KVA 40KW)
IPS-FC6310 (10KVA 8KW)
IPS-FC6330 (30KVA 24KW)
IPS-FC68100 (100KVA 80KW)
IPS-FC68200 (200KVA 160KW)
🔍 Detailed View
💡 Expertise
We specialize in customizing AC/DC/AC power supply to meet your specific requirements. With customized frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
❓ Frequently Asked Questions
Why are there both 50Hz and 60Hz standards?
The frequency of AC power was selected arbitrarily when systems were stand-alone. Generally, Africa and most of Asia use 50Hz, while the Americas and parts of Japan use 60Hz. A static frequency converter allows you to switch between these standards easily for international equipment testing.
What is SPWM technology?
SPWM (Sine Wave Pulse Width Modulation) technology provides a fast response speed and stable output. It ensures that the power delivered is a clean sine wave, which is essential for sensitive laboratory and electronic equipment.
Can these units handle inductive loads?
Yes, our frequency converters are designed to be versatile and can adapt to various loads, including resistive, inductive, and rectifier loads such as motors and power tools.
What protection features are included for safety?
The systems are equipped with multiple protection functions for abnormal conditions including overheating, overcurrent, overvoltage, overload, and short circuits, featuring automatic jump protection and alarms.
Is the output voltage and frequency adjustable?
Yes, both the voltage (e.g., 0-300V) and the frequency (e.g., 40-499.9Hz) can be adjusted online in real-time through the software interface.
What is the advantage of IGBT technology?
The use of high-frequency static IGBT inverters allows for equipment that is smaller in size, lighter in weight, lower in noise, and significantly higher in efficiency compared to traditional transformers.
