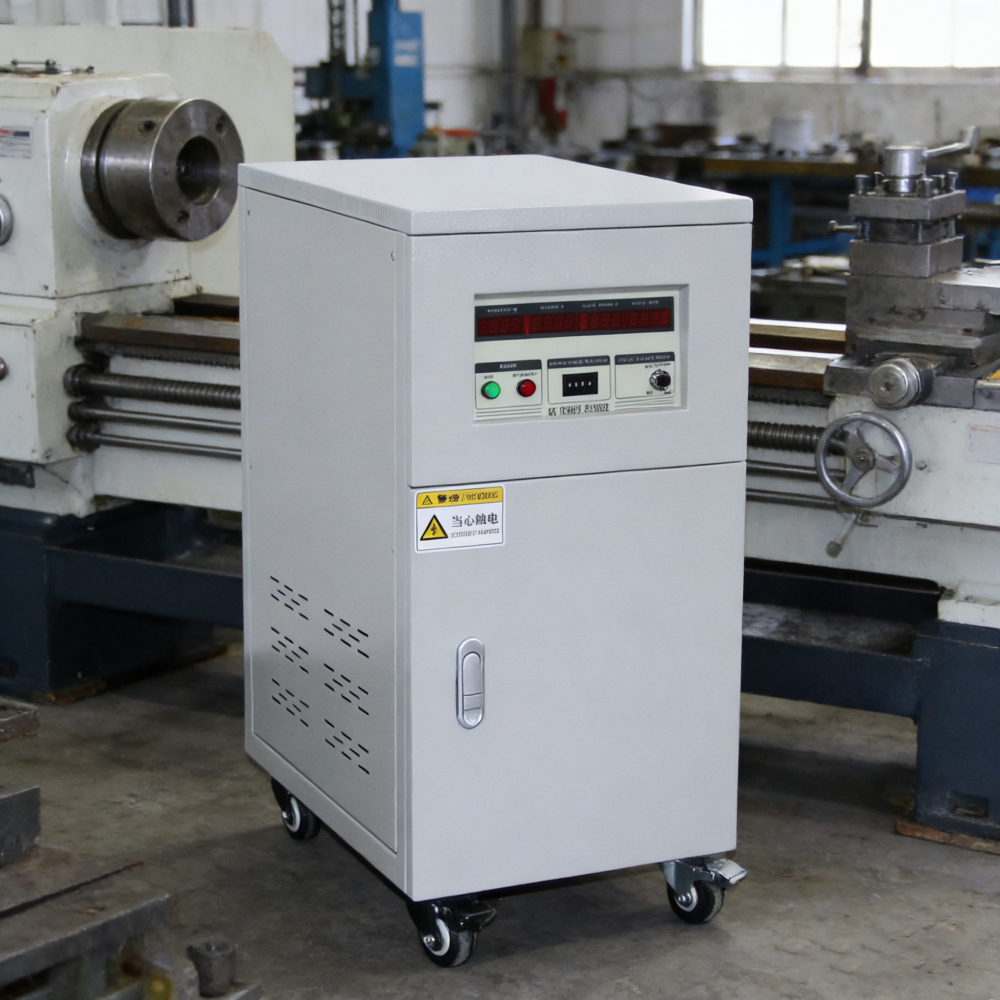

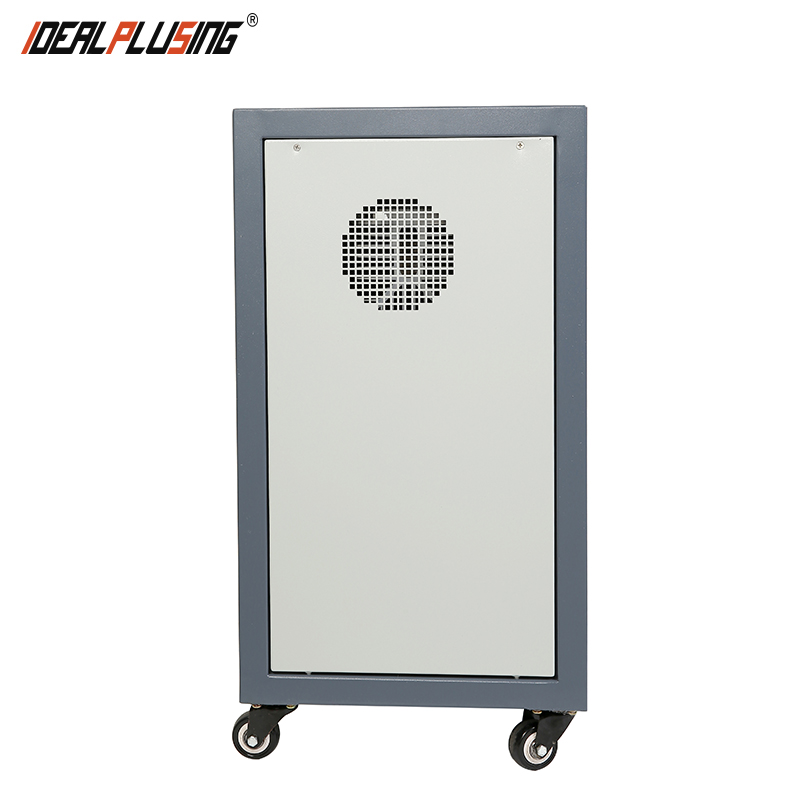

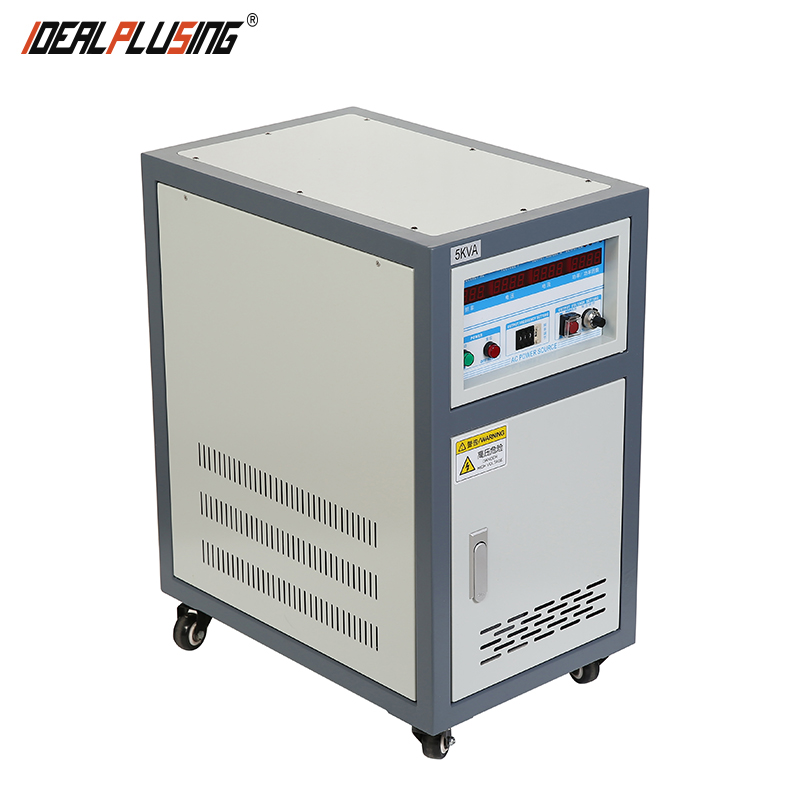

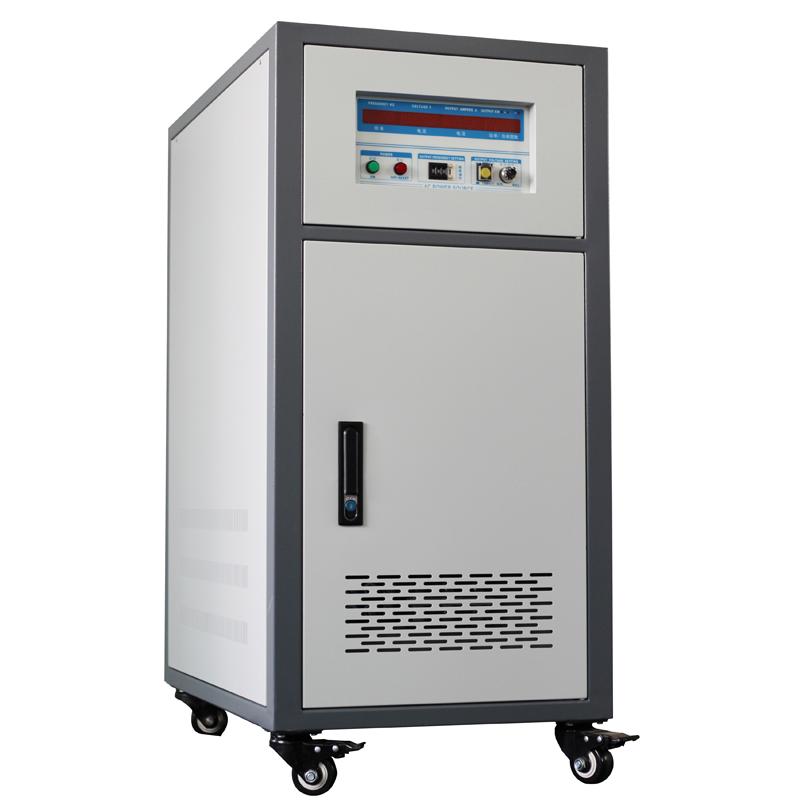

Three-Phase 10KVA 20KVA 30KVA 50KVA 60KVA 380V to 540V 400hz Variable Frequency AC Power Supply
Product Description
⚡
Three-Phase 10KVA-60KVA Variable Frequency AC Power Supply
High-precision 380V to 540V 400Hz Professional Power Solution
📢
Friendly Reminder
Dear Customer: The prices shown are for reference only. Final transaction prices will be quoted based on your actual needs, quantity, and market conditions. Online prices are for preliminary budget reference and do not constitute a final commitment.
We adhere to the principle of integrity and transparency. Thank you for your trust.
⚙️
Product Features
✅ Complete isolation of input and output technology, safe and reliable.
✅ SPWM sine wave pulse width modulation technology for fast response.
✅ IGBT high-frequency static inverter: small size, lightweight, low noise.
✅ Double-loop control mode for high precision and excellent waveform quality.
✅ Strong overload capacity and high efficiency with integrated module drive.
✅ Suitable for resistive, inductive, rectifier, and other complex loads.
✅ Multiple protection: overheating, overcurrent, and short circuit.
✅ 10-groups shortcut key operation for parameter memory.
✅ Online adjustment of voltage and real-time frequency changes.
🏢
Application Scope
| 1. Home appliances | 2. Motors | 3. Power tools | 4. Switching power supplies |
| 5. Power adapters | 6. UPS | 7. Information & Communication | 8. Photovoltaic |
| 9. Lamps | 10. Electronic transformers | 11. Electronic components | 12. Low-voltage distribution |
📊
Technical Specifications
FC61 Series (Single Phase)
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Dimensions (cm) | 43*18*44CM | 43*18*47CM | 43*65*52CM | |
FC62 Series (High Power)
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6260 | IPS-FC62100 |
|---|---|---|---|---|
| Output capacity (KVA) | 20KVA | 30KVA | 60KVA | 100KVA |
| AC output Max current | 168A / 84A | 250A / 125A | 500A / 250A | 834A / 417A |
| Circuit mode | IGBT / SPWM | |||
| Frequency Range | 40~499.9HZ (Software adjustable) | |||
🔥
Hot Selling Models
IPS-FC6102
Single-phase 2KVA 1.6KW
IPS-FC6250
3-phase In / Single-phase Out 50KVA
IPS-FC6310
Single-phase In / 3-phase Out 10KVA
IPS-FC6330
Single-phase In / 3-phase Out 30KVA
IPS-FC68100
3-phase In / 3-phase Out 100KVA
IPS-FC68200
3-phase In / 3-phase Out 200KVA
📸
Product Details
🚀
Professional Applications
💎
Professional Customization
We specialize in customizing AC/DC/AC power supply solutions to meet your specific industrial requirements. With advanced frequency converters, our offerings range up to 2000KVA. Our dedicated team endeavors to respond to all technical inquiries within one hour.
❓
Frequently Asked Questions
Q: Why are there both 50Hz and 60Hz standards?
A: The frequency of AC power was selected arbitrarily in the early days of stand-alone systems. Europe settled on 50Hz (AEG Influence) while the US settled on 60Hz (Westinghouse). Today, most of Africa and Asia use 50Hz, while the Americas use 60Hz. Our converters allow seamless conversion between these standards.
Q: What type of loads can this power supply handle?
A: This variable frequency power supply is highly versatile and suitable for resistive, inductive, rectifier, and other types of loads commonly found in laboratory and industrial environments.
Q: Does the system include built-in protection?
A: Yes, it features comprehensive electronic circuit protection that detects over-voltage, over-current, overload, over-temperature, and short-circuits, accompanied by an automatic jump protection and alarm device.
Q: What is the voltage stability and response time?
A: The system offers a high load stability rate of ±0.5% to ±1% and an extremely fast response time of ≤2ms, ensuring stable power even during sudden load changes.
Q: Can the frequency be adjusted while the unit is online?
A: Yes, the power supply voltage and frequency can be adjusted online, and the frequency can change in real-time via software settings (ranging from 40.0Hz to 499.9Hz).
Q: Is the input and output isolated?
A: Absolutely. We use complete isolation technology between input and output to ensure a safe and reliable power supply, protecting your sensitive equipment from input-side surges.
