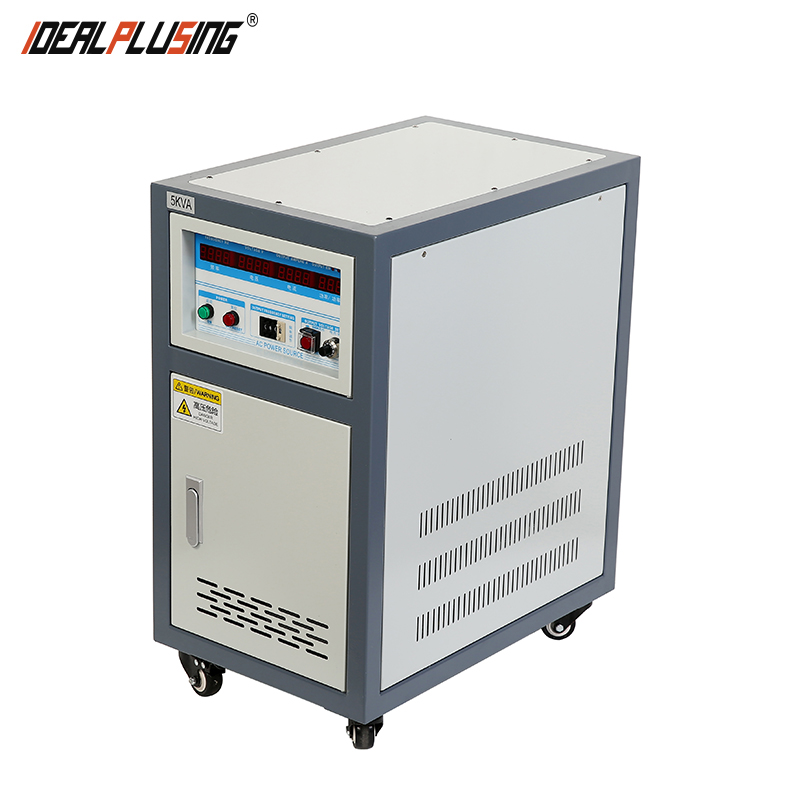

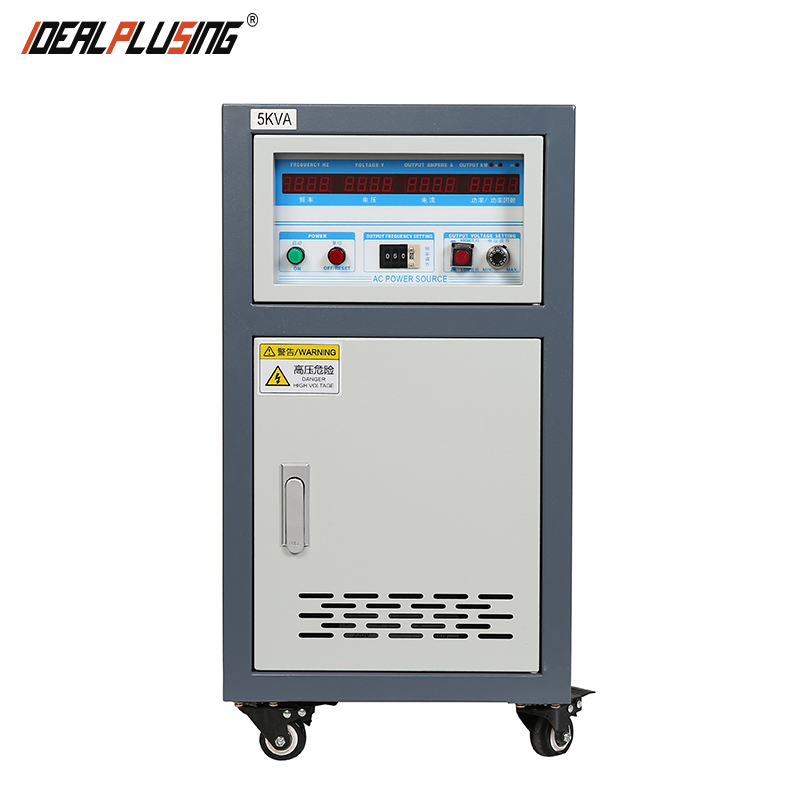

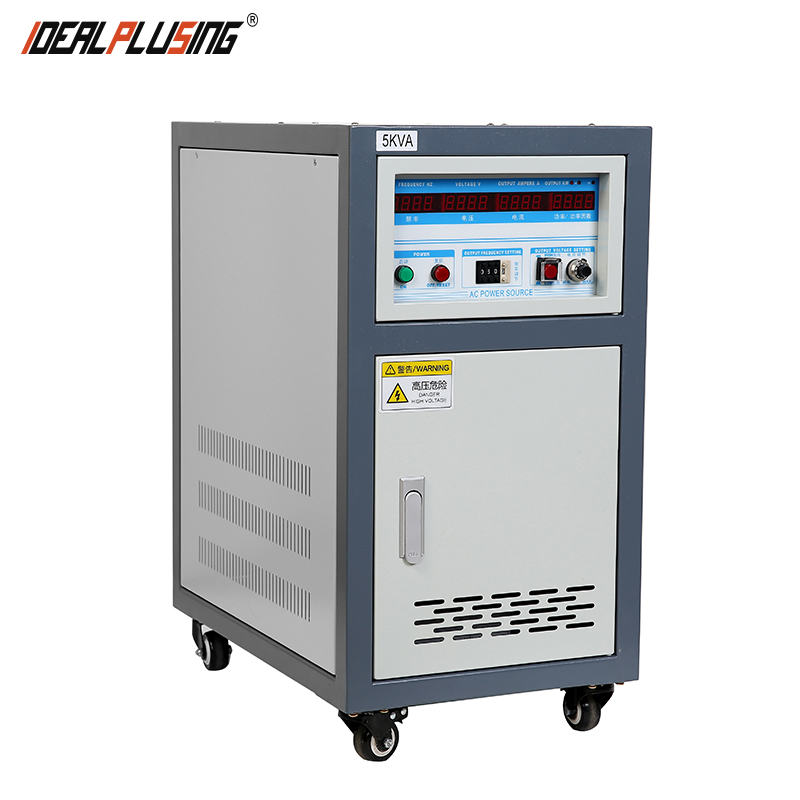

IDEALPLUSING 100kVA Variable Frequency Power Supply 50Hz/60Hz to 400Hz for Industrial Equipment OEM/ODM
Product Description
Product Introduction
100KVA Frequency Converter 50hz to 60hz 400hz Variable Frequency Power Supply
High-performance power supply solution suitable for home appliances and industrial equipment requiring frequency conversion from 50Hz, 60Hz, to 400Hz.
! Friendly Reminder
Dear Customer: The prices shown are for reference only. The final transaction price will be recalculated by our sales staff based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and avoid price misrepresentation. Thank you for your trust.
Product Feature
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology for fast response and stable output.
3
IGBT high-frequency static inverter, small size, lightweight, and low noise.
4
Unique double-loop control mode for high precision and excellent waveform quality.
5
Strong overload capacity, low loss, and high efficiency via integrated module drive.
6
Suitable for resistive, inductive, rectifier, and other diverse loads.
7
Multiple protection: overheating, overcurrent, and short circuit.
8
Parameter memory function with 10-groups shortcut key operation.
9
Online adjustment of voltage and frequency in real-time.
Application Areas
| Category | Applications |
|---|---|
| Domestic | Home appliances, Motors, Power tools, UPS |
| Industrial | Switching power supplies, Power adapters, Electronic transformers |
| Technology | Information and communication, Photovoltaic, Electronic components |
| Lighting | Lamps, Low-voltage distribution, Power sectors |
Technical Specifications
| Parameter | Single-phase (500VA-45KVA) | Three-phase (3KVA-400KVA) |
|---|---|---|
| Circuit Mode | IGBT / SPWM Pulse Width Modulation | |
| AC Input | 110V/200V/220V/230V/240V ±10% | 190/115, 208/120, 380/220, 480/277V ±10% |
| Output Frequency | 40.0Hz to 499.9Hz (Programmable) | |
| Voltage Range | Low: 0-150V; High: 0-300V | Options up to 600V available |
| Frequency Stability | ≤ ±0.01% | |
| Load Stability | ±0.5% - ±1% | |
| Waveform Distortion | Sine wave, ≤ 2% | |
| Response Time | ≤ 2ms | |
| Protection | Overload, Temp, Short Circuit, Instantaneous power-off protection | |
Hot Selling Models
IPS-FC6102
Single-phase 2KVA 1.6KW
IPS-FC6250
3-phase In/1-phase Out 50KVA 40KW
IPS-FC6310
1-phase In/3-phase Out 10KVA 8KW
IPS-FC6330
1-phase In/3-phase Out 30KVA 24KW
IPS-FC68100
3-phase In/3-phase Out 100KVA 80KW
IPS-FC68200
3-phase In/3-phase Out 200KVA 160KW

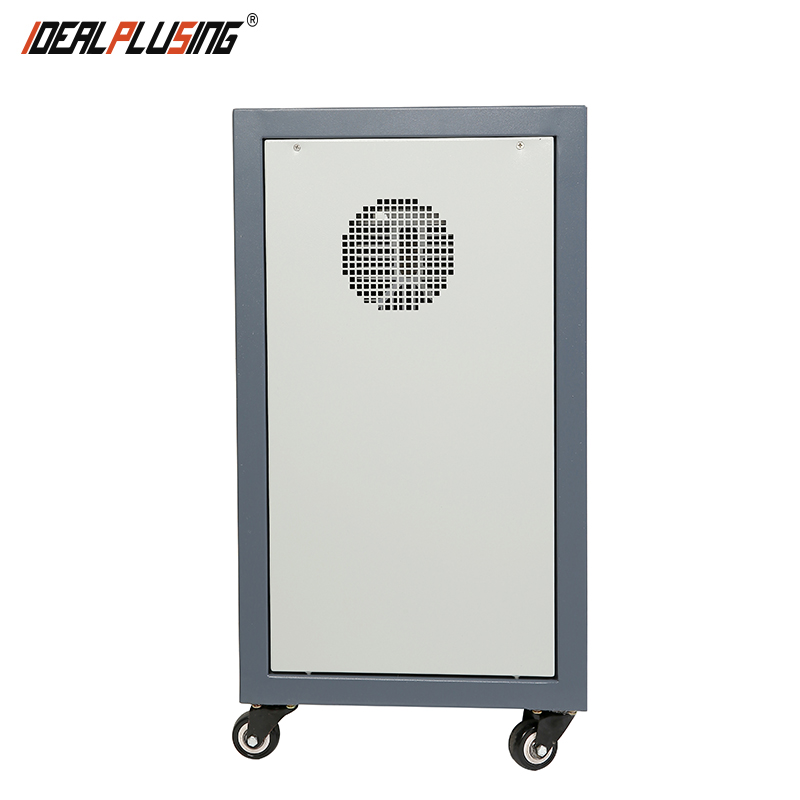

Detail Images

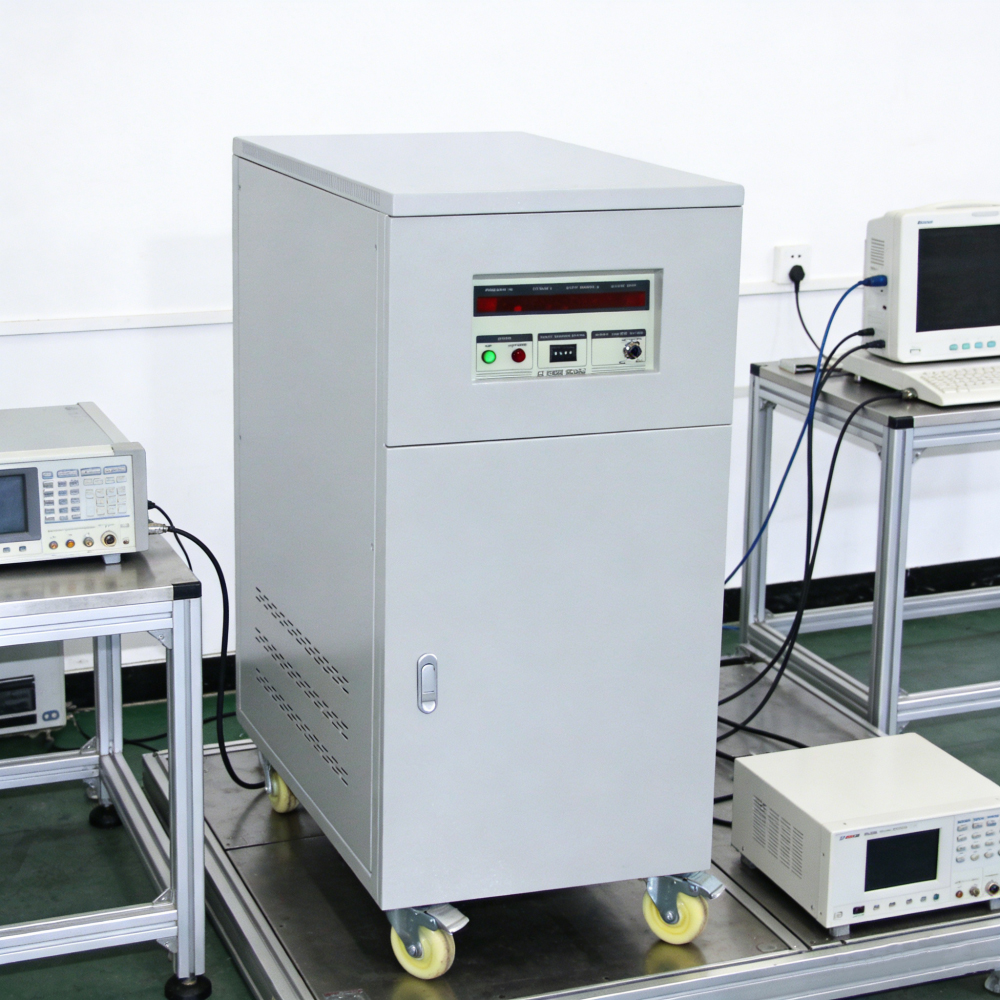

Application Scenarios
Customization Services
We specialize in customizing AC/DC/AC power supplies to meet your specific requirements. With customized frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond promptly.
Frequently Asked Questions
Why are there both 50Hz and 60Hz power standards?
The frequency was selected arbitrarily when systems were stand-alone. Eventually, 50Hz became the standard in Europe and parts of Asia/Africa, while 60Hz became the norm in the Americas and parts of Japan. A frequency converter allows equipment designed for one standard to work on the other.
What is the advantage of SPWM technology?
SPWM (Sinusoidal Pulse Width Modulation) ensures a high-quality sine wave output with low harmonic distortion, providing cleaner power for sensitive electronics compared to standard modified waves.
Can this unit convert single-phase to three-phase power?
Yes, our FC63 series is specifically designed to take a single-phase input and provide a stable 3-phase output for industrial machinery.
What safety protections are built into the converter?
Each unit includes comprehensive protection against overvoltage, overcurrent, overload, over-temperature, and short-circuits, including automatic jump protection and alarms.
How fast is the response time to load changes?
The system features a fast response time of ≤ 2ms, ensuring that voltage remains stable even when high-demand loads are switched on or off.
Is it possible to adjust the output frequency online?
Yes, the power supply voltage and frequency can be adjusted online via software or the control panel, and changes take effect in real-time.
