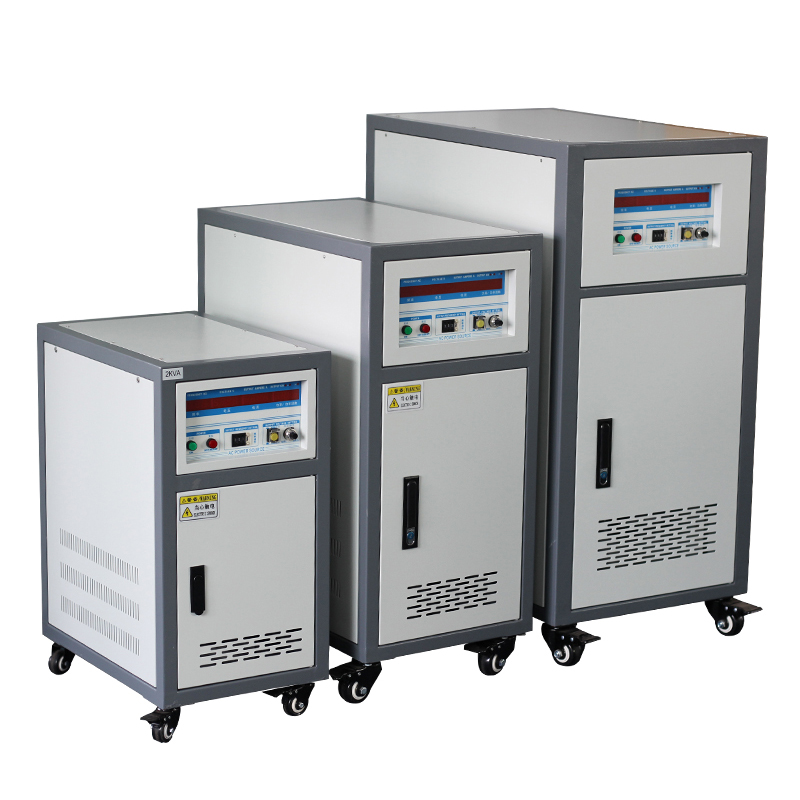

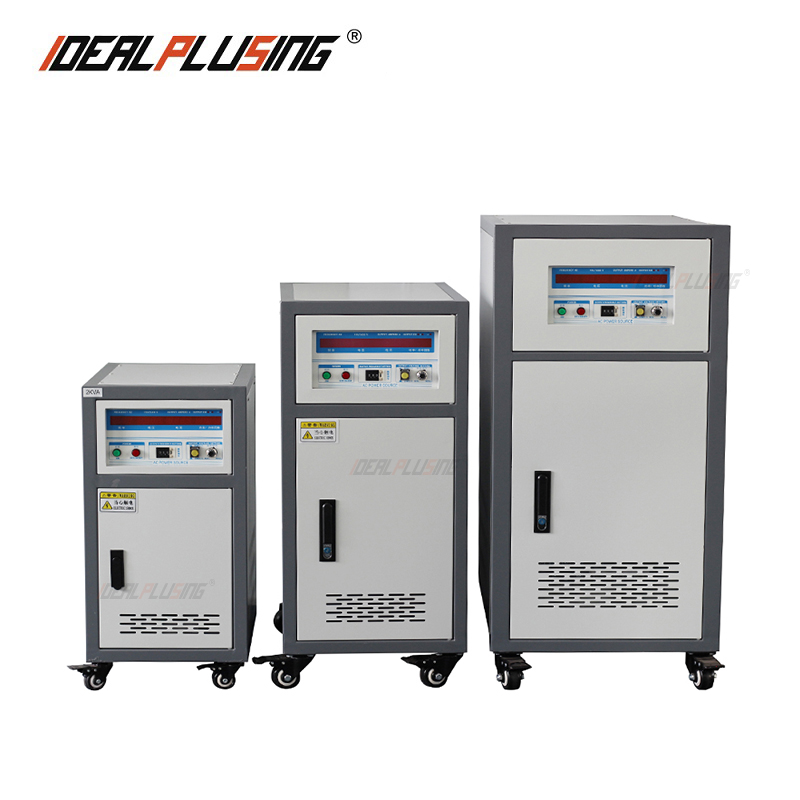

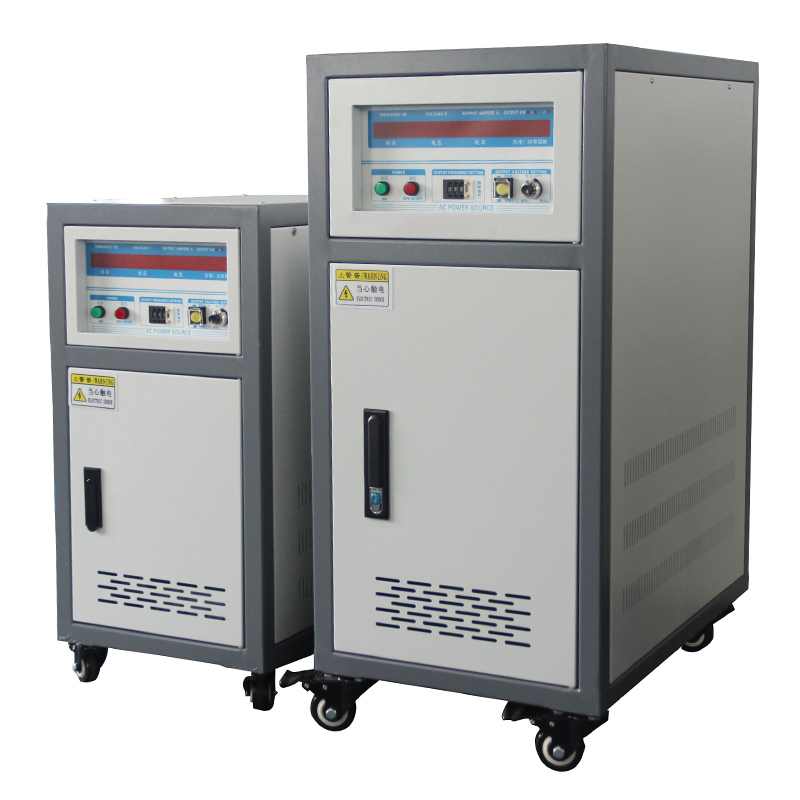

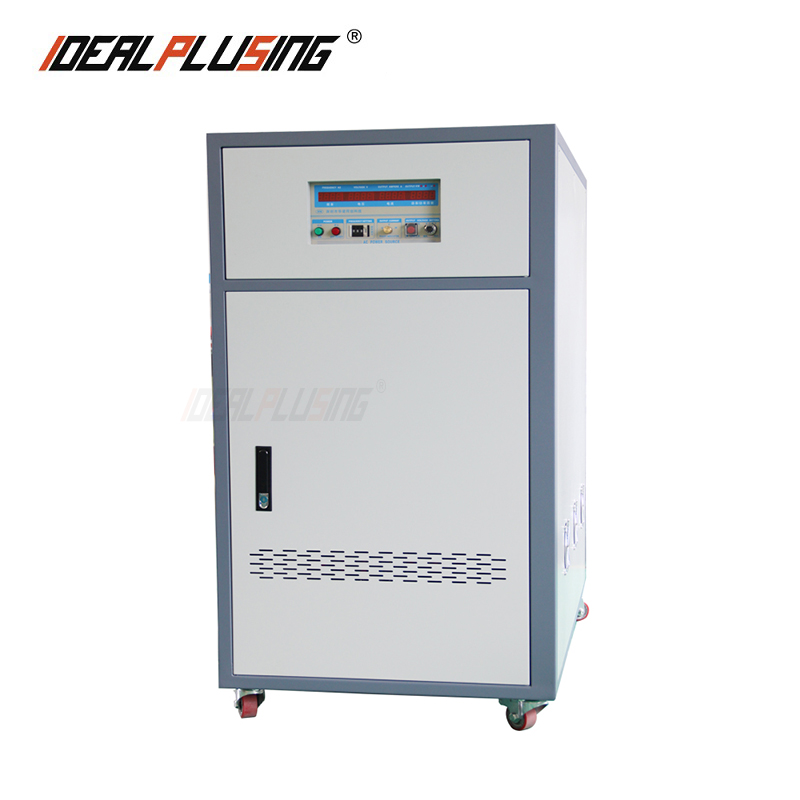

Factory Direct Sales 50Hz 60Hz to 400hz AC Three-Phase Input Three-Phase Output Frequency Converter
Product Description
Factory Direct Sales 50Hz 60Hz to 400Hz AC Three-Phase Frequency Converter
Friendly Reminder:
The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. The online prices are for preliminary budget reference only. We adhere to the principle of integrity and avoid price misrepresentation.
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology for fast response and stable output.
3
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
4
Double-loop control mode of instantaneous and effective value for high precision and quality waveform.
5
Highly integrated module drive circuit with strong overload capacity and low loss.
6
Adaptable to various loads: resistive, inductive, rectifier, and more.
7
Multiple protection functions for overheating, overcurrent, and short circuits.
8
Parameter memory function with 10-group shortcut key operation.
9
Online adjustment of voltage and frequency in real-time.
FC61 Series
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output Capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated Power (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Net Weight (kg) | 26KG | 32KG | 37KG | 48KG |
FC62 Series
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6245 | IPS-FC6260 |
|---|---|---|---|---|
| Output Capacity (KVA) | 20KVA | 30KVA | 45KVA | 60KVA |
| Rated Power (KW) | 16KW | 24KW | 36KW | 48KW |
| Max Current (Low) | 168A | 250A | 375A | 500A |
| Dimensions (cm) | 58*74*52 CM | 70*120*110CM | ||
IPS-FC6102 (Single-phase 2KVA 1.6KW)
IPS-FC6250 (3-phase to Single-phase 50KVA 40KW)
IPS-FC6310 (Single-phase to 3-phase 10KVA 8KW)
IPS-FC6330 (30KVA 24KW)
IPS-FC68100 (100KVA 80KW)
IPS-FC68200 (200KVA 160KW)
Our converters are widely used in Home appliances, Motors, Power tools, Switching power supplies, Power adapters, UPS, Information and communication, Photovoltaic, Lamps, Electronic transformers, Electronic components, and Low-voltage distribution industries.
Q1: Why are there different frequencies like 50Hz and 60Hz globally?
A: Frequency standards evolved arbitrarily. Europe and most of Asia adopted 50Hz (influenced by AEG), while the Americas and parts of Japan use 60Hz (Westinghouse standard). This creates a need for frequency converters when using equipment across different regions.
Q2: What is the benefit of the IGBT high-frequency static inverter technology?
A: It allows the equipment to be smaller and lighter while maintaining low noise levels and high efficiency compared to traditional methods.
Q3: Can these frequency converters handle inductive loads?
A: Yes, they are suitable for various loads including resistive, inductive, rectifier, and other industrial loads due to their robust double-loop control mode.
Q4: What safety protections are built into the system?
A: The systems include automatic jump protection and alarms for abnormal conditions such as overvoltage, overcurrent, overload, overheating, and short circuits.
Q5: Is the output frequency adjustable online?
A: Yes, the power supply voltage and frequency can be adjusted online via software, and changes can be made in real-time.
Q6: What is the typical response time for voltage stabilization?
A: Our converters feature a fast response time of ≤ 2ms, ensuring stable power delivery even under changing load conditions.
