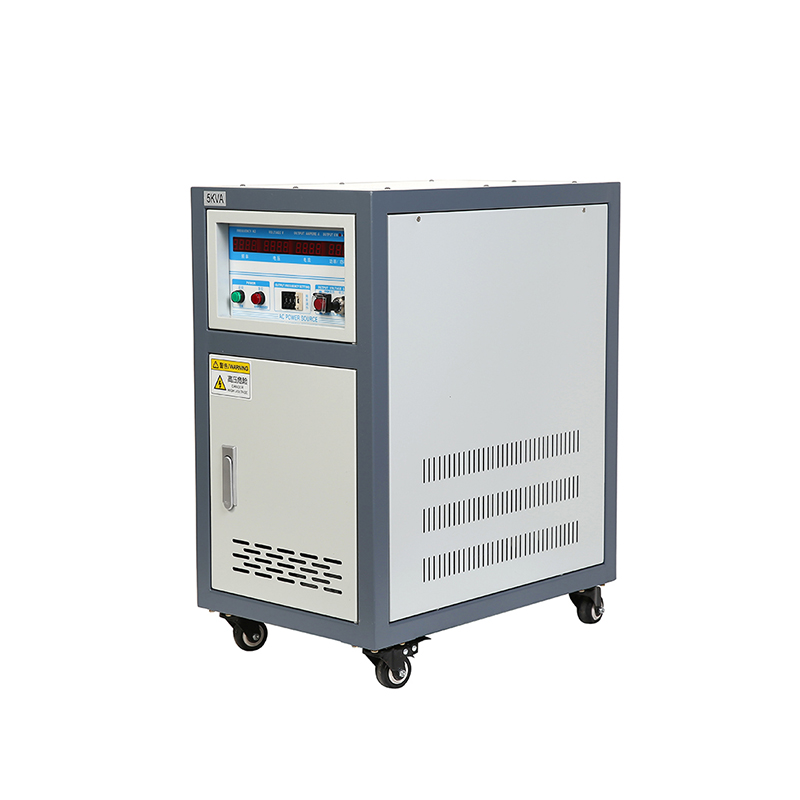

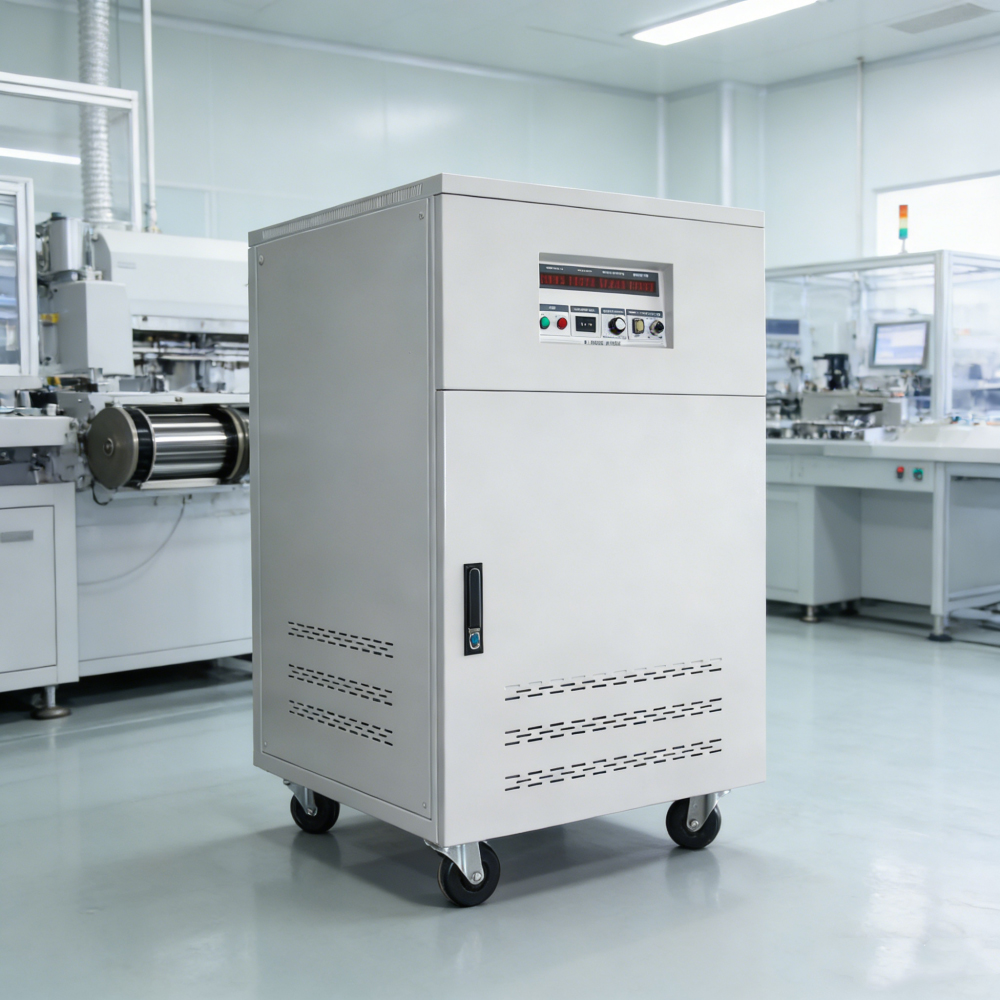

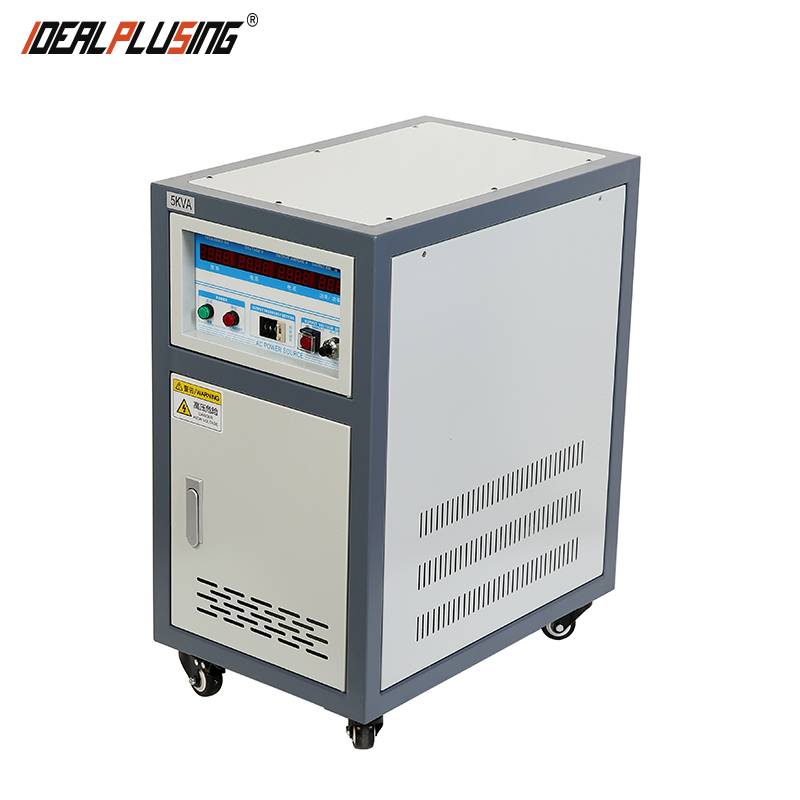

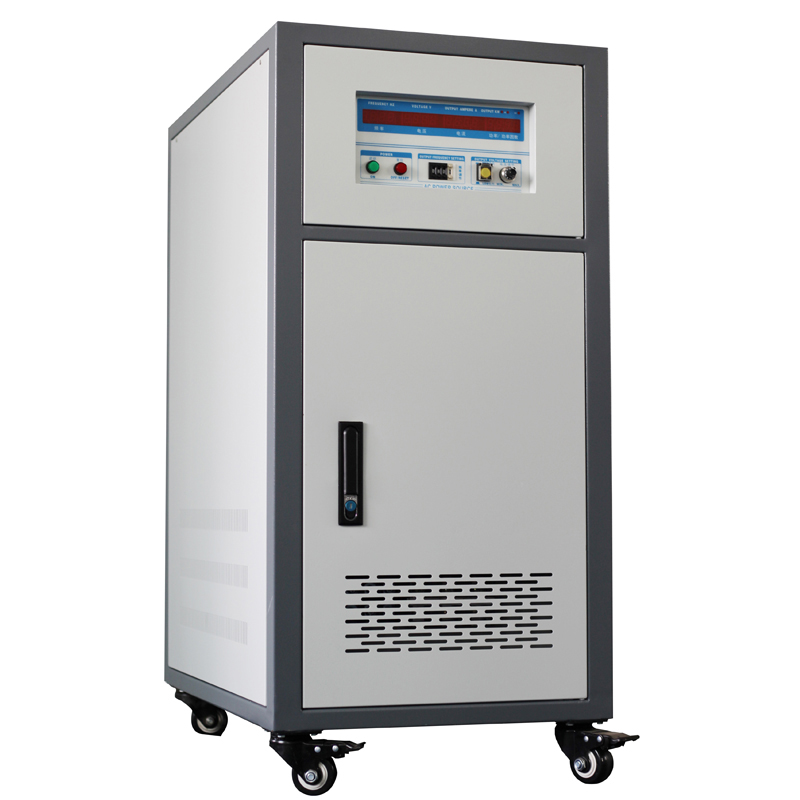

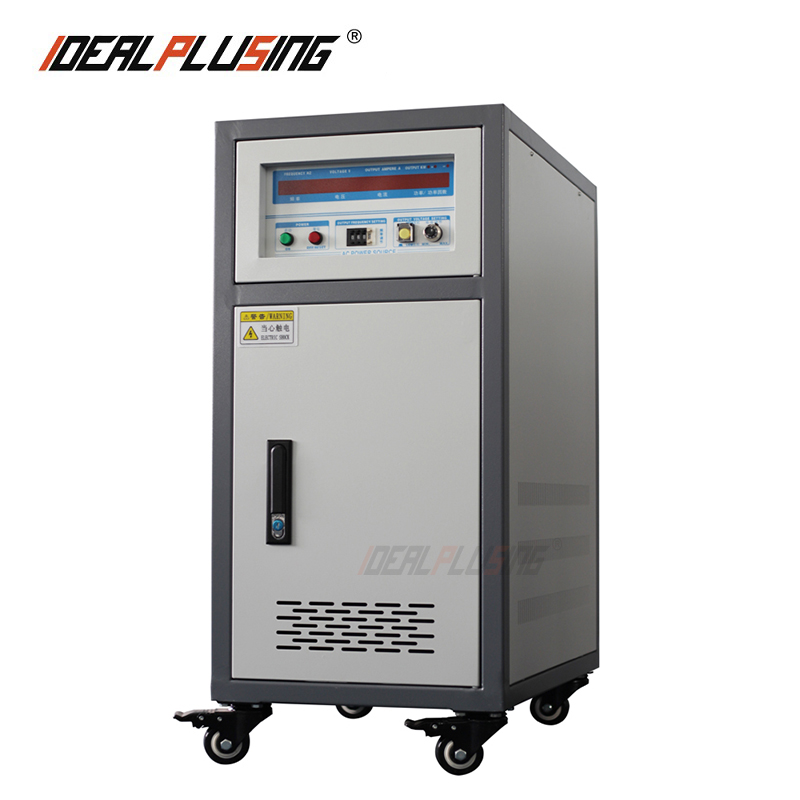

IDEALPLUSING 45kVA Three Phase Variable Frequency Power Supply 40Hz-499.9Hz Adjustable Output 50Hz/60Hz OEM/ODM
Product Description
Good Quality Three-Phase 45KVA Variable Frequency AC Power Supply 50hz to 60hz 40.00-499.9Hz
Friendly Reminder
Dear Customer: The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. These prices are for preliminary budget reference and do not constitute a final commitment. We adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding.
Product Features
- 1 Complete isolation of input and output technology, safe and reliable power supply.
- 2 SPWM sine wave pulse width modulation technology for fast response and stable output.
- 3 IGBT high-frequency static inverter, small size, lightweight, and high efficiency.
- 4 Unique double-loop control mode for high precision and excellent waveform quality.
- 5 Highly integrated module drive circuit with strong overload capacity and low loss.
- 6 Suitable for resistive, inductive, rectifier, and other various loads.
- 7 Multiple protection for overheating, overcurrent, and short circuits.
- 8 Parameter memory function with 10-groups shortcut key operation.
- 9 Voltage and frequency can be adjusted online in real-time.
Applications
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information & Communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power Industry
Technical Specifications
FC61 Series (Single Phase)
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated power (KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low-grade) | 4.2A | 8.4A | 17A | 25A |
| Max Current (High-grade) | 2.1A | 4.2A | 8.4A | 12.5A |
| Dimension (cm) | 43*18*44 | 43*18*44 | 43*18*47 | 43*65*52 |
FC62 Series (Three Phase Input, Single Phase Output)
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6245 | IPS-FC6260 |
|---|---|---|---|---|
| Output capacity (KVA) | 20KVA | 30KVA | 45KVA | 60KVA |
| Rated power (KW) | 16KW | 24KW | 36KW | 48KW |
| Max Current (Low/High) | 168A / 84A | 250A / 125A | 375A / 188A | 500A / 250A |
| Net weight (kg) | 285KG | 385KG | 420KG | 560KG |
Hot Selling Models
IPS-FC6102
Single-phase 2KVA 1.6KW
IPS-FC6250
3-phase In/1-phase Out 50KVA 40KW
IPS-FC6310
Single-phase In/3-phase Out 10KVA 8KW
Product Details
Application Scope
Customization & Services
We specialize in customizing AC/DC/AC power supply to meet your specific requirements. With a wide range of frequency converters, our offerings extend up to 2000KVA. Our dedicated team endeavors to respond to inquiries within one hour. Thank you for considering our specialized power solutions.
Frequently Asked Questions
Q: Why are there both 50Hz and 60Hz power systems?
A: These frequencies were selected arbitrarily when power systems were stand-alone. Generally, 50Hz became the standard in Europe, Africa, and most of Asia, while 60Hz became the norm in the Americas. A frequency converter allows you to switch between these standards to power equipment designed for different regions.
Q: What is a Variable Frequency AC Power Supply used for?
A: It is used to simulate different global power grid conditions (voltage and frequency) to test electrical products, or to power machinery that requires a specific frequency not provided by the local utility.
Q: What are the advantages of IGBT technology in these power supplies?
A: IGBT (Insulated Gate Bipolar Transistor) technology allows for high-frequency switching, which results in higher efficiency, lower noise, smaller equipment size, and a much cleaner sine wave output.
Q: Can the output voltage be adjusted while the unit is running?
A: Yes, our power supplies allow for online adjustment of both voltage and frequency, meaning you can change parameters in real-time without shutting down the system.
Q: Is the input and output fully isolated?
A: Yes, the system utilizes complete isolation technology between the input and output stages to ensure safety and provide a clean, reliable power source free from input line noise.
Q: What kind of protection features are included?
A: The unit includes comprehensive protection against overvoltage, overcurrent, overload, over-temperature, and short circuits, complete with an automatic jump protection and alarm system.
