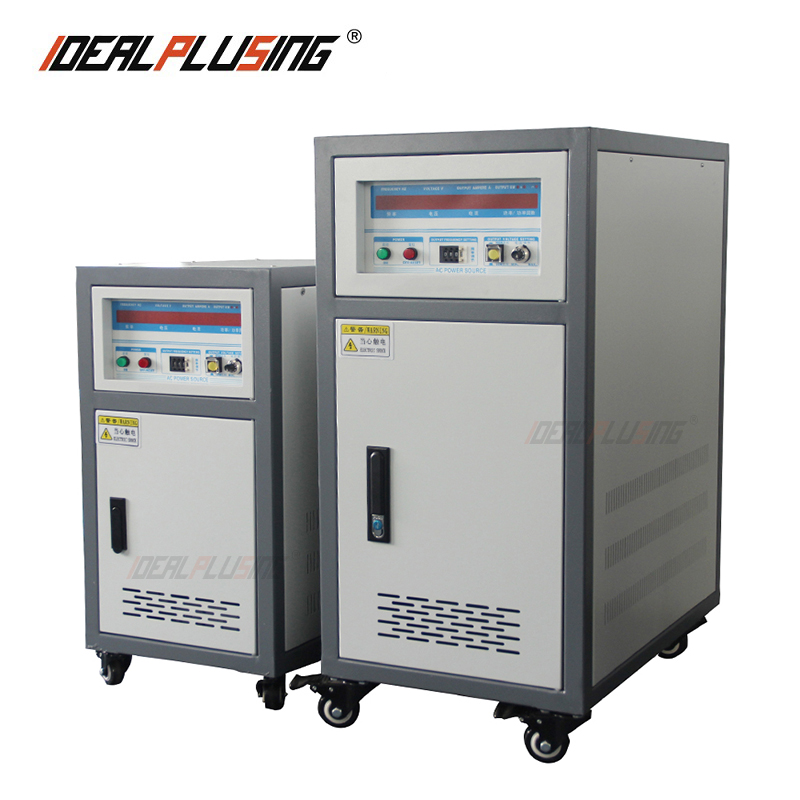

Chinese Manufacturer 50KVA 60KVA 90KVA 400hz Frequency Converter 380V to 520V 3-Phase AC Power Supply for Motor Testing
Product Description
50KVA 60KVA 90KVA 400hz Frequency Converter
380V to 520V 3-Phase AC Power Supply for Motor Testing
⚠️ Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Product Features
- 1Complete isolation of input and output technology, safe and reliable power supply
- 2SPWM sine wave pulse width modulation technology for fast response and stable output
- 3IGBT high-frequency static inverter, lightweight, low noise, and high efficiency
- 4Double-loop control mode for high precision and excellent waveform quality
- 5Strong overload capacity and highly integrated module drive circuit
- 6Suitable for resistive, inductive, rectifier, and other complex loads
- 7Multiple protection functions: overheating, overcurrent, and short circuit
- 8Parameter memory function with 10-groups shortcut key operations
- 9Real-time online adjustment of voltage and frequency
Applications
Home Appliances
Motors
Power Tools
Switching Power Supplies
Power Adapters
UPS Systems
Communication Equipment
Photovoltaic
Lamps
Transformers
Electronic Components
Distribution Systems
Technical Specifications
| FC61 Series Specifications | |||||
|---|---|---|---|---|---|
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 | |
| Output capacity (KVA) | 0.5KVA | 1KVA | 2KVA | 3KVA | |
| Rated power output(KW) | 0.4KW | 0.8KW | 1.6KW | 2.4KW | |
| AC output Max Current | Low-grade | 4.2A | 8.4A | 17A | 25A |
| High-grade | 2.1A | 4.2A | 8.4A | 12.5A | |
| Product Dimension(cm) | 43*18*44CM | 43*18*47CM | 43*65*52CM | ||
| Common Specifications for All Series | ||
|---|---|---|
| Production Method | IGBT / PWM pulse width modulation mode | |
| Output Frequency | 40~499.9HZ (Programmable setting) | |
| Voltage Range | Low: 0-150V | High: 0-300V (Standard) / up to 520V (3-Phase) | |
| Load Stability Rate | ≤±1% | |
| Waveform Distortion | Sine wave, ≤2% | |
| Protection | Overvoltage, overcurrent, overload, over temperature, short-circuit, automatic jump alarm | |
Hot Selling Models
IPS-FC6102
Single-Phase 2KVA 1.6KW
IPS-FC6250
3-Phase Input/Single-Phase Output 50KVA
IPS-FC6310
Single-Phase Input/3-Phase Output 10KVA
IPS-FC6330
30KVA 24KW
IPS-FC68100
100KVA 80KW
IPS-FC68200
200KVA 160KW

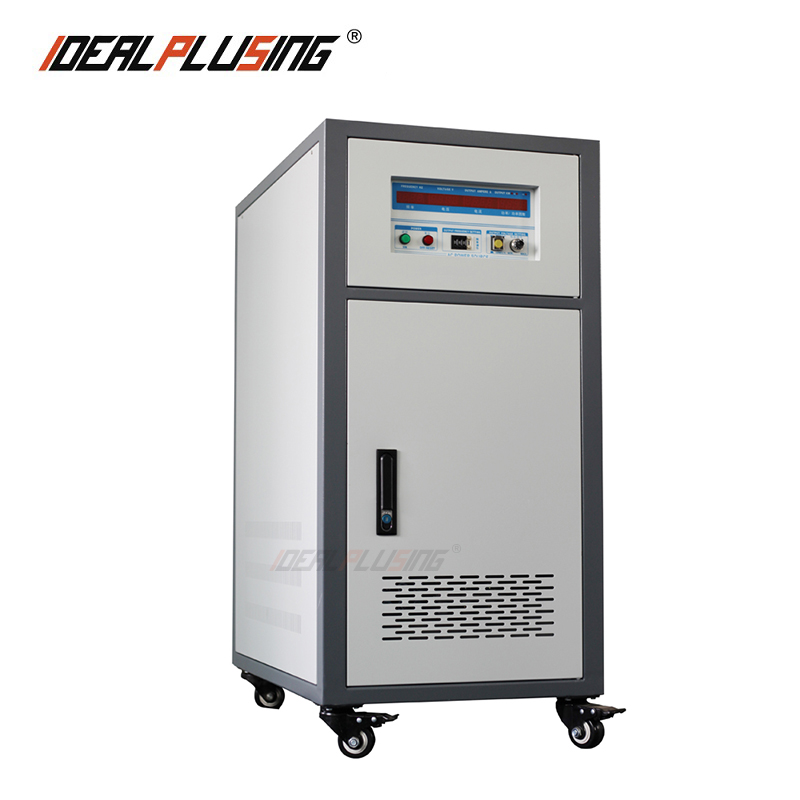

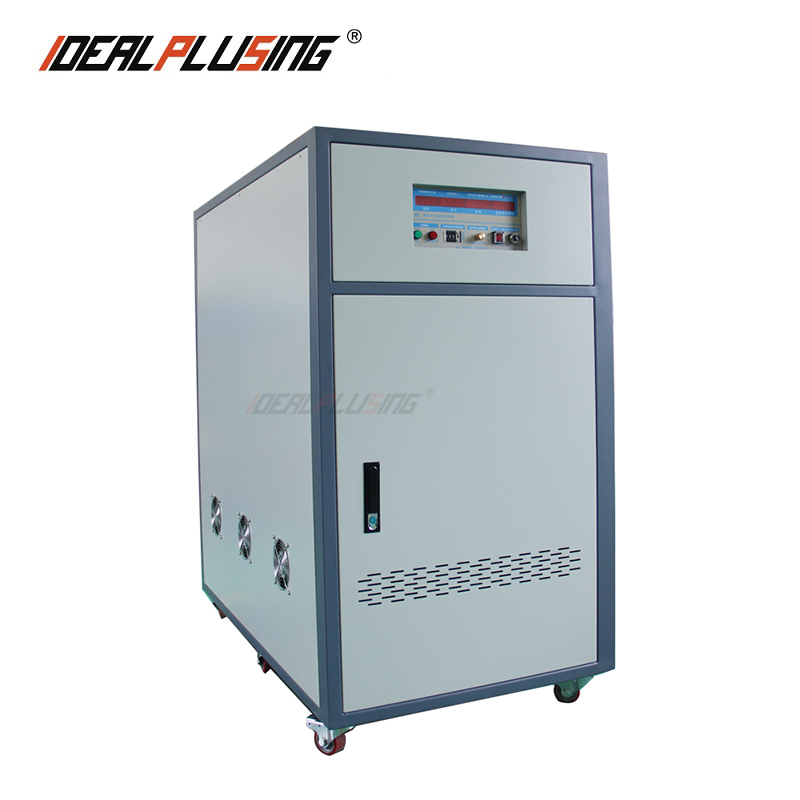

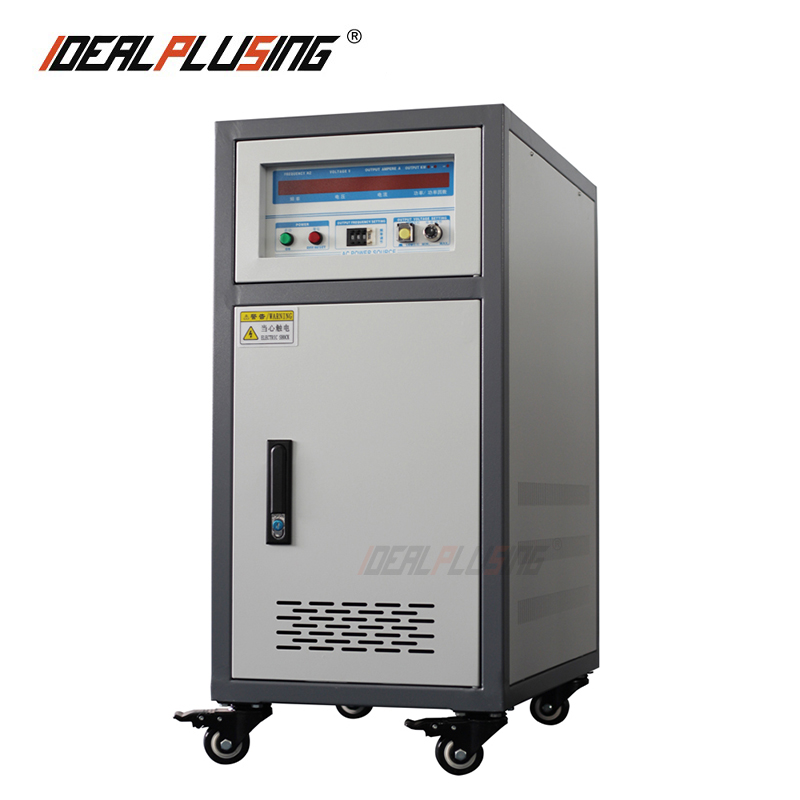

Detailed Images

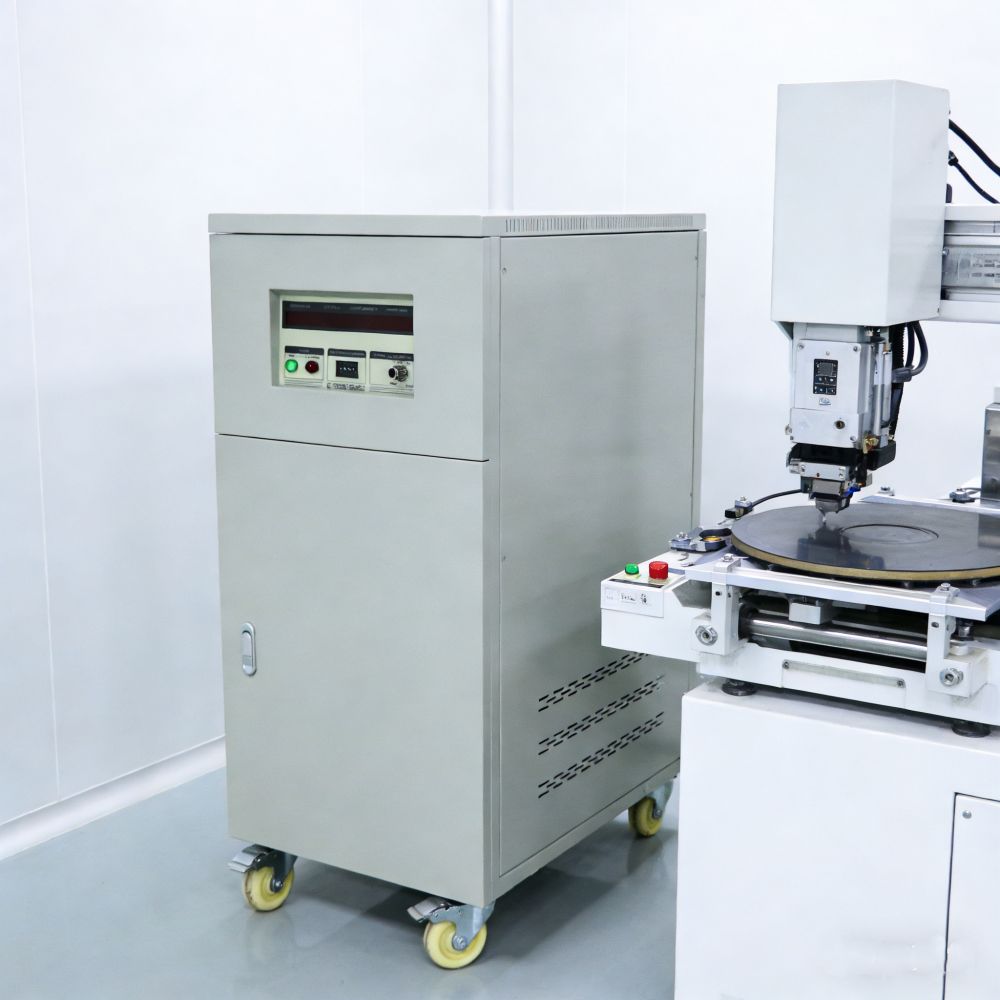

Application Scope & Layout
Customization Capabilities
We specialize in customizing AC/DC/AC power supplies to meet your specific requirements. With customized frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
Frequently Asked Questions
Q: Why are there different frequencies like 50Hz and 60Hz globally?
A: Frequency was historically selected based on independent generator systems. Europe generally adopted 50Hz (AEG influence) while the US settled on 60Hz (Westinghouse). Frequency converters allow equipment designed for one standard to operate on the other.
Q: Can this frequency converter handle both 380V and 520V?
A: Yes, our 3-phase units are designed to adjust output voltage across a wide range, specifically accommodating testing requirements from 380V up to 520V line voltage.
Q: What is the benefit of IGBT technology in these converters?
A: IGBT (Insulated Gate Bipolar Transistor) technology allows for high-frequency switching, resulting in a cleaner sine wave output, smaller unit size, lower noise levels, and significantly higher energy efficiency.
Q: Is it safe for sensitive motor testing?
A: Absolutely. The unit features complete electrical isolation between input and output, protecting your testing equipment from grid surges and ensuring a stable, noise-free power supply.
Q: Can I change the frequency while the unit is operating?
A: Yes, the frequency can be adjusted online in real-time via the software interface or control panel, making it ideal for dynamic motor testing and R&D applications.
Q: What happens if there is a short circuit during a test?
A: The converter is equipped with high-speed electronic protection circuits that detect short circuits, overcurrent, and overheating instantly, triggering an automatic jump protection and alarm to prevent damage.
