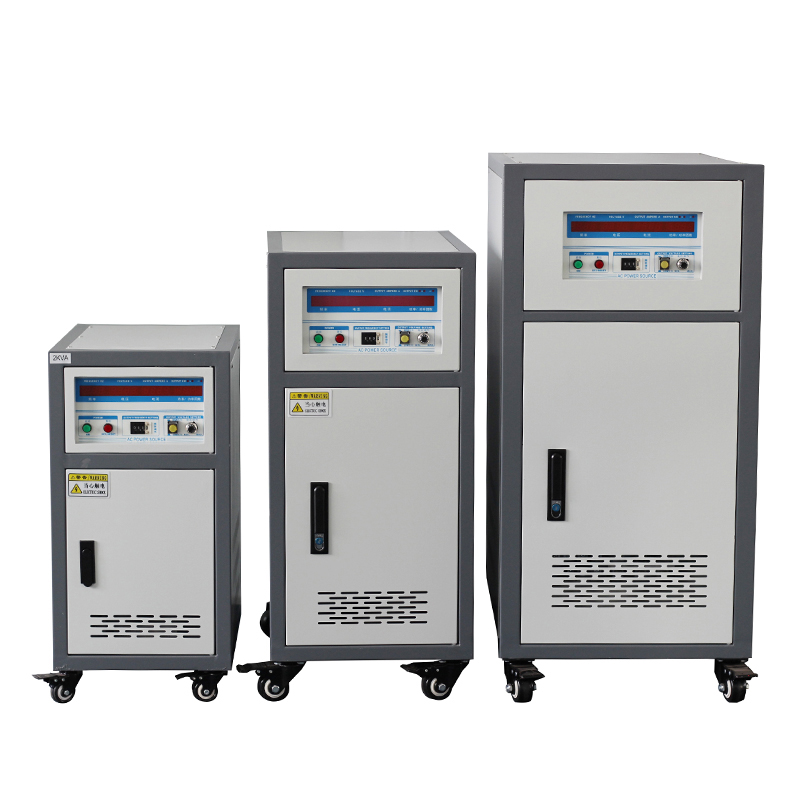

IDEALPLUSING 200KVA 3-phase Input and Output Industrial Variable Frequency Converter 380V to 540V AC Power Supply
Product Description
200KVA 3-phase Industrial Variable Frequency Converter
380V to 540V AC Power Supply Solution
đź’ˇ Friendly Reminder:
The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and avoid price misrepresentation.
🚀 Product Features
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology for fast response and stable output.
3
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
4
Unique double-loop control mode for high precision and excellent waveform quality.
5
Strong overload capacity and highly integrated module drive circuit.
6
Suitable for resistive, inductive, rectifier, and other various loads.
7
Multiple protections: overheating, overcurrent, and short circuit.
8
Parameter memory function with 10-group shortcut key operation.
🔧 Application Scope
Home appliances
Motors
Power tools
Switching power supplies
Photovoltaic
Lamps
Electronic transformers
UPS
Information and communication
đź“Š Specifications
| FC68 Series - Three Phase Input, Three Phase Output | ||||
|---|---|---|---|---|
| Model | Capacity (KVA) | Input Voltage | Output Voltage | Frequency |
| IPS-FC6810 | 10KVA | 380VAC±15% | 0-520V | 40-499.9Hz |
| IPS-FC6830 | 30KVA | 380VAC±15% | 0-520V | 40-499.9Hz |
| IPS-FC6860 | 60KVA | 380VAC±15% | 0-520V | 40-499.9Hz |
| IPS-FC68100 | 100KVA | 380VAC±15% | 0-520V | 40-499.9Hz |
| IPS-FC68200 | 200KVA | 380VAC±15% | 0-520V | 40-499.9Hz |
| Common Performance Specifications | ||
|---|---|---|
| Circuit Mode | IGBT / PWM Pulse Width Modulation | |
| Load Stability Rate | ≤±1% | |
| Frequency Stability | ≤±0.01% | |
| Harmonic Distortion | Sine wave, ≤2% (Resistive Load) | |
| Response Time | ≤2ms | |
| Protection | Overload, over temperature, short circuit, instantaneous power-off protection | |
🔥 Hot Selling Models
IPS-FC6102 (2KVA)
IPS-FC6250 (50KVA)
IPS-FC6310 (10KVA)

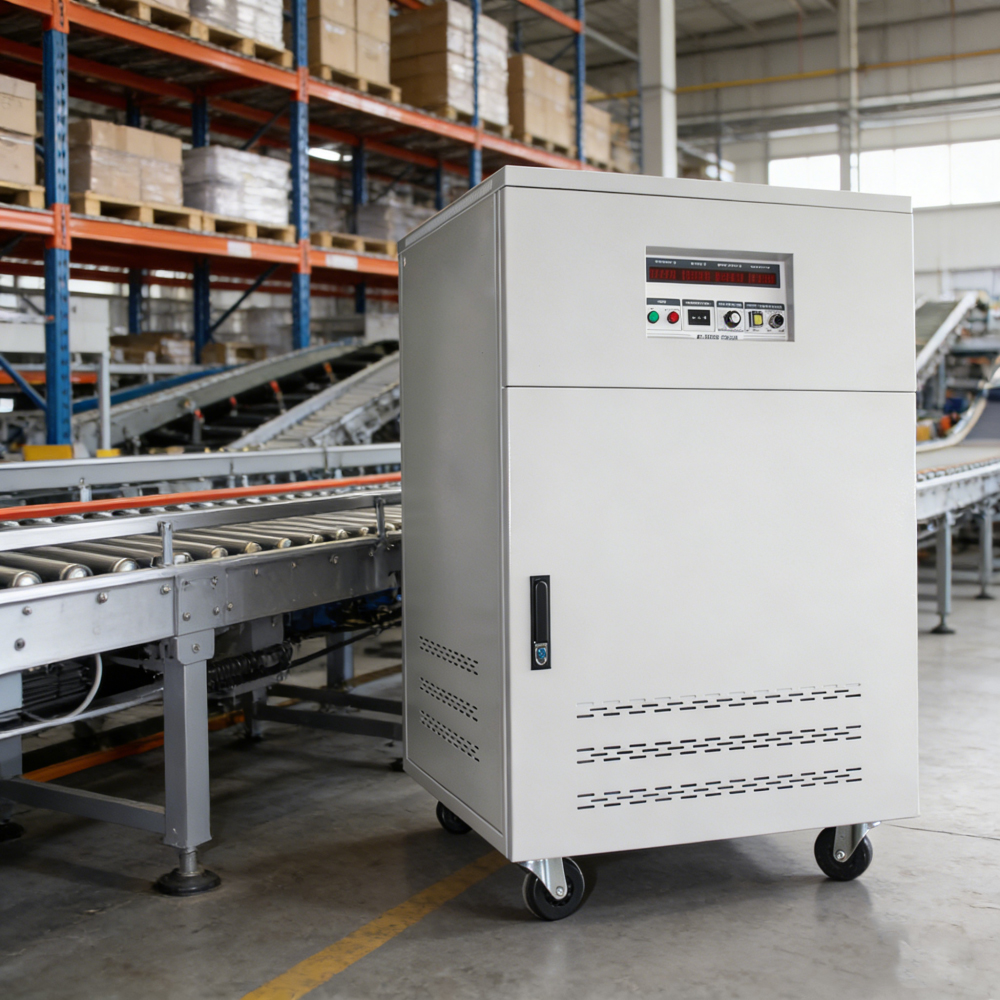

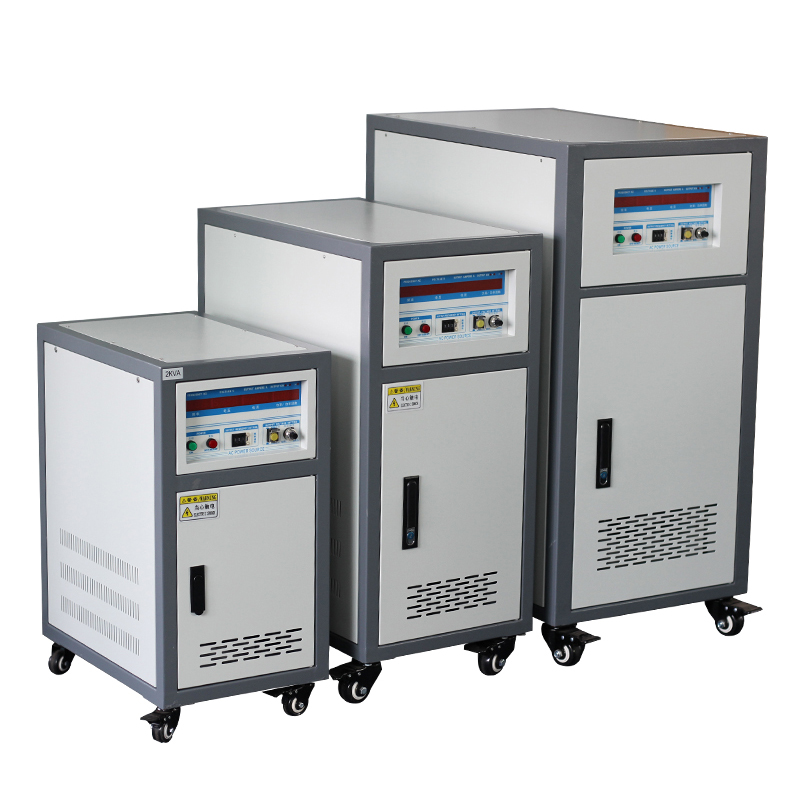

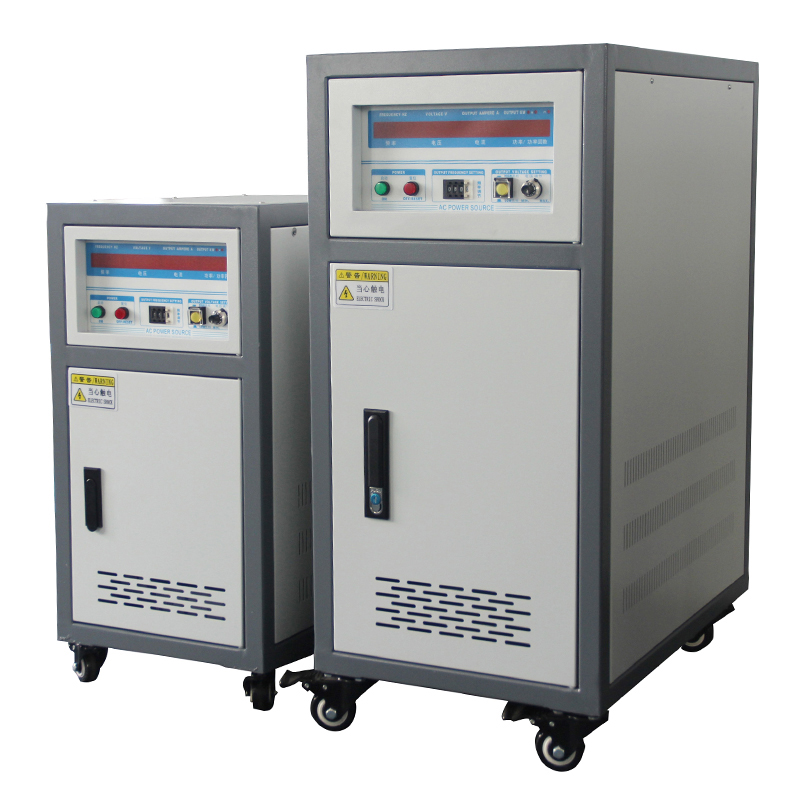

đź“· Product Details
âť“ Frequently Asked Questions
Q: Why are there both 50Hz and 60Hz power systems?
A: These frequencies were selected arbitrarily when systems were stand-alone. Europe settled on 50Hz while the US settled on 60Hz. A frequency converter allows you to change between them to power equipment from different regions.
Q: Is the input and output of the converter isolated?
A: Yes, this industrial frequency converter uses complete isolation technology between the input and output to ensure a safe and reliable power supply for sensitive electronics.
Q: What type of loads can this power supply handle?
A: The equipment is highly versatile and suitable for resistive, inductive, rectifier, and other types of loads commonly found in industrial and laboratory environments.
Q: Does the converter have built-in protection for abnormal conditions?
A: Yes, it features multiple protection functions including overheating, overcurrent, overload, and short-circuit protection with automatic jump and alarm devices.
Q: Can I adjust the voltage and frequency online?
A: Yes, the power supply voltage and frequency can be adjusted online via the software or shortcut keys, and the frequency can change in real-time to suit testing requirements.
Q: What is the maximum capacity available for customization?
A: We specialize in customizing AC/DC/AC power supplies to meet specific requirements, with offerings ranging up to 2000KVA.
