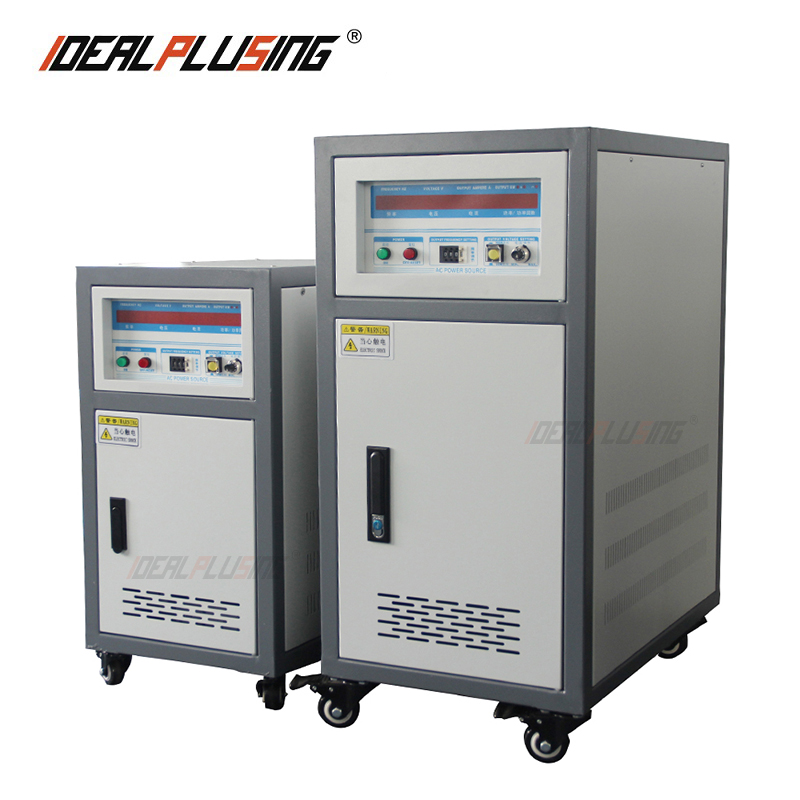

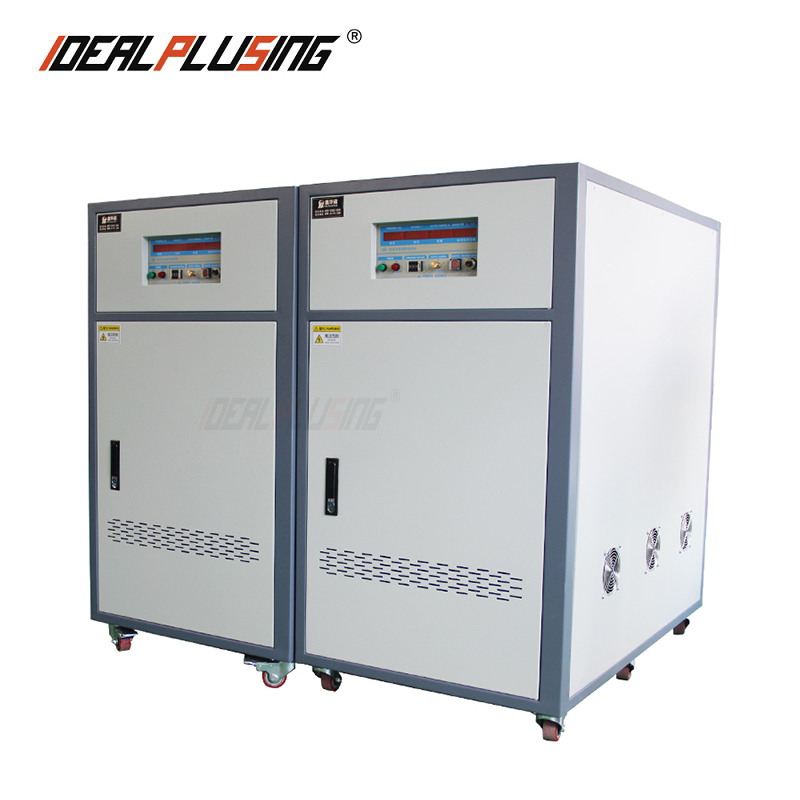

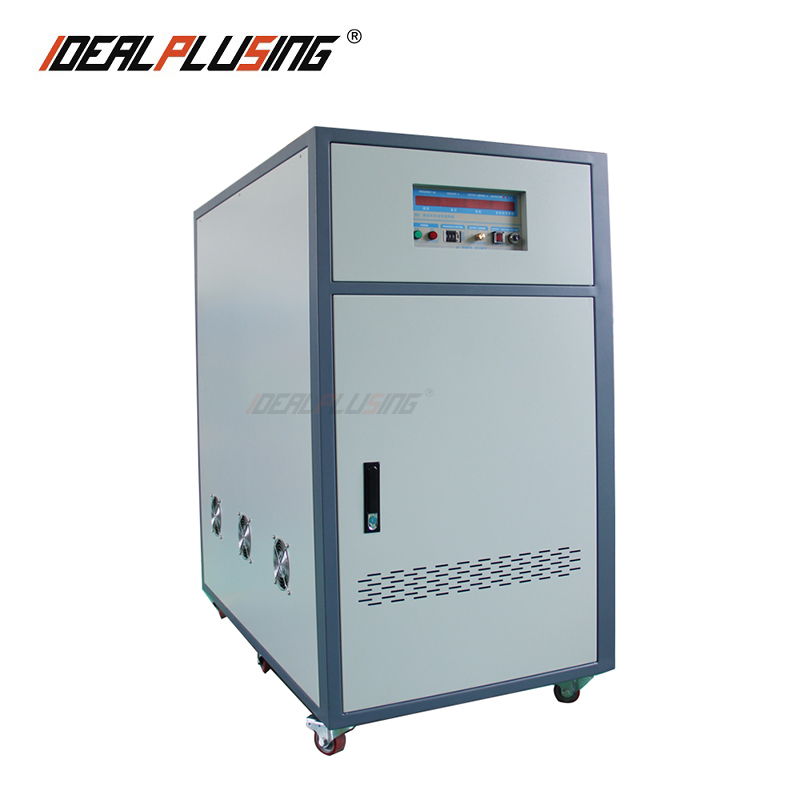

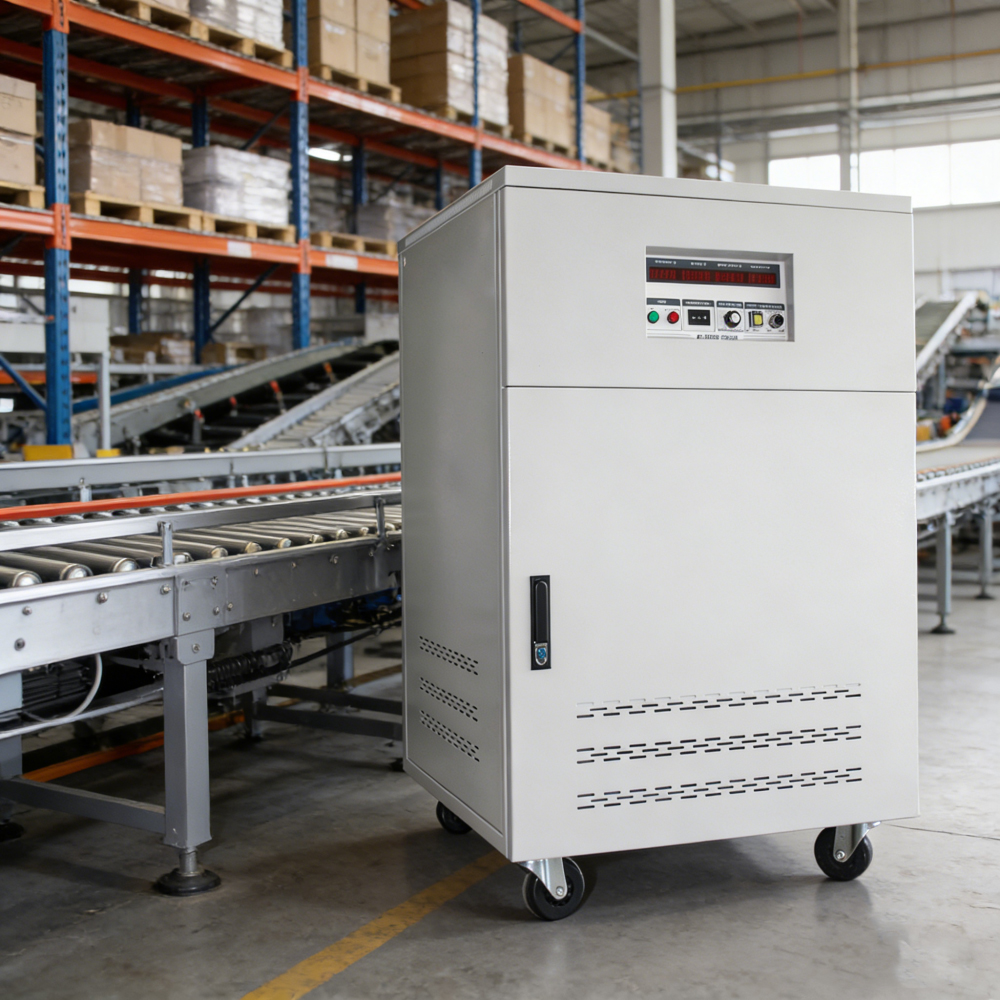

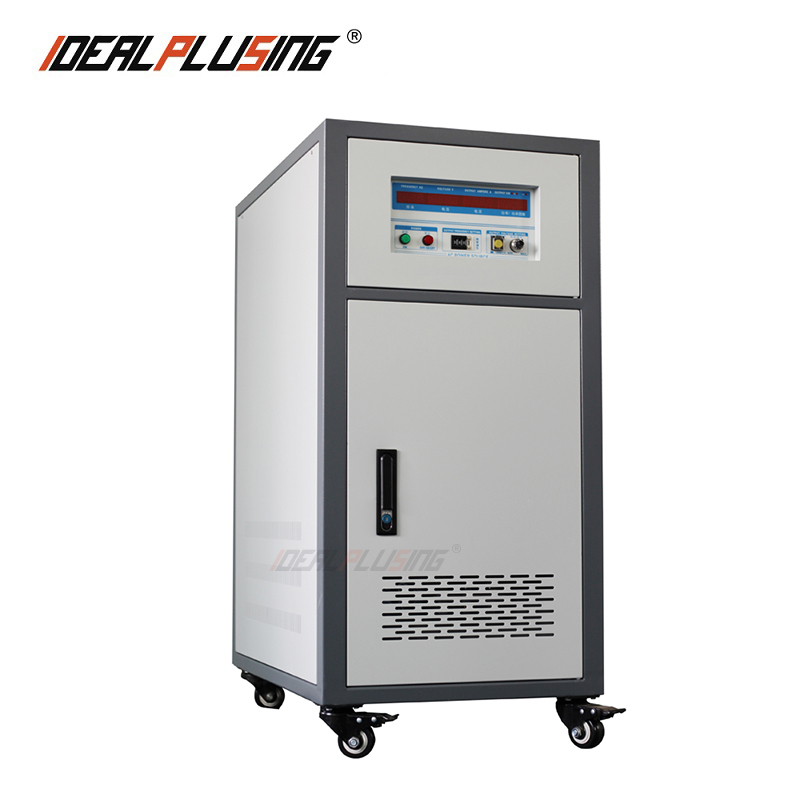

Factory Direct Sale 50Hz 60Hz Variable Frequency Power Supply 400Hz Three-phase 380V AC Power Supply
Product Description
Factory Direct Sale: Variable Frequency Power Supply
50Hz / 60Hz / 400Hz | Three-phase 380V AC Power Supply Solutions
Friendly Reminder: The prices shown are for reference only. Final transaction prices will be quoted based on your actual needs, purchase quantity, and market conditions.
Product Features
Complete isolation of input and output technology, safe and reliable power supply.
SPWM sine wave pulse width modulation technology for fast response and stable output.
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
Double-loop control mode (instantaneous & effective value) for high precision and waveform quality.
Strong overload capacity and highly integrated module drive circuit.
Suitable for resistive, inductive, rectifier, and other complex loads.
Multiple protection: overheating, overcurrent, short circuit, and abnormal conditions.
Parameter memory function with 10-groups of shortcut key operations.
Online adjustable voltage and frequency with real-time frequency changes.
Applications
| Home appliances | Motors & Power tools | Photovoltaic systems |
| Switching power supplies | Power adapters & UPS | Lamps & Lighting |
| Electronic transformers | Information & Communication | Low-voltage distribution |
Technical Specifications
FC61 Series (Single Phase)
| Model | IPS-FC61005 | IPS-FC6101 | IPS-FC6102 | IPS-FC6103 |
|---|---|---|---|---|
| Output Capacity | 0.5KVA | 1KVA | 2KVA | 3KVA |
| Rated Power | 0.4KW | 0.8KW | 1.6KW | 2.4KW |
| Max Current (Low) | 4.2A | 8.4A | 17A | 25A |
FC62 Series (Three Phase Input)
| Model | IPS-FC6220 | IPS-FC6230 | IPS-FC6260 | IPS-FC62100 |
|---|---|---|---|---|
| Output Capacity | 20KVA | 30KVA | 60KVA | 100KVA |
| Rated Power | 16KW | 24KW | 48KW | 80KW |
| AC Input | Three-phase 220V/50Hz or 60Hz | |||
Hot Selling Models
IPS-FC6102
Single-phase 2KVA 1.6KW
IPS-FC6250
3-phase Input 50KVA 40KW
IPS-FC6310
Single to 3-phase 10KVA 8KW
IPS-FC6330
30KVA 24KW Output
IPS-FC68100
100KVA 80KW
Product Details
Custom Power Solutions
We specialize in customizing AC/DC/AC power supplies to meet your specific requirements. With customized frequency converters, our offerings range up to 2000KVA. Please submit any inquiries to explore our capabilities further.
Frequently Asked Questions
What is the difference between 50Hz and 60Hz power supplies?
The frequency varies by region (50Hz in Europe/Asia/Africa, 60Hz in the Americas). Our static frequency converters allow you to seamlessly change between these frequencies to power international equipment.
Is the output voltage and frequency adjustable?
Yes, both the power supply voltage and frequency can be adjusted online through the software interface. Frequency can be set between 40.0Hz and 499.9Hz.
What kind of protection does the unit offer?
The system includes comprehensive protection against overvoltage, overcurrent, overload, over-temperature, and short circuits, complete with automatic jump protection and alarms.
Can it handle inductive loads like motors?
Absolutely. Our power supplies use IGBT modules and SPWM technology, making them suitable for resistive, inductive, and rectifier loads.
What is the waveform quality of the output?
The unit produces a high-quality pure sine wave with a harmonic distortion (THD) of ≤2% for linear loads, ensuring safe operation for sensitive electronic components.
Does the system save settings after power off?
Yes, it features a parameter memory function with up to 10 groups of shortcut settings for quick and efficient operation.
