IDEALPLUSING Three Phase 10kVA/20kVA/30kVA Static Frequency Converter 50Hz/60Hz to 400Hz Variable AC Power Supply OEM/ODM
Product Description
Three-Phase 10KVA 20KVA 30KVA AC Frequency Converter
50Hz to 60Hz 400Hz Variable AC Voltage Power Supply
💡
Friendly Reminder: The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions.
🚀 Product Features
🛡️
Complete isolation of input and output technology, safe and reliable power supply.
⚡
SPWM sine wave pulse width modulation technology for fast response and stable output.
💎
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
🔄
Unique double-loop control mode for high precision and excellent waveform quality.
📊
High power IGBT module with strong overload capacity and low loss.
🔌
Suitable for resistive, inductive, rectifier, and other complex loads.
⚠️
Multiple protection: overheating, overcurrent, and short circuit protection.
💾
Parameter memory function with 10-group shortcut key operation.
⚙️
Online adjustable voltage and frequency in real-time.
🌐 Application Scope
- ✔ Home appliances
- ✔ Motors
- ✔ Power tools
- ✔ Switching power supplies
- ✔ Power adapters
- ✔ UPS Systems
- ✔ Photovoltaic
- ✔ Lamps & Lighting
- ✔ Electronic transformers
- ✔ Information & Communication
📋 Technical Specifications
FC61 Series - Single Phase
| Model | Capacity (KVA) | Power (KW) | Current (Low/High) | Dimensions (CM) | Weight |
|---|---|---|---|---|---|
| IPS-FC6102 | 2KVA | 1.6KW | 17A / 8.4A | 43*18*47 | 37KG |
| IPS-FC6105 | 5KVA | 4KW | 42A / 21A | 43*65*52 | 63KG |
| IPS-FC6110 | 10KVA | 8KW | 84A / 42A | 55*74*52 | 145KG |
| IPS-FC6115 | 15KVA | 12KW | 125A / 63A | 55*74*52 | 175KG |
FC62 Series - Three Phase In, Single Phase Out
| Model | Capacity (KVA) | Power (KW) | Current (Low/High) | Dimensions (CM) | Weight |
|---|---|---|---|---|---|
| IPS-FC6220 | 20KVA | 16KW | 168A / 84A | 58*74*52 | 285KG |
| IPS-FC6230 | 30KVA | 24KW | 250A / 12A | 58*74*52 | 385KG |
| IPS-FC6260 | 60KVA | 48KW | 500A / 250A | 70*120*110 | 560KG |
| IPS-FC62100 | 100KVA | 80KW | 834A / 417A | 80*120*150 | 960KG |
🔥 Hot Selling Models
IPS-FC6102 (2KVA)
IPS-FC6250 (50KVA)
IPS-FC6310 (10KVA)
IPS-FC6330 (30KVA)
IPS-FC68100 (100KVA)
IPS-FC68200 (200KVA)

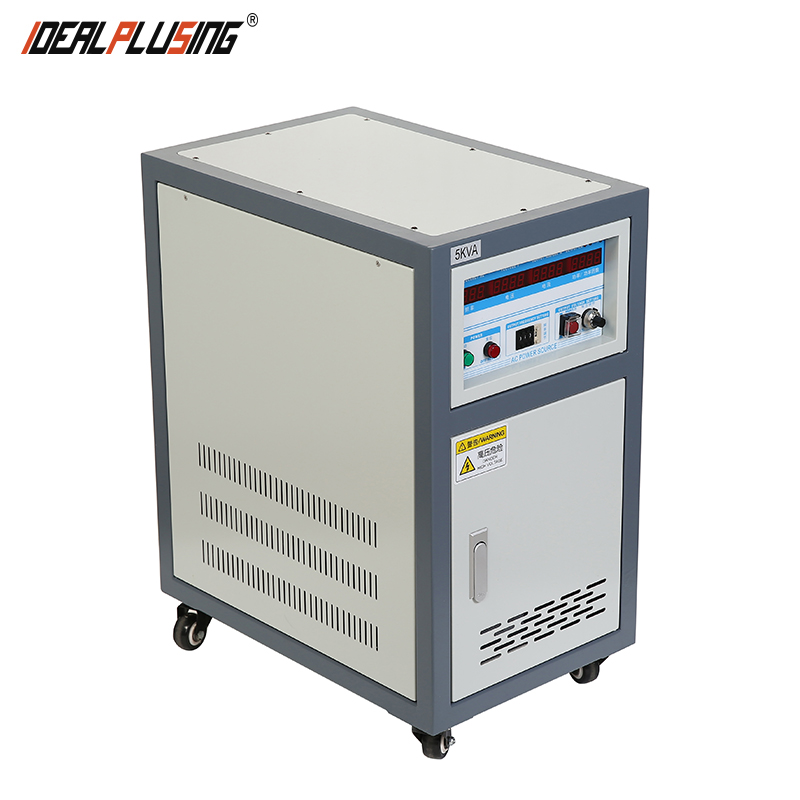

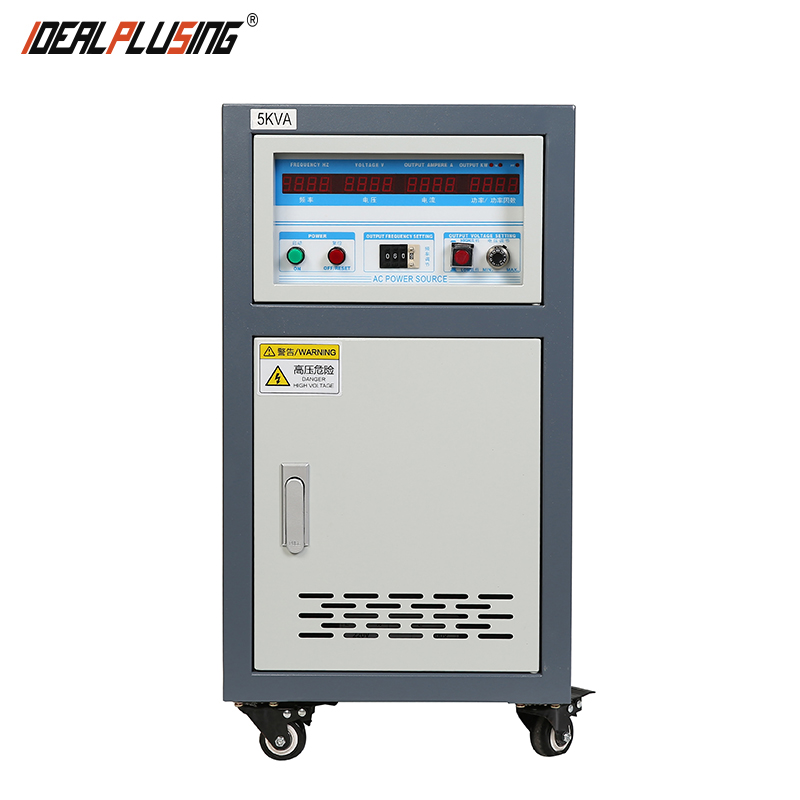

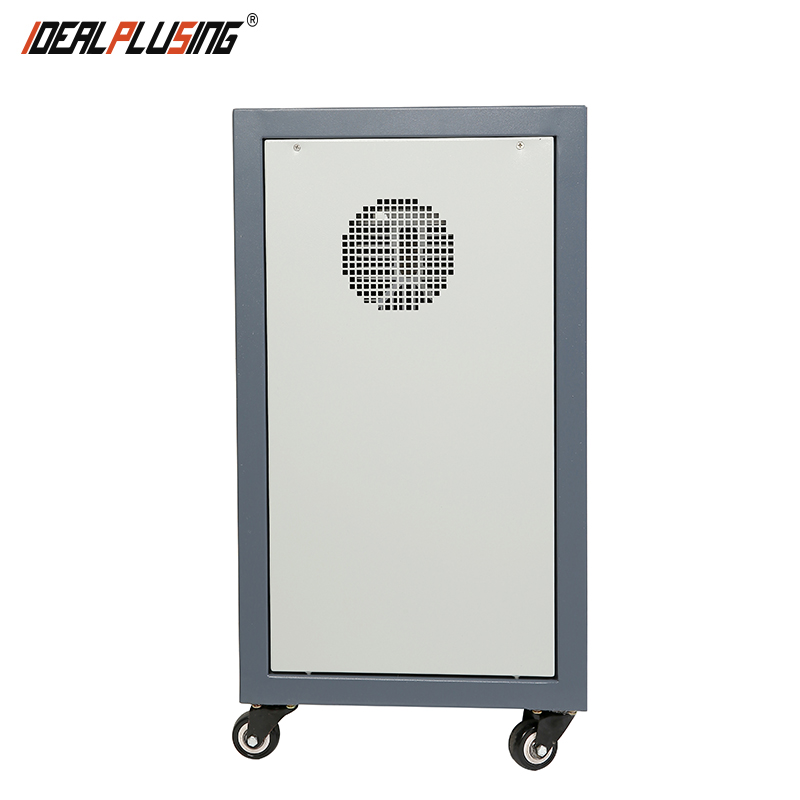

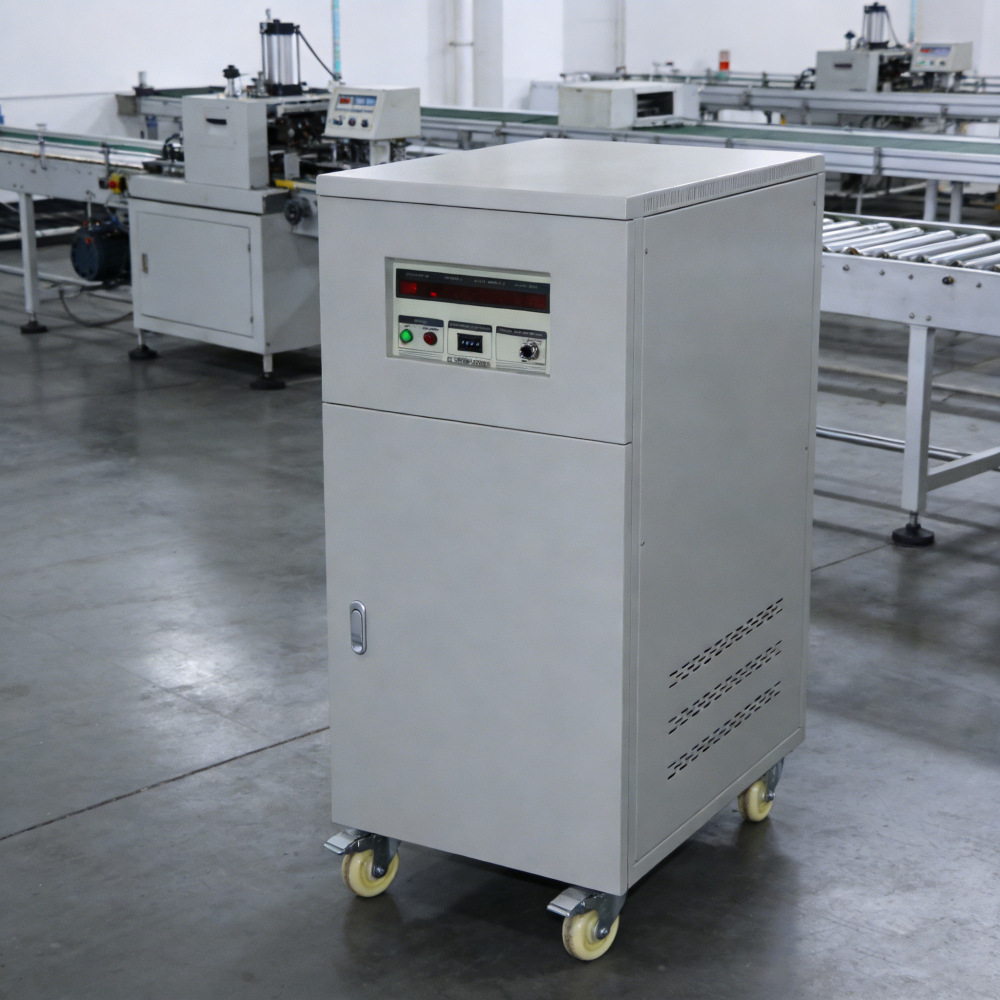

🔍 Product Detail Images
We specialize in customizing AC/DC/AC power supply to meet your specific requirements. With customized any kind frequency converters, our offerings range up to 2000KVA. Our dedicated team endeavors to respond to inquiries within one hour.
❓ Frequently Asked Questions
Q1: Why are both 50Hz and 60Hz frequencies used globally?
A: Historically, different standards were adopted by regional influencers. Europe and most of Asia settled on 50Hz, while the Americas and parts of Japan adopted 60Hz. Our frequency converter allows you to seamlessly bridge these standards.
Q2: What are the primary advantages of SPWM technology in this power supply?
A: SPWM (Sine Wave Pulse Width Modulation) provides a fast response speed, exceptional output stability, and a high-quality waveform suitable for sensitive electronic equipment.
Q3: Can this converter handle inductive or non-linear loads?
A: Yes. Thanks to the IGBT high-frequency static inverter and dual-loop control mode, it is highly adaptable to resistive, inductive, rectifier, and various other industrial loads.
Q4: Does the system include built-in safety protections?
A: Absolutely. The unit features complete input/output isolation and comprehensive protection against overheating, overvoltage, overcurrent, and short circuits, including an automatic alarm device.
Q5: Is it possible to adjust the voltage and frequency while the unit is online?
A: Yes, both power supply voltage and frequency can be adjusted online via the software settings, and the frequency changes in real-time to suit your testing or operational needs.
Q6: What is the benefit of the memory function?
A: The unit features a 10-group parameter memory function, allowing users to save specific settings and access them quickly via shortcut keys for improved workflow efficiency.
