220v Ac to 100kv Dc High Voltage Ac Dc Power Supply 100kv 10ma 1000W Power Supply for Super Capacitor Charging
Product Description
⚡ I. INTRODUCTION & APPLICATION
HV series are high voltage DC power supplies, available from 10kV to 200kV output. Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.
The high-voltage output terminal features comprehensive protection including over-current, short-circuit, and arc protection.
Primary Applications:
- Electrostatic Applications: Dust removal, spinning, electret, separation, spraying, and flocking.
- Testing & Laboratory: High voltage insulation tests, material sorting, metal vaporization, and deburring.
- Industrial Processes: Meltblown cloth electrostatic electret equipment, capacitor charging, and discharge.
- Cable Testing: Aging tests, leakage tests, and optical fiber withstand voltage tests.
⚙️ II. PRODUCT FEATURES
- Output voltage full range adjustable
- Positive output: +10kV to +200kV
- Negative output: -10kV to -200kV
- 4 digits LED display for voltage and current
- Low EMI, strong anti-interference ability
- OVP, OCP, ARC, and short circuit protections
🔌 III. OPTIONAL INTERFACE
- Remote ON/OFF control
- 0-10V analog control for voltage and current
- RS485 (Modbus-RTU) commands
- RS232 (Modbus-RTU) commands
📊 Technical Specifications
| IV. INPUT VOLTAGE | |
|---|---|
| Rate Voltage | Single phase 220VAC |
| Range Voltage | 220VAC ± 10% |
| Frequency | 50/60HZ |
| V. OUTPUT PARAMETERS (Example Model) | |
|---|---|
| Model | IPS-ATDJ100KV-10mA |
| Rated Voltage | 0-100KV (Full range adjustable) |
| Rated Current | 0-10mA (Full range adjustable) (except 1mA models) |
| Line Regulation | CV ≤ 0.1%FS |
| Load Regulation | CV ≤ 0.1%FS |
| Ripple & Noise | ≤ 0.5% FS |
| HV Stability | ≤ 0.1% per hour (after 1-hour warm-up) |
| Temperature Co-efficiency | 100ppm/°C |
| VI. DISPLAY & RESOLUTION | ||
|---|---|---|
| Display Resolution | Voltage | 0.01kV / 0.1kV |
| Current | 0.001mA / 0.01mA | |
| Display Accuracy | Voltage | ≤ 0.1%FS + 2LSB |
| Current | ≤ 0.1%FS + 2LSB | |
| VII. PROTECTION MECHANISMS | |
|---|---|
| O.V.P. | Limits at 105% rated output; auto shut down. |
| O.C.P. | Limits at 105% rated output; auto shut down. |
| O.T.P. | Heat sink limit 65°C ± 5°C; auto shut down. |
| Short Circuit | Instant output shut down upon activation. |
📦 VIII. GENERAL & CABLE OPTIONS

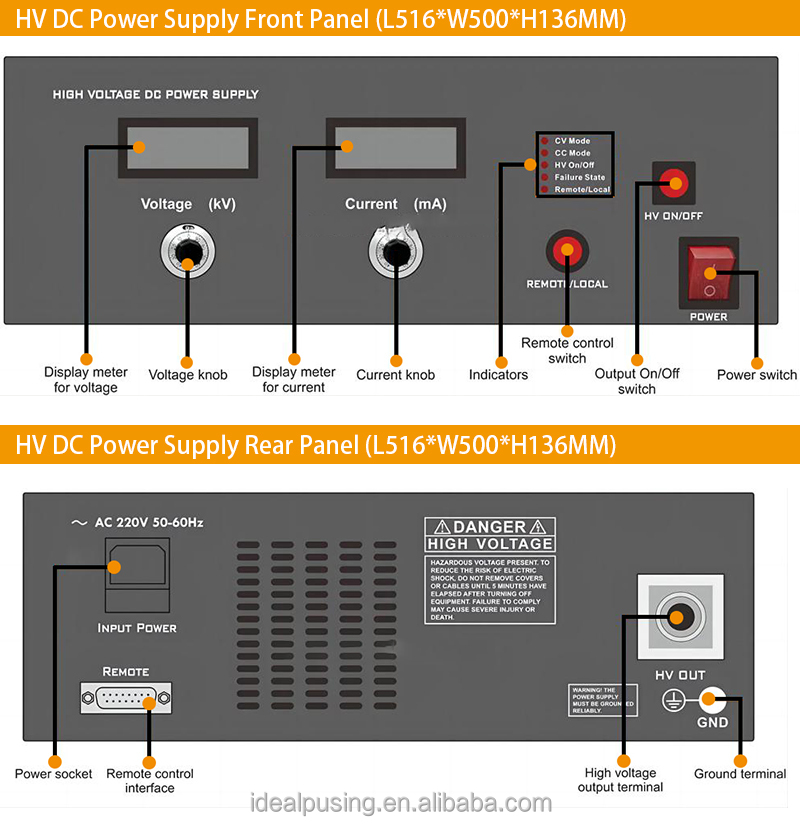

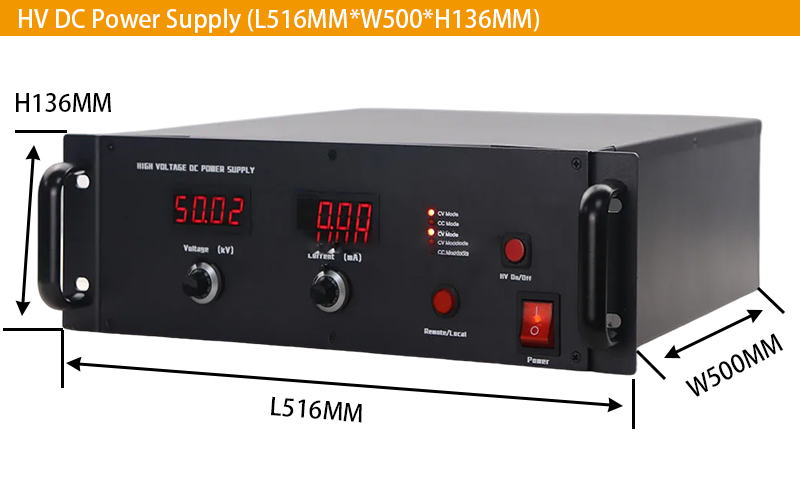

| Dimension | L516 * W500 * H136 (MM) |
| Net/Gross Weight | 22KG / 27.5KG (Wooden carton box package) |
| Cooling Method | Cooling fan |
| HV Output Cable | 1. Self-contained high voltage cable without shielding (1.5m standard). 2. High-voltage cable with shielding (1.5m standard). |

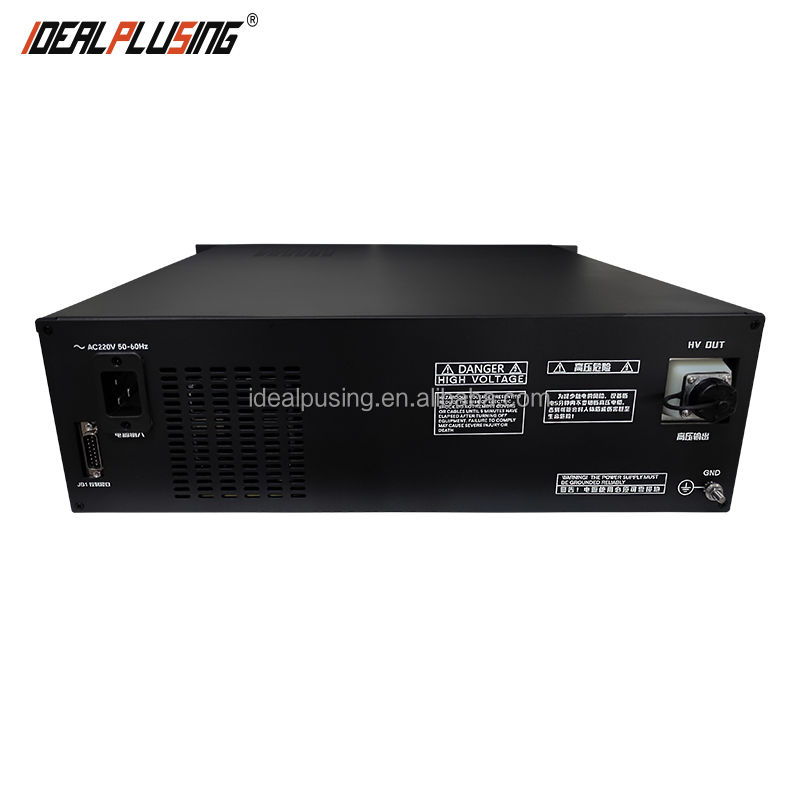

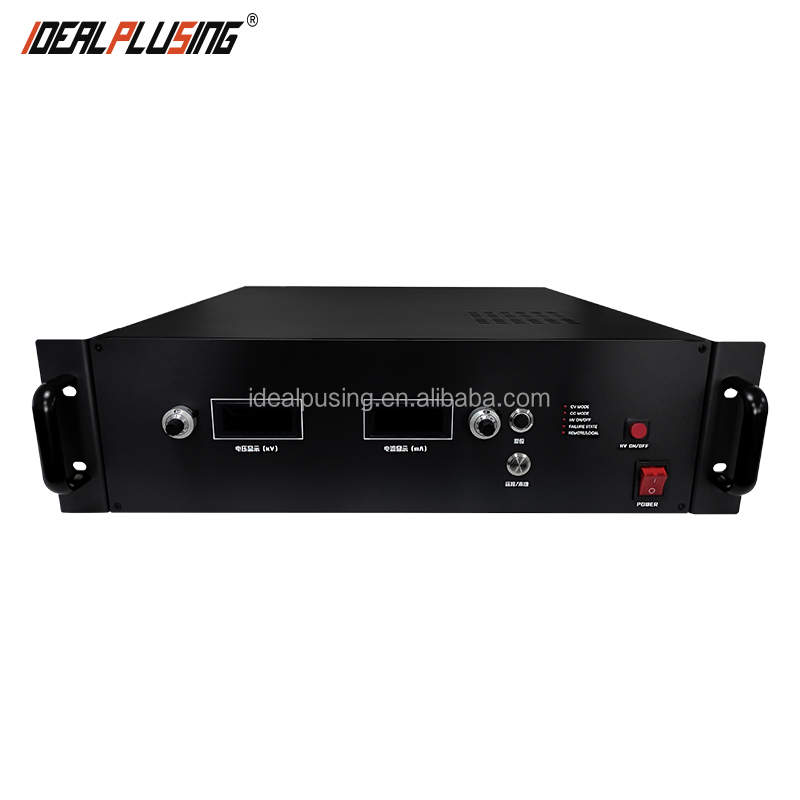

🖼️ X. REFERENCE PICTURES
MODEL LIST
FACTORY DISPLAY
❓ FAQ
Q1: What is the output voltage range of the HV series?
A: The HV series provides a wide range of DC output, from 10kV up to 200kV, available in both positive and negative polarities.
Q2: Does the power supply support remote operation?
A: Yes, control can be switched between Local (front panel) and Remote control. It supports 0-10V analog signals as well as RS485/RS232 Modbus-RTU communication.
Q3: What safety protections are built into the system?
A: The unit includes Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection, and Arc Protection.
Q4: What are the common industrial uses for this high voltage supply?
A: It is widely used for electrostatic spinning, dust removal, electret for meltblown cloth, capacitor charging, and high-voltage insulation testing.
Q5: Can the high-voltage cable length be customized?
A: The standard cable length is 1.5 meters, but other lengths are available as options to meet specific installation requirements.
Q6: How is the output monitored?
A: The front panel features a 4-digit LED display for both voltage and current, offering high resolution (up to 0.01kV and 0.001mA depending on the model).
