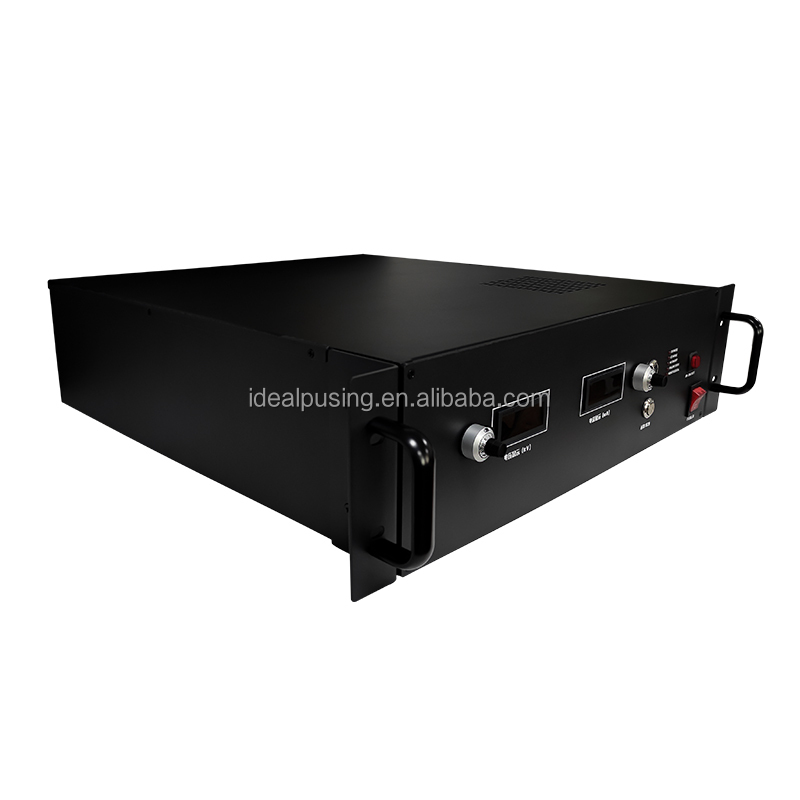

220v Ac to 120kv Dc High Voltage Power Supply 120kv 10mA 1200W Dc Regulated Power Supply for Super Capacitor Charging
Product Description
📌 I. INTRODUCTION & APPLICATION
1
HV series are high voltage DC power supplies, available from 10kV to 200kV output.2
Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.3
The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection.4
The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking.5
The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test.6
Meltblown cloth electrostatic electret equipment7
Electrostatic Spinning8
Electrostatic Dust Removal9
Capacitor Charge10
Discharge11
Cable Aging Test12
Cable Leakage Test13
Optical Fiber Withstand Voltage Test14
Etc
⭐ II. PRODUCT FEATURES
1
Output voltage full range adjustable2
High voltage Positive output +10kV to +200kV3
High voltage Negative output -10kV to -200kV4
4 digits LED display for voltage and current5
Low EMI, strong anti-interference ability6
OVP, OCP, ARC, and short circuit protections
🔌 III. OPTIONAL INTERFACE
1
Remote ON/OFF control2
0-10V analog control for voltage and current output3
RS485, support Modbus-RTU commands4
RS232, support Modbus-RTU commands
⚡ IV. INPUT VOLTAGE
| Rate Voltage | Single phase 220VAC |
| Range Voltage | 220VAC±10% |
| Frequency | 50/60HZ |
📊 V. OUTPUT SPECIFICATIONS
| Model | IPS-ATDJ120KV-10mA |
| Rated Voltage | 0-120KV(Full range adjustable) |
| Rated Current | 0-10mA(Full range adjustable) (except 1mA models) |
| Line Regulation | CV≤0.1%FS |
| Load Regulation | CV≤0.1%FS |
| Ripple & Noise | ≤0.5% FS |
| High Voltage stability | ≤0.1% per hour after warm-up for one hour |
| Temperature co-efficiency | 100ppm/°C |
🖥️ VI. DISPLAY
| Meter | 4 digits LED display for voltage and current |
| Voltage Resolution | 0.01kV / 0.1kV |
| Current Resolution | 0.001mA / 0.01mA |
| Voltage Accuracy | ≤0.1%FS+2LSB |
| Current Accuracy | ≤0.1%FS+2LSB |
🛡️ VII. PROTECTION
| Over Voltage (O.V.P.) | Built-in OVP protection (105% limit). Output shuts down when activated. |
| Over Current (O.C.P.) | Built-in OCP protection (105% limit). Output shuts down when activated. |
| Over Temp (O.T.P.) | Built-in OTP limit of 65°C±5°C. Output shuts down when activated. |
| Short Circuit | The output will be shut down when short circuit protection is activated. |
⚙️ VIII. GENERAL

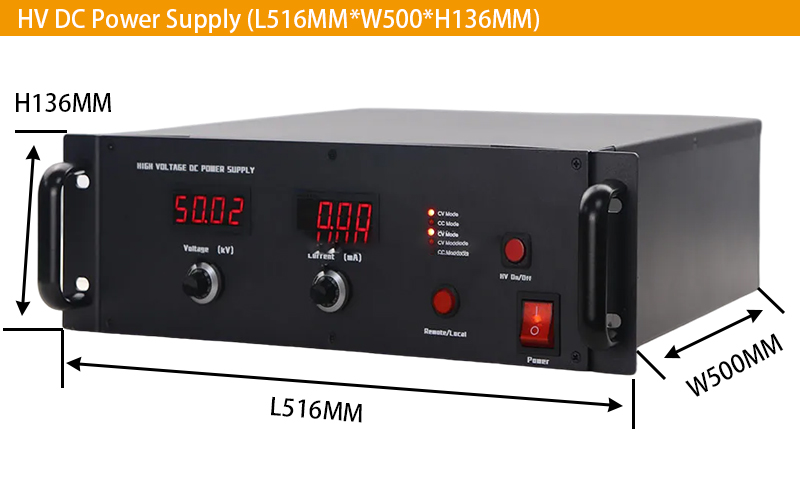

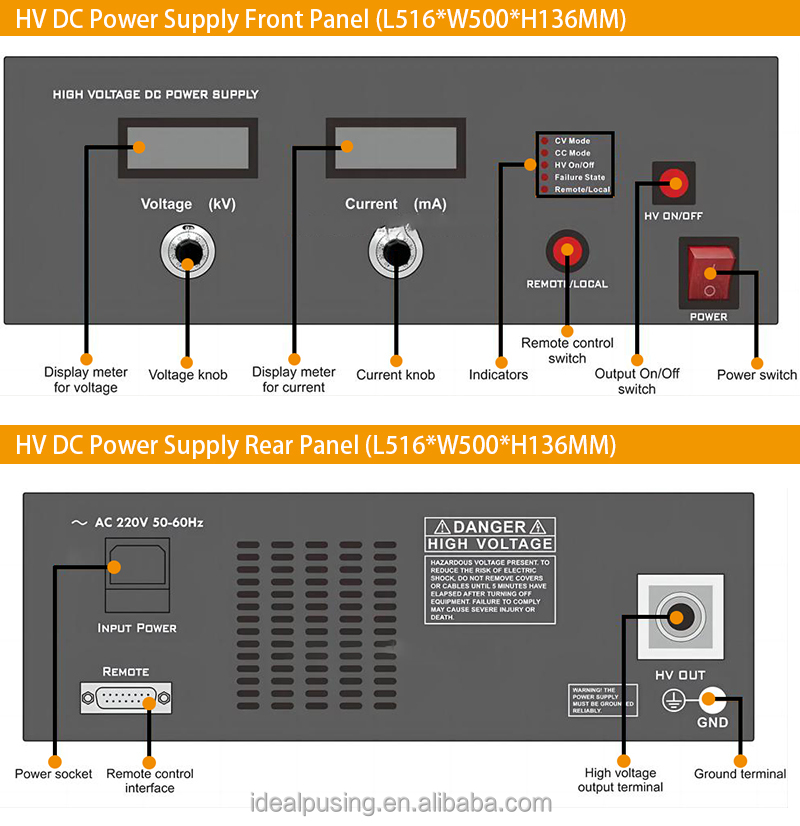

| Dimension | L516*W500*H136(MM) |
| Weight | Net 22KG / Gross 27.5KG (Wooden box) |
| Cooling method | Cooling fan |
| Operating environment | 0°C~40°C, 10%~80%RH |
| Storage environment | -20°C~70°C, 10%~90%RH |
🔌 IX. OUTPUT CABLES
1
Self-contained high voltage cable without shielding. Standard length 1.5m (optional lengths).2
High-voltage cable with shielding. Standard length 1.5m (optional lengths).

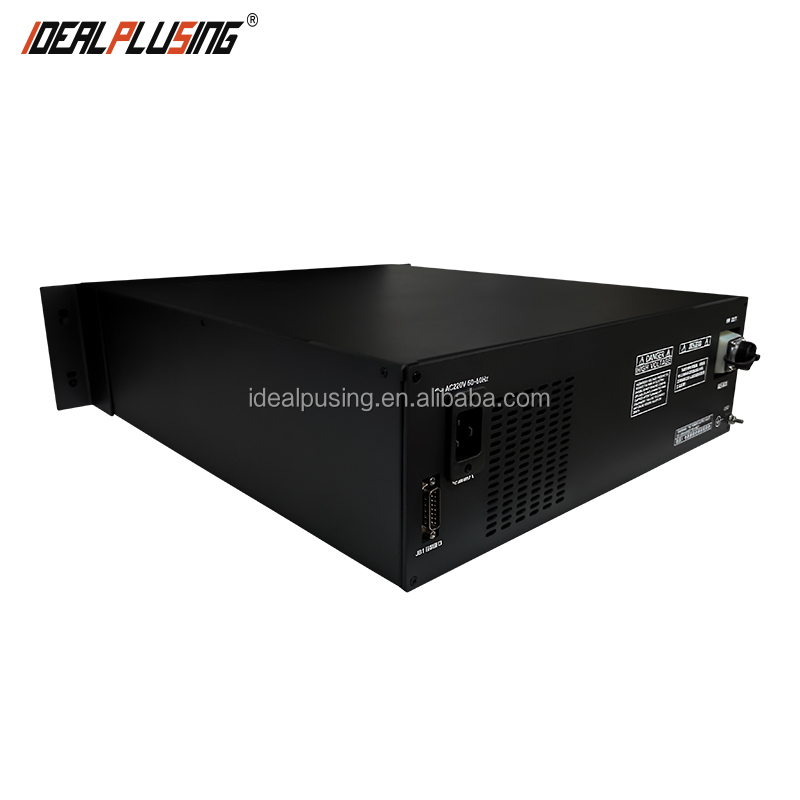

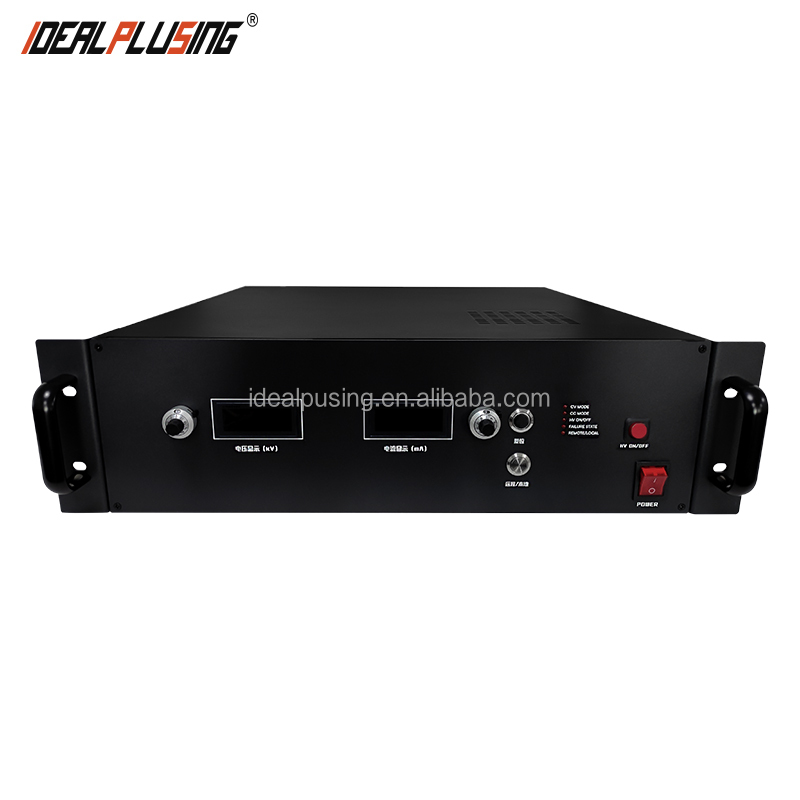

📸 X. REFERENCE PICTURES
📋 MODEL LIST
🏭 FACTORY DISPLAY
❓ FREQUENTLY ASKED QUESTIONS
Q1: What is the output voltage range for the HV series?
A: The HV series high voltage DC power supplies offer a wide output range from 10kV up to 200kV, and the voltage is fully adjustable.
Q2: Can the power supply be controlled remotely?
A: Yes, the output control can be switched between Local control (front panel) and Remote control (via analog 0-10V or RS485/RS232 interfaces).
Q3: What safety protections are included in this high voltage unit?
A: It features built-in Over Voltage (OVP), Over Current (OCP), Over Temperature (OTP), Short Circuit protection, and Arc protection for maximum safety.
Q4: What are the typical applications for the HV series?
A: It is widely used in electrostatic spinning, dust removal, electret processes, spraying, flocking, insulation testing, and laboratory experiments.
Q5: What are the input power requirements?
A: The unit operates on a single-phase 220VAC ±10% input with a frequency of 50/60Hz.
Q6: Are the high-voltage cables customizable?
A: The standard length is 1.5 meters, but other lengths are optional. We offer both shielded and non-shielded high-voltage cable versions.
