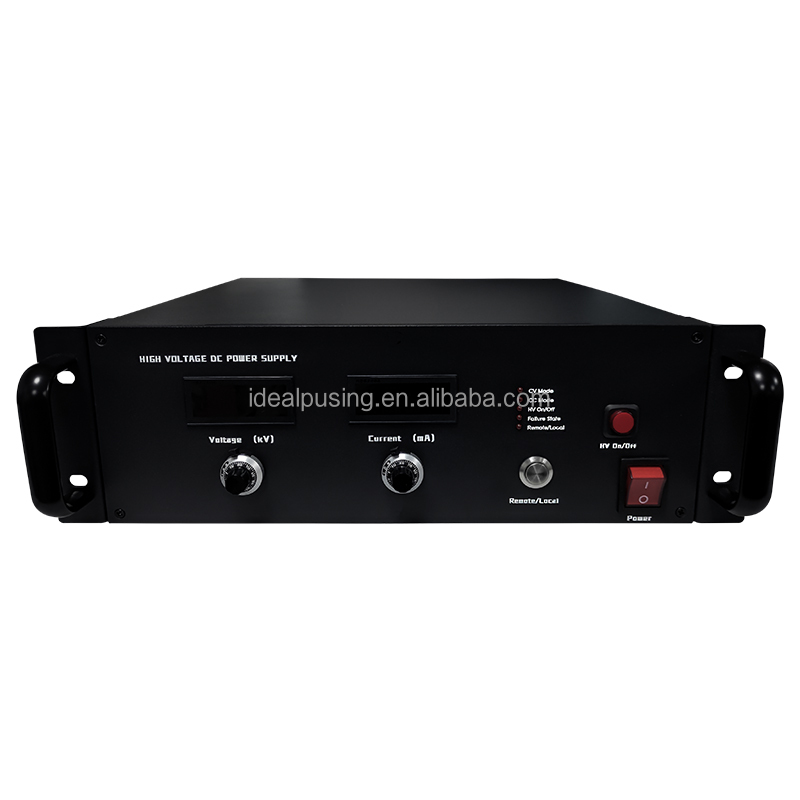

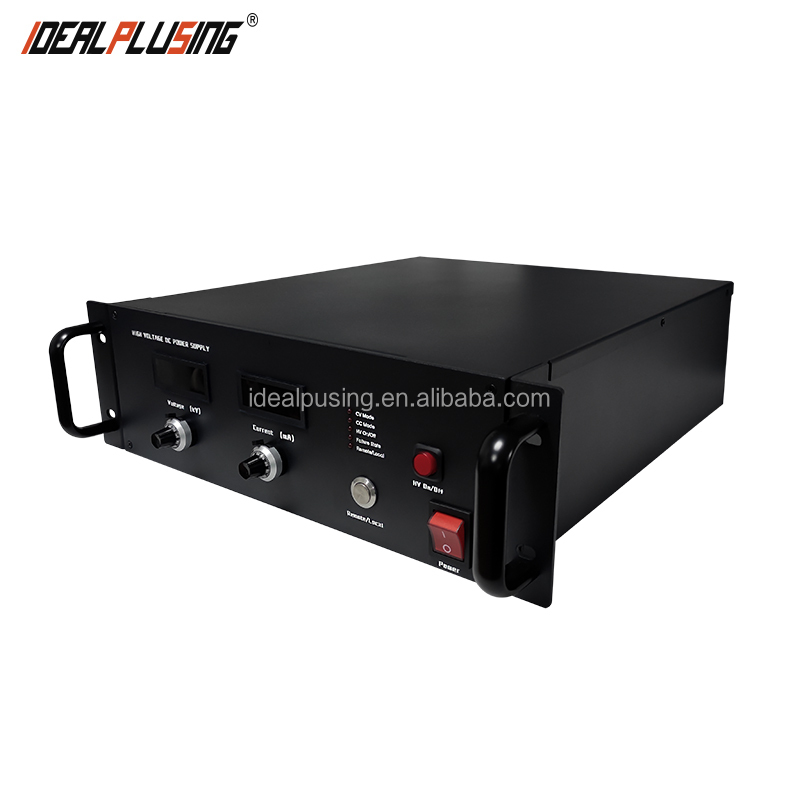

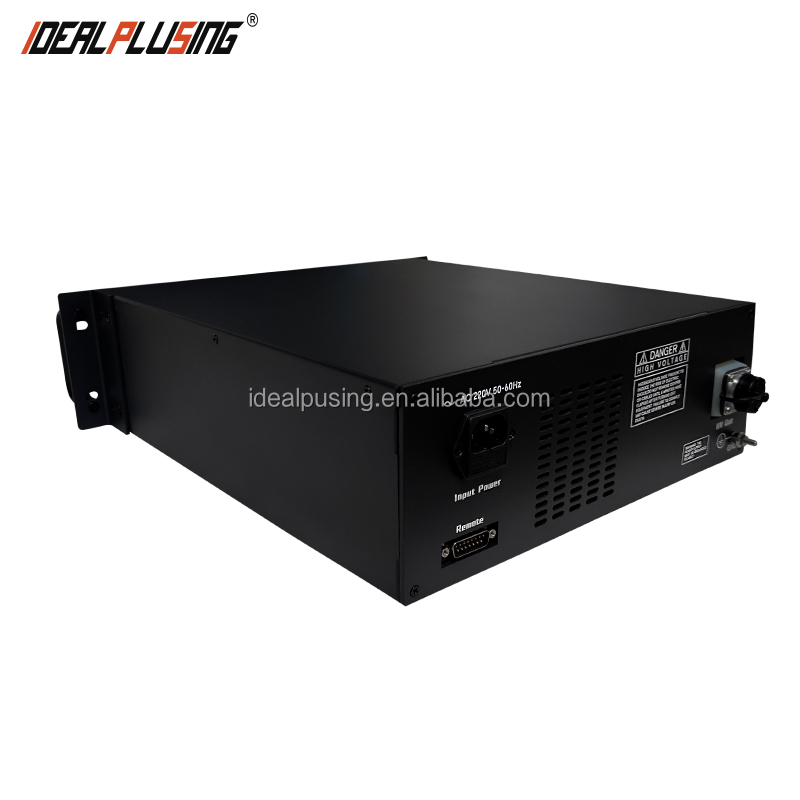

220v Ac to 60kv 20mA 1200W High Voltage Low Current Dc Regulated Variable Dc Power Supply for Electrostatic Spraying
Product Description
01
HV series are high voltage DC power supplies, available from 10kV to 200kV output.
02
Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.
03
The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection.
04
The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking.
05
The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test.
06
Meltblown cloth electrostatic electret equipment, Electrostatic Spinning, Electrostatic Dust Removal, Capacitor Charge, Discharge, Cable Aging Test, Cable Leakage Test, Optical Fiber Withstand Voltage Test, Etc.

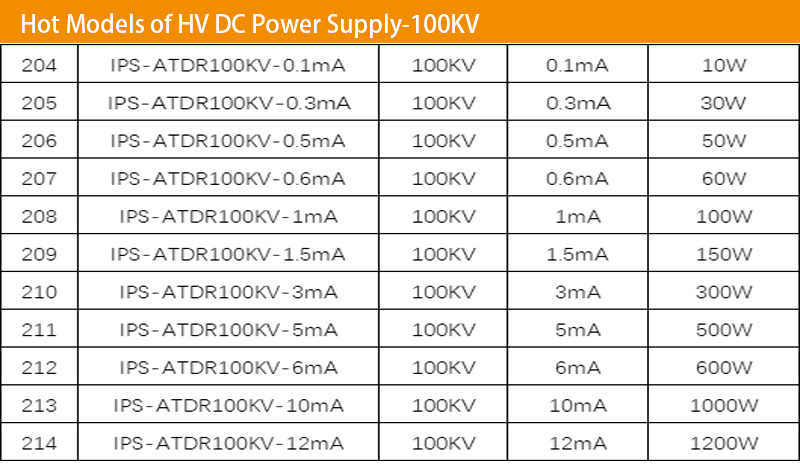

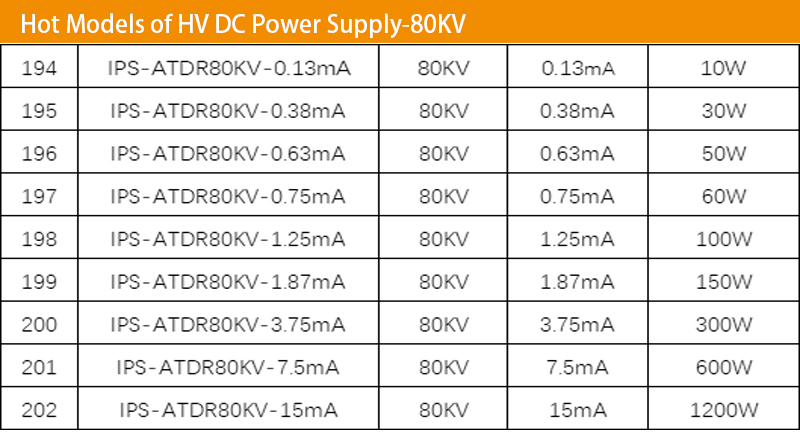

| 1 | Output voltage full range adjustable |
| 2 | High voltage Positive output +10kV to +200kV |
| 3 | High voltage Negative output -10kV to -200kV |
| 4 | 4 digits LED display for voltage and current |
| 5 | Low EMI, strong anti-interference ability |
| 6 | OVP, OCP, ARC, and short circuit protections |
| 1 | Remote ON/OFF control |
| 2 | 0-10V analog control for voltage and current output |
| 3 | RS485, support Modbus-RTU commands |
| 4 | RS232, support Modbus-RTU commands |
| Rate Voltage | Single phase 220VAC |
| Range Voltage | 220VAC±10% |
| Frequency | 50/60HZ |
| Model | IPS-ATDJ60KV-20mA |
| Rated Voltage | 0-60KV (Full range adjustable) |
| Rated Current | 0-20mA (Full range adjustable) (except 1mA models) |
| Line Regulation | CV≤0.1%FS |
| Load Regulation | CV≤0.1%FS |
| Ripple & Noise | ≤0.5% FS |
| HV Stability | ≤0.1% per hour after warm-up for one hour |
| Temp Co-efficiency | 100ppm/°C |
| Meter | 4 digits LED display for voltage and current | |
| Display Resolution | Voltage | 0.01kV / 0.1kV |
| Current | 0.001mA / 0.01mA | |
| Display Accuracy | Voltage | ≤0.1%FS+2LSB |
| Current | ≤0.1%FS+2LSB | |
| O.V.P. | Built-in OVP protection with limit of 105% rated output voltage. Output shuts down when activated. |
| O.C.P. | Built-in OCP protection with limit of 105% rated output voltage. Output shuts down when activated. |
| O.T.P. | Built-in OTP protection with heat sink temperature limit of 65°C±5°C. Output shuts down when activated. |
| Short Circuit | The output will be shut down when short circuit protection is activated. |

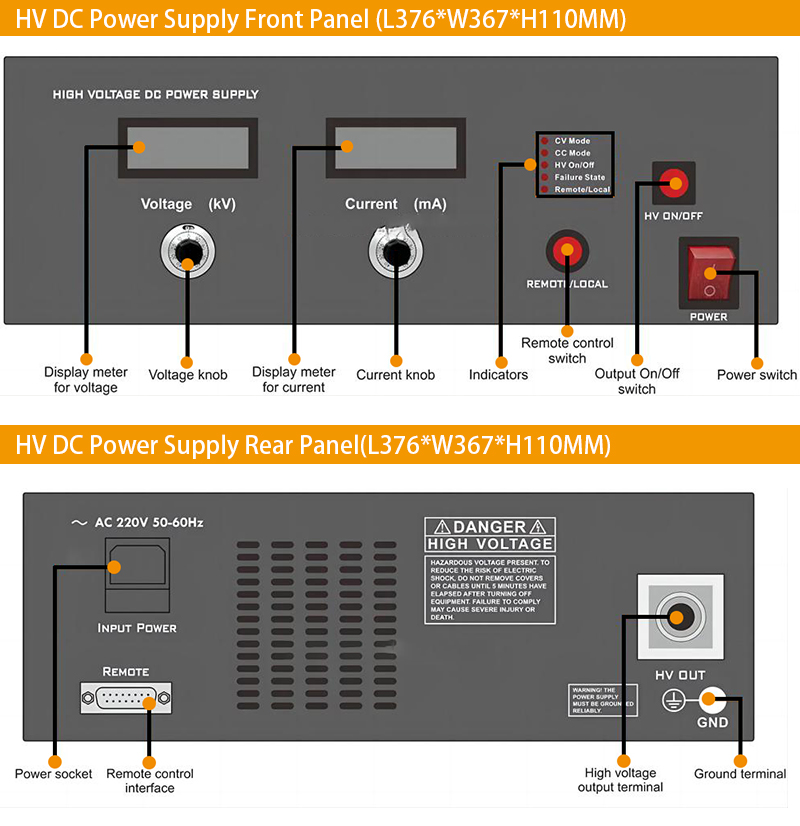

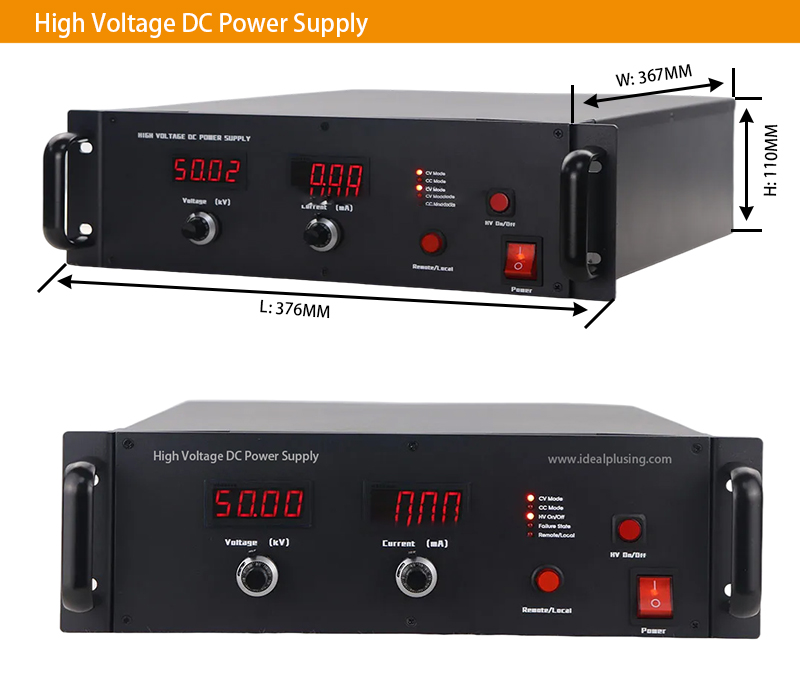

| Dimension | L376*W367*H110(MM) |
| Weight (Net/Gross) | 9.5KG/12.5KG (Wooden carton box package) |
| Cooling Method | Cooling fan |
| Operating Env. | 0°C~40°C, 10%~80%RH |
| Storage Env. | -20°C~70°C, 10%~90%RH |
▶
Type 1: Self-contained high voltage cable without shielding. Standard length 1.5m (customizable).
▶
Type 2: High-voltage cable with shielding. Standard length 1.5m (customizable).
Frequently Asked Questions (FAQ)
What is the output range of the HV series power supply?
The HV series provides high voltage DC output ranging from 10kV up to 200kV, depending on the specific model selected.
What safety protections are built into the unit?
It includes Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection, and Arc Protection to ensure equipment safety.
Can the power supply be controlled remotely?
Yes, the unit features a switch for Local/Remote control. It also supports optional RS485/RS232 interfaces with Modbus-RTU commands and 0-10V analog control.
What are the primary applications for this device?
Common applications include electrostatic dust removal, spinning, electret for meltblown cloth, spraying, flocking, and high voltage insulation testing.
What is the required input voltage?
The power supply requires a single-phase 220VAC input with a tolerance range of ±10% at 50/60Hz.
Are there different cable options available?
Yes, we offer both unshielded and shielded high-voltage cables. The standard length is 1.5 meters, but other lengths are available as options.
