New 240W 48V 60V 72V 84V 96V 100 Volt DC Converter Transformer 5A 8A 10A 8 Amp for Boats
Product Description
New 240W DC Converter Transformer
High Efficiency 5A 8A 10A Power Solutions for Multi-Voltage Applications
🚀Features & Technology
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are divided into three categories: Boost type, boost & buck type, and buck type.
PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. Currently, DC-DC converters are widely used in mobile phones, digital cameras, portable media players and other industrial products.
Professional Power Solutions: We focus on research, development, and service of DC to DC power supply modules, rectifiers, and chargers. We provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries.
We specialize in customizing DC-DC converters to meet specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated design options are available.
📋Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD100S2410 |
| Input Voltage | 48VDC or Customized |
| Output Voltage | 24VDC or Customized |
| Output Current | 10Amps or Customized |
| Output Power | 240Watts or Customized |
| Shell Material | Aluminum |
| Waterproof Level | IP67 |
| Size | 74*74*32MM |
🔥Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
IPS-DTD50-60S488
IPS-DTD50-60S488
IPS-DTD48S1240

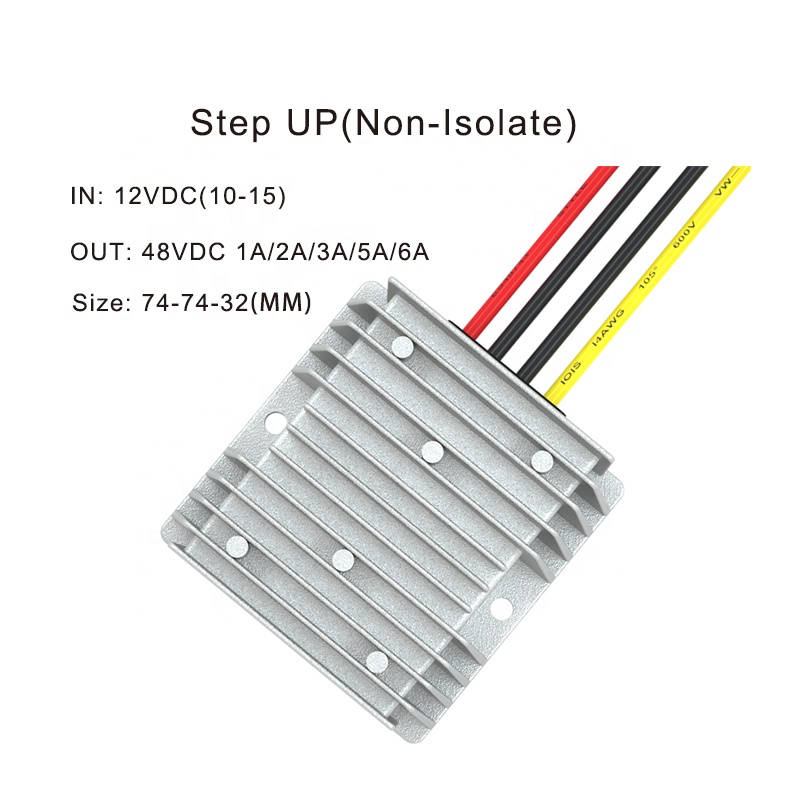

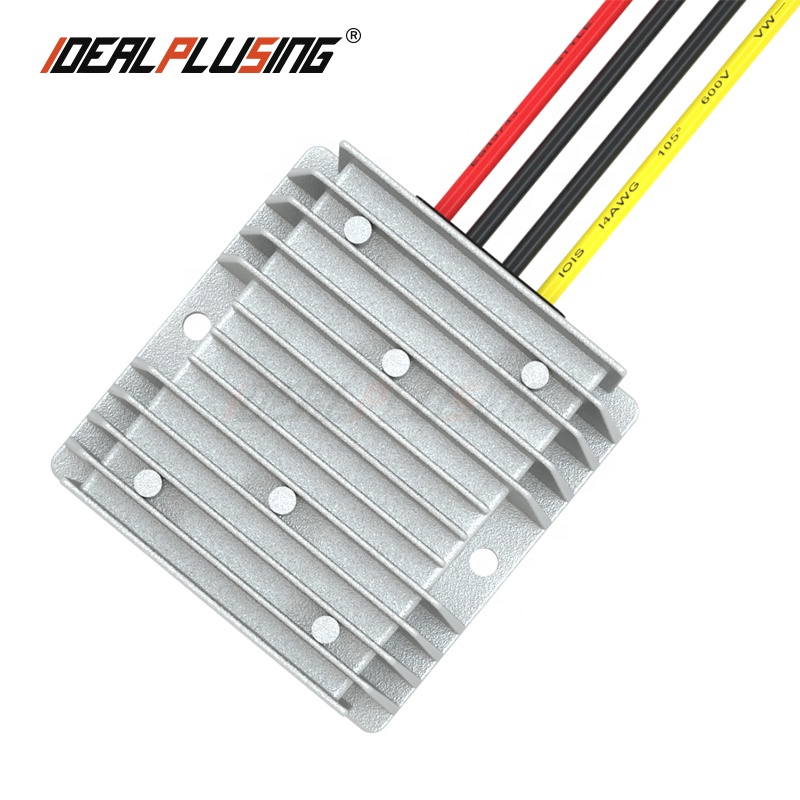

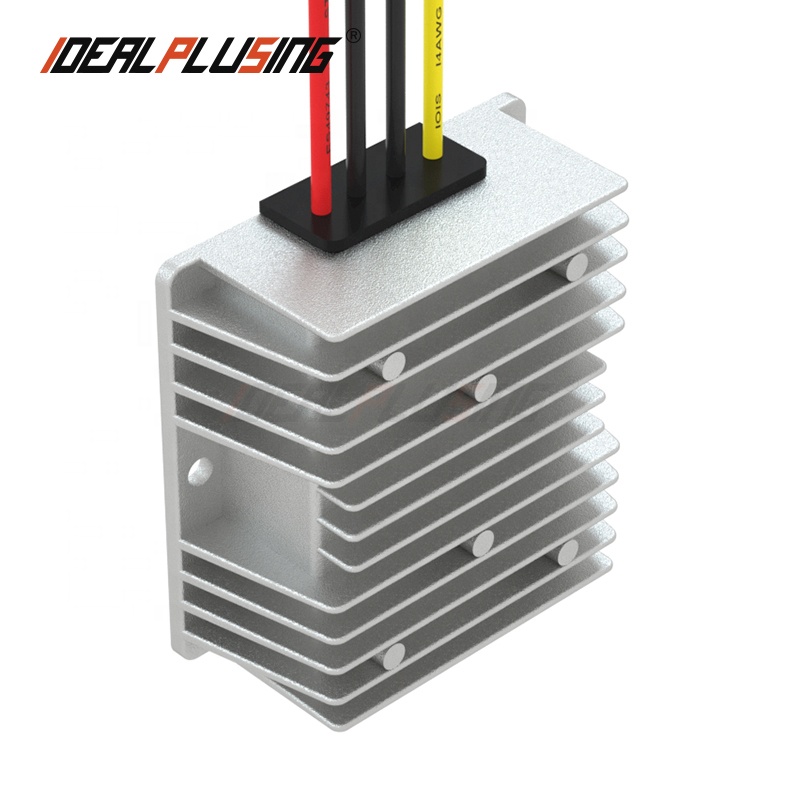

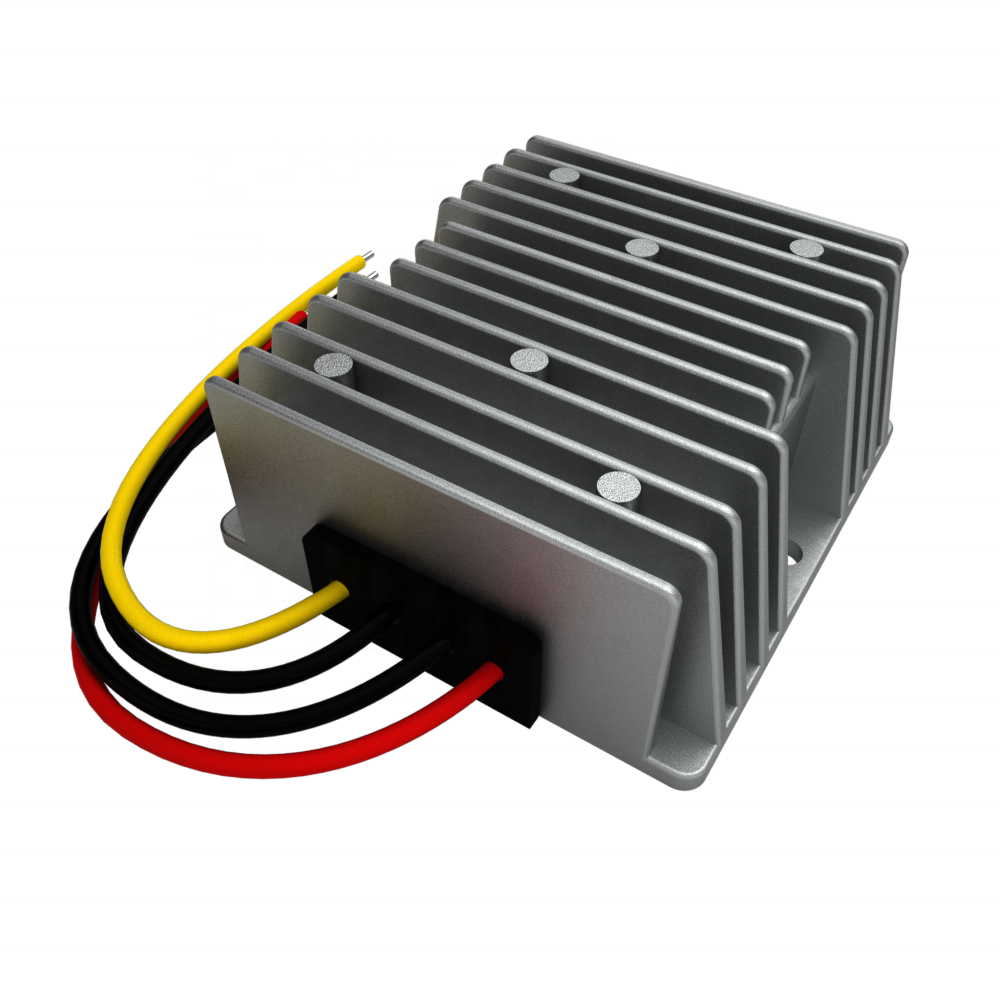

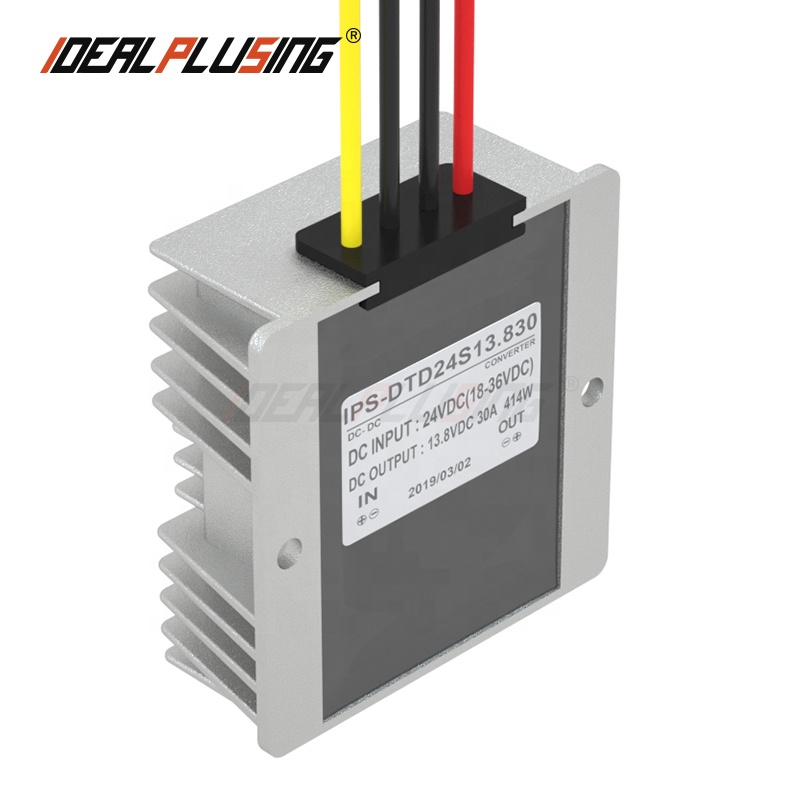

📸Product Gallery
🛠️Technical Application Notes
1. Protection: Standard output overcurrent, short-circuit, input undervoltage, and overheating protection included.
2. Load Types: For inductive loads (coils, motor, speakers), recommend power supply 3-5 times the rated load power.
3. Safety: Non-isolated buck converters carry a risk of high input voltage passing to output if failed; isolated products are recommended for precious loads.
4. Isolation: Negative poles of isolated products cannot be shared to maintain effect.
5. Environment: IP67 rated aluminum casing is high-temperature resistant and reliable for outdoor applications.
❓Frequently Asked Questions
1. What is the difference between isolated and non-isolated converters?
Isolated converters provide an electrical barrier between input and output, preventing high voltage from reaching the load if the unit fails. Non-isolated converters are more compact and efficient but share a common ground.
2. Can these units be used for boat or marine applications?
Yes, the aluminum shell and IP67 waterproof rating make them ideal for boats, vehicles, and harsh outdoor environments.
3. How do I choose the right power rating for a motor?
For motor loads, we recommend choosing a converter that is 3 to 5 times the rated power of the motor to handle the high start-up current surge.
4. Does the converter have protection against short circuits?
Most buck-boost and step-down models come with built-in short-circuit protection. For boost-only series, we recommend adding a fuse at the input end for extra safety.
5. Can I customize the input and output voltage?
Yes, we specialize in customization ranging from 1V to 1000V DC and 1A to 1000A to meet your specific industry requirements.
6. What happens if the unit overheats?
Our converters include chip overheating protection. Larger units also feature casing over-temperature protection that triggers around 90°C.
