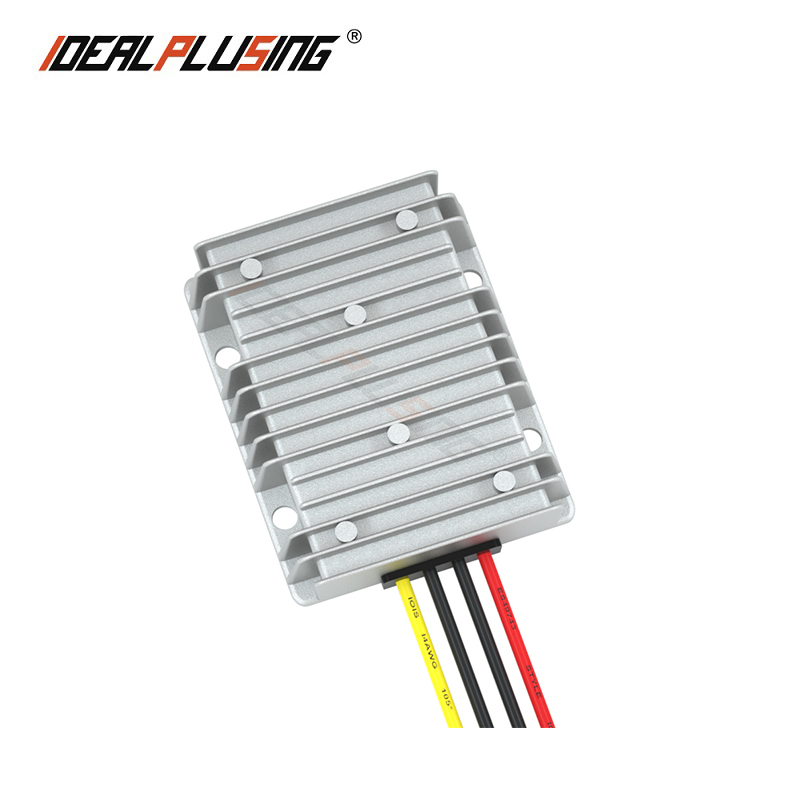

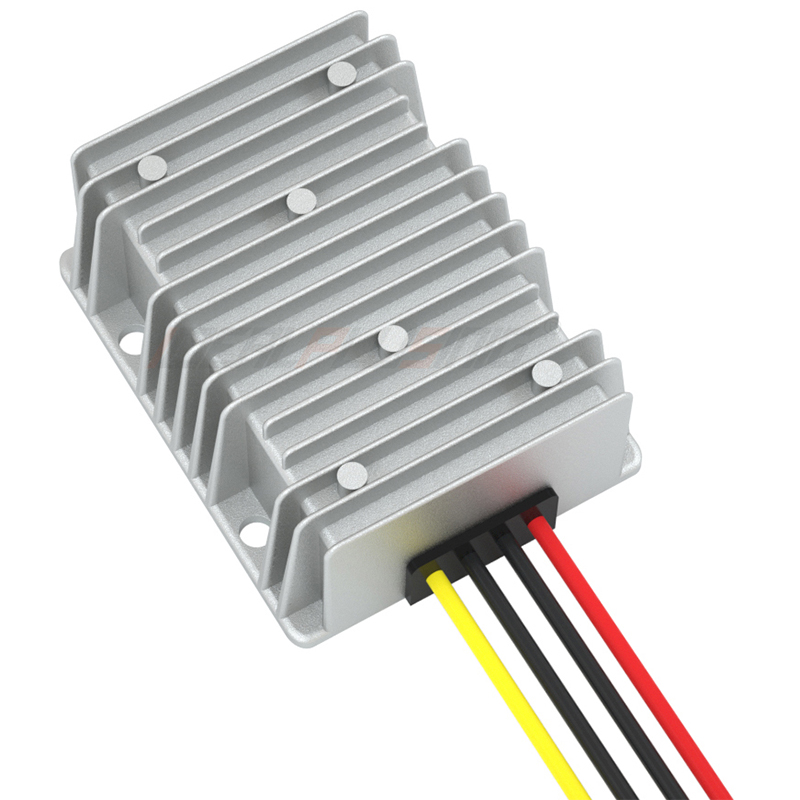

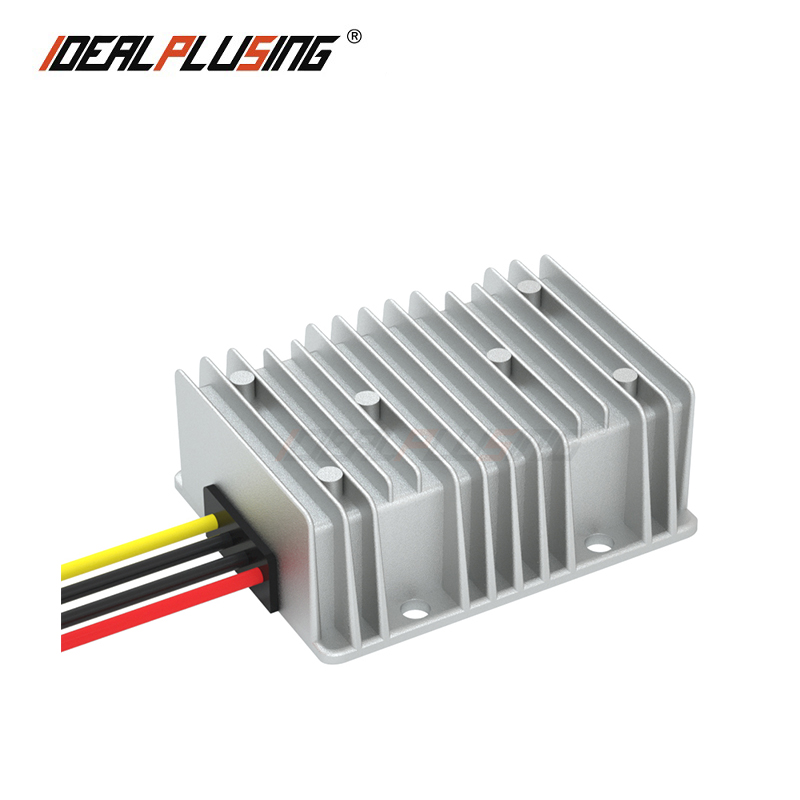

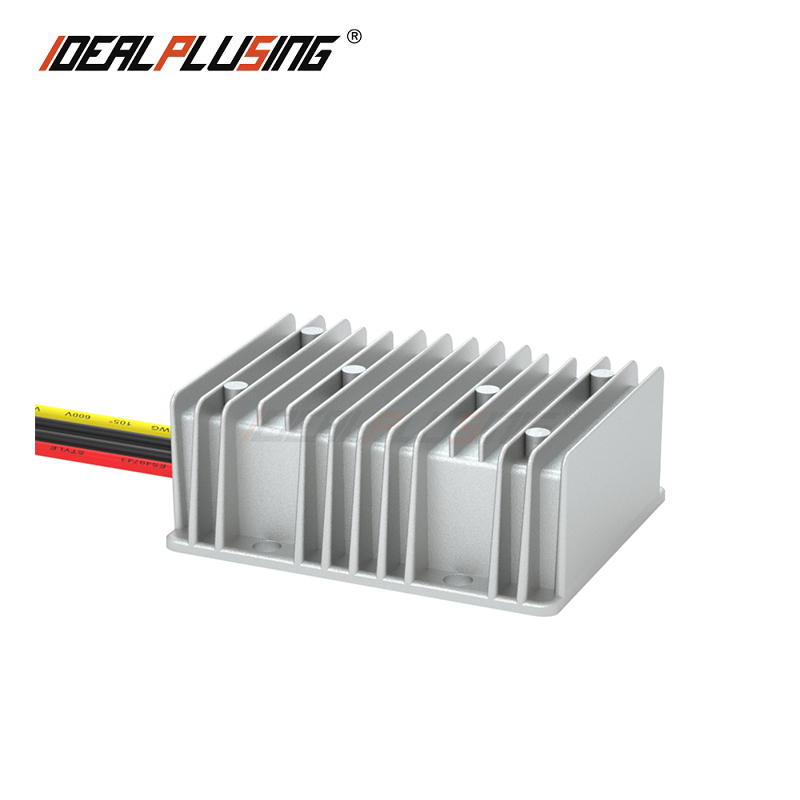

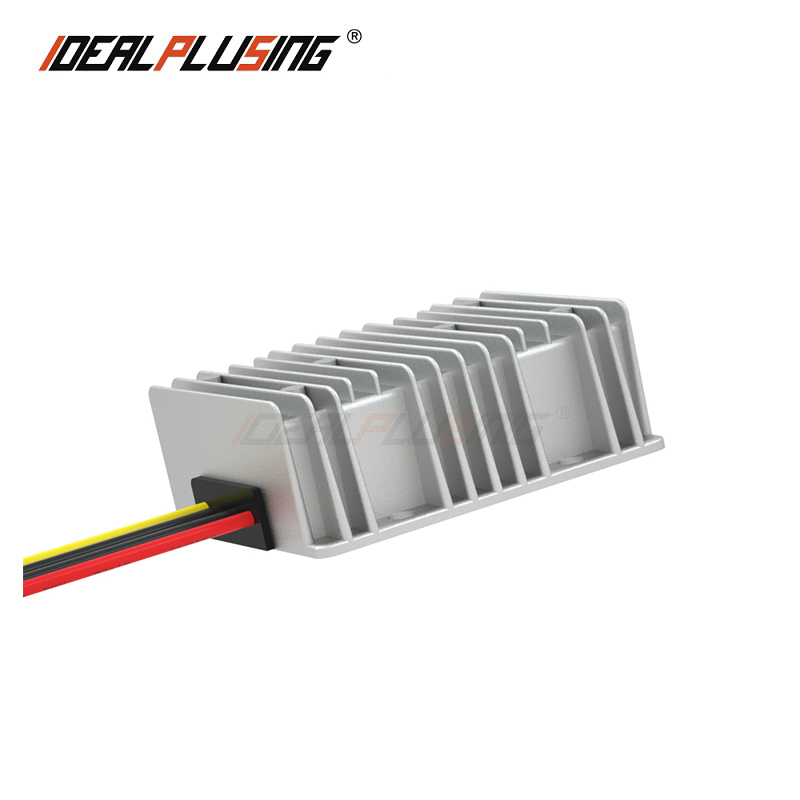

36v 48v Dc Dc Converter to 12vdc 12v 30a Step Down Buck for Wide Use
Product Description
Custom Power Supply Solutions
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and various power systems. Our goal is to provide personalized, efficient, reliable, and cost-effective solutions for all industries.
💡 Professional Customization
We specialize in customizing DC-DC converters with specific input/output voltage and current requirements, ranging from 1V to 1000V DC and 1A to 1000A. isolated and non-isolated options are available to meet your precise technical specifications.
Key Product Features
- Design meeting RoHS / CE standards for global compliance.
- High energy efficiency: Up to 93%.
- Robust isolation between input and output for enhanced safety.
- Internal high-reliability capacitors (NCC & NICHICON).
- 100% full load burn-in testing before delivery.
- Full protection: Overload, Over temperature, and Overvoltage.
- Waterproof level up to IP65/IP67.
- 12 months quality warranty.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Isolate / Non-isolate Options |
| Model | IPS-DTD30-60S1230 |
| Output Voltage | 12 VDC |
| Output Current | 30 Amps |
| Output Power | 360 Watts |
| Shell Material | Aluminum / Plastic |
| Waterproof Level | IP67 |
Hot Selling Models
IPS-DTD30-60S1210
30-60VDC to 12VDC 10A (120W)
IPS-DTD20-100S122
20-100VDC to 12VDC 2A (24W)
IPS-DTD15-40S1210
15-40VDC to 12VDC 10A (120W)
IPS-DTD50-60S488
50-60VDC to 48VDC 8A (384W)
IPS-DTD50-60S2435
40-60VDC to 24VDC 35A (840W)
IPS-DTD48S1240
30-60VDC to 12VDC 40A (480W)
Product Details & Shows
Technical Application Guide
🚀 Operating Safety: All buck-boost products include output overcurrent, short-circuit, and undervoltage protection. High-power units feature 90°C thermal protection.
⚙️ Inductive Loads: For motors, coils, or magnetic valves, we recommend using a power supply 3-5 times the rated power of the load to handle start-up surges.
🛡️ Isolation Importance: Isolated products prevent high input voltage from passing to the output, protecting precious loads. Highly recommended for reliability and safety.
⚡ Connection Tips: To prevent backflow or reverse connection, consider adding diodes and fuses at the input end for non-isolated boost converters.
Frequently Asked Questions
What is the difference between Isolated and Non-Isolated converters?
Isolated converters have a physical electrical barrier between input and output, preventing high voltage spikes from damaging the load. Non-isolated converters share a common ground and are more compact but less protective for sensitive equipment.
How do I choose a power supply for a motor or inductive load?
Inductive loads like motors require high startup current. It is recommended to choose a power supply with a rated power 3 to 5 times higher than the motor's nominal power.
Are these converters waterproof for outdoor use?
Yes, many of our models feature hard gel encapsulation and aluminum shells, providing waterproof protection up to IP65 or IP67 levels, suitable for harsh environments.
Can you customize the voltage and current ranges?
Absolutely. We specialize in custom designs ranging from 1V to 1000V DC and 1A to 1000A to match your specific application requirements.
Does the product include protection against short circuits?
Most buck-boost and isolated models come standard with short-circuit, overcurrent, and over-temperature protection. For step-up models, we recommend adding an external fuse.
What is the typical efficiency of your power modules?
Our high-quality converters typically achieve an efficiency of around 93%, reducing heat generation and energy loss during operation.
