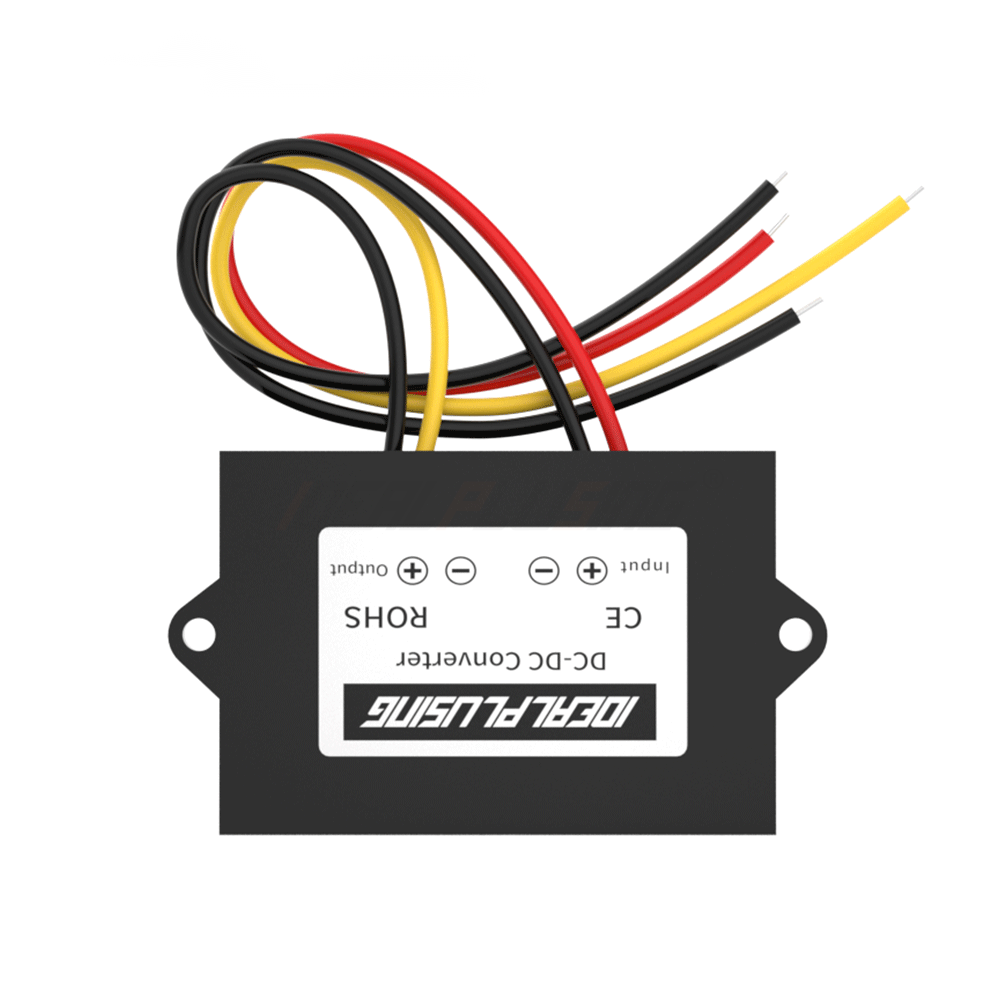

IDEALPLUSING DC-DC Buck Converter 24V/36V/48V/60V to 12V Step Down Converter for Industrial Applications
Product Description
🔋 Step Down DC to DC Converter Modules
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are divided into three categories: Boost type, boost & buck type, and buck type. PWM control provides high efficiency with low noise, while PFM control offers low power consumption for long-term use under small loads.
🛠️ Customization Capabilities:
We specialize in customizing DC-DC converters to meet specific requirements. With customized input/output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated design options.
Our team specializes in power conversion solutions widely used in electric vehicles, automobiles, RVs, marine, communication, and industrial sectors. We have developed more than 5000+ power supply solutions with a power range from 1 watt to 200 kilowatts and input voltages up to 2000 volts. Our products feature a design life of 15 to 20 years, ensuring high reliability for complex working environments.
📊 Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD9-60S127 |
| Input Voltage | Base model |
| Output Voltage | 12 VDC or Base on model |
| Output Current | 7Amps or Base on model |
| Output Power | 84Watts or Base on model |
| Material of Shell | Aluminum/Plastic |
| Waterproof Level | IP67 |
🌟 Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210

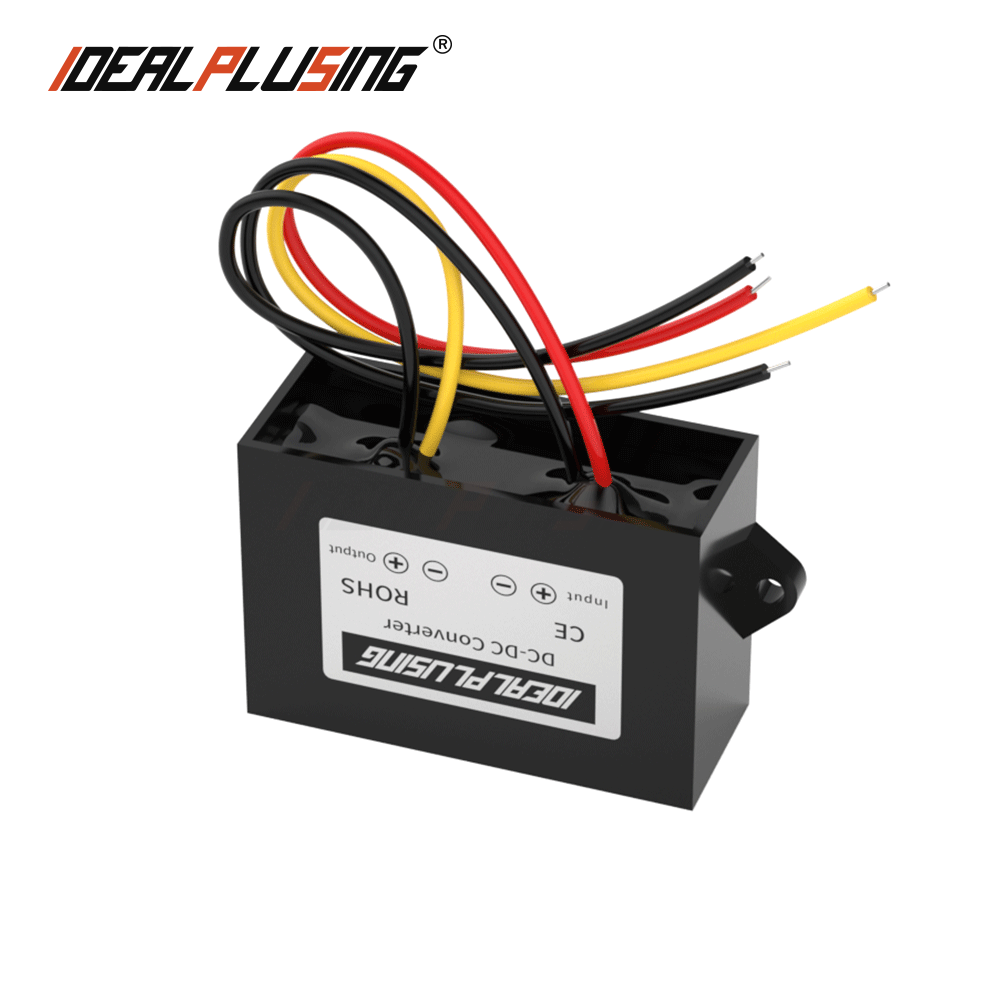

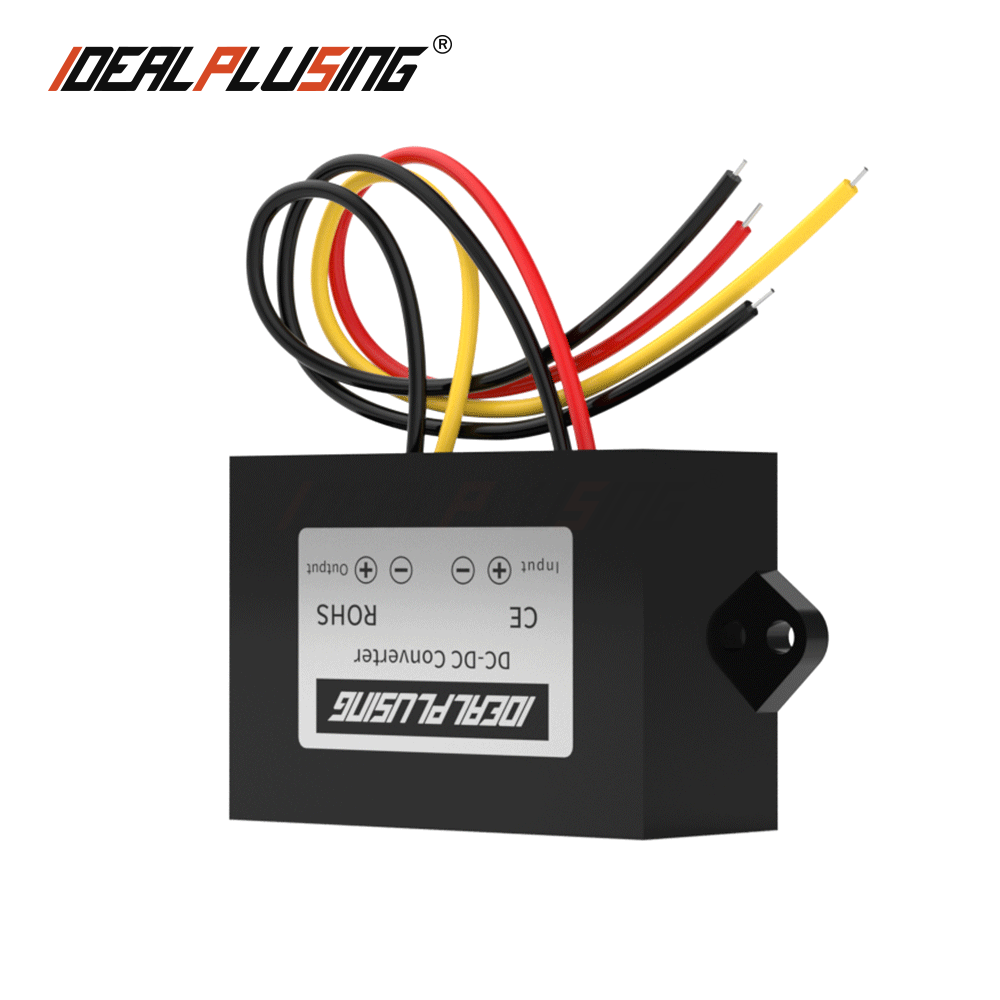

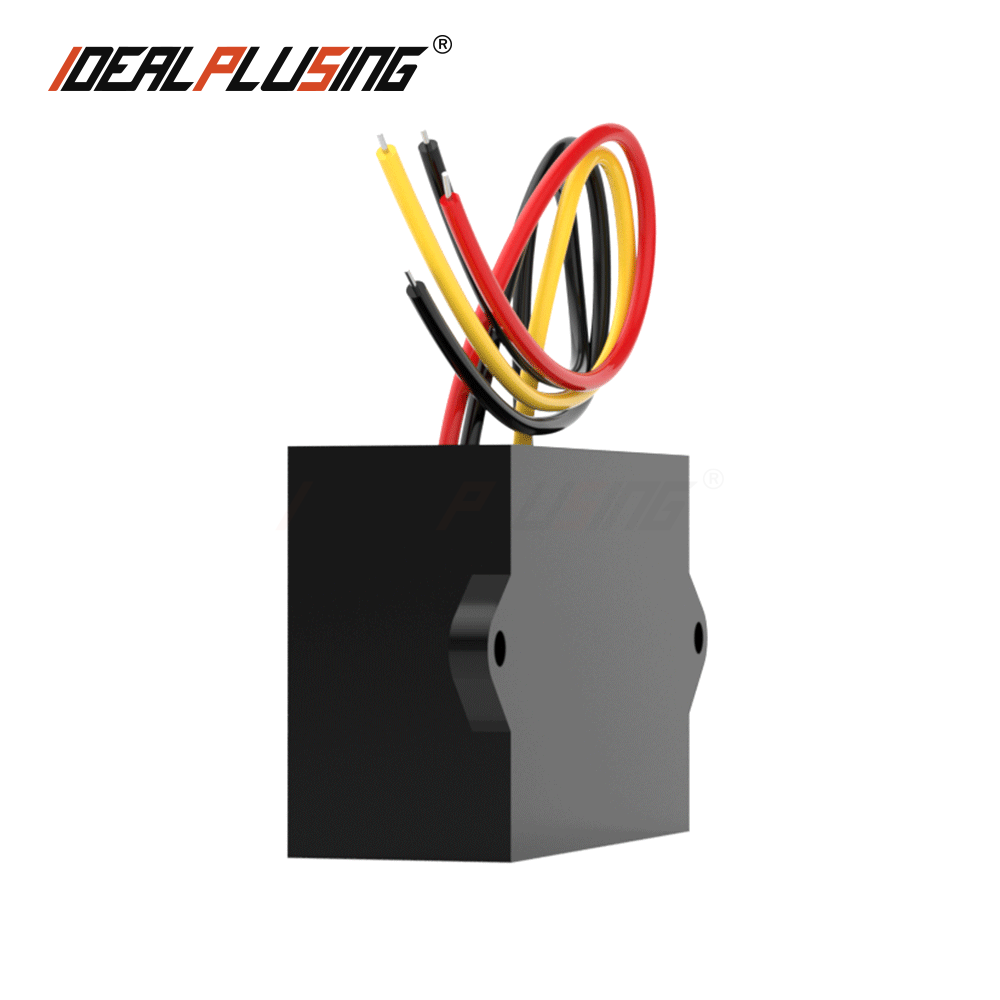

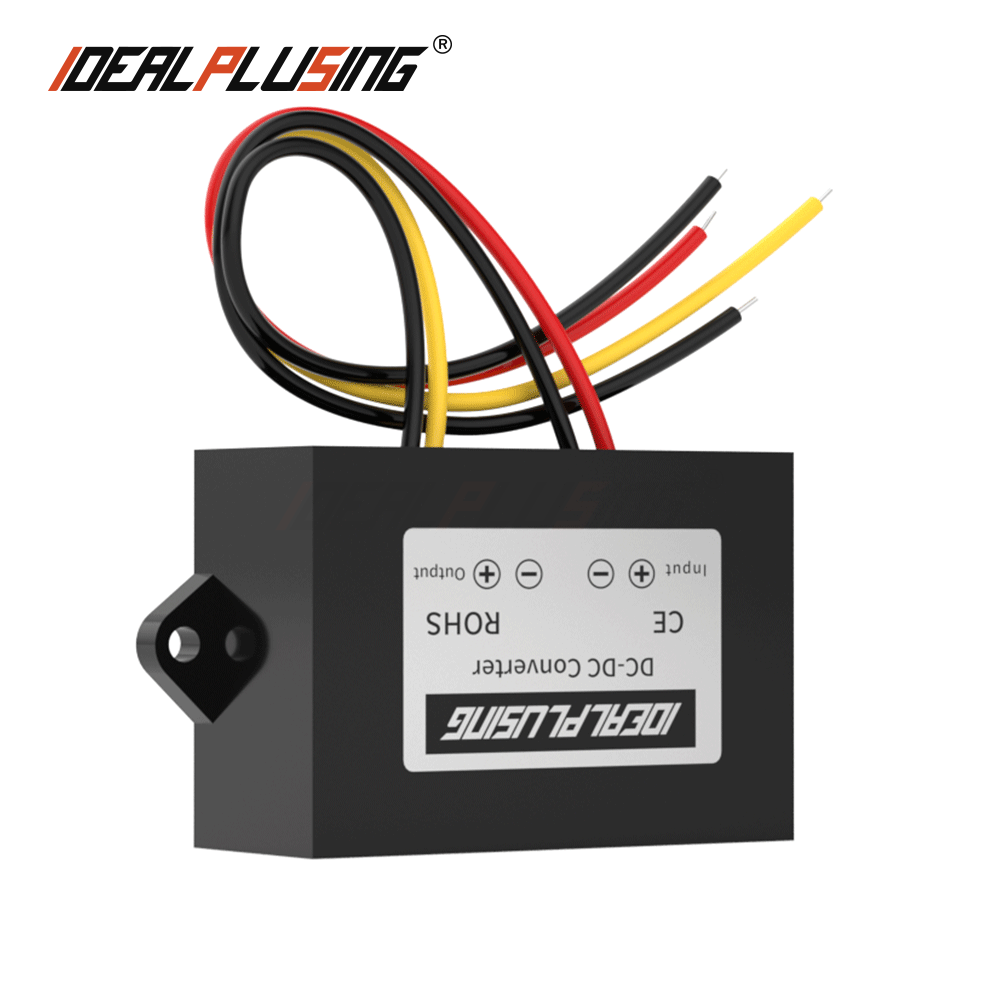

📁 Product Showcase
⚙️ Technical Description & Applications
- Protection Features: Buck-boost and step-up/down products come standard with output overcurrent, short-circuit, input undervoltage, and overheating protection (90°C threshold).
- Step-Up Specifics: Due to circuit structure, step-up series lack output short-circuit protection; adding input fuses is recommended.
- Inductive Loads: For coils, magnetic valves, and motors, we recommend a power supply with 3-5 times the rated power of the load.
- Non-Isolated Risk: The worst consequence of non-isolated buck supplies is high input voltage passing directly to the output. For precious loads, isolated products are strongly recommended.
- Isolated Power Safety: Isolated negative poles cannot be shared. They offer the highest safety as input voltage cannot burn out output equipment.
- Custom Prototypes: Isolated power supply production involves transformer adjustment and circuit parameter tuning, requiring longer delivery periods for customized orders.
Frequently Asked Questions
Q1: What is the difference between PWM and PFM control?
A1: PWM control offers high efficiency and good noise/ripple control for heavy loads. PFM control is designed for low power consumption during long-term use, especially under small loads.
Q2: Why should I choose an isolated converter over a non-isolated one?
A2: Isolated converters prevent high input voltage from passing to the output in case of failure, protecting expensive equipment. They are essential for applications requiring high safety and reliability.
Q3: How do I choose a power supply for motor or inductive loads?
A3: Because motors and inductive loads (like magnetic valves) create high surge currents, it is recommended to use a power supply that is 3-5 times the rated power of the load.
Q4: Can I customize the input and output parameters?
A4: Yes, we provide full customization for input/output voltage (1V-1000V) and current (1A-1000A) for both isolated and non-isolated designs.
Q5: What protection features are included as standard?
A5: Most modules include output overcurrent protection, output short-circuit protection, input undervoltage protection, and chip overheating protection.
Q6: What is the expected design life of these converters?
A6: Our converters are designed with high-quality components for a lifespan of 15 to 20 years, making them suitable for complex and demanding industrial environments.
