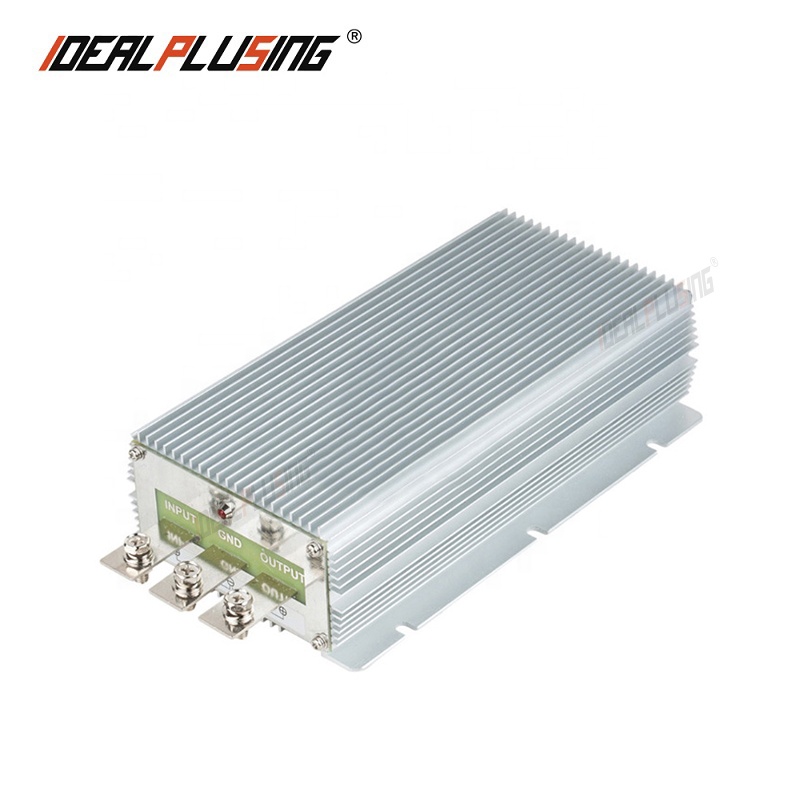

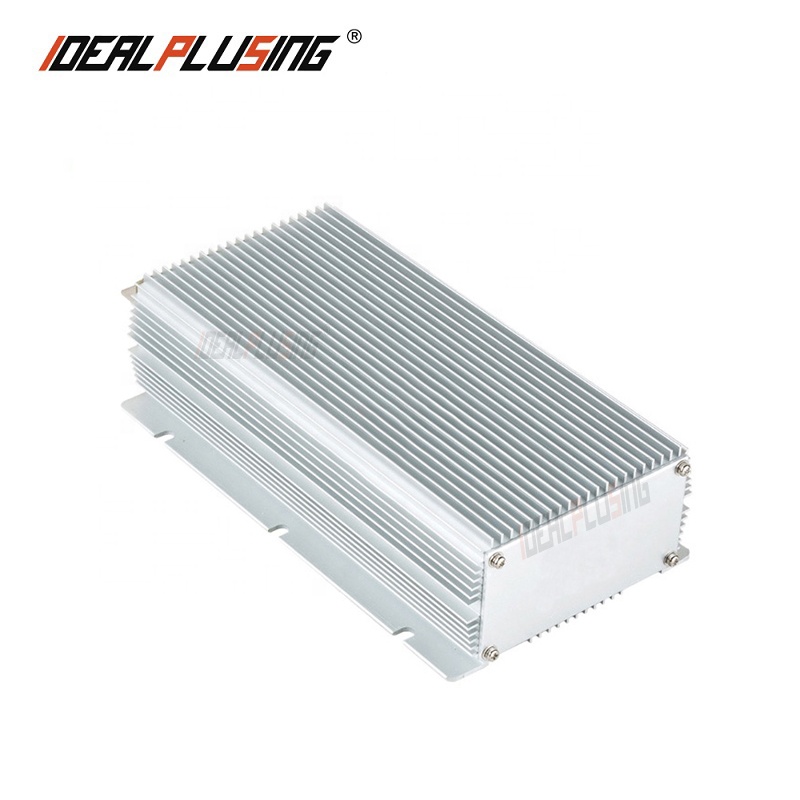

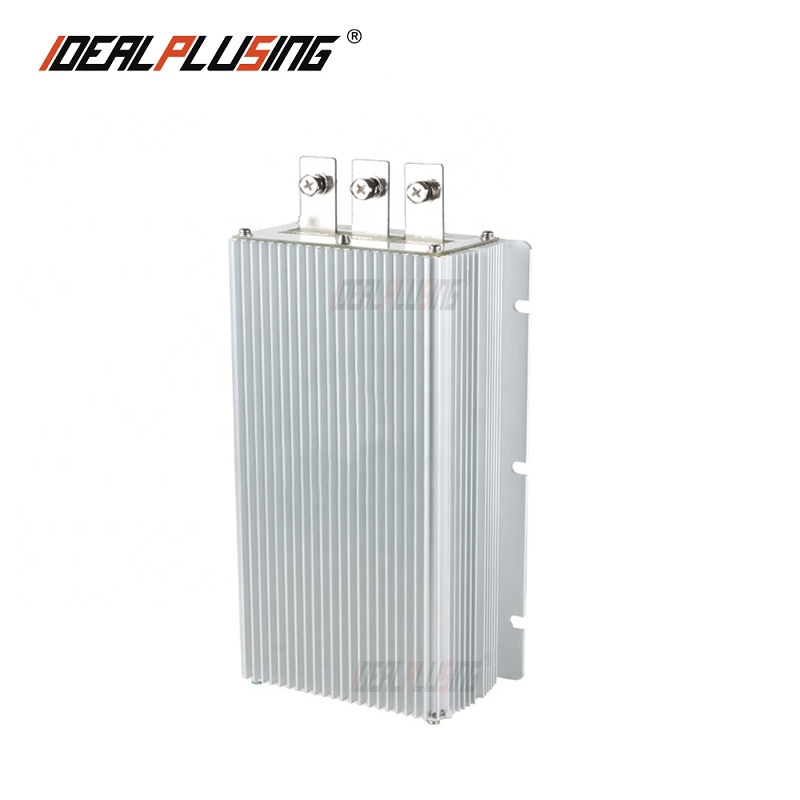

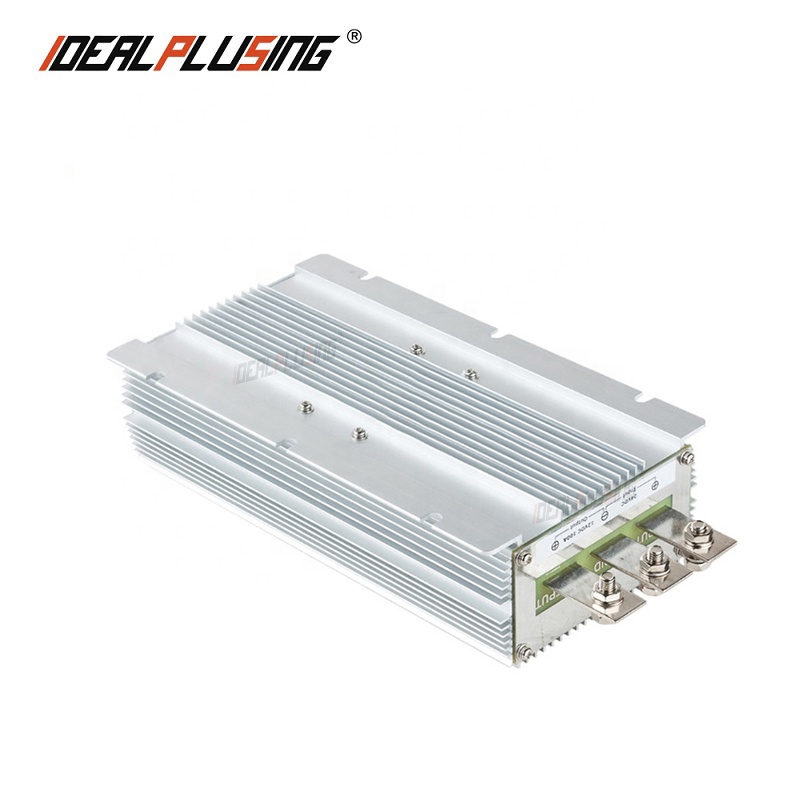

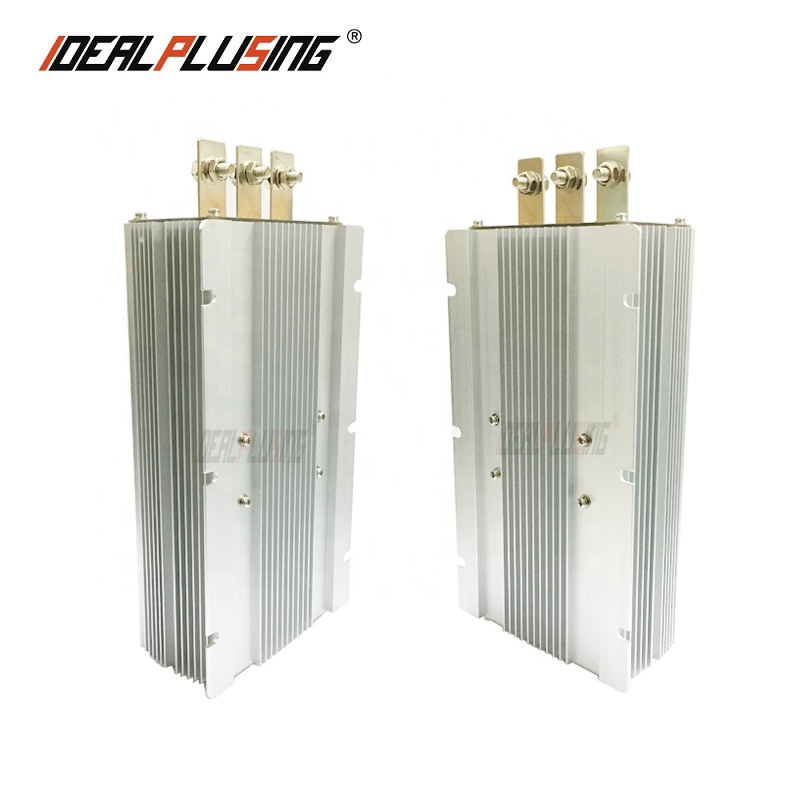

Good Quality 30~ 60VDC Input 1200w 48v to 24v Dc Converter 50A Waterproof Ideal Pulsing Step Down Converter
Product Description
⚙️
High-Performance DC/DC Conversion
A DC/DC converter is a voltage converter that effectively outputs fixed voltage after converting input voltage. Our converters include Boost, Buck, and Boost & Buck types. Adopting PWM and PFM control ensures high efficiency, low ripple, and low power consumption even under small loads. Currently, these converters are widely used in mobile devices, digital cameras, and industrial equipment.
Power Conversion Expertise
Specializing in power conversion solutions since 2001, our team provides solutions for electric vehicles, marine applications, communication, and industrial sectors. With over 5000+ power supply solutions developed, we cover a range from 1 watt to 200 kilowatts and input voltages up to 2000 volts.
🛠️
Customization Capabilities: We specialize in customizing DC-DC converters from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated options designed for a life span of 15 to 20 years.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Professional OEM |
| Type | Non-isolate |
| Model | IPS-DTD48S2450 |
| Input Voltage | Base model (30-60VDC) |
| Output Voltage | 24 VDC |
| Output Current | 50 Amps |
| Output Power | 1200 Watts |
| Material of shell | Aluminum/Plastic |
| Waterproof Level | IP67 |
Hot Selling Models
IPS-DTD30-60S1210
12V 10A Output
IPS-DTD20-100S122
Broad Input Range
IPS-DTD15-40S1210
High Stability
Technical Application Description
- Standard protection includes: output overcurrent, short-circuit, input undervoltage, and chip overheating (approx. 90°C).
- Step-up series requirements: These do not have inherent output short-circuit protection; please add input fuses.
- Inductive loads: For motors, coils, or speakers, recommend power supply 3-5 times the rated load power.
- Safety Notice: Non-isolated buck converters carry a risk of high input voltage passing to output if failed. Isolated products are recommended for precious loads.
- Isolation rules: Negative poles (ground) of isolated products cannot be shared; input and output must remain separate.
- Negative voltage: Isolated power supplies support negative voltage input (Red wire to 0V, Black wire to negative voltage).
Production Excellence
Frequently Asked Questions
Q1: What are the main protection features of these converters?
Most converters come standard with output overcurrent, short-circuit, input undervoltage, and chip overheating protection. Large units include casing temperature sensors that trigger at approximately 90°C.
Q2: Should I choose an isolated or non-isolated converter?
Non-isolated converters are efficient but carry a risk of high voltage pass-through if they fail. For high-value loads or high-voltage applications (3x input/output ratio), isolated products are strongly recommended for safety.
Q3: Can these be used for motor applications?
Yes. However, for inductive loads like motors, magnetic valves, or speakers, it is recommended to use a power supply with 3-5 times the rated power of the load to handle start-up surges.
Q4: Are the converters waterproof?
Many of our models, such as the IPS-DTD48S2450, feature IP67 waterproof levels, making them ideal for outdoor, RV, and marine environments.
Q5: Can you provide custom voltage/current solutions?
Absolutely. We customize DC-DC converters to your specific needs, with ranges from 1V to 1000V and current from 1A up to 1000A.
Q6: Do isolated converters support negative voltage input?
Yes, isolated converters can support negative voltage input. Ensure the 0V line is connected to the red wire and the negative voltage line to the black wire.
