Step Dwon 60V to 12V 24V 36V 48V DC DC Converter Power DC-DC Buck Converter for Industrial Plant Growth Lamp 12A 15A 40A 50A
Product Description
Step Down 60V to 12V 24V 36V 48V DC DC Converter
High Performance Power Solutions for Industrial Plant Growth Lamps (12A - 50A)
Key Features & Technical Overview
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. Three kinds of control can be adopted according to the demand.
PWM Control Type: Features high efficiency with excellent output voltage ripple and noise control.
PFM Control Type: Offers low power consumption even during extended use, particularly effective under small loads. It automatically transitions to PWM control when heavy loads occur.
PFM Control Type: Offers low power consumption even during extended use, particularly effective under small loads. It automatically transitions to PWM control when heavy loads occur.
These converters are widely utilized in mobile phones, digital cameras, portable media players, and industrial chopper circuits.
Customized Power Solutions
We focus on the research, development, and service of D C to D C power supply modules, A C to D C rectifier modules, chargers, and rectifier systems. Our goal is to provide personalized, efficient, and cost-effective solutions for all industries.
Specialized in custom DC-DC converters (1V to 1000V DC, 1A to 1000A).
Isolated and non-isolated design options available.
Highly reliable industrial-grade components.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD60S1250 |
| Input Voltage | 20-80VDC |
| Output Voltage | 12VDC |
| Output Current | 50 Amps |
| Output Power | 600 Watts |
| Shell Material | Aluminum |

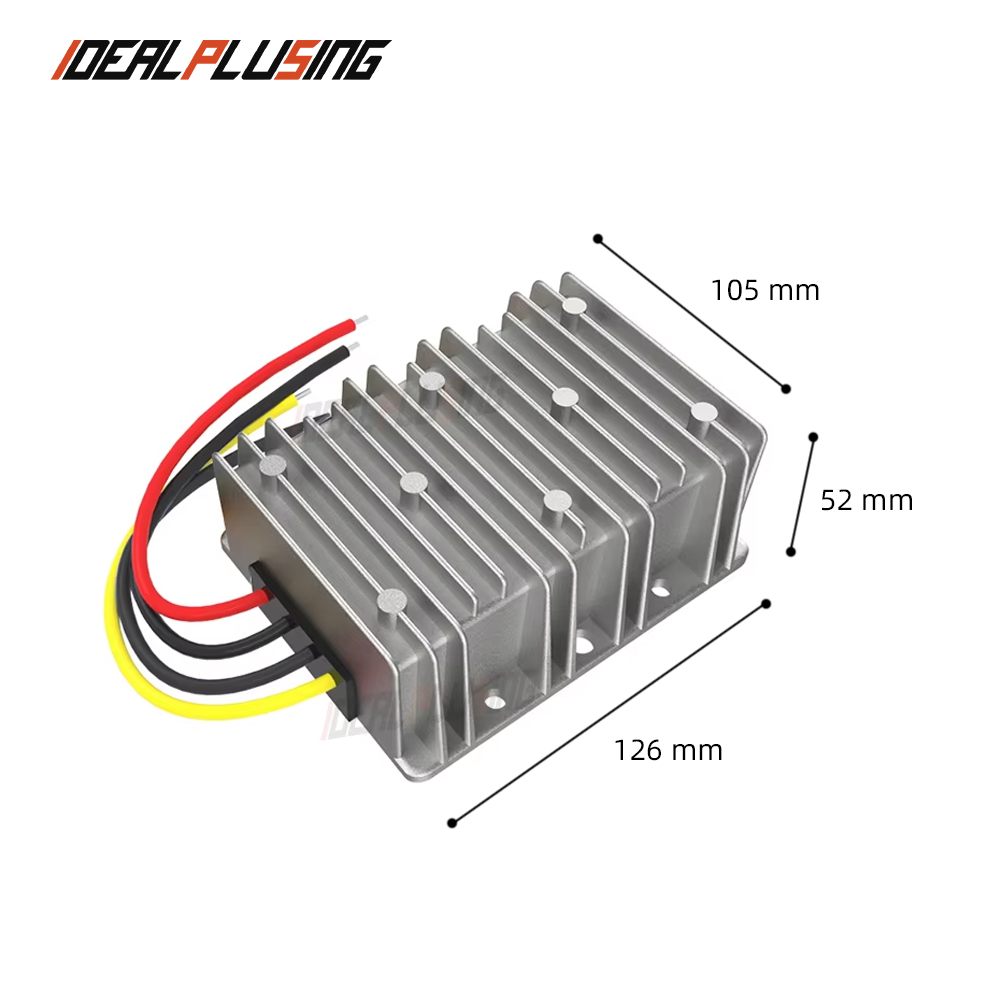

| Converter Size | 126*105*52MM |
| Net Weight | 1 KG |
| Waterproof Level | IP67 |
Industrial Model Series
| Type | Model/Series | Conversion | Output Current Range |
|---|---|---|---|
| DC-DC Boost | IPS-DTD12S24** | 12V to 24V | 1A - 50A |
| DC-DC Boost | IPS-DTD12S48** | 12V to 48V | 1A - 20A |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1A - 100A |
| DC-DC Buck | IPS-DTD48S12** | 48V to 12V | 1A - 60A |
| Isolate Step Down | IPS-DTDI48-120S12* | 48V-120V to 12V | 5A - 125A |
| Battery Charger | IPS-DTDYC* | Multi-Voltage | 1A - 20A |

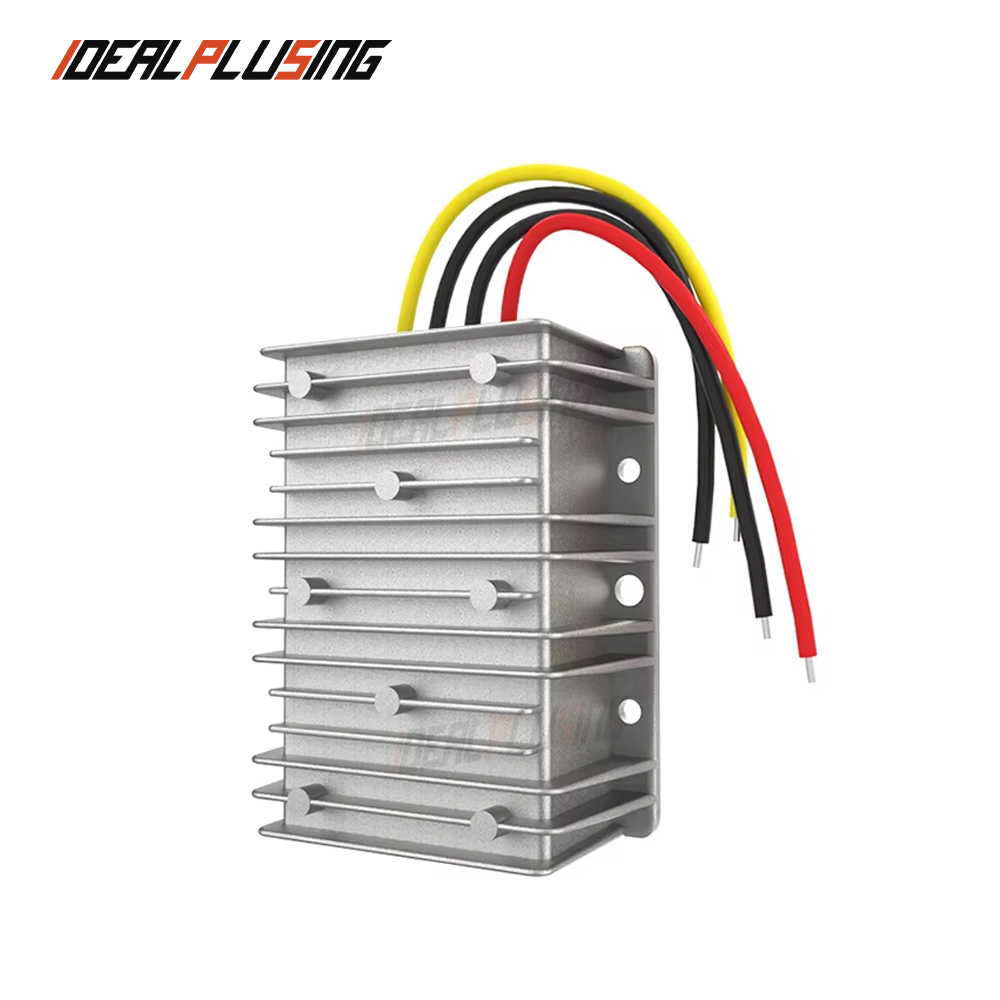

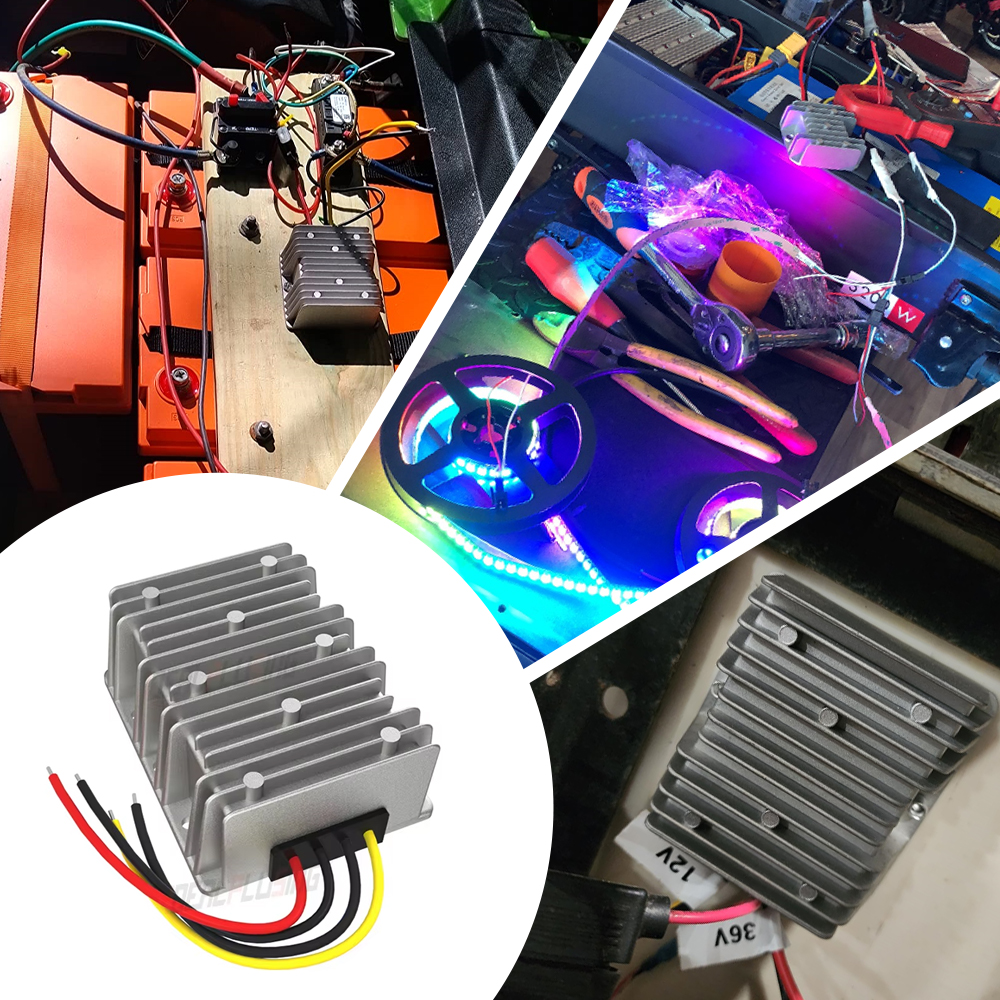

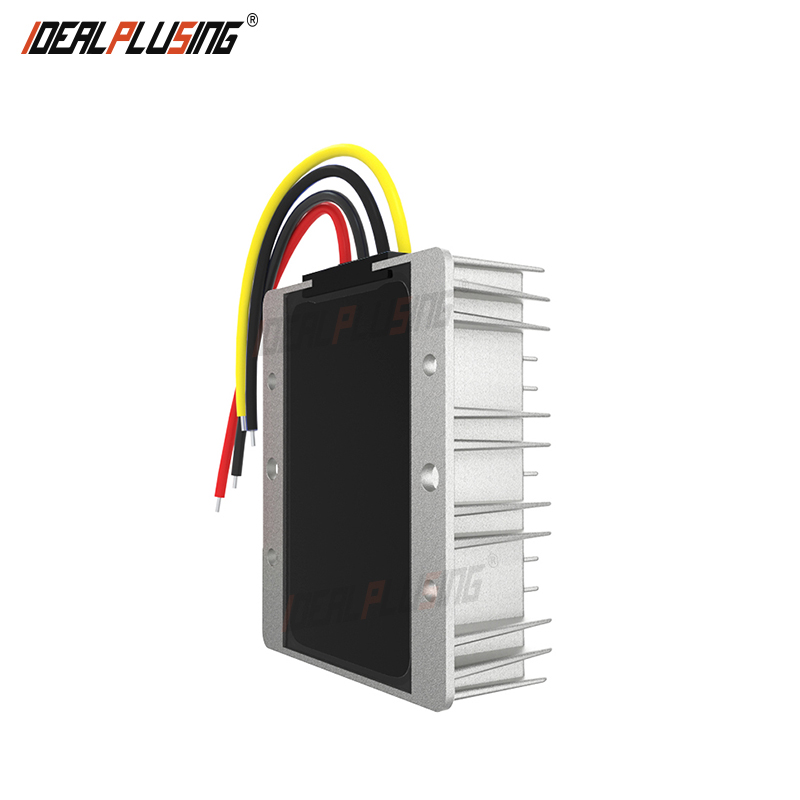

Product Showcase
Technical Application Guide
Standard protection includes: Output overcurrent, short-circuit, input undervoltage, and chip overheating protection (approx. 90°C).
For inductive loads (motors, magnetic valves), we recommend power supplies 3-5 times the rated load power.
Isolated products are highly recommended for precious loads to prevent high input voltage pass-through.
Gold aluminum casings are designed for high reliability in outdoor and high-demand environments.
To prevent current backflow or anti-reverse issues, external diodes and fuses should be added where appropriate.

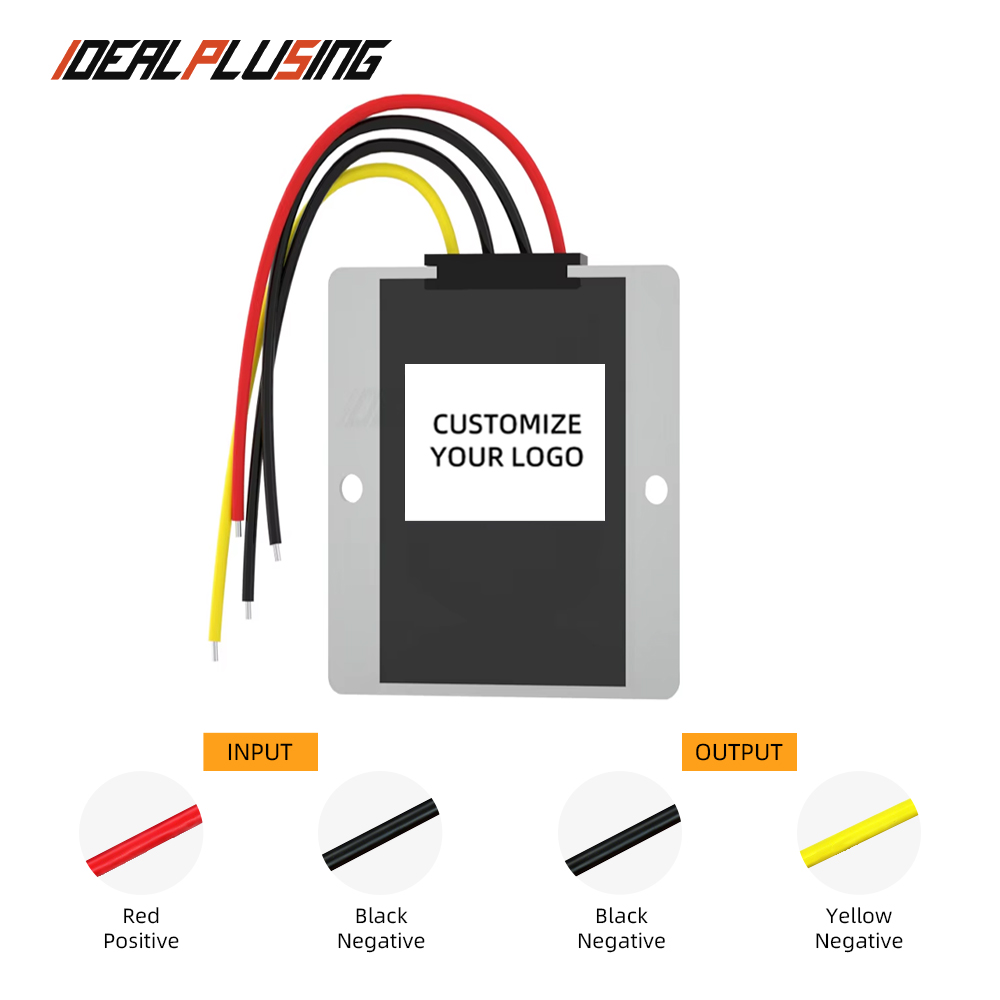

Isolated power supplies support negative voltage input (0V to Red, Negative to Black).
Internal Components & Details
Frequently Asked Questions
What is the difference between Isolated and Non-Isolated converters?
Isolated converters have no direct electrical path between input and output, providing the highest safety. Non-isolated converters are more efficient and smaller but carry a risk of high voltage passing to the load in the event of a failure.
How do I choose a power supply for a motor?
For inductive loads like motors or solenoids, the starting current is high. We recommend choosing a converter with 3 to 5 times the rated power of the load to ensure stability.
Does this unit have waterproof protection?
Yes, several models, such as the IPS-DTD60S1250, feature an IP67 waterproof level, making them suitable for outdoor industrial use.
What happens if there is an input undervoltage?
Most of our buck-boost products include undervoltage protection. However, some step-up (boost) series may require external fuses to prevent damage during undervoltage short-circuit events.
Can these converters be used for battery charging?
We offer specific DC-DC battery charger models (like the IPS-DTDYC series) designed specifically for Lithium and Lead-Acid battery profiles. Standard converters should not be used for charging unless specified.
What is the operating temperature range?
The converters are built for industrial environments. Large power supplies include over-temperature protection that typically triggers around 90°C on the casing or circuit board.
