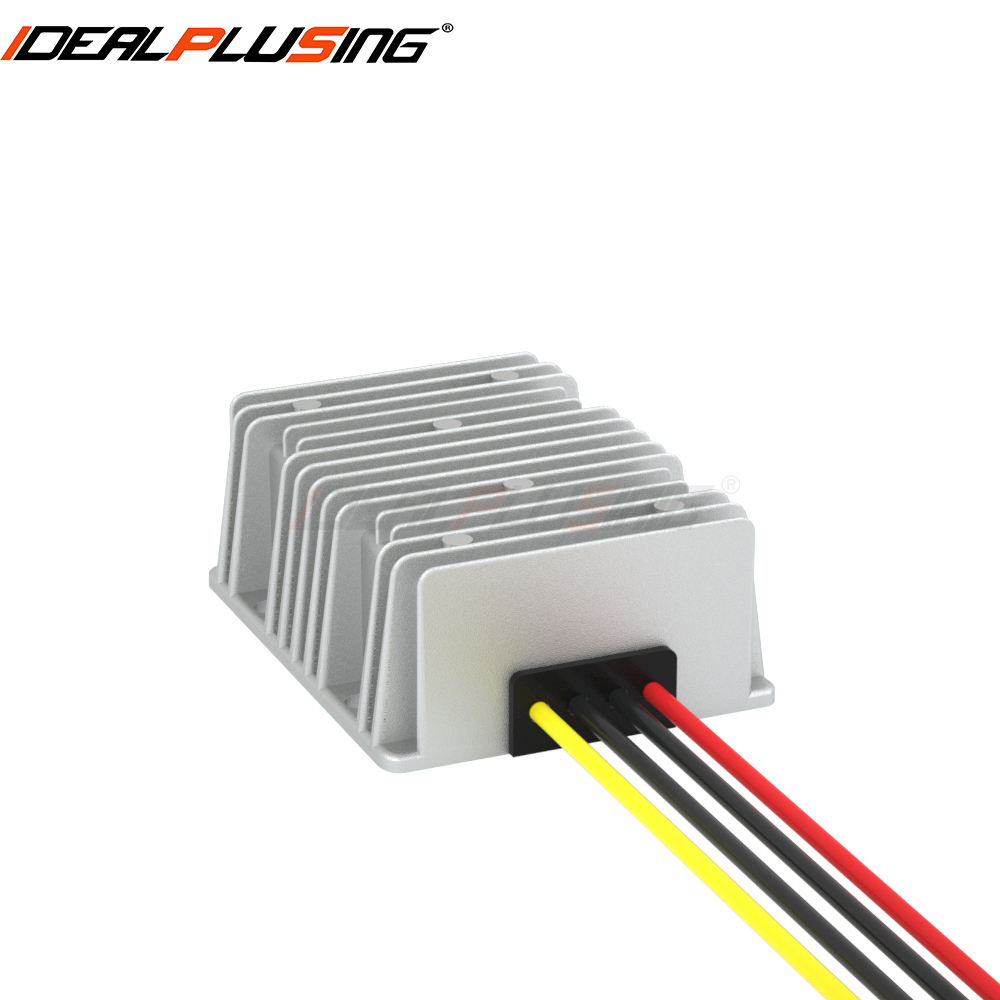

Good Quality Dc 96v to Dc 24v 20a 480w Buck Step Down Converter for Truck Bus Motor LED Light Car
Product Description
PART 1. INTRODUCTION
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type.
Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load.
PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.

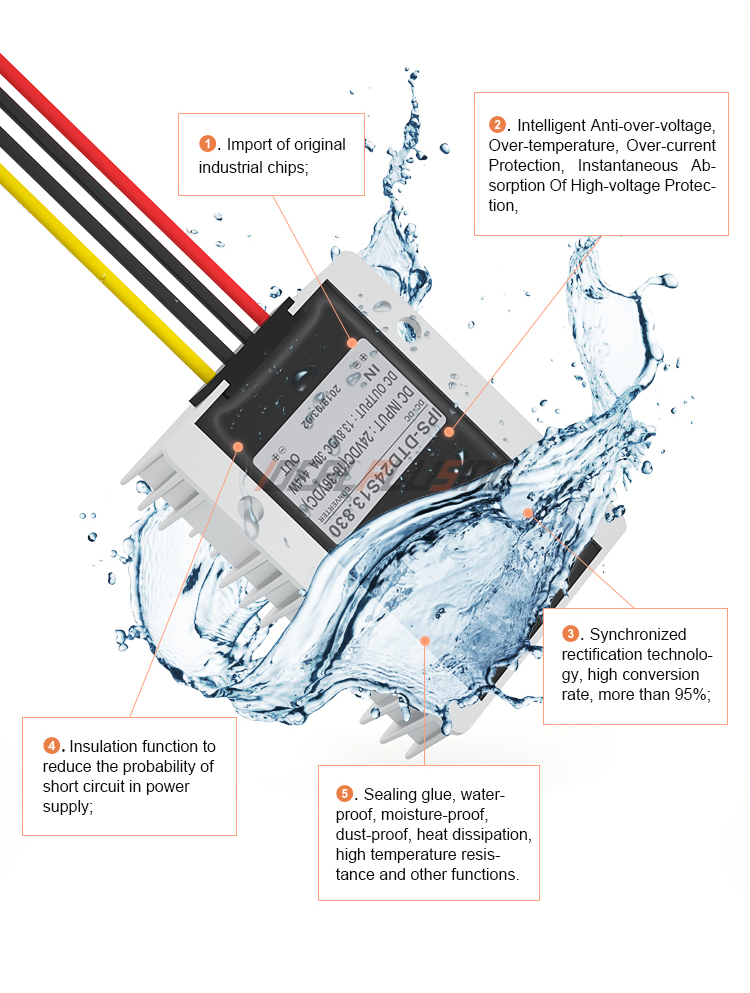

PART 2. FEATURES
1Design meeting RoHS / CE
2High efficiency: 93%
3Non-isolated between input and output
4Internal capacitor: NCC & NICHICON (high reliability)
5100% full load burn-in test
6Over load, Over temperature and Over voltage protections
7Waterproof level IP65
812 months warranty
PART 3. MODEL DEFINITION
Model Rules: IPS-DTDXXSYYZZZ , For example : IPS-DTD12S2460
| Model Rule Description | |||
|---|---|---|---|
| IPS | Brand Identifier | DTD | DC TO DC Converter |
| XXX | Max input Voltage | YYY | Max output Voltage |
| ZZZ | Max output Current | ||
PART 4. TECHNICAL PARAMETER
| Specification Details | |
|---|---|
| Type | NON-Isolated |
| Model | IPS-DTD96S2420 |
| DC VOLTAGE INPUT | |
| Voltage rate | 96VDC |
| Voltage range | 30~110VDC |
| DC VOLTAGE & CURRENT OUTPUT | |
| Voltage rate | 24VDC |
| Current | 20AMPS |
| Rate Power | 480Watts |

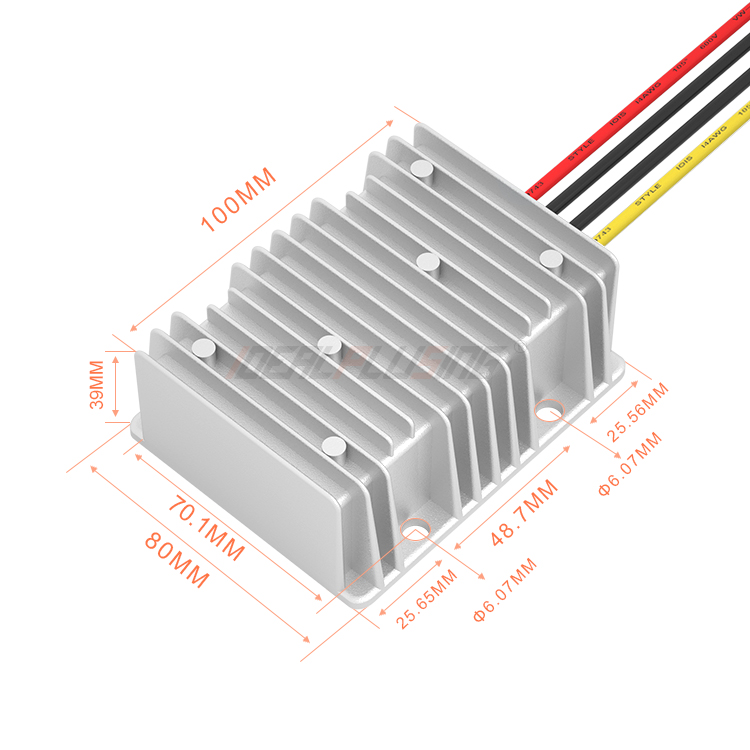

| Size | 100*80*39(MM) |
| NW | 480G |
| OTHERS | |
| Customize | Allow |

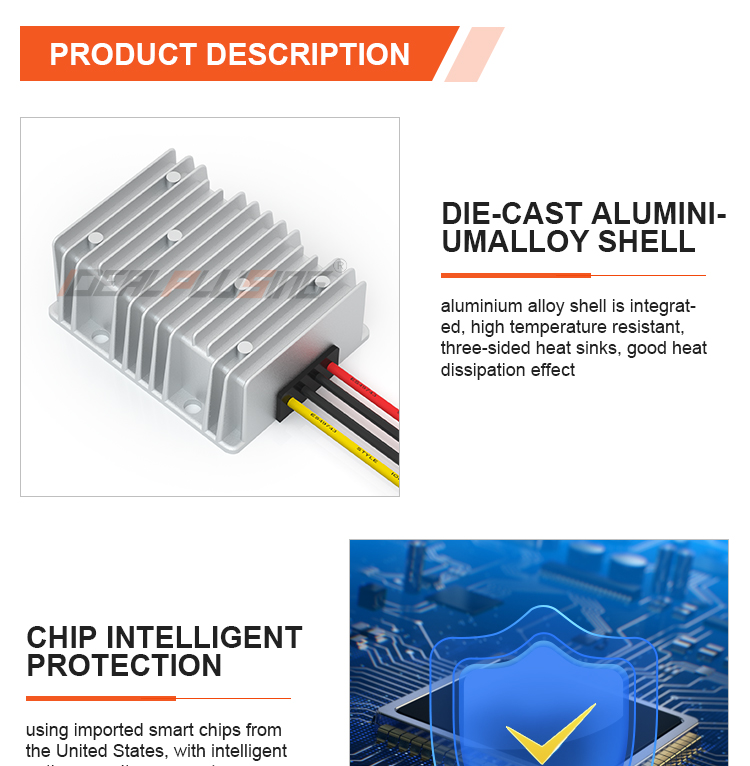

| Material of shell | Aluminum |
| Working temp | -20~80℃ |
| Efficiency | 93% |
| Waterproof Level | IP65 |
| Protection function | Input instant over-voltage, Output over current, Chip over-heat protection |

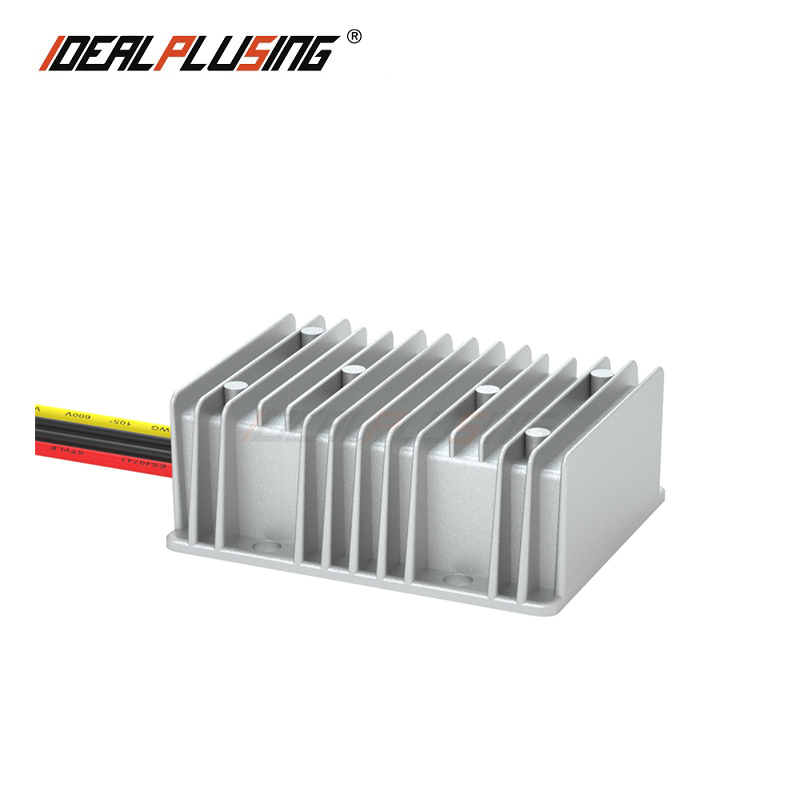

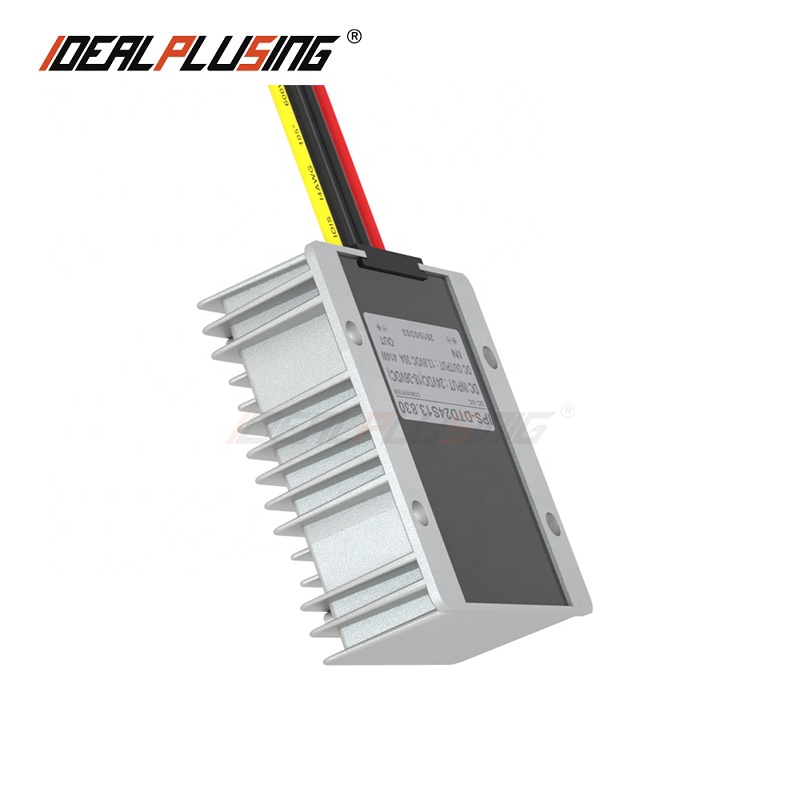

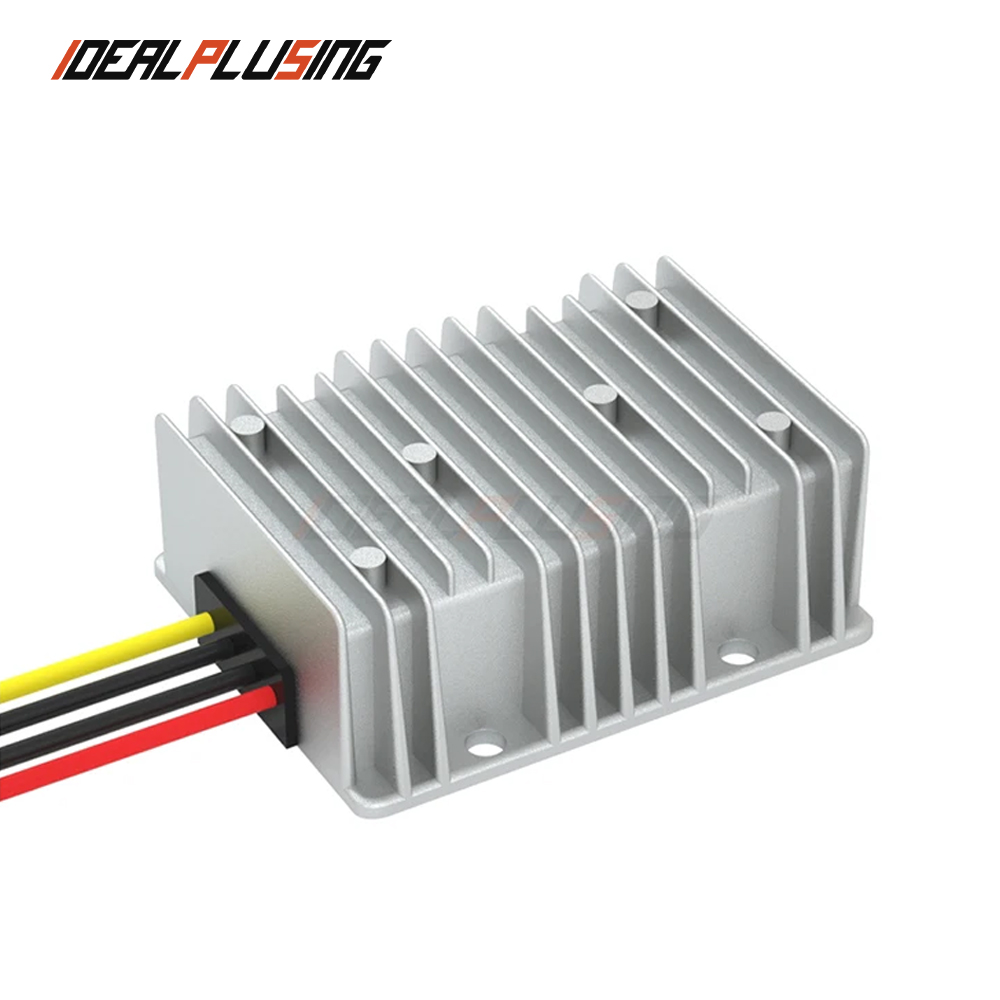

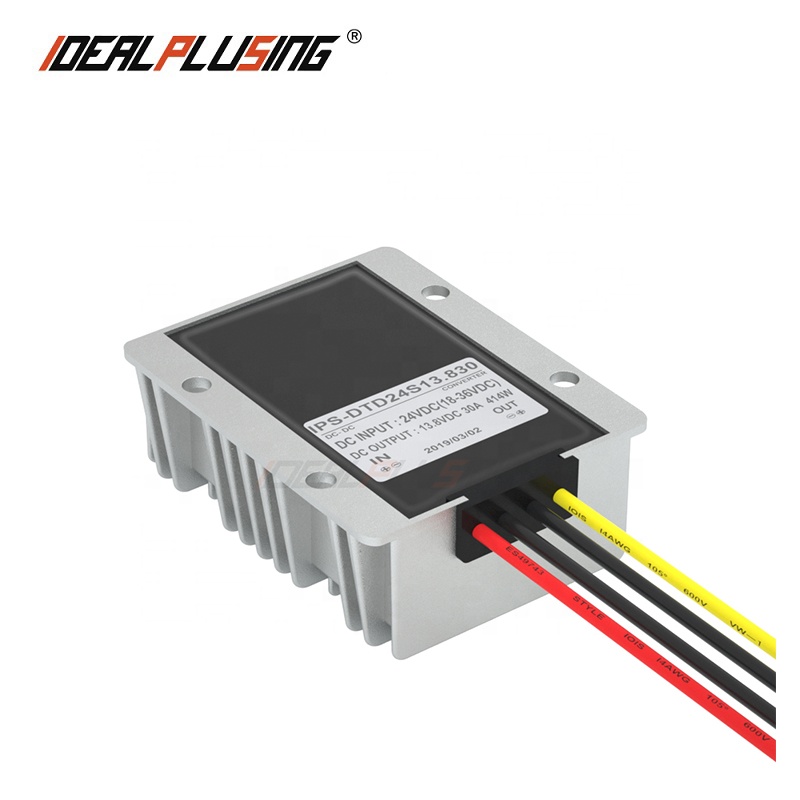

PRODUCT DISPLAY
FACTORY DISPLAY
MORE POWER SOLUTIONS
FREQUENTLY ASKED QUESTIONS
Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
What about the lead time?
Most of the model in the stock, sample lead time after receive payment 1-3 working days.
Do you have any MOQ limit?
Low MOQ, 5 pieces for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Is it acceptable to print the buyer logo on the product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supply.
