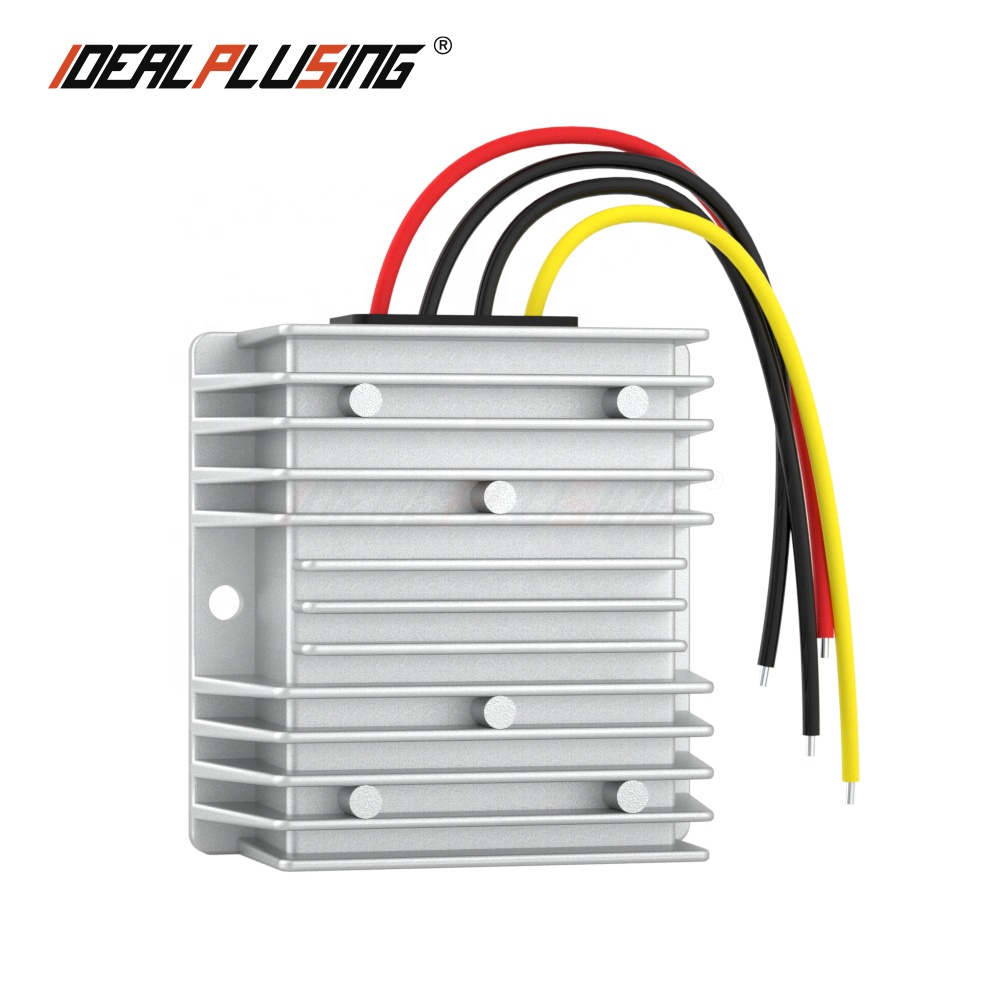

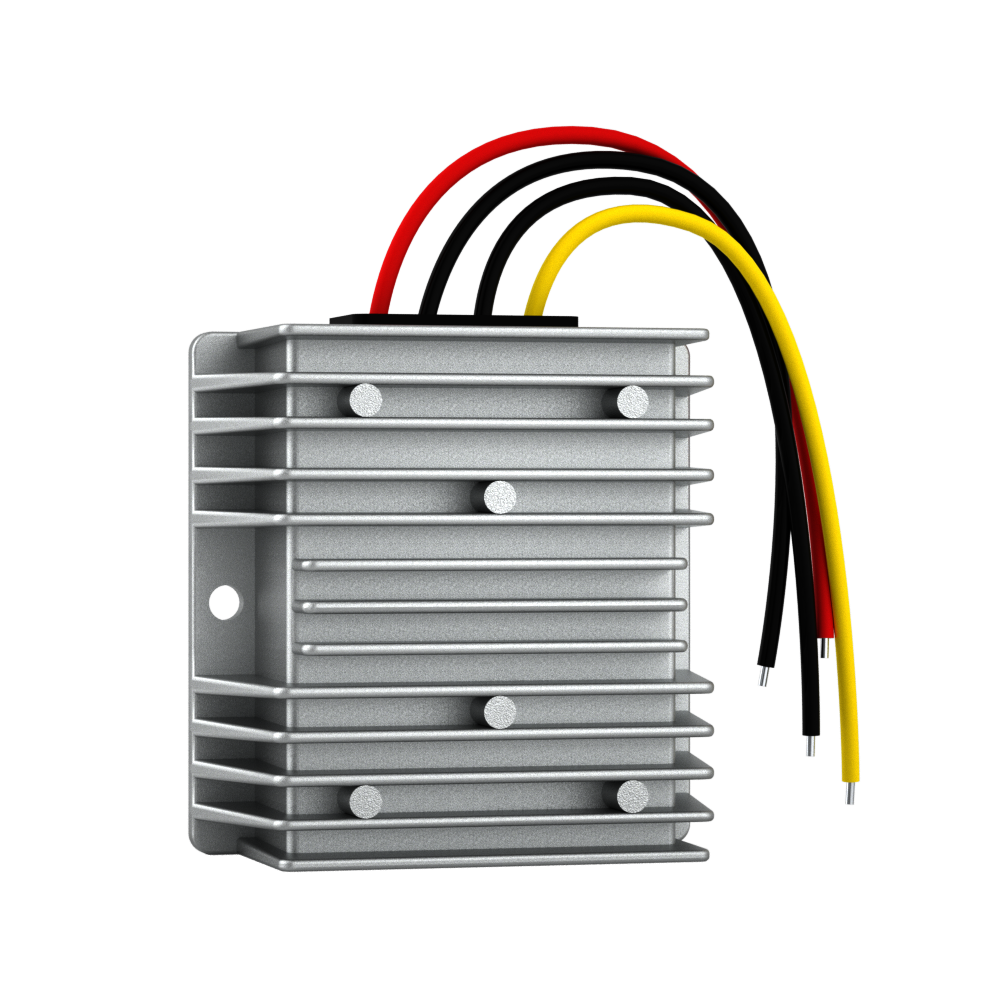

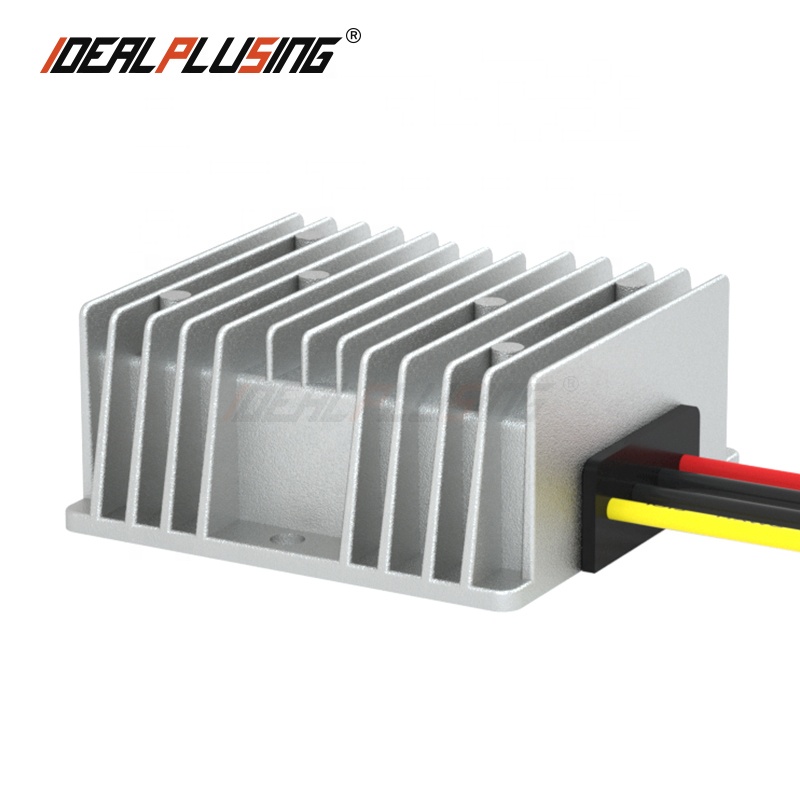

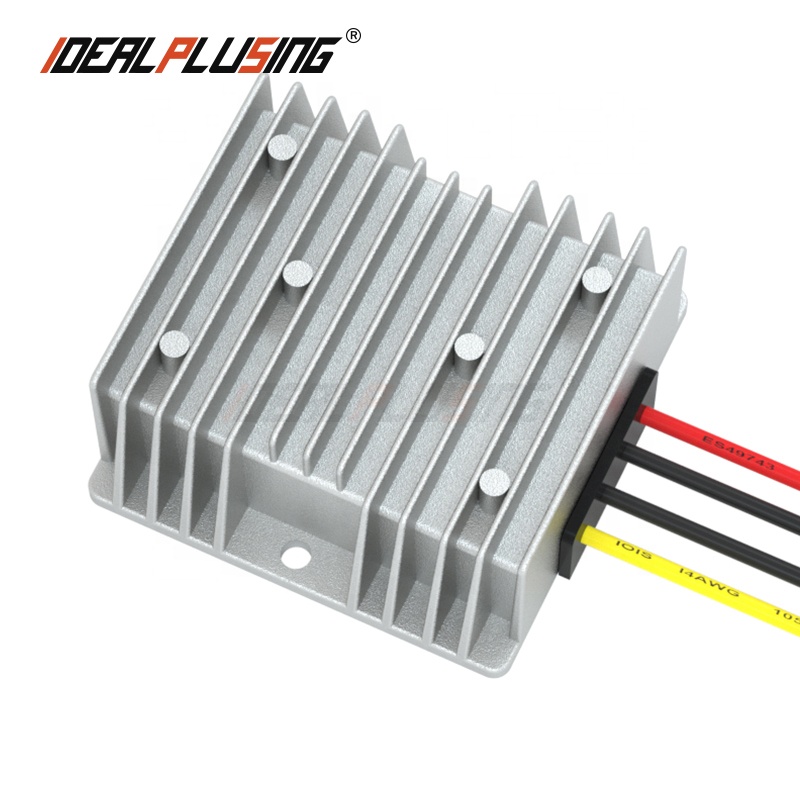

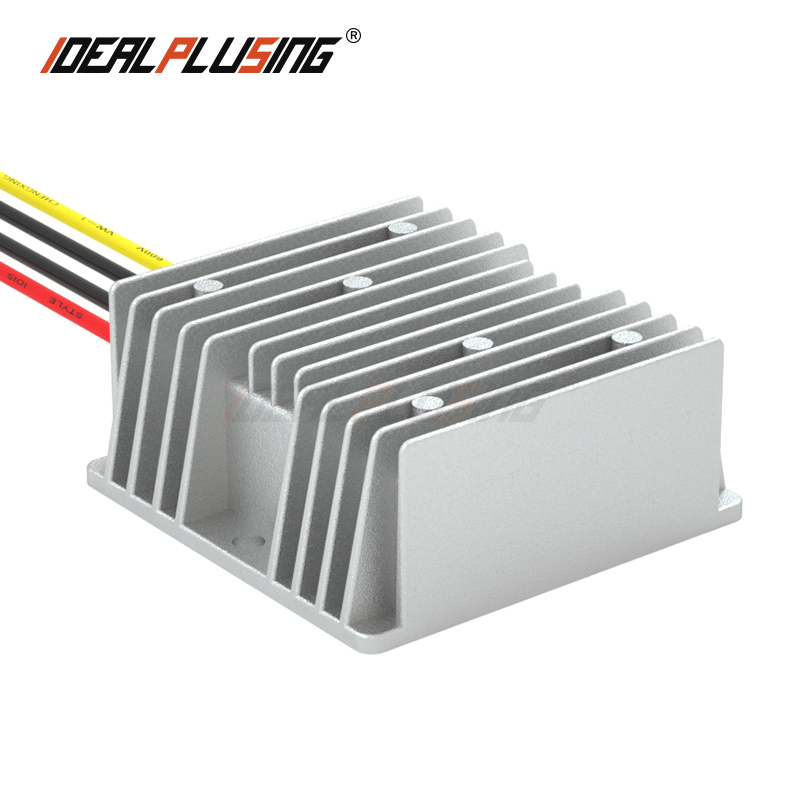

Factory Price Step Down DC DC Converter 36V 48V 60V 72V 80V 100V 96V to 12V 10A 15A for E-bike Motorcycle
Product Description
High Performance Step Down DC-DC Converters
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are essential for modern electronics, categorized into Boost, Buck, and Boost-Buck types. Using PWM and PFM control ensures high efficiency and low power consumption across various load conditions.
◈ PWM Control: High efficiency with excellent output voltage ripple and noise control for heavy loads.
◈ PFM Control: Low power consumption advantage, ideal for long-term use and small load conditions.
◈ Applications: Widely used in e-bikes, motorcycles, mobile phones, digital cameras, and portable media players.
We provide personalized, efficient, reliable, and cost-effective power supply solutions. Specializing in customized DC-DC converters, our offerings range from 1V to 1000V DC and 1A to 1000A, with both isolated and non-isolated design options to meet specific industrial requirements.
📋 Product Specifications
| Type | Non-isolated / Isolated Options |
|---|---|
| Input Voltage | 36V 48V 60V 72V 80V 100V 96V (Base on model) |
| Output Voltage | 12V (Customizable 1V-1000V) |
| Output Current | 10A / 15A (Up to 1000A) |
| Shell Material | Durable Aluminum |
| Waterproof Level | IP67 Rated |
🚀 Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
🛠 Technical Application Guidelines
✔ Standard protection includes overcurrent, short-circuit, undervoltage, and chip overheating.
✔ Aluminum casing provides high-temperature resistance for outdoor and high-demand applications.
✔ For inductive loads (motors, magnetic valves), use a power supply 3-5 times the rated load power.
✔ Isolated products are recommended for precious loads to prevent high input voltage pass-through.
✔ Negative poles of isolated products must be used separately to maintain isolation integrity.
✔ IP67 waterproof design ensures stability in harsh environments.
📸 Product Display Gallery
Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM (Pulse Width Modulation) offers high efficiency and low noise for heavy loads, while PFM (Pulse Frequency Modulation) is optimized for low power consumption during light load or long-term idle states.
Why should I choose an isolated DC-DC converter?
Isolated converters protect the load by ensuring there is no direct electrical path between input and output. This prevents high input voltage from damaging precious equipment in case of a component failure.
How do I choose a power supply for motor applications?
For inductive loads like motors, it is recommended to select a converter with 3 to 5 times the rated power of the load to handle the high start-up current.
Are these converters waterproof?
Many of our models feature IP67 waterproof protection and hard gel encapsulation, making them suitable for outdoor and harsh industrial environments.
Can I customize the input and output voltage?
Yes, we specialize in customization. We can design solutions ranging from 1V to 1000V DC and currents from 1A to 1000A to meet your specific requirements.
Do step-up (Boost) converters have short-circuit protection?
Due to circuit structure, many non-isolated boost products do not have built-in output short-circuit protection. It is highly recommended to add an external fuse at the input end.
