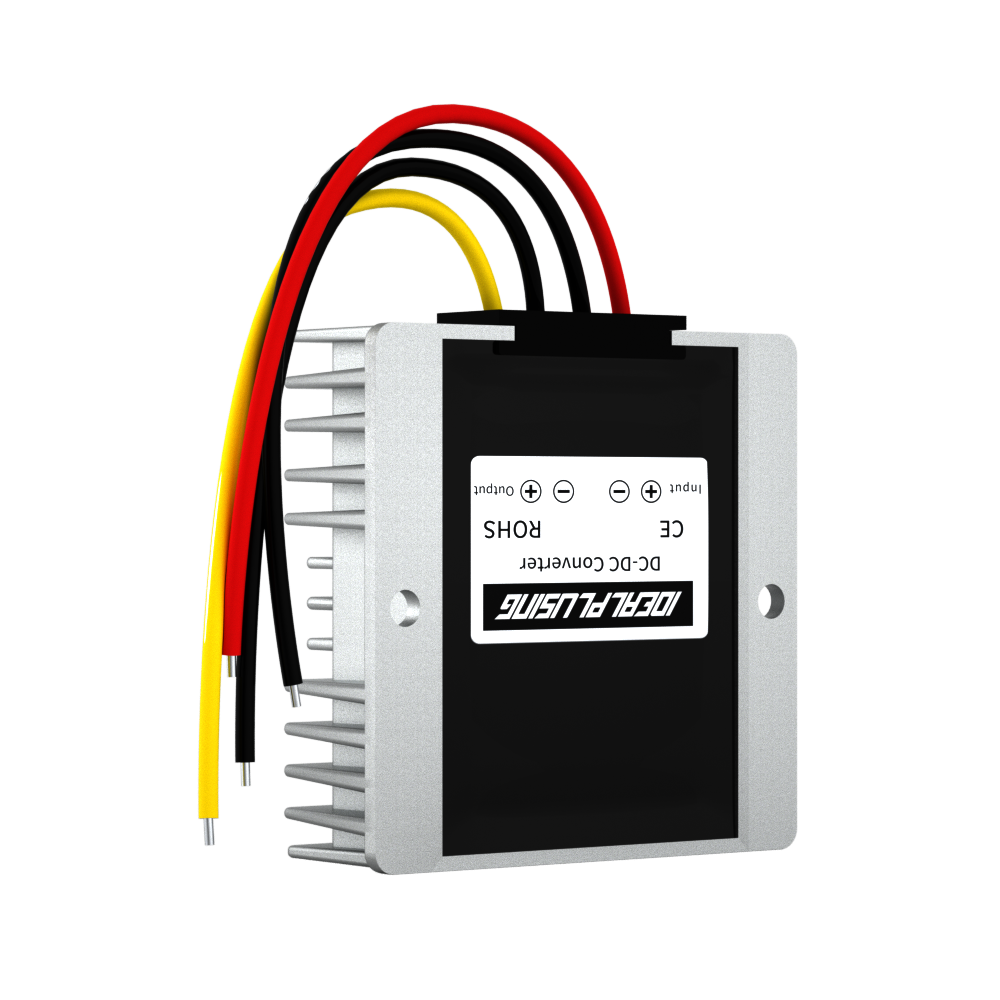

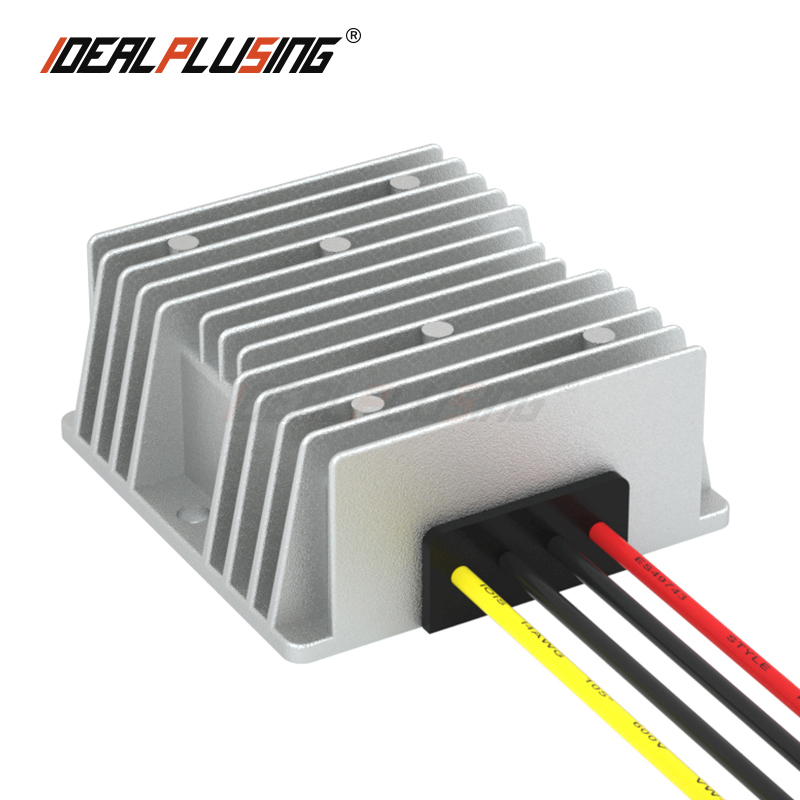

24v Ac Converter to 12v Dc Converter Voltage Buck Regulator 5a 60w
Product Description
We are a company specializing in power conversion solutions. Our products are widely used in electric vehicles, automobiles, RVs, and other vehicles, as well as in marine, communication, and industrial sectors.
⚡
Decades of Expertise: Since 2001, our team has been providing power solutions. With more than 24 years of R&D experience and over 16 years of production management, we ensure the high reliability of our products.
We have developed more than 5000+ power supply solutions. The power range spans from 1 watt to 200 kilowatts, with input voltages reaching up to 2000 volts. Our products feature a design life of 15 to 20 years, meeting high requirements for global standards and complex working environments.
🛠️
Customization Excellence: We specialize in customizing products according to different usage scenarios and actual loads. Our professional engineers can develop tailored plans for your specific needs.
Open Communication: Please do not hesitate to reach out. Asking for information costs nothing, but it represents a valuable opportunity for your project.
Inquiry Ready: Contact us and send an inquiry for further details.
| Parameter of ac dc 12v 5a regulated | |
|---|---|
| Product Name | ac dc 12v 5a regulated |
| Type | Non-Isolate |
| Model | IPS-DTD24S125 |
| INPUT | |
| Input rated voltage | 24VDC |
| Input voltage range | 15~28VAC or 21~39VAC |
| OUTPUT | |
| Conversion Efficiency | 96% |
| Output voltage | 12DC |
| Output current | 5A |
| Output rated power | 60W |
| Output peak power | 125% |
| OTHERS | |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage |
| Machine size | 74*74*32(MM) |
| NW | 300G |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
| Customize / OEM / ODM | Support |
Frequently Asked Questions
1. What is the typical design life of these power converters?
Our power supplies are engineered for high reliability with a design life of 15 to 20 years, making them suitable for long-term industrial and automotive applications.
2. Can I get a customized power supply for my specific scenario?
Yes, we specialize in customization. We have developed over 5000+ unique solutions based on specific customer usage scenarios and load requirements.
3. Are these converters protected against environmental factors?
Absolutely. Our converters come with an IP65 waterproof rating and are designed to operate in complex environments with temperatures ranging from -40°c to +80°c.
4. What built-in safety protections are included?
The units include comprehensive protection against over-load, over-current, over-temperature, short-circuits, and optional over-voltage protection.
5. What industry certifications do your products hold?
Our products are fully compliant with CE and RoHS certifications, ensuring they meet the safety and environmental standards of international markets.
6. What is the efficiency of the AC/DC 12V 5A regulator?
This model features a high conversion efficiency of approximately 96%, minimizing energy loss and heat generation during operation.
