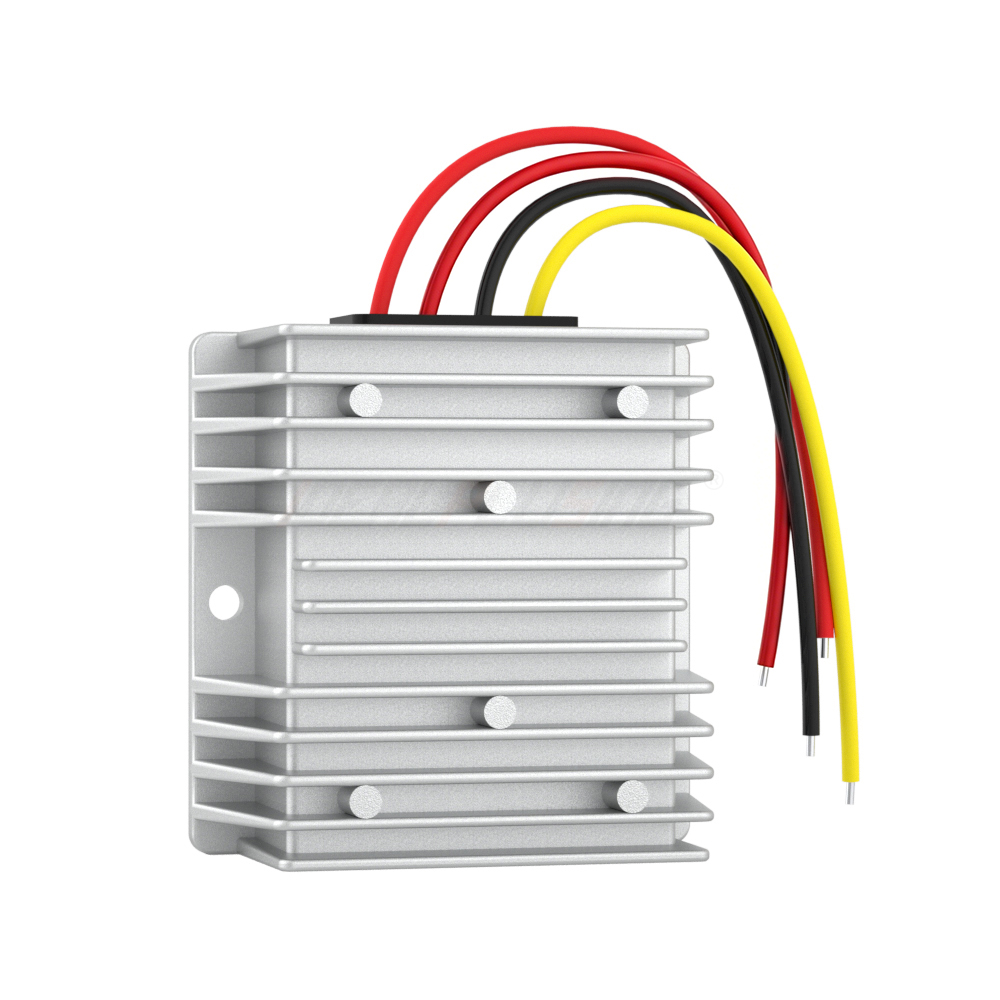

Open Frame PCB Mount AC DC Converter 48V to 5V 12V 24V 6A 10A 50W Embedded Switching Power Supply Board for Medical Electronics
Product Description
Open Frame PCB Mount AC DC Converter 48V to 5V 12V 24V 50W Embedded Switching Power Supply Board
Reliable and efficient power conversion solutions for medical electronics and industrial applications.
⚡Features
A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are categorized into Boost, Boost & Buck, and Buck types. Depending on the demand, three kinds of control can be adopted:
- PWM Control: High efficiency with excellent output voltage ripple and noise control.
- PFM Control: Advantage of low power consumption during long-term use, especially under small loads.
- Hybrid Control: Automatically switches between PWM and PFM to ensure optimal efficiency across all load conditions.
Widely used in mobile phones, digital cameras, portable media players, and medical electronics.
🛠Customization Capabilities
We specialize in research, development, and providing personalized power supply solutions. We offer high-quality DC-DC converters, AC-DC rectifiers, and battery chargers.
Custom Specifications:
• Input/Output Voltage: 1V to 1000V DC
• Current Range: 1A to 1000A
• Design Options: Isolated and Non-Isolated configurations
📊Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD48S246 |
| Input Voltage | 20-56VAC |
| Output Voltage | 24VDC |
| Output Current | 6Amps |
| Output Power | 144Watts |
| Material of Shell | Aluminum |

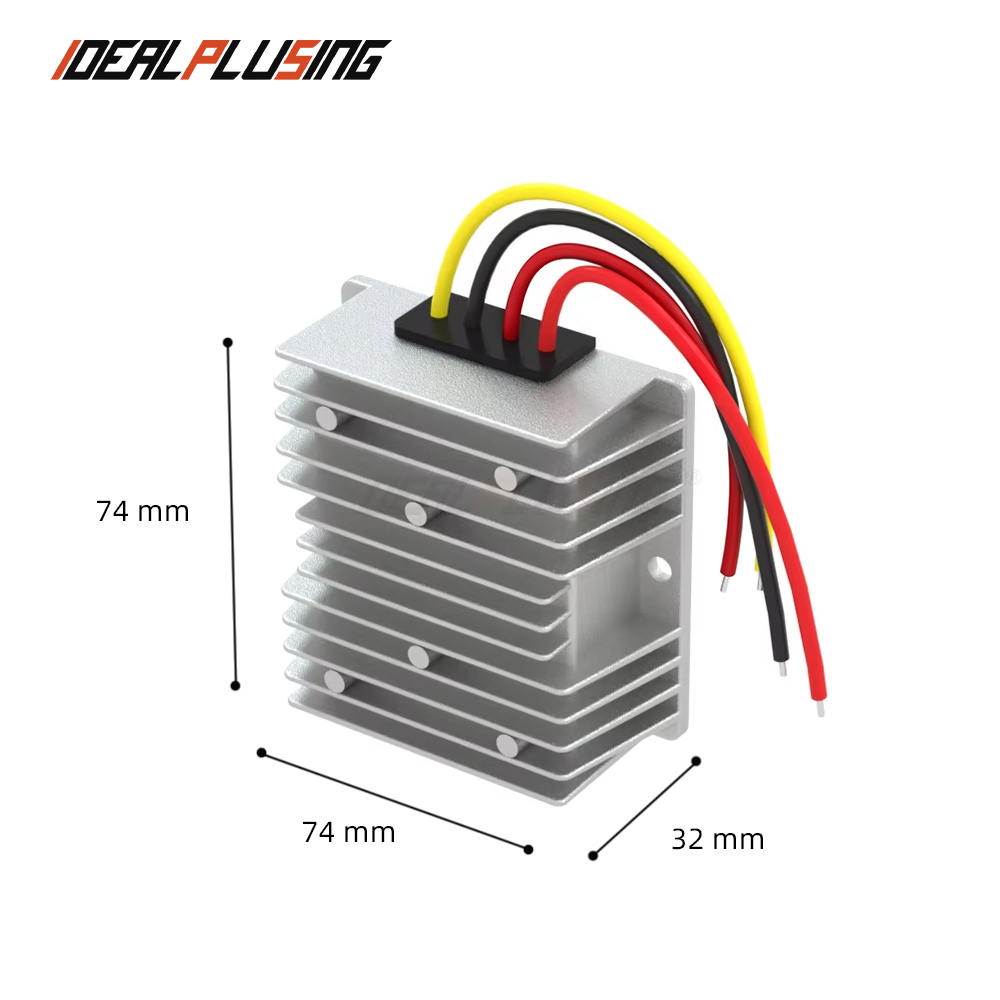

| Converter Size | 74*74*32MM |
| Net Weight | 300G |
| Waterproof Level | IP67 |
🔥Hot Selling Models
IPS-DTD30-60S1210
Type: Non-Isolate
IPS-DTD20-100S122
Type: Non-Isolate
IPS-DTD15-40S1210
Type: Non-Isolate
📐Technical Description & Application
- Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
- Large power products feature over-temperature protection with a threshold around 90°C.
- Aluminum casings are designed for high-temperature resistance and reliability in outdoor applications.
- For inductive loads (motors, magnetic valves), we recommend a power supply 3-5 times the rated power of the load.
- Non-isolated buck power supplies carry a risk of direct high-voltage passage; isolated products are recommended for precious loads.
- In isolated products, negative poles (ground) cannot be shared to maintain isolation integrity.
- Isolated power supplies support negative voltage input and provide the highest level of safety for equipment.
❓Frequently Asked Questions
1. What is the difference between PWM and PFM control in converters?
PWM (Pulse Width Modulation) provides high efficiency and good ripple control for stable loads. PFM (Pulse Frequency Modulation) is ideal for low power consumption during long-term use and light load conditions.
2. Why are isolated power supplies recommended for precious loads?
Isolated power supplies prevent high input voltage from passing directly to the output end in case of a failure, providing a safer environment for expensive electronics compared to non-isolated units.
3. What should I consider for motor or inductive load applications?
For inductive loads like motors, coils, or speakers, it is recommended to use a power supply that is 3-5 times the rated power of the load to handle start-up surges.
4. Do all products include short-circuit protection?
Most buck-boost and step-down products come standard with output short-circuit protection. However, some step-up (Boost) series may require external fuses at the input end due to circuit structure limitations.
5. Can I get a customized voltage or current range?
Yes, we specialize in customizing DC-DC converters with input/output voltages ranging from 1V to 1000V DC and currents from 1A to 1000A to meet specific requirements.
6. What is the standard protection temperature for high-power units?
Large power supply products generally feature over-temperature protection on the circuit board or casing, typically set around 90°C.
