Reliable 24V to 12V 24V 2A 3A 5A 36W 48W 60W AC to DC Converter 10-28V Enclosed Power Supply for CCTV
Product Description
Reliable 24V to 12V DC Converter
2A 3A 5A | 36W 48W 60W AC to DC Enclosed Power Supply
2A 3A 5A | 36W 48W 60W AC to DC Enclosed Power Supply
High-efficiency voltage solutions for CCTV Security and Surveillance Systems
🚀 Key Features & Technology
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are essential for mobile phones, digital cameras, portable media players, and security electronics.
⚡
PWM Control
High efficiency with excellent output voltage ripple and noise control for heavy loads.
🔋
PFM Control
Low power consumption advantage, ideal for long-term use and small load conditions.
🔄
Auto-Conversion
Automatically switches between PWM and PFM based on the load requirements.
🛠️ Professional Power Supply Solutions
We provide personalized, efficient, reliable, and cost-effective power supply solutions across all industries. Our focus includes R&D and service for:
- DC to DC Power Supply Modules
- AC to DC Rectifier Modules
- DC to AC Inverters
- Customized Input/Output Voltage (1V to 1000V DC)
- Customized Current Ranges (1A to 1000A)
- Isolated and Non-isolated Design Options
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD24S123 |
| Input Voltage | 10-28VAC |
| Output Voltage | 12VDC |
| Output Current | 3Amps |
| Output Power | 36Watts |
| Material of Shell | Plastic |

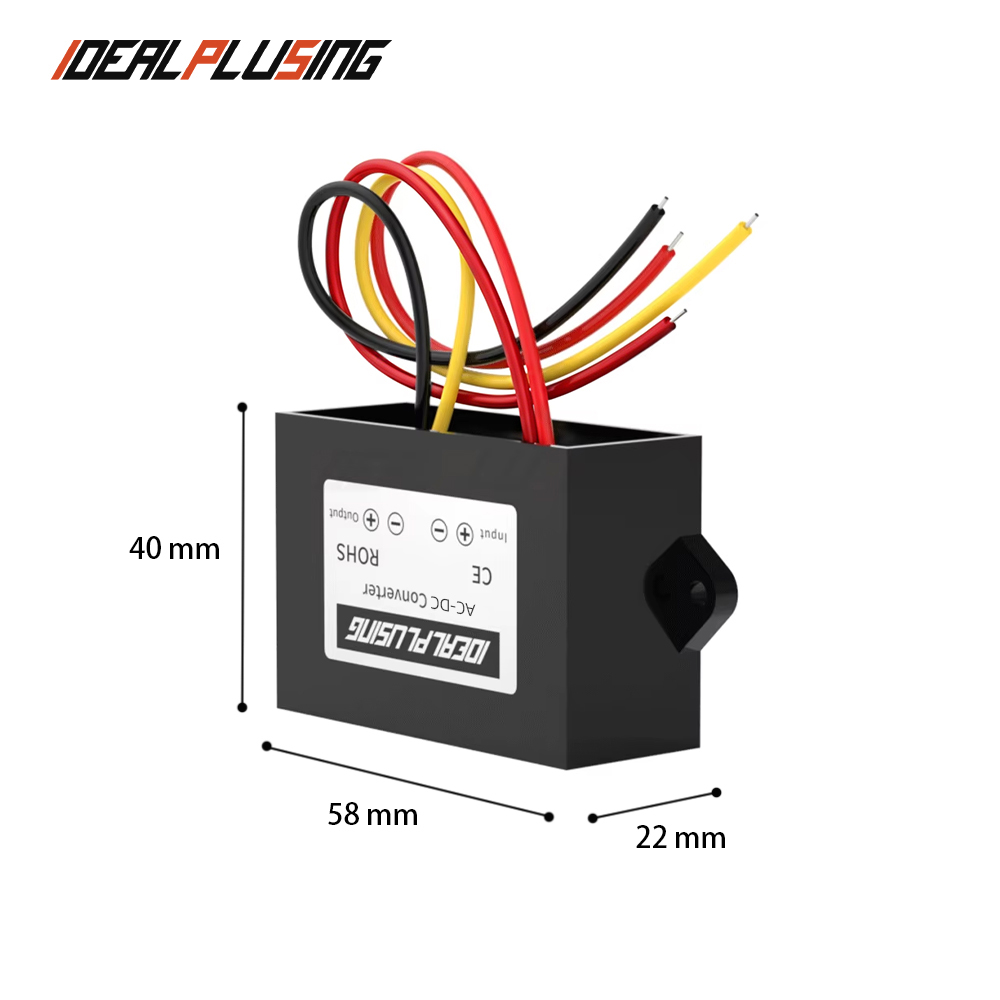

| Converter Size | 58*40*22MM |
| Waterproof Level | IP67 |
🔥 Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
IPS-DTD50-60S488
IPS-DTD50-60S488
IPS-DTD48S1240

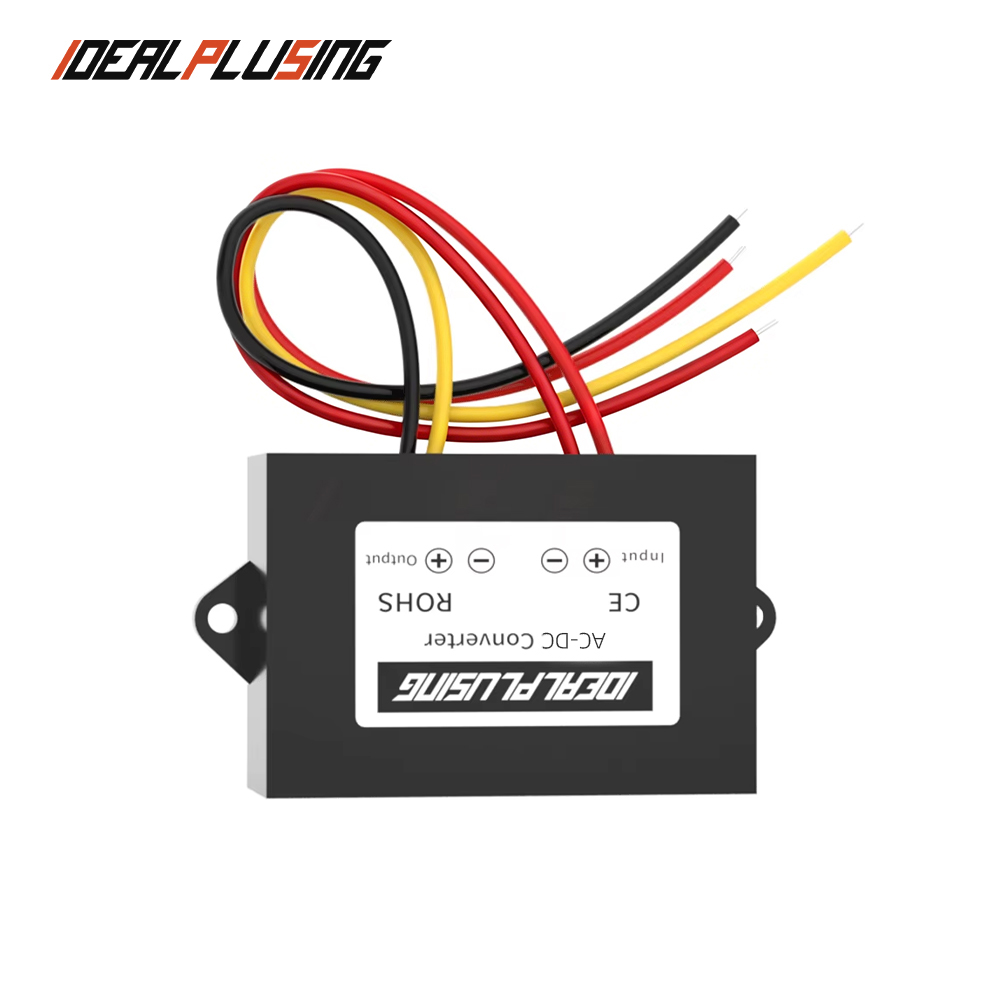

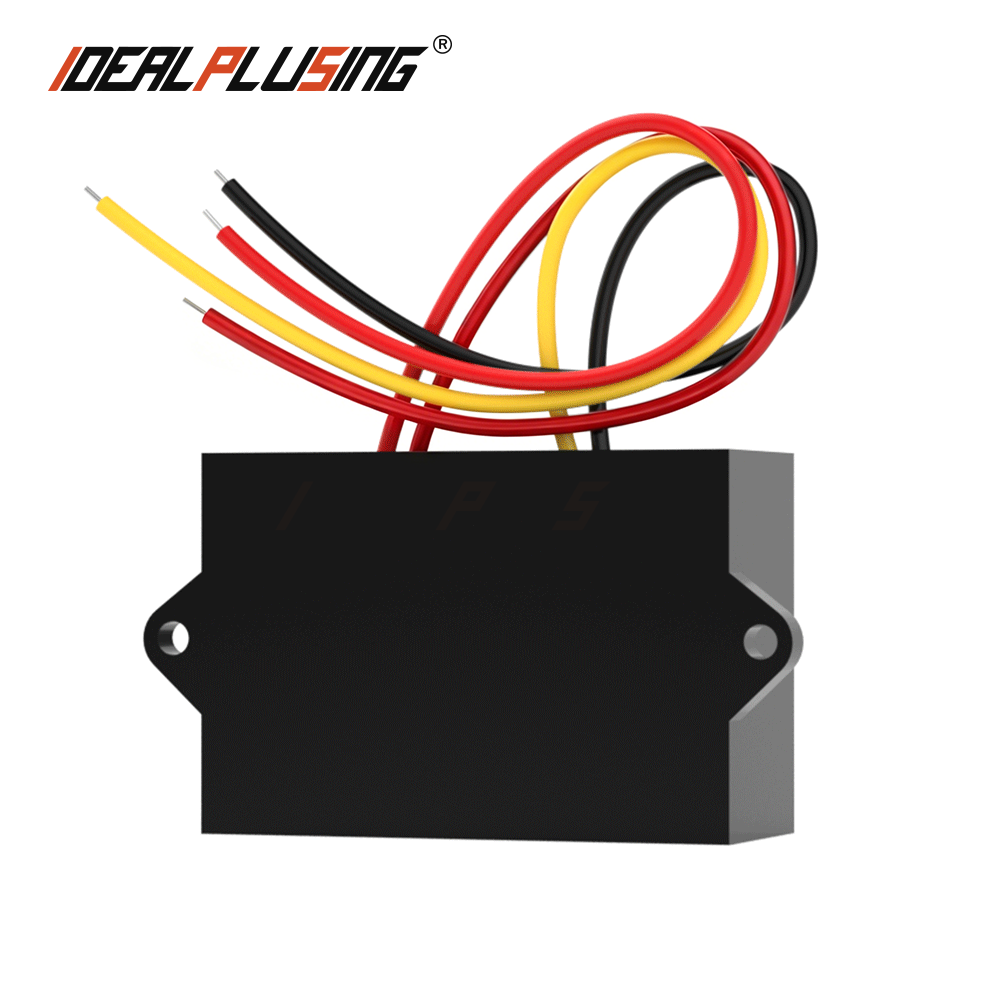

📷 Product Showcase
📝 Technical Application Guide
1. Protection Mechanisms: Standard buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection (up to 90°C).
2. Inductive Loads: For coils, motor applications, or magnetic valves, we recommend a power supply with 3-5 times the rated power of the load.
3. Safety Recommendation: Non-isolated buck power supplies carry a risk of passing high input voltage to the output end. For precious loads, Isolated Products are strongly recommended.
4. Installation Tip: To prevent damage, always add appropriate fuses at the input end. For anti-reverse connection, please use diodes.
5. Isolated Power: Negative poles of isolated products cannot be shared; input and output ground must be separate to maintain isolation effect.
❓ Frequently Asked Questions
What is the difference between Isolated and Non-Isolated converters?
Isolated converters provide a physical electrical barrier between input and output, preventing high input voltage from damaging the load in case of a fault. Non-isolated converters share a common ground and are more compact but offer less safety for precious equipment.
Can these converters be used outdoors?
Yes, many of our models (like the one shown with IP67 rating) are waterproof and enclosed in high-temperature resistant aluminum or plastic casings, making them ideal for outdoor CCTV and industrial environments.
Do the converters have short-circuit protection?
Most buck-boost and step-down products come standard with output short-circuit and overcurrent protection. However, step-up (boost) series may require external fuses at the input end for complete protection.
How do I choose the right power for my motor?
For inductive loads like motors or solenoids, it is recommended to select a power supply that is 3 to 5 times the rated power of the load to handle the initial surge current.
Are the output voltages adjustable?
While non-isolated supplies can often be modified by adjusting the voltage regulator, isolated power supplies are built with specific transformers. We offer full customization for voltage (1V-1000V) and current (1A-1000A) during the manufacturing process.
What is the advantage of PWM vs PFM control?
PWM provides high efficiency and low noise for heavy loads, while PFM is designed for low power consumption during long-term use with small loads. Our converters automatically switch between them for optimal performance.
