High Efficiency AC DC Converter 48V to 5V 12V 24V 36V 6A 8A 15A 75W 180W 192WSwitching Power Supply for Industrial Automation
Product Description
High Efficiency AC DC Converter & Switching Power Supply
A DC/DC converter is a voltage converter that effectively outputs fixed voltage after converting input voltage. These converters are categorized into three types: Boost, Boost & Buck, and Buck type. Depending on demand, different control mechanisms are used. PWM control offers high efficiency with excellent output voltage ripple and noise management. PFM control provides low power consumption, ideal for long-term use and small loads.
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, chargers, and rectifier systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries.
We specialize in customizing DC-DC converters to meet your specific requirements, ranging from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated designs are available.
Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD48S515 |
| Input Voltage | 8-56VAC |
| Output Voltage | 5VDC |
| Output Current | 15Amps |
| Output Power | 75Watts |
| Material of Shell | Aluminum |

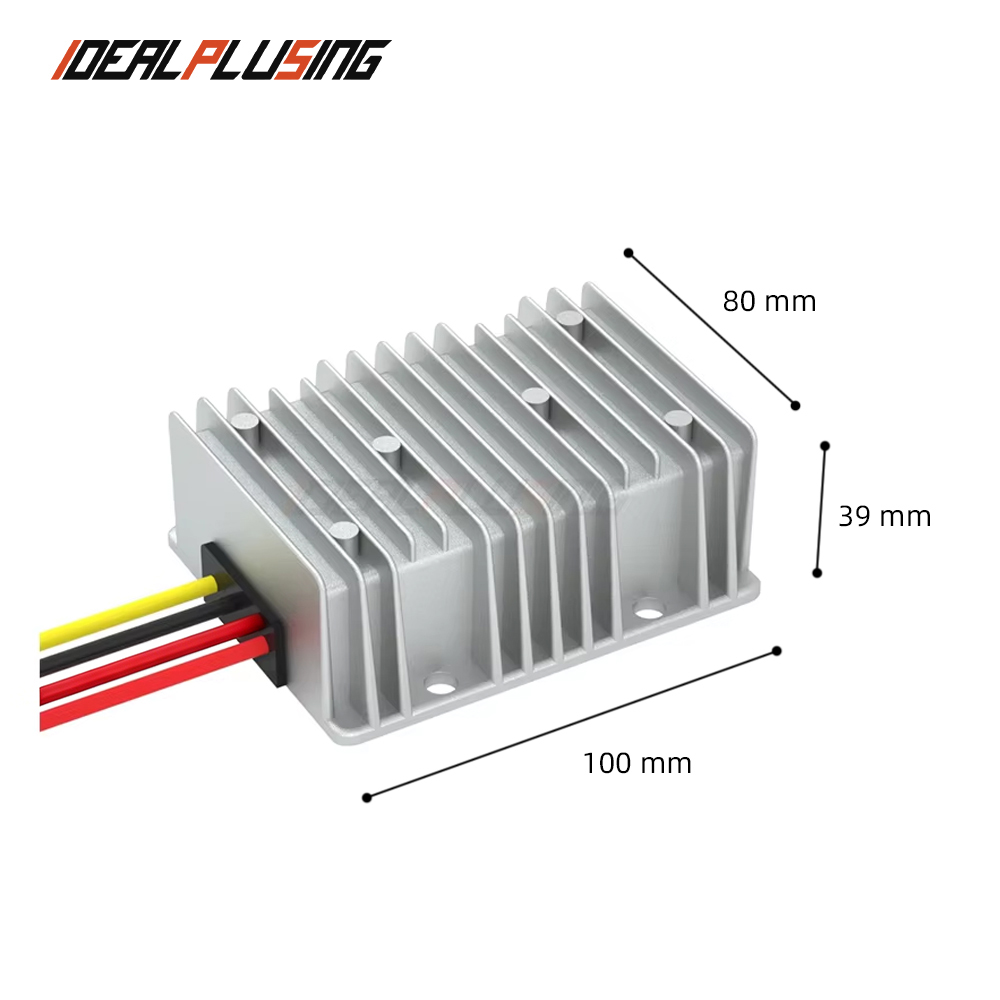

| Converter Size | 100*80*39MM |
| Waterproof Level | IP67 |
Technical Application Guidelines
1
All buck-boost and step-up/step-down products include output overcurrent, short-circuit, and undervoltage protection. High-power units feature overheating protection at approximately 90°C.
2
For inductive loads (coils, magnetic valves, motors), it is recommended to use a power supply with 3-5 times the rated power of the load.
3
Isolated products are recommended when carrying precious loads to prevent high input voltage from passing to the output end.
4

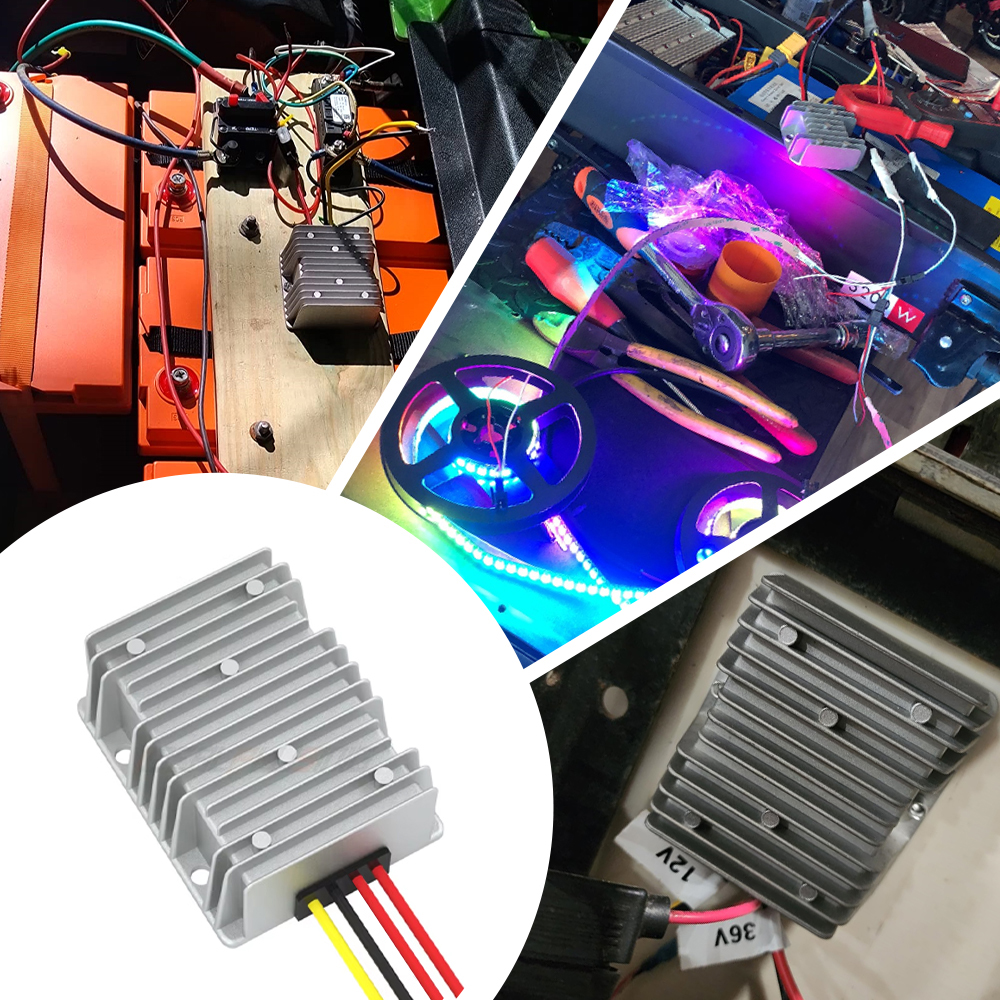

Aluminum casing models are high-temperature resistant and highly reliable for outdoor and high-demand industrial applications.

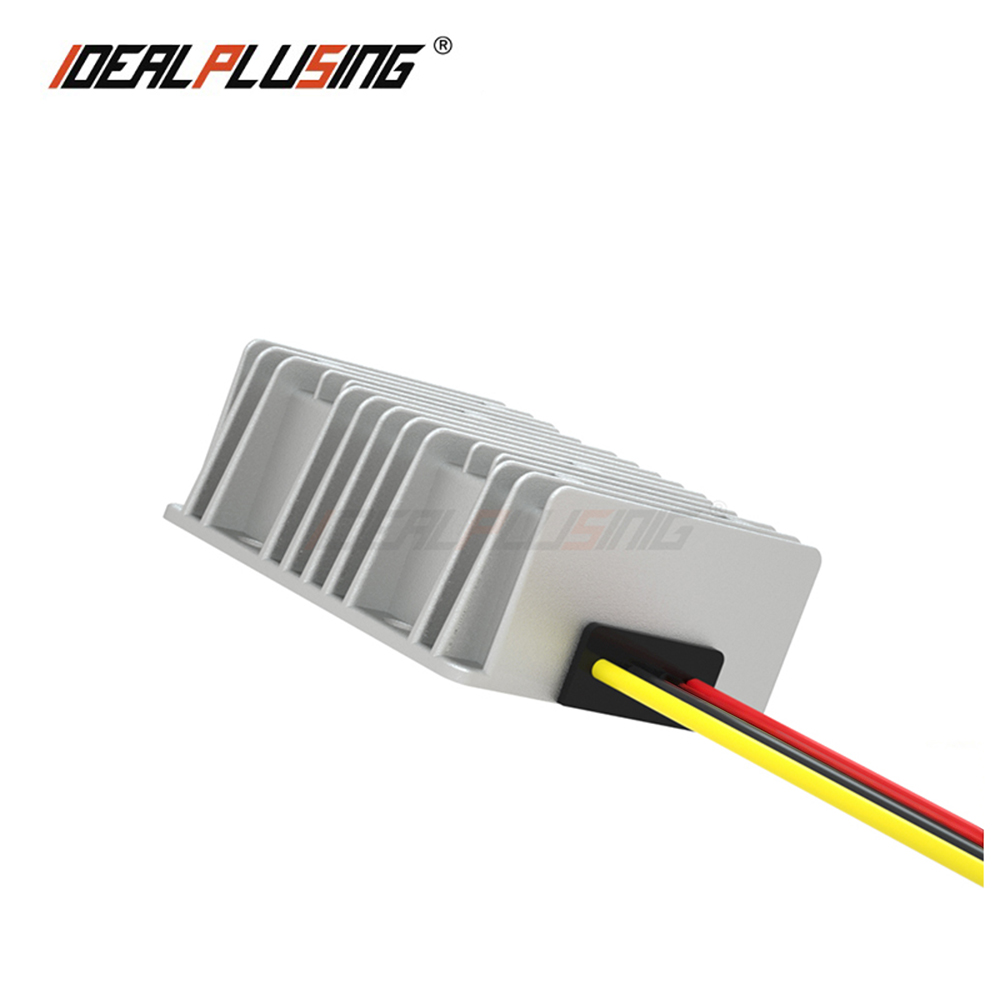

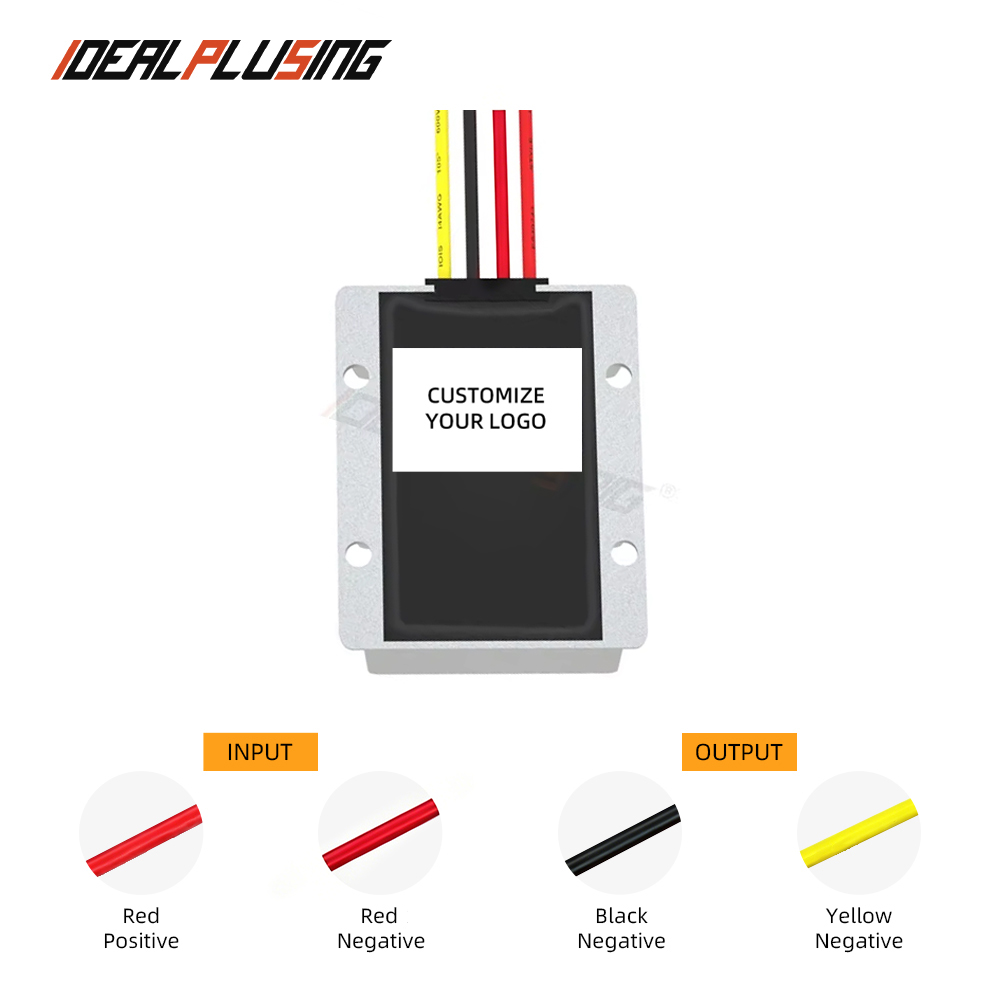

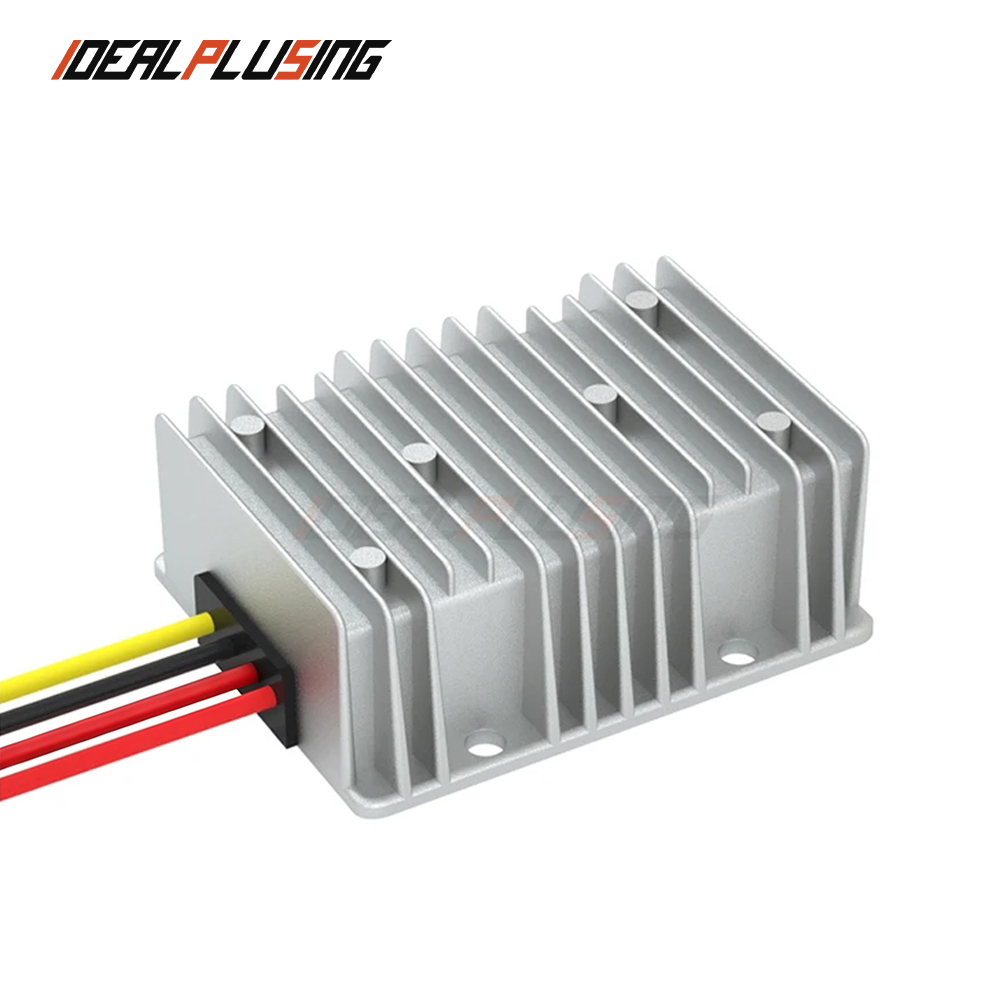

Product Gallery
Internal Details & Manufacturing
Frequently Asked Questions
Q1: What are the primary differences between PWM and PFM control?
PWM (Pulse Width Modulation) control provides high efficiency with low noise and ripple, while PFM (Pulse Frequency Modulation) is advantageous for its extremely low power consumption during long-term use or under light loads.
Q2: Can these converters be customized for specific voltages?
Yes, we specialize in customization. We can design converters with input and output ranges from 1V to 1000V DC and currents from 1A to 1000A based on your specific industrial needs.
Q3: Why should I choose an isolated converter over a non-isolated one?
Isolated converters provide a safety barrier between input and output. In the event of a failure, high input voltage will not pass to the output end, protecting expensive loads. They are highly recommended for precision industrial equipment.
Q4: How do I select a power supply for motor or inductive loads?
For inductive loads like motors, speakers, or magnetic valves, you should select a power supply with a rated power 3 to 5 times higher than the load's rated power to handle initial current surges.
Q5: Do the converters have built-in protection features?
Most models come standard with overcurrent, short-circuit, undervoltage, and overheating protection. However, step-up (boost) series may require external fuses for short-circuit protection due to their circuit structure.
Q6: Are the units waterproof and suitable for outdoor use?
Yes, many of our models feature IP67 waterproof ratings and use high-temperature resistant aluminum casings, making them ideal for harsh outdoor environments and demanding industrial automation tasks.
