High Precision Programmable AC to DC Converter 40V to 36V 6A 216W Benchtop DC Power Supply with RS485 Communication 38-42V Input
Product Description
High Precision Programmable AC to DC Converter
40V to 36V 6A 216W Benchtop DC Power Supply with RS485 Communication 38-42V Input
A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are categorized into Boost type, Boost & Buck type, and Buck type. PWM control provides high efficiency with low ripple and noise, while PFM control offers low power consumption for long-term use under small loads. Currently, these converters are widely used in mobile phones, digital cameras, portable media players, and industrial chopper circuits.
⚡ Customized Power Solutions
We focus on R&D for DC to DC modules, AC to DC rectifiers, and power systems. Our specialty lies in customizing converters to meet specific requirements, ranging from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated design options are available to provide personalized, efficient, and cost-effective solutions for all industries.
Product Specifications
| Parameter | Details |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD40S366 |
| Input Voltage | 38-42VAC |
| Output Voltage | 36VDC |
| Output Current | 6 Amps |
| Output Power | 216 Watts |
| Material of Shell | Aluminum |

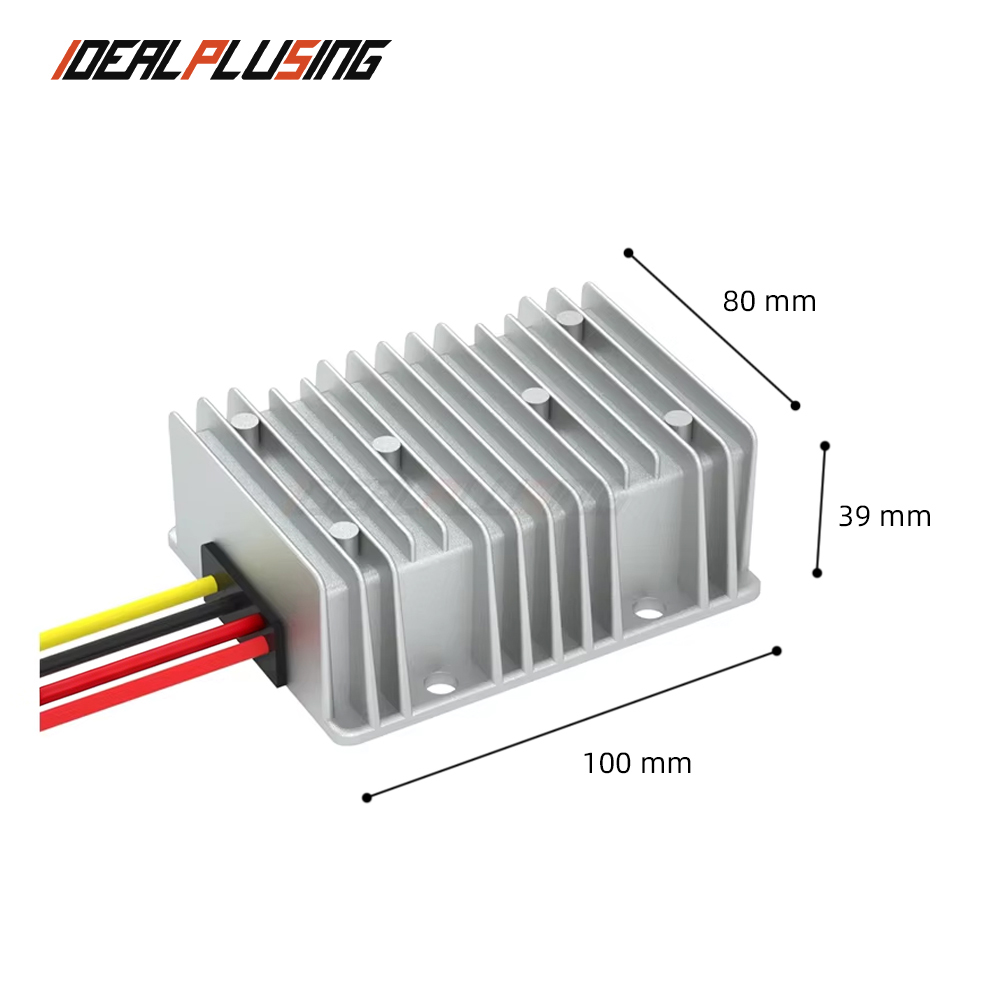

| Converter Size | 100*80*39MM |
| Net Weight | 500G |
| Waterproof Level | IP67 |
Available Model Series
| Category | Model/Series | Input to Output | Current Options |
|---|---|---|---|
| DC-DC Boost | IPS-DTD12S24** | 12V to 24V | 1A to 50A |
| DC-DC Boost | IPS-DTD12S48** | 12V to 48V | 1A to 20A |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| DC-DC Buck | IPS-DTD48S24** | 48V to 24V | 1A to 50A |
| Battery Charger | IPS-DTDYC* | 10-36VDC | 1/2/3...20A |
| Isolated Step Down | IPS-DTDYI24S12* | 9-36V to 12V | 1A to 20A |
Hot Selling Models
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
IPS-DTD50-60S488
IPS-DTD48S1240
IPS-DTD28-50S1065.6
Technical Application Guide
- Buck-boost and step-down products include overcurrent, short-circuit, undervoltage, and overheating protection (standard at 90°C).
- Step-up series products lack internal short-circuit protection; external fuses are required at the input end.
- Gold-colored small aluminum casings are high-temperature resistant, ideal for outdoor and high-demand environments.
- For inductive loads (motors, magnetic valves), use a power supply 3-5 times the rated power of the load.
- Isolated products ensure safety by preventing high input voltage from passing to the output, protecting precious equipment.
- The negative poles (ground) of isolated products must be used separately to maintain the isolation effect.

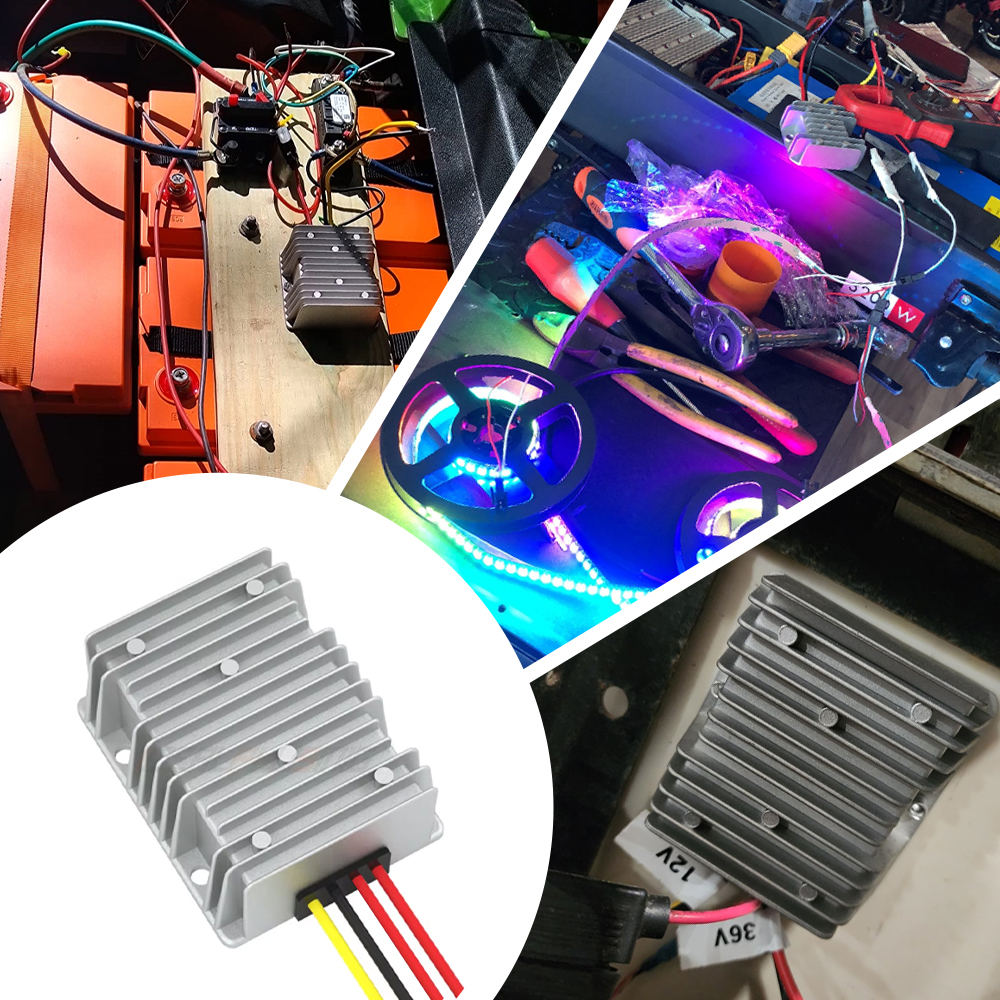

Product Showcase
Frequently Asked Questions
Q1: What is the main benefit of an isolated DC/DC converter?
Isolated converters provide the highest level of safety. They prevent high input voltage from passing to the output end in case of failure, ensuring your valuable equipment is protected.
Q2: Can these power supplies be used for motor applications?
Yes. However, for inductive loads like motors, we recommend choosing a power supply with 3-5 times the rated power of the load to handle start-up surges.
Q3: Do your products support customization?
Absolutely. we can customize input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
Q4: What happens if there is an undervoltage situation?
Standard products come with input undervoltage protection. However, step-up series may not shut down automatically, so adding an input fuse is essential.
Q5: Are these converters suitable for outdoor use?
Many of our models, such as the IPS-ATD40S366, feature an IP67 waterproof level and high-temperature resistant aluminum casings, making them ideal for outdoor applications.
Q6: What is the difference between PWM and PFM control?
PWM control is used for high efficiency and low noise under normal loads. PFM control is advantageous for low power consumption when the device operates under small loads for extended periods.
